Showing 33–39 of 39 results

  • BANNER QS18VN6CV45 Photoelectric Sensor

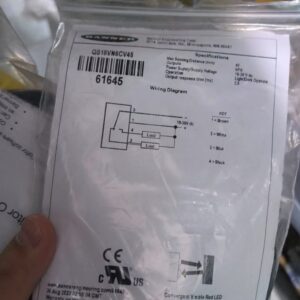

    BANNER QS18VN6CV45 Photoelectric Sensor

    • Manufacturer: BANNER
    • Model / Part Number: QS18VN6CV45
    • Sensing Method: Convergent mode (focuses a visible red LED light beam at a precise point).
    • Focal Point / Sensing Distance: Fixed at 43 mm (about 1.7 inches).
    • Input Voltage: 10 to 30 V DC.
    • Output Configuration: Complementary solid-state NPN (Light-ON or Dark-ON operation).
    • Connection Type: Pre-wired 2-meter (6.5 feet) cable with bare-end wires.
    • Environmental Protection: IP67 and NEMA 6 rated housing, meaning it is dust-tight and waterproof.
    • Mounting: Standard M18 threaded nose mount.
    Read moreDone
  • BANNER QS18VN6FF100 Photoelectric Sensor

    BANNER QS18VN6FF100 Photoelectric Sensor

    • Manufacturer: BANNER
    • Model / Part Number: QS18VN6FF100
    • Sensing Method: Fixed-Field Background Suppression. This means the sensor focuses tightly on a set zone and ignores objects that are farther away in the background.
    • Sensing Range: 100 mm (approx. 4 inches) cutoff point.
    • Output Type: Complementary Solid-State NPN. It features both Light-ON and Dark-ON capabilities.
    • Input Voltage: 10 to 30 VDC.
    • Connection Type: Pre-wired with a 2-meter (6.5 ft) cable.
    • Housing Style: Rectangular "universal" body with an 18 mm threaded lens barrel, allowing it to be side-mounted or nose-mounted.
    • Environmental Protection: IP67 and NEMA 6 rated, making it highly dust-tight and water-resistant.
    Read moreDone
  • BANNER QS18VP6D Photoelectric Sensor

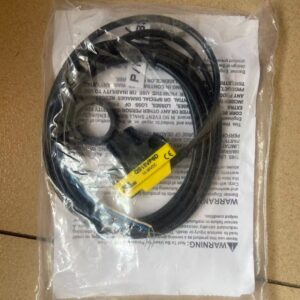

    BANNER QS18VP6D Photoelectric Sensor

    • Manufacturer: BANNER
    • Model / Part Number: QS18VP6D
    • Sensing Distance: Up to 450 mm (17.7 inches).
    • Light Type: Infrared (IR) light beam.
    • Input Voltage: 10 to 30 V DC.
    • Output Type: Complementary solid-state PNP (supports both Light-ON and Dark-ON states).
    • Connection: Pre-wired 2-meter (6.5 feet) cable with bare wires.
    • Part Number: 61654.
    Read moreDone
  • BANNER QS18VP6LDQ5 Photoelectric Sensor

    BANNER QS18VP6LDQ5 Laser Diffuse Photoelectric Sensor (QS18 Series)

    REQUEST A QUOTE

    • Metric / Attribute: Specification Details
    • Sensing Mode: Laser Diffuse (Proximity)
    • Sensing Distance: Max 300 mm (11.81")
    • Sensing Beam: Visible Red Laser (650 nm wavelength)
    • Laser Classification: Class 1
    • Supply Voltage: 10–30 V DC
    • Output Type: Discrete Complementary Solid-State PNP (Light-ON / Dark-ON selectable)
    • Output Response Time: 0.7 milliseconds (700 µs)
    • Electrical Connection: 150 mm (6 in) PVC Pigtail with a 4-pin M12 Euro-style Quick Disconnect (QD)
    • Adjustments: Integrated Potentiometer

    BANNER QS18VP6LDQ5 Laser Diffuse Photoelectric Sensor (QS18 Series).

    Read moreDone
  • BANNER QS30EDV Photoelectric Sensor

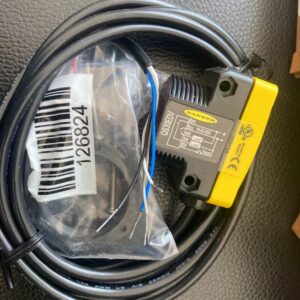

    BANNER QS30EDV Photoelectric Sensor

    • Manufacturer: BANNER
    • Model / Part Number: QS30EDV
    • Part Number: 76090
    • Sensing Mode: Diffuse (it bounces light directly off the object to look for it)
    • Sensing Beam: Visible red LED (660 nm wavelength)
    • Normal Mode: 1400 mm
    • High-Speed Mode: 1100 mm
    • Power Input: 10–30 V dc
    • Output Type: Bipolar NPN/PNP discrete outputs
    • Connection: 2-meter (6.5 feet) built-in cable
    • Response Time: 0.3 to 1.8 milliseconds
    Read moreDone
  • BANNER T30UIPBQ Ultrasonic Distance Sensor

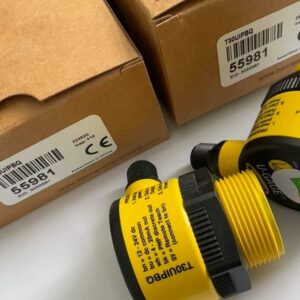

    BANNER T30UIPBQ Ultrasonic Distance Sensor

    REQUEST A QUOTE

    • Manufacturer: BANNER
    • Model / Part Number: T30UIPBQ
    • Sensing Range: 300 to 2000 mm
    • Analog Output: 4 to 20 mA
    • Discrete Output: PNP
    • Supply Voltage: 12 to 24 VDC
    • Connection: 5-pin M12 quick disconnect
    • Housing: Right-angle M30 barrel, thermoplastic polyester
    • Protection Rating: IP67 / NEMA 6P
    • Operating Temperature: -20 to 70 °C
    • Response Time: 96 ms

    BANNER T30UIPBQ is an ultrasonic distance sensor with a 300 to 2000 mm sensing range. It provides a 4 to 20 mA analog output and a PNP discrete output.

    Read moreDone
  • Banner T30UXIB Ultrasonic Sensor

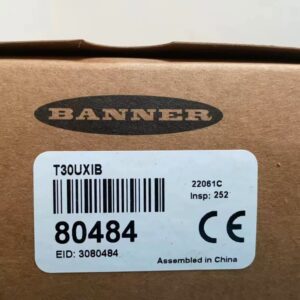

    Banner T30UXIB Ultrasonic Sensor

    • Brand: Banner
    • Model: T30UXIB
    • Series: T30UX
    • Sensing range: 200–2000 mm
    • Output: 4–20 mA analogue
    • Power supply: 10–30 V DC
    • Ultrasonic frequency: 174 kHz
    • Connection: Integral 2 m cable
    • Selectable response time: 92 ms or 222 ms
    • Part number: 80484
    Read moreDone
