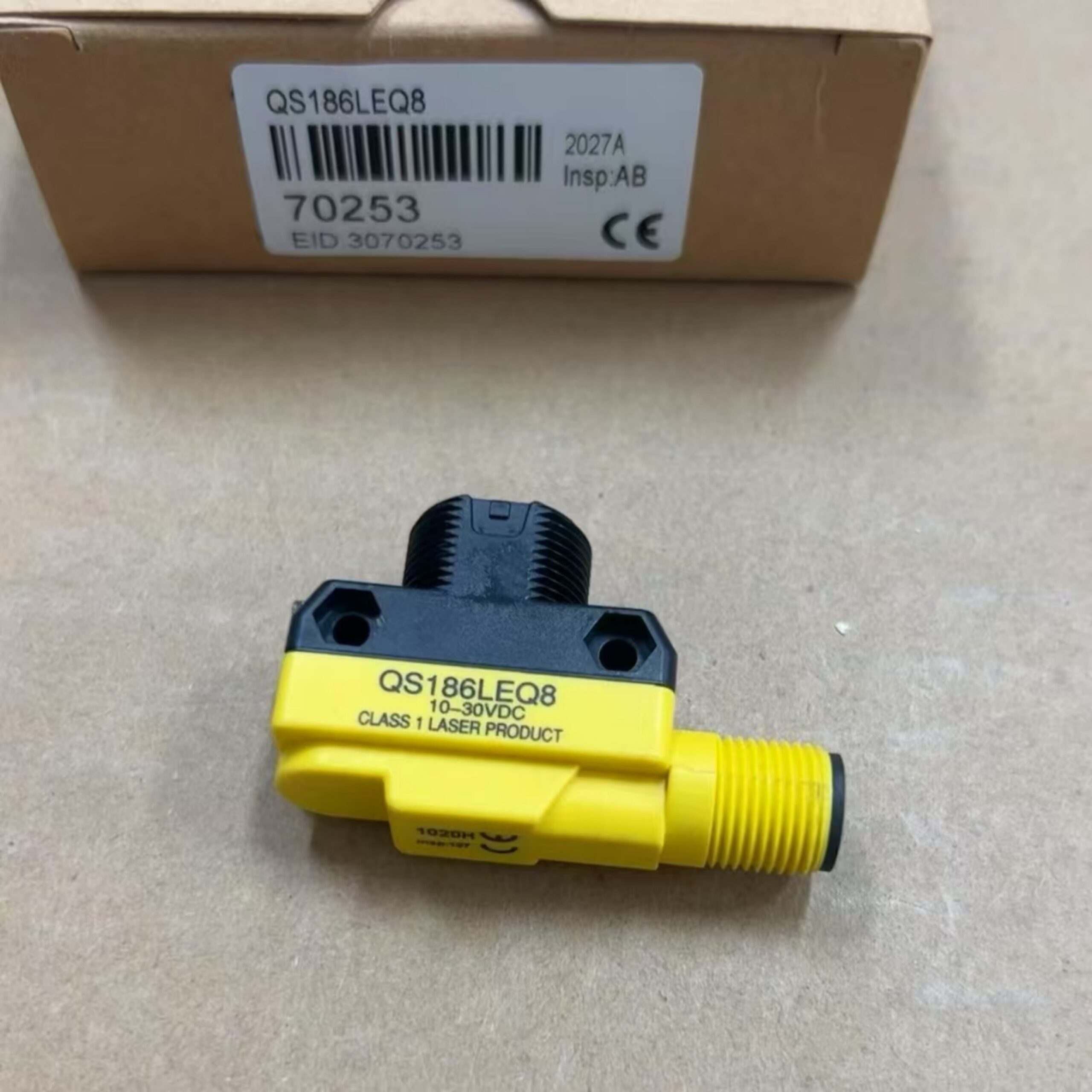

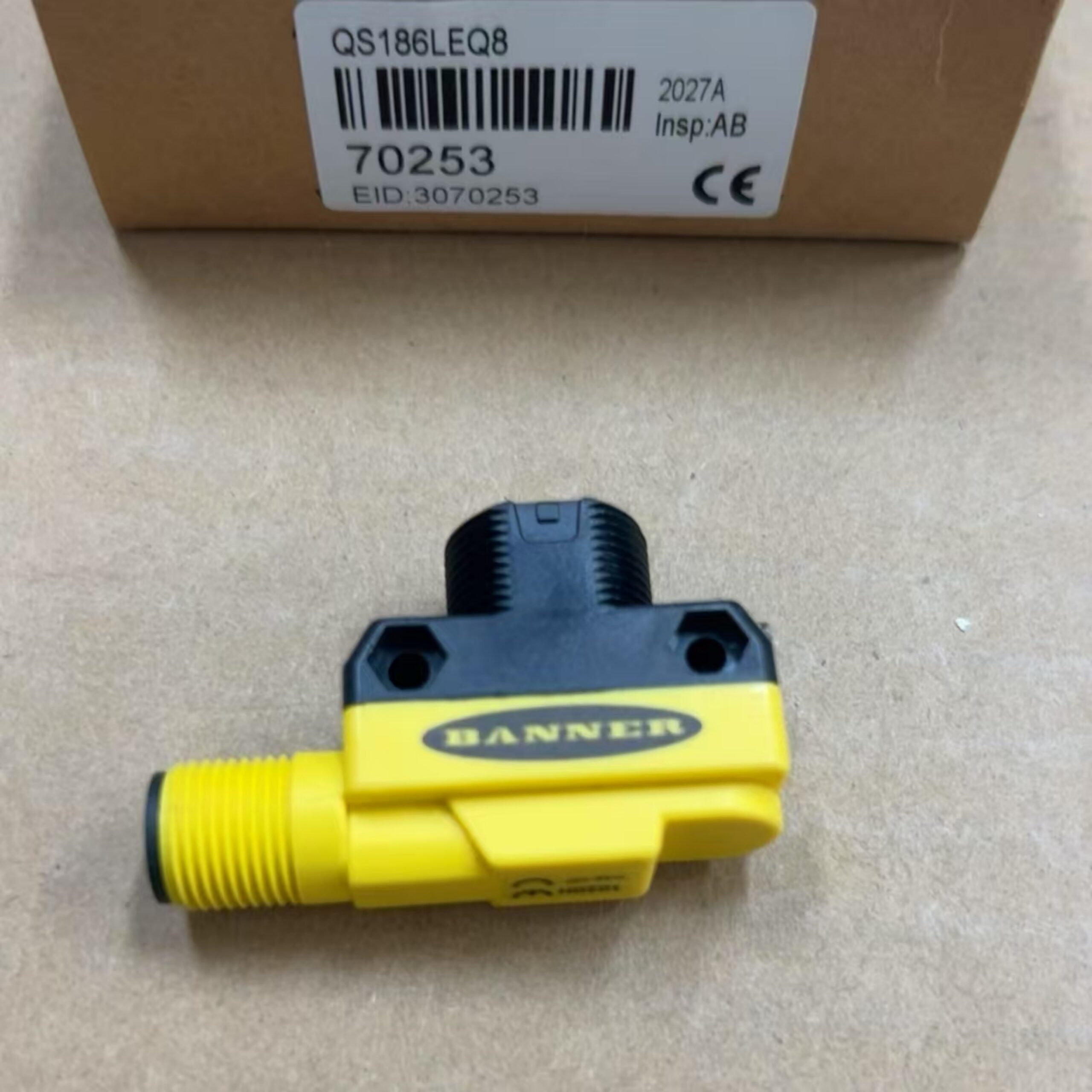

BANNER QS186LEQ8 Laser Emitter
- Manufacturer: BANNER
- Model / Part Number: QS186LEQ8
- Sensing Mode: Opposed (Through-Beam) Emitter component only
- Sensing Range: Up to 30 meters (98.4 feet) High gain helps burn through dust and mist
- Operating Voltage: 10 to 30 V DC Compatible with standard 12V and 24V systems
- Current Rating: Up to 100 mA max Typical operating current draw
- Output Type: Not Applicable No output channels on the emitter block
- Connection Type: 4-Pin M12 Micro (Euro-Style) Integral Quick-Disconnect (QD)
- Housing Style: Rectangular body with a built-in M18 threaded barrel mount.
- Materials: Rugged ABS thermoplastic housing with a PMMA (acrylic) lens window.
- Environmental Rating: IP67 and NEMA 6 protection against dust and water submersion.
- Operating Temperature: -10°C to +50°C (14°F to 122°F).
- Indicators: Bright 360° visible status LEDs.
- SKU: QS186LEQ8
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
