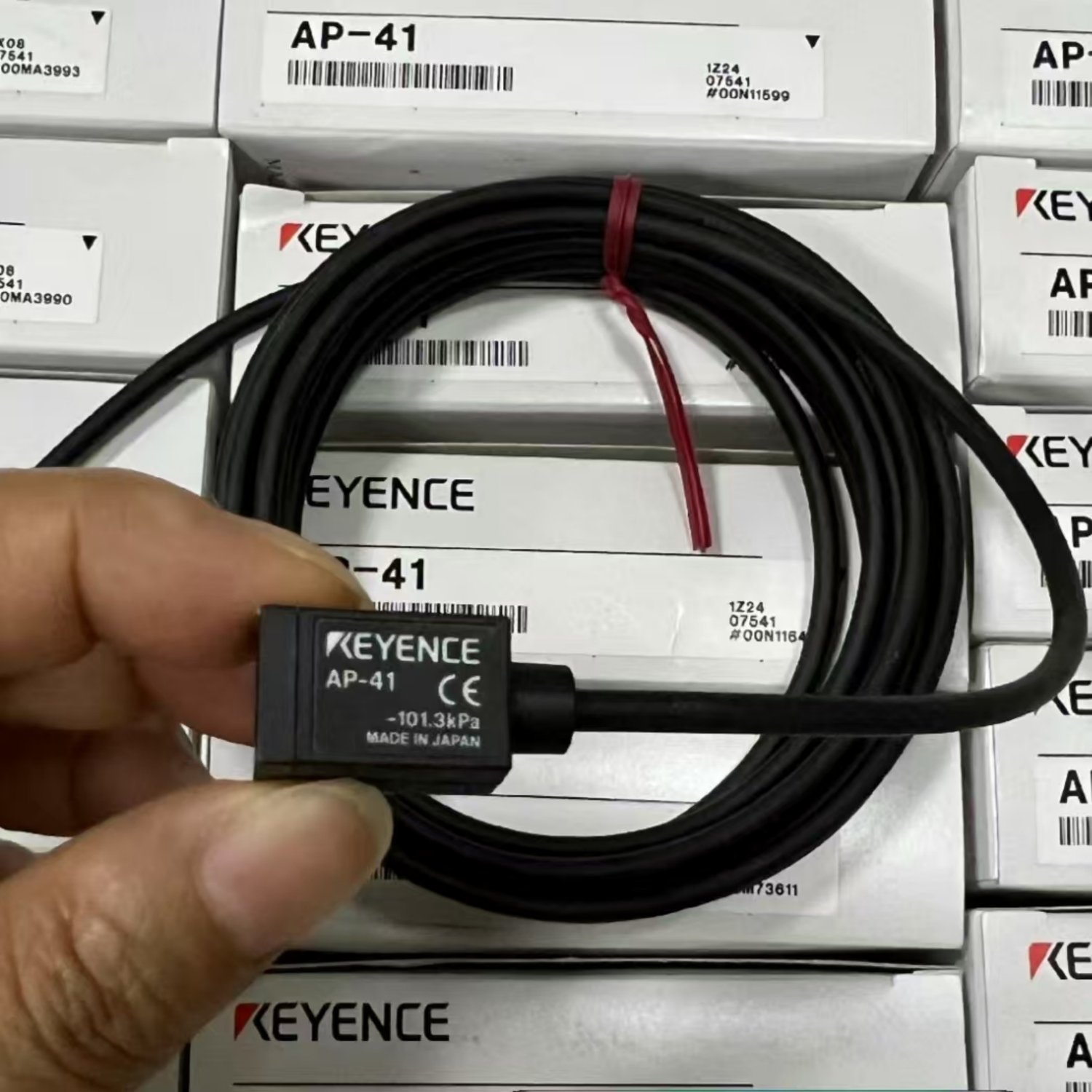

AP-41 Pressure Sensor For KEYENCE

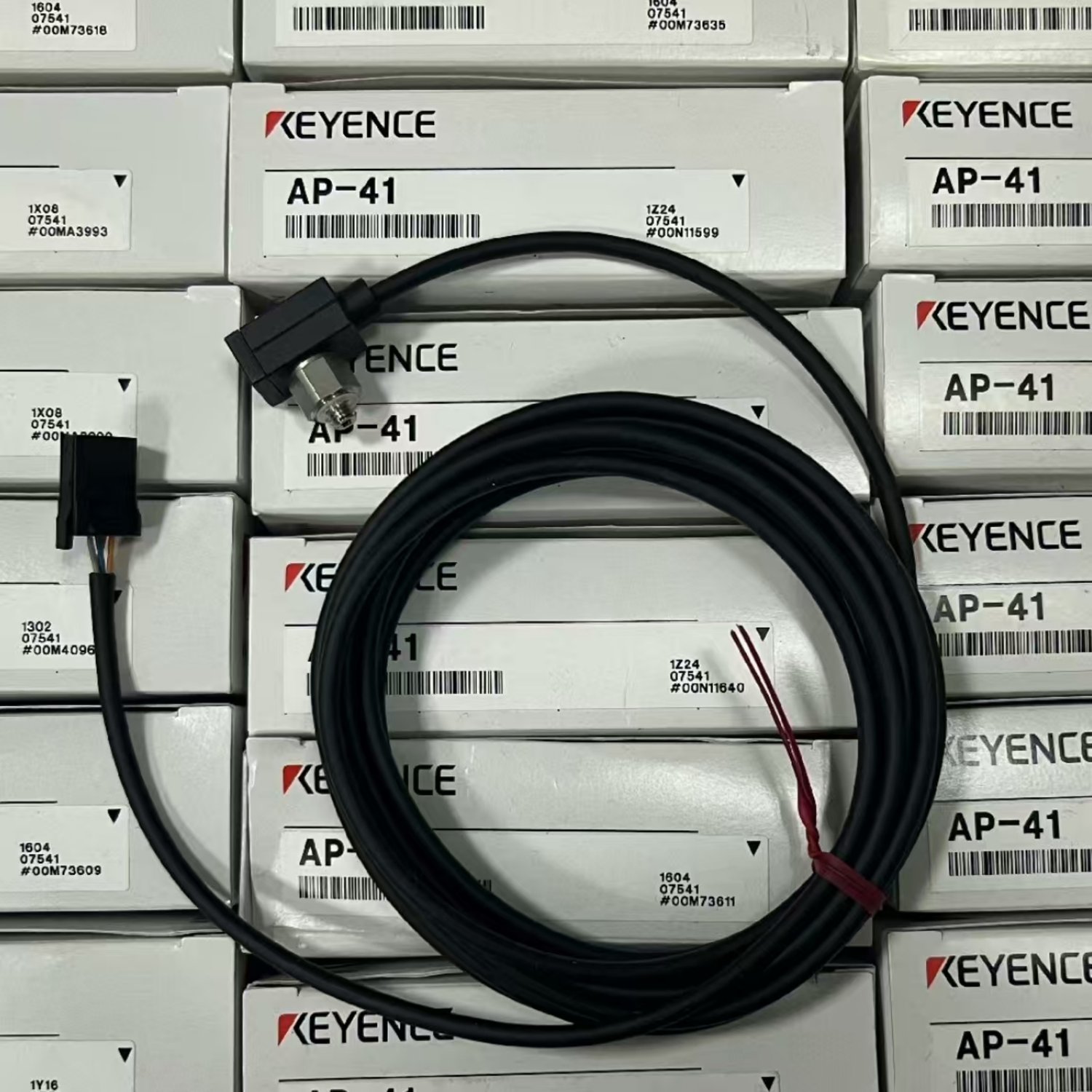

KEYENCE AP-41 Vacuum Sensor (AP Series) - Image 2

KEYENCE AP-41 Vacuum Sensor (AP Series)

REQUEST A QUOTE

Application Type: Gauge pressure / Negative pressure (Vacuum)
Rated Pressure Range: 0 to -101.3 kPa
Pressure Resistance: 500 kPa
Fluid Compatibility: Clean air and non-corrosive gases
Pressure Port (Thread): M5 male thread
Temperature Characteristics: ±2% of F.S. (relative to 25°C / 77°F)
Material Composition: Case: PBT | Screw: SUS303 | Cable: PVC
Operating Ambient Temperature: 0 to +50°C (32 to 122°F), with no freezing
Operating Relative Humidity: 35% to 85% RH, with no condensation
Vibration Resistance: 10 to 55 Hz, 1.5 mm (0.06") double amplitude, 4 hours each in X, Y, and Z axes

KEYENCE AP-41 Vacuum Sensor (AP Series).
