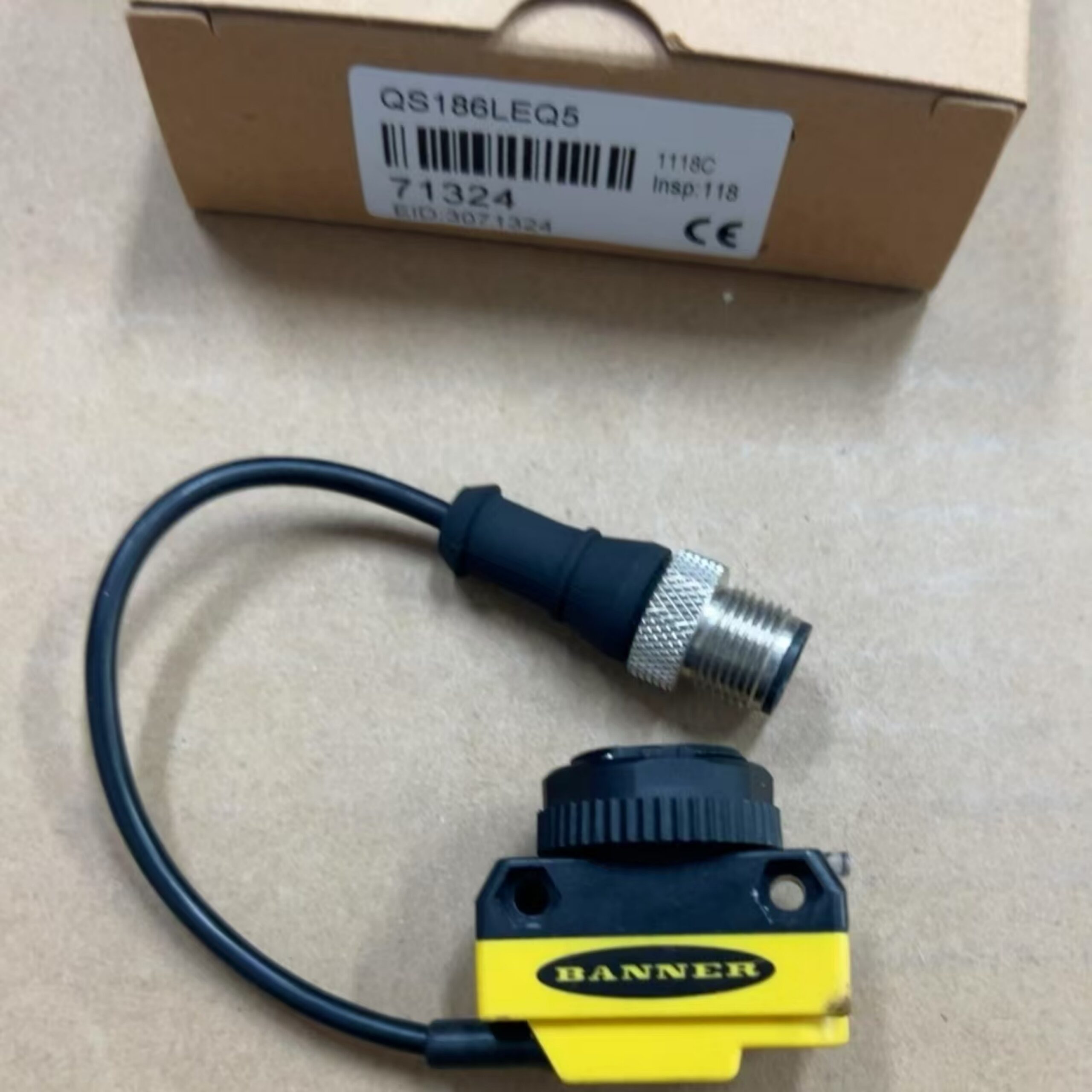

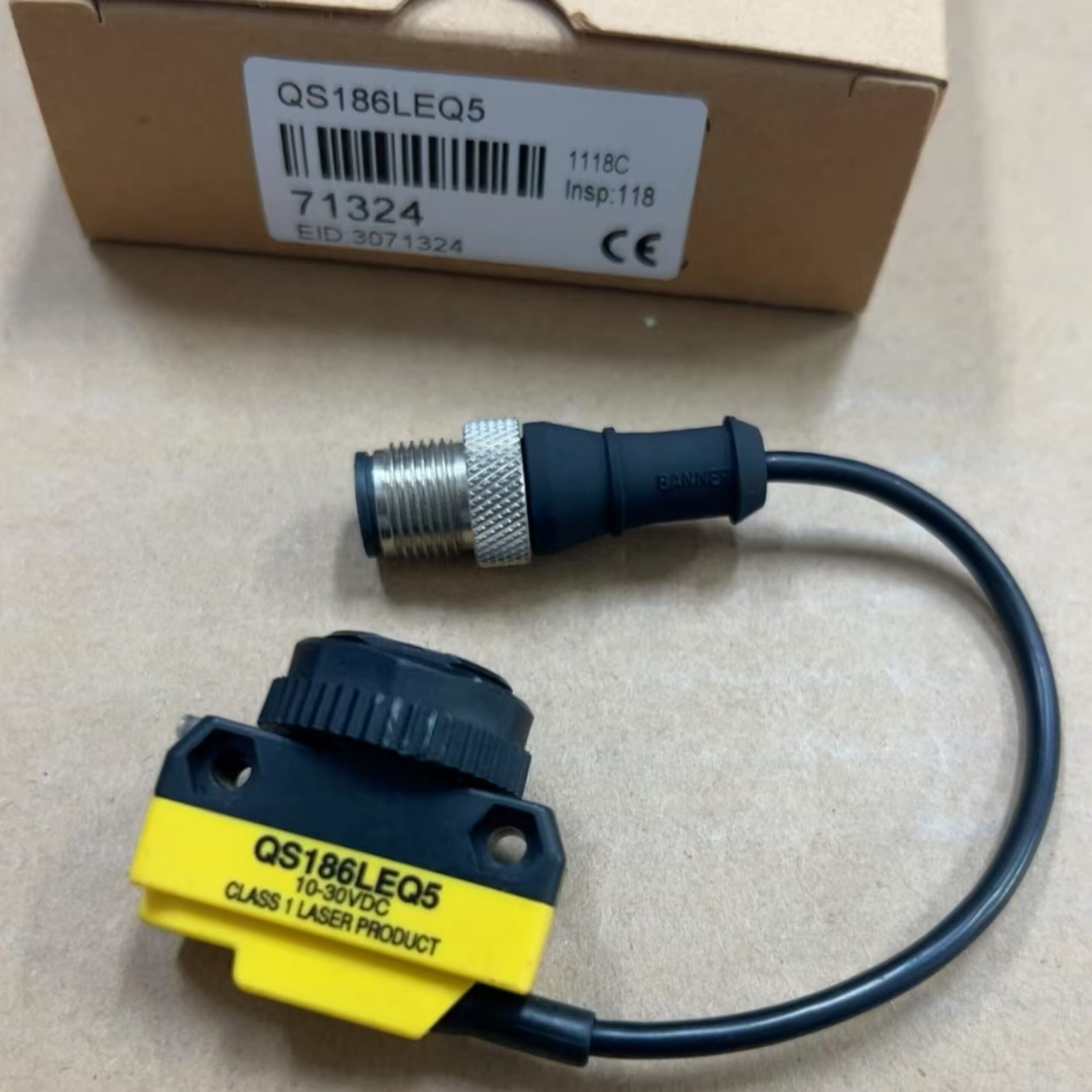

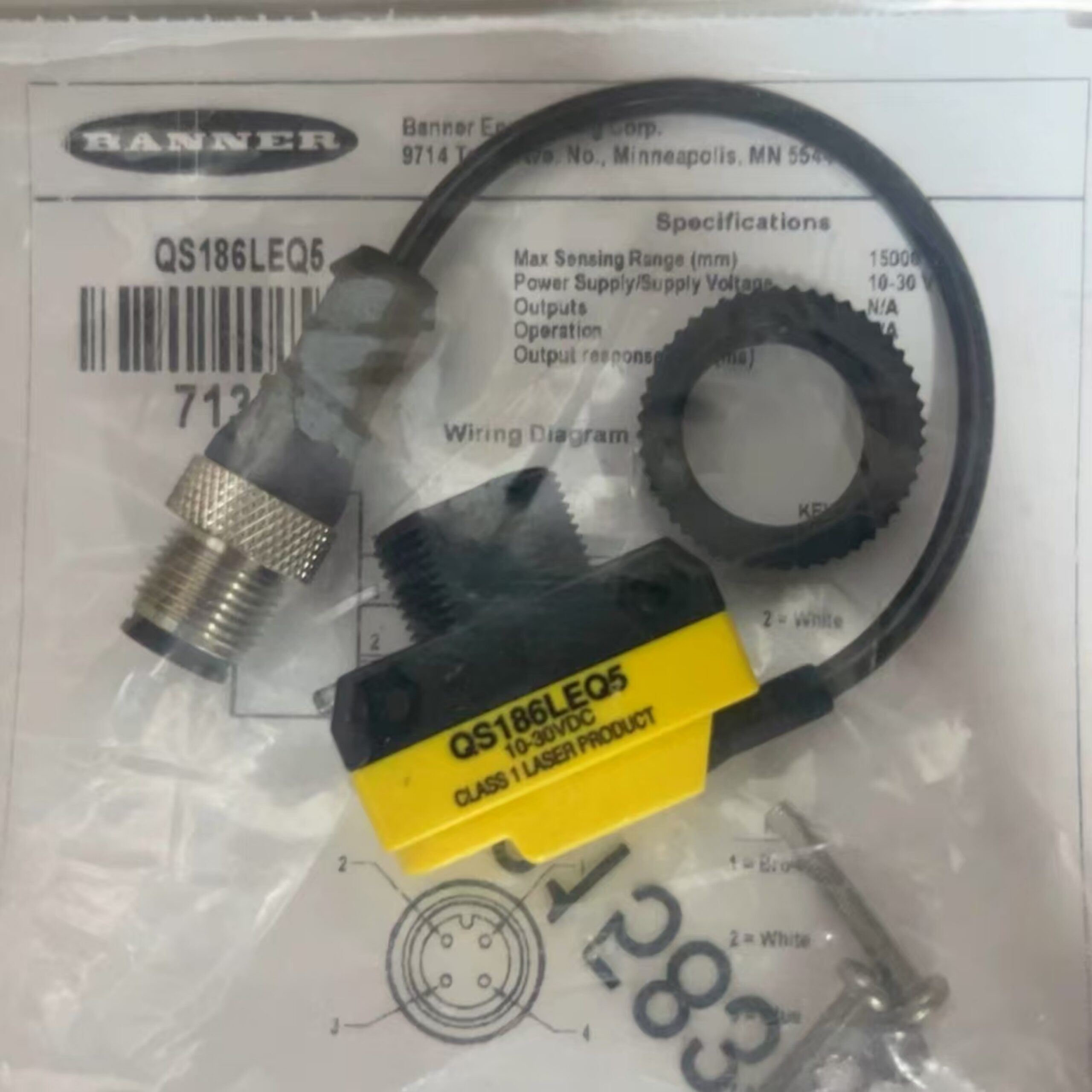

BANNER QS186LEQ5 Industrial Sensor
- Manufacturer: BANNER
- Model / Part Number: QS186LEQ5
- Function: Laser Emitter only (requires a matching receiver to complete the sensing system).
- Sensing Range: 30 meters (approx. 100 feet).
- Input Voltage: 10–30 V DC.
- Output: Not applicable (since it is an emitter, it does not send an output signal; the receiver handles the output).
- Connection Type: 150 mm (6 in) pigtail cable terminated with a 4-pin M12 Euro-style Quick Disconnect (QD) connector.
- Laser Class: Class 1 (safe under reasonably foreseeable conditions of operation).
- Housing Style: Rectangular shape with an M18 threaded barrel mount.
- Materials: Thermoplastic housing with a Polymethyl methacrylate (PMMA) lens.
- Environmental Rating: IP67 / NEMA 6 (highly dust and water-resistant).
- Operating Temperature: -10 °C to +50 °C.
- Indicator Lights: Green LED (Power ON), Yellow LED (Light sensed).
- Certifications: cURus, CE.
- SKU: QS186LEQ5
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
