Showing 1089–1104 of 2086 results
-
- Manufacturer: GE FANUC
- Model / Part Number: IC693ALG223
- Number of Channels: 16 single-ended
- Supported Ranges: 4 to 20 mA, 0 to 20 mA, and 4 to 20 mA Enhanced
- Resolution: 12-bit (corresponds to 4 µA or 5 µA per step)
- Accuracy: ±0.25% at room temperature (25°C)
- Input Impedance: 250 Ohms
- Isolation: 1,500V electrical isolation between field side and PLC logic
- Update Rate: 6 milliseconds across active channels
- High-Density Inputs: Packing 16 channels into a single slot saves physical space in your PLC rack.
- Electrical Protection: The 1500V isolation prevents electrical noise and dangerous "ground loops" from damaging the main PLC processor.
- Internal Power: Consumes 120 mA from the PLC backplane's 5V DC bus.
- External Power: Requires 65 mA from a user-supplied +24V DC external power supply to power the current loops.
-
- Manufacturer: GE FANUC
- Model / Part Number: IC693ALG223D
- Number of Channels: 16 single-ended channels.
- Resolution: 12-bit.
- Accuracy: ±0.25% at 25°C (77°F); ±0.5% over the full temperature range.
- Update Rate: 13 milliseconds for all 16 channels to refresh.
- Input Impedance: 250 Ohms.
- Electrical Isolation: 250 VAC continuous optical isolation (or 1500 VAC for up to one minute) between the field device side and the PLC logic side.
- From PLC Backplane: 120 mA from the 5 VDC bus.
- External Power Supply: Needs a 24 VDC external user supply, consuming 65 mA plus the loop currents.
- Diagnostics: Configurable high and low alarms per channel. The "Enhanced" mode triggers a low alarm if a wire breaks (open-wire detection).
- LED Status Lights: Features front-panel LED indicators to quickly communicate if the module is running okay, failed, or has power.
- Rax Compatibility: Can fit into any standard I/O slot supporting serial connectors. Note that while the module works in both systems, firmware updates are only supported when it is plugged into an RX3i rack, not older Series 90-30 racks.
-
REQUEST A QUOTE

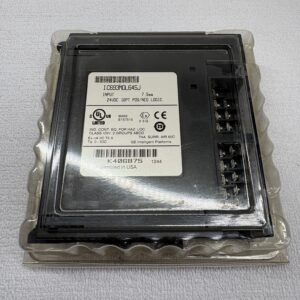

- Manufacturer: GE Fanuc
- Model / Part Number: IC693MDL645J
- Product family: Series 90-30
- Full model: IC693MDL645J
- Nominal input voltage: 24 V DC
- Input points: 16
- Input logic: Positive/negative
- Nameplate input timing: 7.5 ms
-
REQUEST A QUOTE
- Input Voltage Tiers: 85 to 264 VAC (120/240 VAC nominal)
- Total Power Rating: 30 Watts
- Input Power Demand: 90 VA with VAC input; 50 W with Vdc input
- Output Voltages: • +5 VDC: 15 Watts max
- Inrush Current: 4 Amps peak maximum
- Communication Ports: RS-485 Serial Port (used for CPU communication / programming)
- Connections: 6 Terminal points utilizing screw terminals
- Backup Battery: Compatible with the IC693ACC301 battery pack
- Auto-Ranging Input: Automatically scales to handle incoming AC or DC power levels within its range without requiring manual jumper configurations.
- Hardware Protection: Features built-in smart switch fusing and electronic current limiting. If a direct short circuit occurs, the power supply immediately shuts down to protect downstream rack hardware.
GE FANUC IC693PWR321 Power Supply Module (Series 90-30).
-

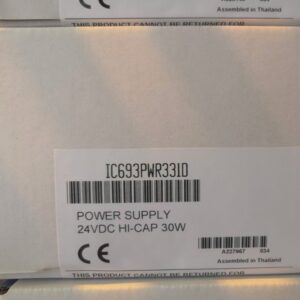

- Manufacturer: GE Fanuc
- Model / Part Number: IC693PWR331
- Module Type: High-Capacity Power Supply
- PLC Platform: Series 90-30
- Nominal Input Voltage: 24 VDC
- Input Voltage Range: 12 to 30 V DC
- Total Load Capacity: 30 Watts
- Full Load Power Rating: 50 Watts (Input consumption)
-
REQUEST A QUOTE
Technical Specifications
- Module Type: Discrete Digital Input Module
- Number of Points: 32 (Divided into 4 isolated groups of 8 channels)
- Rated Input Voltage: 24 VDC (Accepts range of 0 to 30 VDC)
- Logic Configuration: Positive/Negative (Sink or Source wiring options)
- Input Current: 7.0 mA per point typical at rated voltage
- Backplane Current Draw: 300 mA @ 5 VDC (With all inputs active)
- Optical Isolation: 250 VAC continuous / 1500 VAC for 1 minute (Field to Backplane & Group to Group)
- Configurable Filter Time: 0.5 ms to 100 ms per channel
- Flexible Logic Support: Because it handles both positive and negative logic, the module accommodates sourcing devices (where current flows from the device to the input) or sinking devices (where current flows from the input to the device).
- High-Density Footprint: Packing 32 channels into a single RX3i slot conserves critical backplane space, reducing the physical size of the automation enclosure.
- Industrial Isolation: Built-in optical isolation safeguards delicate internal backplane circuitry from high-voltage spikes or electrical noise generated in the field.
GE FANUC IC694MDL660-CC Discrete Input Module (PACSystems RX3i).
-
- Manufacturer: GE Fanuc
- Model / Part Number: IC694PWR330
- Product Line: PACSystems RX3i Series
- Module Type: Expansion Power Supply (Remote Bases Only)
- Nominal Rated Input: 120/240 VAC or 125 VDC
- Input Voltage Range: AC: 85 to 264 VAC | DC: 100 to 300 VDC
- Maximum Input Power: 100 VA (with VAC Input) | 50 W (with VDC Input)
- Inrush Current: 4 Amperes peak, 250 ms maximum
-
REQUEST A QUOTE
- Module Type: Universal Base Power Supply
- Platform Compatibility: PACSystems RX3i
- Backplane Support: RX3i Universal Backplane only (IC695 catalog numbers)
- Slots Occupied: 2 backplane slots
- Nominal Input Voltage: 120/240 VAC or 125 VDC
- Input Voltage Range: 85 to 264 VAC or 100 to 300 VDC
- Input Power: 70 W max with VDC
- Total Load Capacity: 40 Watts
- Expansion Limits: Up to 4 multi-purpose power supplies (IC695PSA140 and/or DC-equivalent IC695PSD140) can sit on a single RX3i Universal Backplane.
- Increased Capacity Mode: Multiple units seamlessly load-share when the overall system current envelope exceeds what a single module can output.
GE FANUC IC695PSA140 Power Supply Module (PACSystems RX3i).
-
REQUEST A QUOTE
- Manufacturer & Series: Gefran — LT Series (With Shaft)
- Part Number: LT-M-0100-S (Factory Code: F003494)
- Useful Electrical Stroke: 100 mm (3.93 inches)
- Ohmic Resistance: 5 kΩ (±20% tolerance)
- Independent Linearity: ±0.05%
- Resolution: Infinite
- Electrical Connection: 4-pole connector (DIN 43650 / ISO 4400 Form A)
- Mechanical Linkage: Pull shaft, M5 or M6 threaded ball joint
- Max Displacement Speed: 5 m/s (16.4 ft/s)
- Ingress Protection (IP): IP60 rating
GEFRAN LT-M-0100-S Position Transducer (LT Series).
-
REQUEST A QUOTE
- Transducer Type: Potentiometer (rectilinear displacement)
- Stroke Length: 130 mm (approx. 5.1 inches)
- Resistance: 5 kOhm standard
- Linearity: ± 0.05%
- Electrical Connection: 4-Pole DIN 43650 Form A connector
- Protection Rating: IP60
- Lifespan: Up to 25 million cycles
GEFRAN LT-M-0130-S Linear Potentiometer Displacement Transducer (LT-M Series).
-
REQUEST A QUOTE
- Manufacturer: Gefran
- Model / Part Number: LT-M-0150-S 0000X000X0C
- Full model: LT-M-0150-S 0000X000X0C
- Manufacturer code: F049752
- Measuring principle: Potentiometric
- Electrical stroke: 150 mm
- Resistance: 5 kΩ
- Independent linearity: ±0.05%
- Electrical connection: LT-M 4-pole connector, DIN 43650 / ISO 4400
- Protection version: S, IP60
- Mechanical actuation: Shaft with M6 thread
- Repeatability: 0.01 mm
- Operating temperature: −30 to +100 °C
-
REQUEST A QUOTE
- Manufacturer: Gefran
- Model / Part Number: LT-M-0150-S
- Electrical stroke: 150 mm
- Resistance: 5 kΩ, ±20%
- Measurement principle: Potentiometric
- Independent linearity: ±0.05%
- Repeatability: 0.01 mm
- Maximum travel speed: 10 m/s
- Connector: 4-pole DIN 43650 / ISO 4400
- Protection: IP60
- Operating temperature: −30 to +100 °C
-
REQUEST A QUOTE
- Manufacturer: GESTRA
- Model / MPN: NRG19-50
- Electrode Length (L): 100 mm (determines the low-water switchpoint)
- Mechanical Connection: G ¾ A threaded connection (ISO 228-1)
- Pressure Rating: PN 160 (Nominal pressure capability)
- Max Service Pressure: 100 bar at a temperature of 311 °C
- Measuring Principle: Conductive (utilizes the electrical conductivity of water)
- Body Material: High-grade stainless steel
- Boiler Protection: When the water level drops below the tip of the 100mm electrode, it triggers an instant low-water alarm (LW), cutting power to the boiler heating elements to prevent catastrophic dry-firing damage.
- Self-Monitoring Safety: The system features advanced internal diagnostics. It triggers a safety alarm automatically if the electrode insulation degrades, develops a leak, or suffers an electrical connection failure.
- Installation Requirements: It can be mounted inside a boiler vessel or within an external level pot/standpipe. Per GESTRA Installation Manuals, you cannot install two NRG19-50 limiters inside the same single standpipe.
Gestra NRG19-50 L=100mm G3/4 PN160 Conductive Level Electrode (NRG19 Series).
-
REQUEST A QUOTE
- Output Type: Linear DC (Low Ripple & Noise)
- Total Power: 195 Watts
- Line / Load Regulation: ≤ 0.01% + 3mV (Constant Voltage mode)
- Ripple & Noise: < 1mVrms (5Hz ~ 1MHz)
- Display: Four separate "3-digits" LED displays (voltage/current for CH1 & CH2)
- Weight: Approx. 7 kg (15.4 lbs)
- Tracking Configurations: Channel 1 and Channel 2 can be configured seamlessly using front-panel switches into three useful operational modes:
- Independent: Functions as two completely separate 0–30V power supplies.
- Series Mode: Internally connects the channels to double the voltage output, providing up to 60V / 3A.
- Parallel Mode: Internally connects the channels to double the current output, providing up to 30V / 6A.
GWINSTEK GPS-3303C DC Power Supply (GPS Series).
-
REQUEST A QUOTE
- Instrument System: Core Specification Features & Capabilities
- Digital Oscilloscope: 2 Channels, 250MHz Bandwidth, 1 GSa/s Real-time Sampling Rate • 8M storage depth
- Waveform Generator: 1 Channel, 25MHz Frequency, 12-bit Resolution • 200 MSa/s sampling rate
- Digital Multimeter: 4000 Counts Resolution • Measures AC/DC voltage/current, resistance, capacitance, diode, and continuity
- Interface: Features a 7-inch TFT color capacitive multi-touch screen (800×480 resolution) for intuitive gesture operations.
- Power: Equipped with a massive 10,000mAh detachable lithium battery that supports Type-C 18W fast charging and can function as a temporary power bank.
- Form Factor: Built with an anti-fall, anti-seismic rugged casing and a unique suspension foot stand to allow hands-free benchtop operation.
- Analysis Tools: Features built-in hardware frequency counters, Math functions, FFT spectrum analysis, and up to 42 automatic measurement capabilities.
Hantek TO1252D Portable Tablet Oscilloscope (TO1000 Series).
-
REQUEST A QUOTE
- Button Configuration: 5 buttons total. This includes 4 directional push-buttons (typically marked Up, Down, East, West or Forward, Back) and 1 Emergency Stop button.
- Speed Levels: 1 single-speed level for directional control.
- Electrical Capacity: Rated for standard industrial loads, generally supporting up to 6A to 10A at 250VAC.
- Casing Material: Built using high-impact, thick ABS resin with anti-slip properties to survive drops and harsh conditions.
- Environmental Protection: Features an IP66 rating, making it highly dust-tight and protected against powerful water jets.
- Safety Feature: The prominent mushroom-head emergency stop switch cuts off power immediately during critical operational failures.
HANYOUNG HY-1024SBB Hoist Pendant Control Station (HY-P Series).
