Showing 1073–1088 of 2086 results
-
- Manufacturer: Fuji
- Model / Part Number: GYB401D7-RC2
- Basic Motor Type (GYB): Medium inertia design. This means it provides a good balance of control stability and speed when accelerating or slowing down heavy mechanical loads.
- Rated Speed (D): Built to rotate at a standard speed of 3,000 RPM (revolutions per minute).
- Built-in Encoder (R): Includes a high-resolution 20-bit incremental encoder to track the exact position of the motor shaft.
- Shaft & Seal Style (C): Features a straight shaft without a keyway and is built without an oil seal.
- Physical Weight: The motor alone weighs roughly 1.5 kg (3.3 lbs).
-
REQUEST A QUOTE
- Manufacturer: Fuji Electric (Made in Japan / China variants)
- Product Series: MICREX-SX SPH Series
- Total Slots: 8 Slots total
- Processor Bus Slots: 3 Slots allocated for processor buses
- Power Input: DC 24V, 50mA
- Mounting Type: Panel surface mount or DIN rail via fitting metal
- Physical Weight: ~1.26 lbs (~570 grams) / Bare board approx. 230g
- Module Compatibility: SPH series modules (e.g., NP1PS-74R, NP1AX, NP1L)
FUJI NP1BS-08 PLC Base Board (MICREX-SX SPH).
-
REQUEST A QUOTE
- Manufacturer: Fuji Electric
- Model / Part Number: RYH201F5-VV2
- Product Series: ALPHA5 Smart Series
- Applicable Motor Output: 50W / 100W / 200W (0.2 kW Max)
- Input Power Supply: 3-Phase or Single-Phase 200V–240V AC (50/60 Hz)
- Control Interfaces: General-purpose interface (Pulse train / Analog voltage)
- Control Modes: Position, Speed, and Torque Control
- Frequency Response: 1500 Hz
- Compatible Motor Speed: 1500 to 3000 r/min nominal (Max 6000 r/min)
- Compatible Encoders: 18-bit ABS/INC (262,144 pulses) or 20-bit INC (1,048,576 pulses)
FUJI RYH201F5-VV2 AC Servo Amplifier (ALPHA5).
-
REQUEST A QUOTE
- Manufacturer: Fuji Electric
- Model Number: RYS101S3-LPS
- Series Group: FALDIC-Alpha
- Amplifier Type: L-Type (Built-in Linear Positioning Function)
- Rated Output Power: 0.1 kW (100 Watts)
- Input Voltage: 200V to 230V AC
- Number of Phases: 3-Phase Input
- Encoder Interface: 16-bit Absolute / Incremental (ABS/INC)
- Upper-Level Interface: Digital Input / Digital Output (DI/DO)
- Lifecycle Status: Discontinued (Legacy/Surplus Support Only)
FUJI RYS101S3-LPS AC Servo Amplifier (FALDIC-Alpha).
-
REQUEST A QUOTE
- Manufacturer: Fuji Electric
- Model / MPN: RYT201D5-LS2-Z25
- Product Series: ALPHA5
- Type: LS Type AC Servo Drive
- Power Rating: 750 W (0.75 kW)
- Input Voltage: 220 VAC
- Input Phase: Three-Phase
- Control Mode: Position Control + Speed Control
- Communication Interface: RS-485
- LS Type Functional Variant: The "LS" designation typically dictates specific firmware or hardware adaptations within the ALPHA5 family, often corresponding to specific pulse-train and analog input configurations optimized for standard PLC sequencing.
FUJI RYT201D5-LS2-Z25 AC Servo Drive (ALPHA5).
-

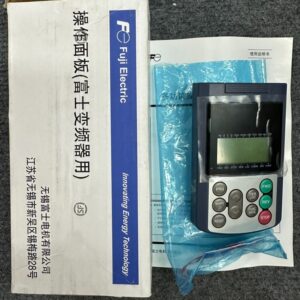

- Manufacturer: FUJI
- Model / Part Number: TP-G1-CLS
- Application Type: FRENIC-Lift elevator AC drive inverter control
- Enclosure Rating: Front side is IP40 (protected against objects greater than 1mm); Rear side is IP20 (basic touch protection)
- Operating Conditions: Intended for indoor use only, within temperatures ranging from -10°C to +50°C
- Storage Environment: Can be stored safely from -25°C to +65°C
- Weight: Approximately 2 kilograms (approx. 4.4 lbs)
-
REQUEST A QUOTE
- Display Device: 7.0” Widescreen TFT Color
- Resolution: 800 × 480 dots (WVGA)
- Color Depth: 65,536 colors
- Backlight Type: LED
- Touch Screen: Analog resistive
- User Memory: 26 MB (Flash ROM) / 128 KB (SRAM)
- Supply Voltage: 24 V DC ± 10%
- Power Consumption: 11W or less
- Panel Cutout Size: 189.0 × 134.0 (+0.5/-0) mm
- Weight: Approx. 1.09 lbs (0.49 kg)
FUJI TS1070SI Human-Machine Interface (HMI) (TS Series).
-
REQUEST A QUOTE
- Display Type: Monochrome LCD QVGA
- Screen Size: 5.7 inches (diagonal)
- Resolution: 320 x 240 pixels
- Power Supply: 24 VDC
- Communication Interfaces: RS-232C, RS-422/485 (via CN1 / MJ1 ports)
- Physical Dimensions: 182.5 mm x 138.8 mm x 57.3 mm (7.19 × 5.46 × 2.26 inches)
- Weight: Approximately 0.63 kg to 0.8 kg (1.4 lbs to 1.76 lbs)
- Built-in Interfaces: Equipped with a serial connector for direct PLC communication (CN1) and a multi-purpose modular jack (MJ1) for screen data transfers or barcode reader integration.
- System Limitation: Unlike higher-tier models in the UG series, the UG03I- communication unit cannot be connected to the UG221H-LE4 variant.
- Battery & Memory: The integrated clock and backup SRAM capabilities are physically restricted to the color/advanced models (UG221H-SR4 and LR4) and are not standard on this base monochrome unit.
FUJI UG221H-LE4 Programmable Operation Display (UG Series).
-
REQUEST A QUOTE
- Dimensions: 172 x 150 x 38 mm
- Rated Voltage: 230 VAC (50/60 Hz)
- Power Input: 27 Watts (at 50Hz) / 26 Watts (at 60Hz)
- Rated Current: 0.11 A (some catalog variants list a locked/starting current of up to 0.18 A)
- Rotational Speed: 2850 RPM (50Hz) / 3400 RPM (60Hz)
- Airflow Volume: 177 CFM / 212 CFM
- Static Wind Pressure: 17 mmH2O / 19 mmH2O
- Noise Level: 54 dB(A) / 58 dB(A)
- Bearing Type: Dual Ball Bearing (indicated by the BTH suffix)
- Termination: 2-Pin Terminal
FULLTECH UF-15AC23 BTH AC230V High-Performance AC Axial Cooling Fan (UF-15AC Series).
-
REQUEST A QUOTE
- System Compatibility: Designed strictly for FANUC CNC controls and PLCs.
- Resolution: 100 Pulses Per Revolution (PPR) for accurate increments.
- Power Requirements: 5V DC input voltage.
- Axis Selection: Integrates a physical rotary knob supporting up to 4-Axis control (typically designated as X, Y, Z, and 4).
- Multiplier/Speed Selection: Standard multi-step scaling knob supporting 1X, 10X, and 100X resolution overrides.
- Output Signal Type: Differential line driver or standard R330 output depending on the factory wiring variant.
- Form Factor: Compact hand-held pendant featuring built-in magnets in the rear casing for easy mounting directly onto steel machine panels.
FUTURE EHDW-BA4S-IM CNC Manual Pulse Generator (EHDW Series).
-
REQUEST A QUOTE
- Screen Size: 6.5 inches diagonal
- Resolution: 640 × 480 pixels (VGA)
- Aspect Ratio: 4:3
- Pixel Pitch: 0.207 x 0.207 mm
- Display Mode: TN, Normally White, Transmissive
- Brightness: 800 cd/m² (Typical) for daylight readability
- Contrast Ratio: 600:1 (Typical)
- Viewing Angle: 80/80 (Left/Right), 70/70 (Up/Down)
- Display Colors: 262K (6-bit) or 16.2M (6-bit + FRC)
- Response Time: 15 ms rise / 10 ms fall (Typical)
G065VN01 V2 AUO TFT LCD Display Module.
-
REQUEST A QUOTE
- Display Dimensions: 7.0-inch diagonal size with a 15:9 aspect ratio.
- Active Area: 152.4 mm (Horizontal) × 91.44 mm (Vertical).
- Luminance (Brightness): 350 cd/m² (Typical).
- Contrast Ratio: 500:1 (Typical).
- Display Colors: Supports 262K (6-bit) or 16.2M (6-bit + FRC).
- Surface Treatment: Antiglare coating with hard coating (3H).
- Temperature Range: Operates and stores efficiently between -20°C and 70°C.
G070VW01 V1 AUO TFT LCD Display Module.
-
REQUEST A QUOTE
- Resolution: 800×600 (SVGA) at 119 PPI
- Brightness: 450 cd/m² (Typical)
- Contrast Ratio: 600:1
- Signal Interface: LVDS (1 channel, 6/8-bit), 20 pins connector
- Light Source: CCFL backlight (50,000 hours lifespan without driver)
- Surface Treatment: Anti-glare with hard coating (3H)
- Power Supply: 3.3V nominal voltage
G084SN05 V.7 AUO TFT LCD Display Module.
-
REQUEST A QUOTE
- Display Resolution: 1280 × 800 pixels (WXGA) at a 16:10 aspect ratio.
- Peak Brightness: Ultra-high 950 cd/m² (nits), making it suitable for direct sunlight viewability.
- Contrast Ratio: Deep 1300:1 contrast for clear text and sharp industrial graphics.
- Viewing Angles: Ultra-wide 85° / 85° / 85° / 85° symmetrical viewing field.
- Signal Interface: 1-channel, 8-bit LVDS interface using a 40-pin connector configuration.
- Touch Interface: Projective capacitive (PCAP) touch matrix communicating over I²C or USB.
- Physical Durability: Features a robust 7H hard-coated, anti-glare screen layer to minimize surface scratches and light reflections.
G101EVT03.0 AUO TFT LCD Display Module.
-
REQUEST A QUOTE
- Channels: 8 single-ended, grouped together.
- Resolution: 13-bit voltage.
- Output Voltage Ranges: Either unipolar (0 to +10.24 VDC) or bipolar (-10.24 to +10.24 VDC).
- External Power: Requires an external power supply to drive the output loops.
- Diagnostics: Built-in LED indicators including OK (indicates backplane power is recognized) and FLD PWR (indicates field-side power is present).
- Fail-Safe Operation: Supports a jumper configuration that forces the module to hold its last state or reset to a default value if communication with the CPU is lost.
GE FANUC IC200ALG325 8-Channel Analog Output Module (VersaMax Series).
-
- Manufacturer: GE FANUC
- Model / Part Number: IC200GBI001-LL
- Series: VersaMax
- I/O Capacity: It supports up to 8 I/O modules per rack, and a total system configuration of up to 8 racks (totaling 64 modules).
- Memory Limits: Manages 1,024 points of discrete input and output memory, as well as 128 bytes of analog memory.
- Network Speed: Operates at varying transmission rates, including standard speeds (38.4, 76.8, or 153.6 Kbaud) and an extended 153.6 Kbaud setting.
- Power Requirements: Draws 250 mA at 5 VDC and 10 mA at 3.3 VDC.
- Bus Address Range: 0 to 31.
- Redundancy: Built with support for both media (cable) and hardware redundancy to keep industrial systems running even if a wire breaks.
