Showing 897–912 of 2181 results
-
- Manufacturer: DUNGS
- Model / Part Number: MB-ZRDLE415B01S20
- Model Type: Two-stage gas valve (ZR) with adjustable slow-opening behavior (-LE) and main volume restrictor (-D).
- Part Number (MRN): 226807 (frequently bundled with a GW 50 A5 pressure switch).
- Connection Size: DN 40 flange (1 ½" BSP thread matching standard gas piping).
- Maximum Inlet Pressure: Up to 360 mbar (36 kPa).
- Outlet Pressure Range: 4 to 20 mbar (0.4 to 2 kPa), which can be adjusted at the regulator.
- Electrical Power: 230 V AC operating voltage at 50–60 Hz.
- Operating Protection: IP 54 rated against dust and moisture splashes.
- Temperature Range: -15 °C to +70 °C (For liquid gas systems, do not use below 0 °C).
- MB-ZR: MultiBloc system featuring a two-stage valve design. This allows the burner to fire at a lower partial flame before stepping up to full heat.
- DLE: Equipped with a main volume restrictor (D) and an adjustable slow-opening hydraulic brake (LE) to prevent gas bursts when starting.
-
REQUEST A QUOTE
- Feature / Attribute: Technical Specification
- Manufacturer: Karl Dungs GmbH & Co. KG
- Model / Part Number: SAD1.2 / 229813
- Power Supply: 24 VDC
- Power Consumption: 7 W
- Torque Rating: 1.2 Nm (Newton-meters)
- Ingress Protection: IP40 (Note: Beware of generic web listings claiming IP65, which often mistake industrial burner servos for standard CNC motors)
- Primary Material: Durable, lightweight engineered composite housing
- Air/Fuel Ratio Control: It drives the mechanical positioning of valves to control precisely how much gas, oil, or air enters the burner system.
- Modulation: Unlike basic open/close solenoid valves, the stepper design allows for incremental adjustments to adapt to shifting load demands.
DUNGS SAD1.2 Motorized Actuator (SAD Series).
-
- Manufacturer: DUNGS
- Model / Part Number: VPS504S02
- Maximum Operating Pressure: 7 PSI (500 mbar).
- Testing Time: Takes 10 to 26 seconds to complete a check depending on the volume of gas trapped.
- Electrical Connection: Uses a standard 7-pole plug connection.
- Protection Rating: IP 40, meaning it is protected from small tools but not waterproof.
-
REQUEST A QUOTE
- Input: 1-Channel Digital Memosens Hot plug-and-play configuration with pre-calibrated digital sensors.
- Output: 2 x 0/4 to 20 mA Current Loops Primary output for main value; Second output dedicated to temperature.
- Relays: 2 x Contacts Serves as limit contactors or alarm switches.
- Display: Two-line backlight LCD Visualizes measured values, sensor status, and error states.
- Dimensions: 48 x 96 x 152 mm Compact build matching common DIN cabinet cut-outs.
- Ingress Protection: Front: IP65 / NEMA 4X; Body: IP20 Provides high splash resistance when panel-mounted.
- Housing Material: Polycarbonate Polyester front membrane.
- Memosens Technology Integration: True galvanic isolation from the sensor prevents ground loops and electrical interference.
- Laboratory Calibration: Digital integration allows you to calibrate sensors in a lab environment and swap them hot in the field, reducing downtime.
- Safety Hold: Built-in manually or automatically triggered freeze function (Setup → Manual hold) ensures system parameters remain safe during field calibration loops.
- Official Product Page: Read through features on the Endress+Hauser Liquiline CM14 Product Hub.
- Complete Technical Information (PDF): For structural diagrams, loop diagnostics, and wiring instructions, refer to the Endress+Hauser Portal Document Index.
- Third-Party Archive: Alternatively, access indexed technical sheets directly via the Alldatasheet Archive for CM14.
E+H CM14-AAM CM14-1020/0 Compact Panel Transmitter (Liquiline CM14 Series).
-
REQUEST A QUOTE
- Code Segment: Parameter Feature
- Operating Distance: Measures up to 10 m (33 ft) in liquids and up to 5 m (16 ft) in coarse bulk solids under standard conditions.
- System Accuracy: Measuring tolerance is rated within ± 4 mm (± 0.16 in) or ± 0.2% of the designated span range.
- Temperature Matrix: The integrated PVDF sensor body handles process environments between -40 °C and 80 °C (-40 °F to 176 °F).
- Pressure Threshold: Optimized for low-pressure systems operating from 0.7 bar up to a maximum overpressure limit of 2.5 bar absolute (10 psi to 36 psi).
- Software Capabilities: Features EchoFOX dynamic signal mapping to automatically filter out false echo disruptions caused by internal tank obstructions or agitators. Includes a 32-point linearisation calculation table to convert levels directly into volume or open-channel flow rates.
E+H FMU42-APB2A22A Ultrasonic Level Transmitter (Prosonic FMU42).
-
REQUEST A QUOTE
- Rated Power Output: 7.5 kW (Equivalent to approximately 10 HP)
- Input Voltage: 3-Phase 380V – 460V AC, 50/60 Hz
- Maximum Current: 17 A
- Enclosure Size: Frame E5
- Physical Dimensions: 156 mm (W) x 265 mm (H) x 170 mm (D)
- Braking Resistor Spec: 75 Ohm / 500W external resistor required for dynamic braking
- Control Method Options: Supports V/Hz (Scalar), Sensorless Vector Control (SVC), Closed-Loop Vector Control (CLV), and Permanent Magnet Motor (PMM) control.
- Built-in Automation: Includes integrated PID controller routines optimized for pump, fan, and pressure-constant piping operations.
- Communication Interface: Modbus RTU / RS485 built-in, with expanding modular support for other standard fieldbus systems.
- Input / Output Flexibility: Features dual high-resolution analog inputs along with freely mappable digital I/O channels.
E2000-0075T3 EURA Variable Frequency Drive.
-
REQUEST A QUOTE
- Input Voltage: 24V DC
- Power Consumption: 26W to 29W
- Connector Type: ISO 4400 DIN 43650-A
- Duty Rating: Continuous duty (85% to 110% of nominal voltage)
- Inner Diameter (ID): 18 mm
- Length: 46.5 mm
- Encapsulation & Protection: Glass-filled nylon; IP65 weather-proof rating
- Valve Size Compatibility: Fits H-Series cartridge sizes 10, 12, 16, and 20 (up to 350 Bar)
- Common Applications: Agricultural harvesters, refuse haulers, excavators, loaders, and tractors
EATON 300AA00122A 24VDC Solenoid Valve (Vickers).
-
REQUEST A QUOTE
- Catalog Number / SKU: 219655
- Model Code: CI-K2-PKZ0-GR
- EAN / GTIN: 4015082196554
- Net Weight: 0.415 kg (0.91 lbs)
- Ingress Protection: IP65 (Dust-tight, water jet resistant)
- Max Heat Dissipation: 12.5 W
- Housing Material: Plastic
- Standards & Compliance: CE, EN 60204
- Core Devices: Houses one PKZ0 or PKZM0 motor protective circuit breaker.
- Supported Add-ons: Accommodates the circuit breaker equipped with up to 2 units of early-make auxiliary contacts (L-PKZ0), standard auxiliary contacts (NHI or AGM), and trip releases (U or A).
EATON CI-K2-PKZ0-GR Switch Enclosure (CI Series).
-
- Manufacturer: EATON
- Model / Part Number: DG4V-3-2C-M-U-H7-60
- Flow Rate: Up to 21 GPM (80 Liters/minute)
- Voltage: 24 Volts DC
- Seal Material: Buna-N (Standard nitrile rubber)
- Weight: Approximately 5.6 lbs (2.5 kg)
-
REQUEST A QUOTE

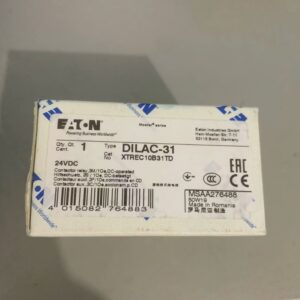

- Manufacturer: Eaton
- Model / Part Number: DILAC-31(24VDC)
- Article number: 276488
- Coil voltage: 24 V DC
- Contacts: 3 NO + 1 NC
- Connection: Spring-loaded terminals
- Mounting: DIN rail or screw mounting
- Protection: IP20
- Dimensions: 45 × 68 × 75 mm (W × H × D)
- Weight: 0.286 kg
- Ambient temperature: −25 to +60 °C
-
REQUEST A QUOTE
- Manufacturer: EATON
- Model / Part Number: DILM115C(RAC240)
- Rated Operational Current: Up to 115 A (AC-3)
- Motor Power: Up to 55 kW at 380/400 V
- Main Contacts: 3-pole (3 NO)
- Terminals: Screw terminals
EATON DILM115C(RAC240) Contactor. Contact us for product information and quotation.
-
- Manufacturer: EATON
- Model / Part Number: EMR6-W500-D-1
- Monitoring Range: 300 to 500 V AC.
- Frequency Range: 50 to 60 Hz (compatible with both US and European power grids).
- Output Contacts: DPDT (2 Change-Over contacts) rated up to 4 Amps.
- Time Delay: Adjustable built-in delay between 0.1 and 30 seconds to prevent false alarms from temporary power dips.
- Mounting: Snaps easily onto standard standard 35mm DIN rails (IEC/EN 60715).
- Size: Slim profile measuring 22.5 mm wide, 85.6 mm high, and 103.7 mm deep.
-
REQUEST A QUOTE
- Manufacturer: Eaton (Moeller Series)
- Part / Catalog Number: ESR5-NO-31-24VAC-DC / 118702
- UPC / EAN: 786689005931 / 4015081168422
- Device Function: Dual-channel monitoring for Emergency Stop / Protective Guard Doors
- Coil / Supply Voltage: 24 VAC (50/60 Hz) or 24 VDC
- Contact Configuration: 3 Normally Open (NO) enabling paths / 1 Normally Closed (NC) signaling path
- Current Rating: 6 A
- Enclosure / Terminal Type: IP20 rating / M3 Screw Terminals
- Mounting: Standard 35 mm DIN Rail Mount
- Weight: 0.164 kg (0.5 lbs)
EATON ESR5-NO-31-24VAC-DC Safety Relay (ESR5).
-
REQUEST A QUOTE
- Manufacturer / Series: Eaton Moeller® FAK Series
- Actuator Style & Color: Round Domed Mushroom Head, Black
- Enclosure Base Color: Gray Top Enclosure / Base
- Contact Configuration: 1 NO / 1 NC (Normally Open / Normally Closed)
- Switching Action: Momentary (Non-latching, returns to position upon release)
- Electrical Ratings: Max 6A @ 230V AC (Up to 10A @ 600V AC / 5A @ 24V DC)
- Actuation Force: 40 N
- Ingress Protection (IP): IP67 / IP69K (Dust-tight, immersion, and high-pressure washdown safe)
- NEMA Environmental Rating: NEMA 4X / NEMA 13
- Mechanical Lifespan: 1,000,000 Operations
EATON FAK-S KC11 I Foot and Palm Switch (FAK Series).
-
REQUEST A QUOTE
- Manufacturer / Series: Eaton Moeller / RMQ-Titan M22 Series
- Actuator Type: 94 mm (3.7 in) Round Mushroom Head
- Actuator Color: Black (Non-illuminated)
- Enclosure Color: Light Grey top / Black base
- Operation Mode: Momentary / Spring-return (Non-latching)
- Contact Configuration: 1 NO (Normally Open) + 1 NC (Normally Closed)
- Electrical Rating: 6 A @ 230 V AC / 10 A @ 600 V AC / 5 A @ 24 V DC
- Ingress Protection: IP67 / IP69K (High-pressure washdown safe)
- Environmental Rating: NEMA 4X, 13 (Corrosion and oil-resistant)
- Mechanical Lifespan: 1,000,000 Operations
EATON FAK-S-KC11-I Foot and Palm Switch (FAK Series).
-
REQUEST A QUOTE
- Solenoid Voltage: 24 VDC
- Contact Configuration: 2NC (2 Normally Closed), DPST-NC
- Switching Mechanism: Positive Opening, Slow Make-Break
- Contact Rating (AC): 6 A at 240 VAC (Max: 415V)
- Contact Rating (DC): 3 A at 24 VDC (Max: 220V)
- Enclosure Material: Polyamide PA66-GF25 (Glass-fiber reinforced)
- Environmental Rating: IP65, IP66, IP67 / NEMA Protection
- Termination Type: Screw Terminals (M20 conduit entry)
- Operating Temp Range: -13°F to 158°F (-25°C to 70°C)
- Dimensions: 2.36" L x 1.21" W x 6.81" H (59.9 mm × 30.7 mm × 173 mm)
EATON LS-S02-24DFT-ZBZ-X Solenoid Valve (LS-Titan).
