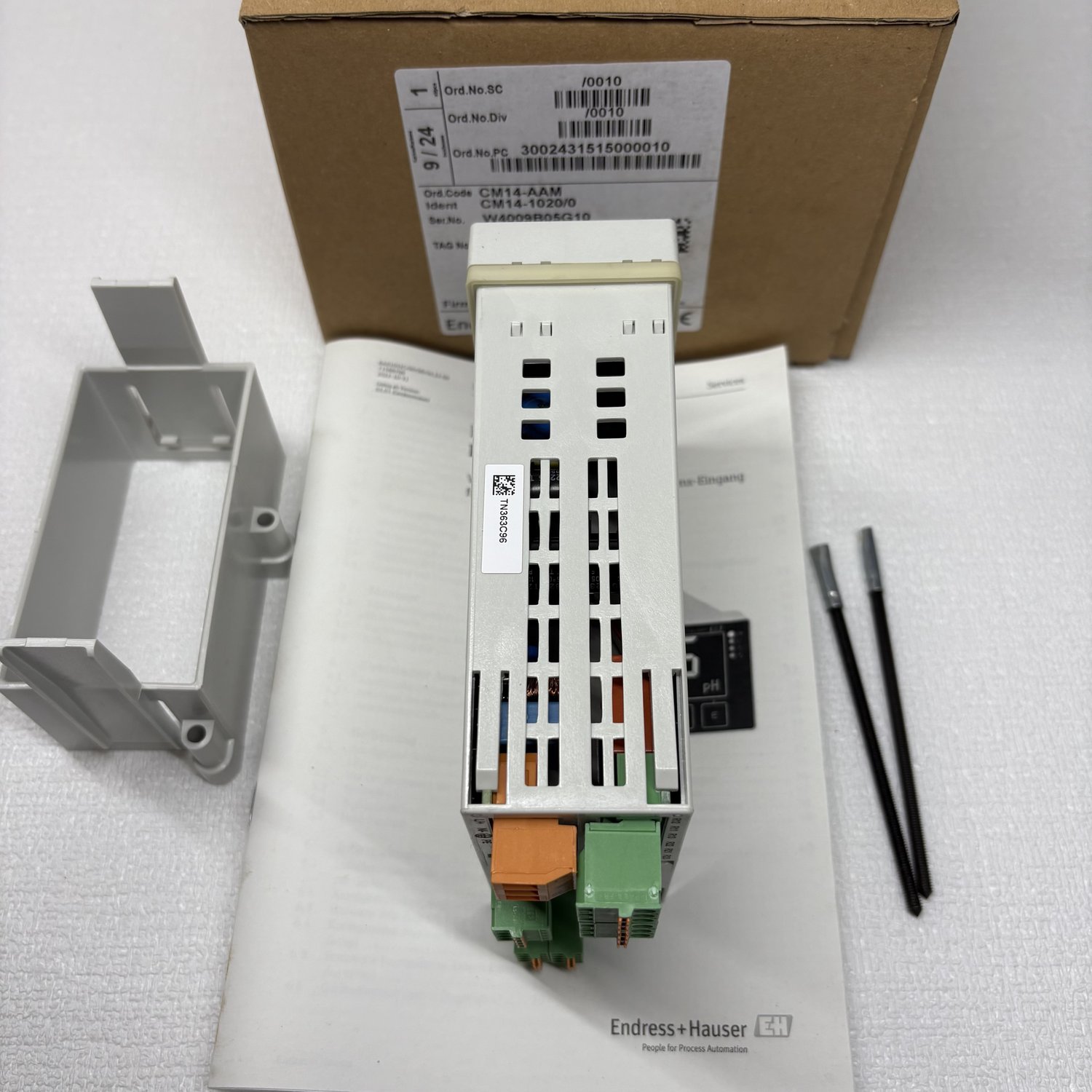

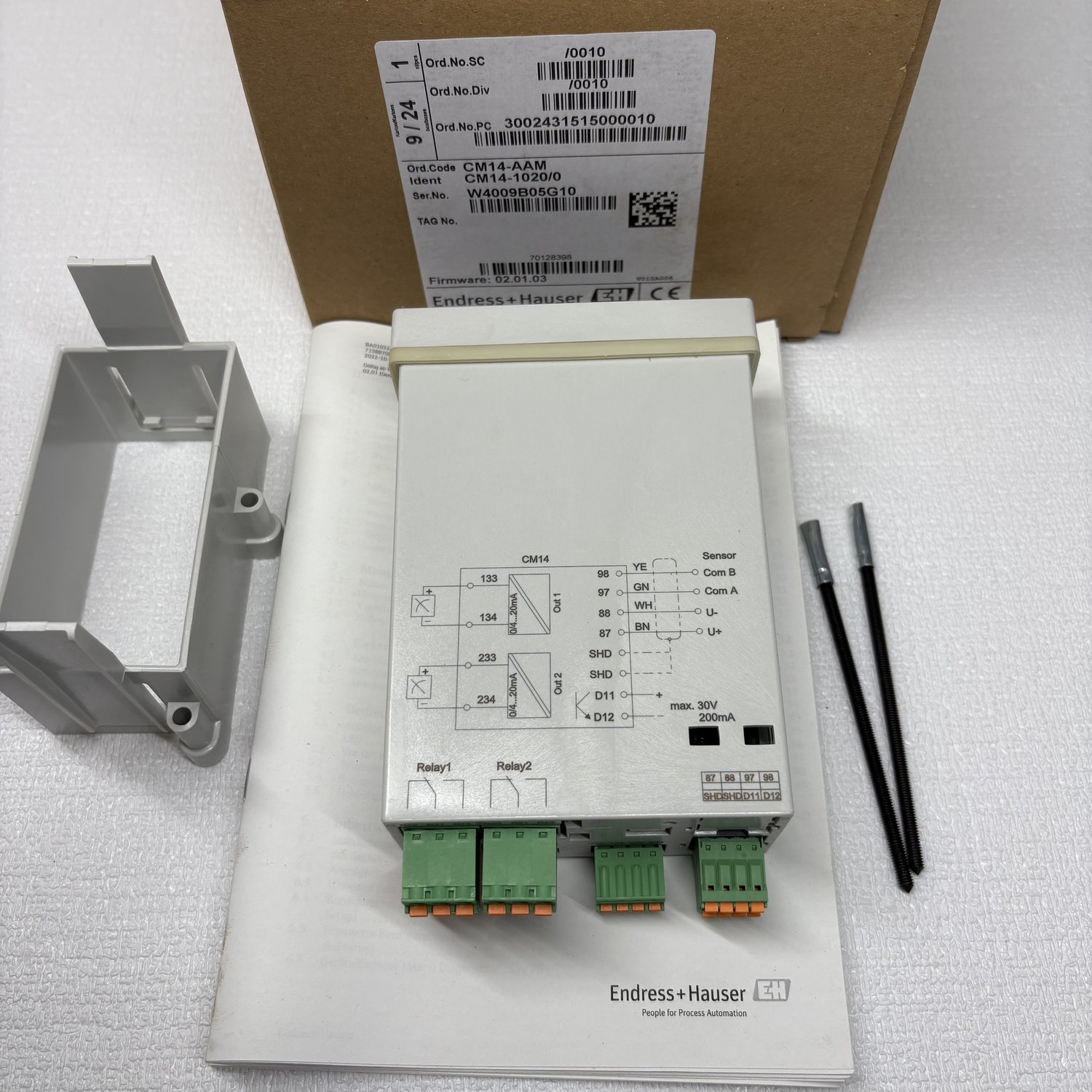

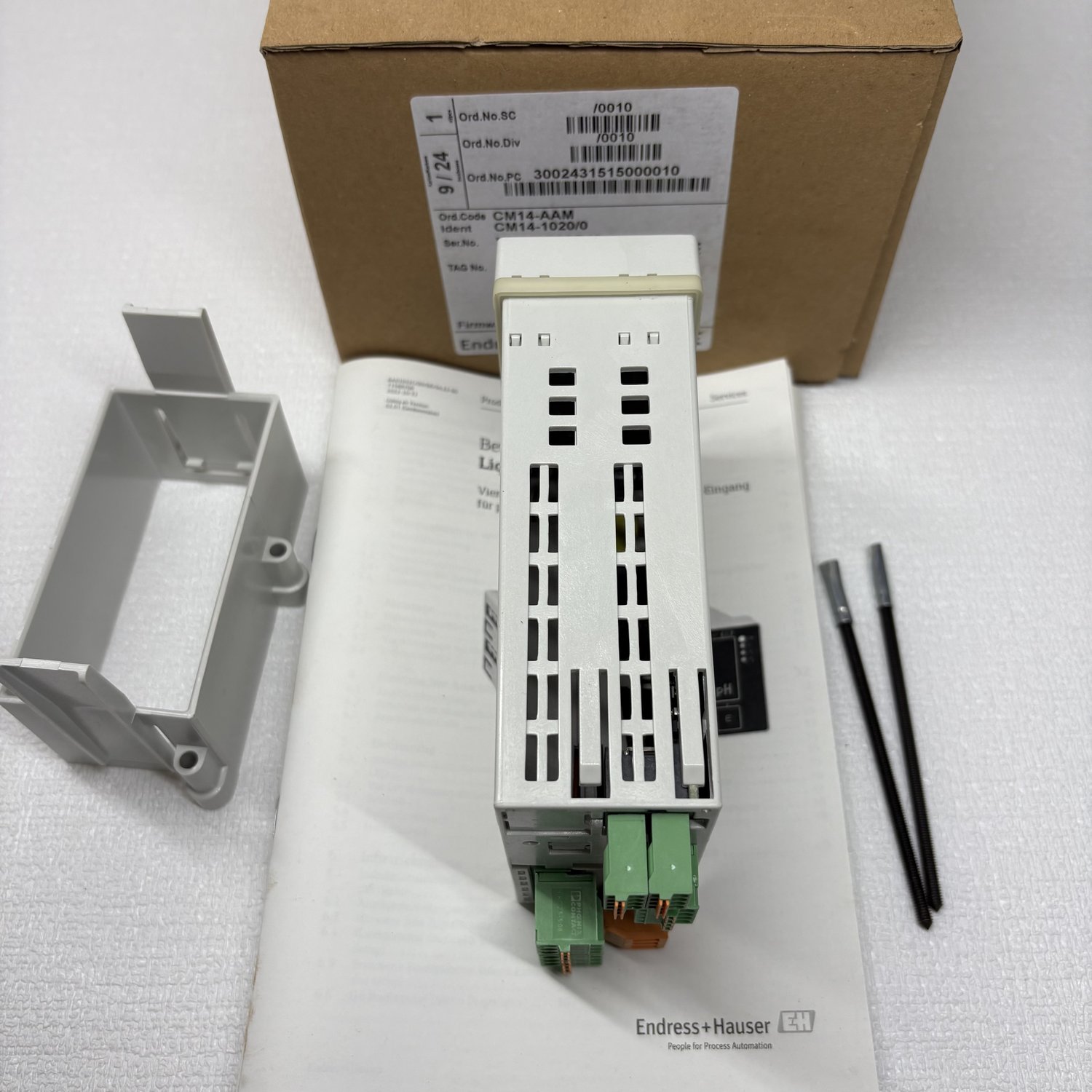

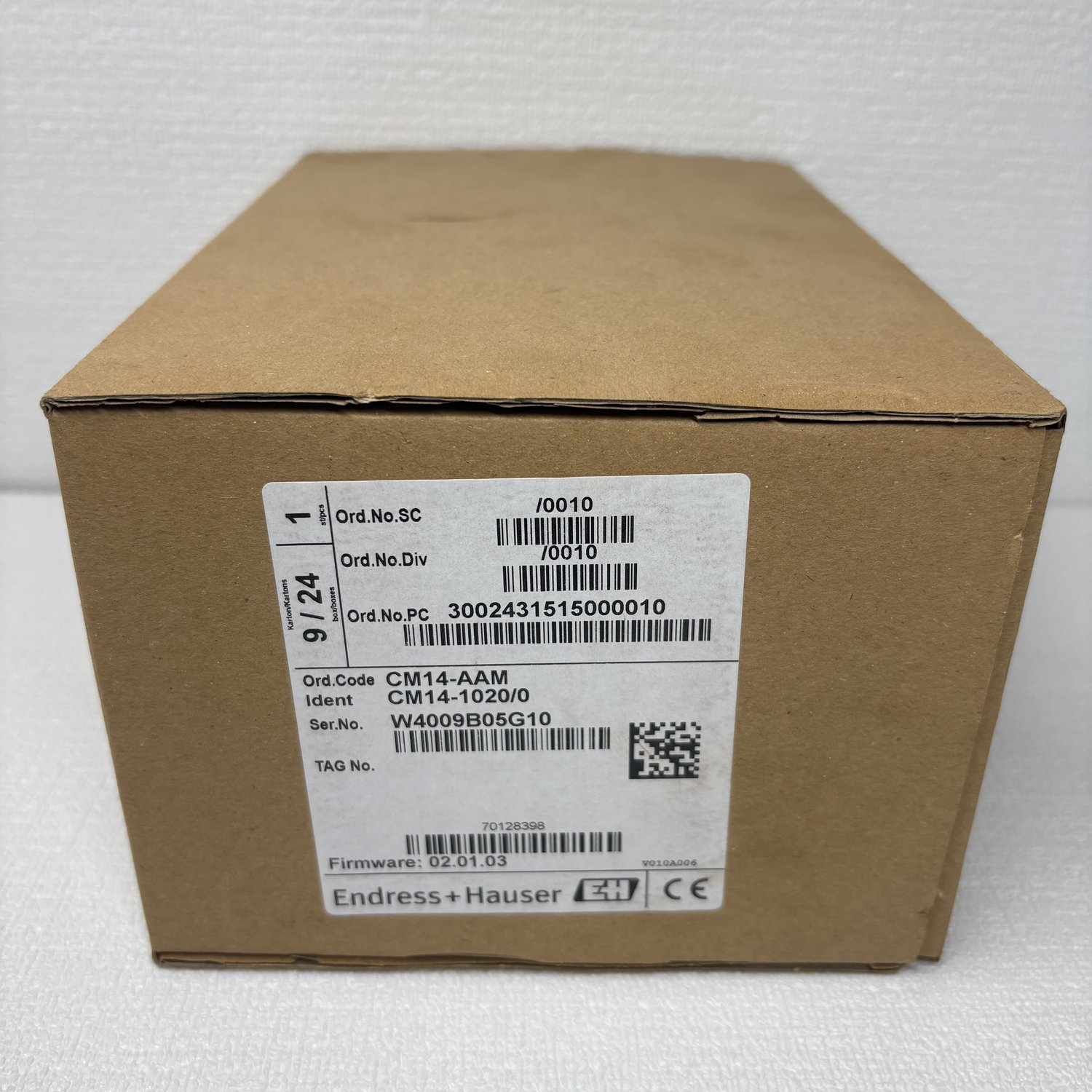

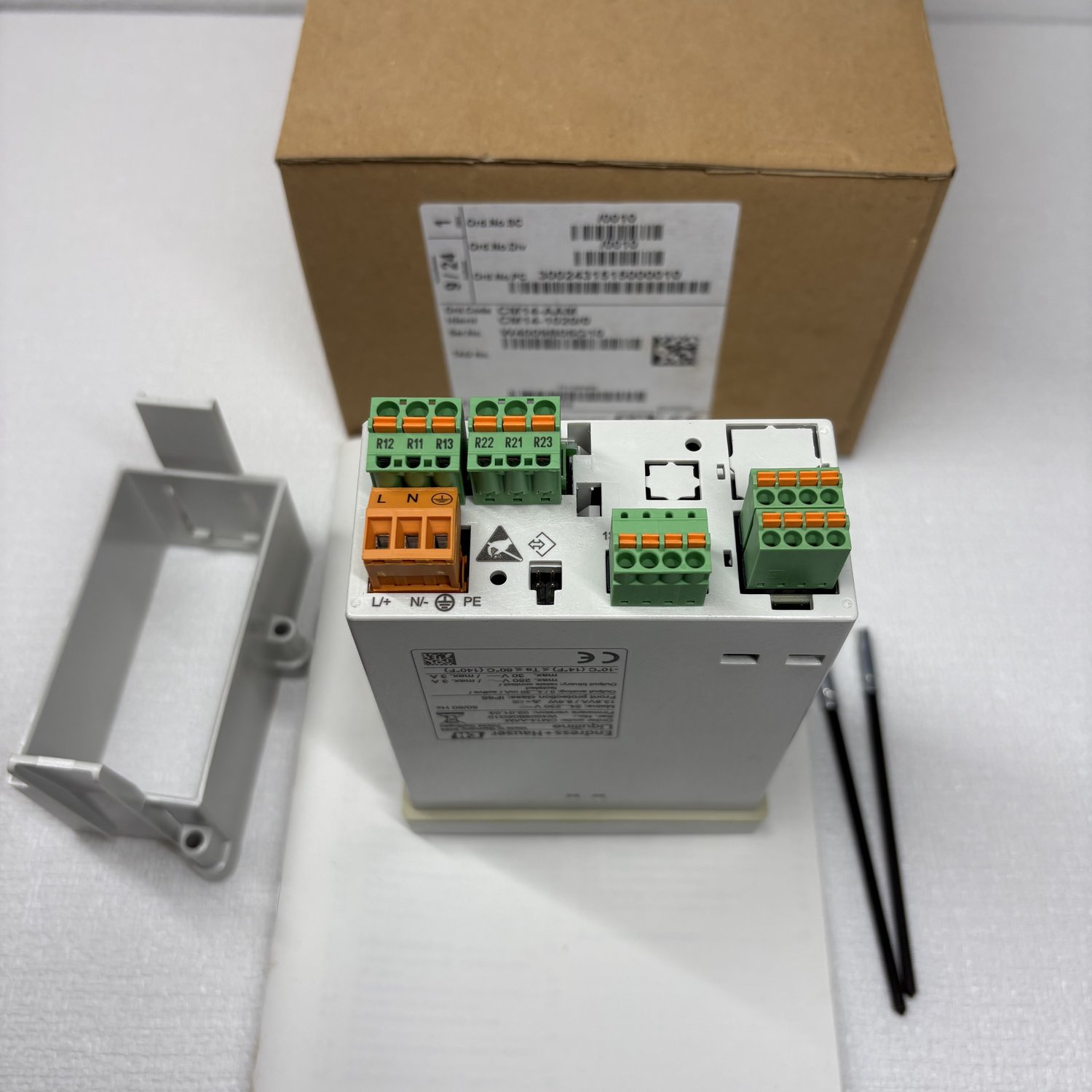

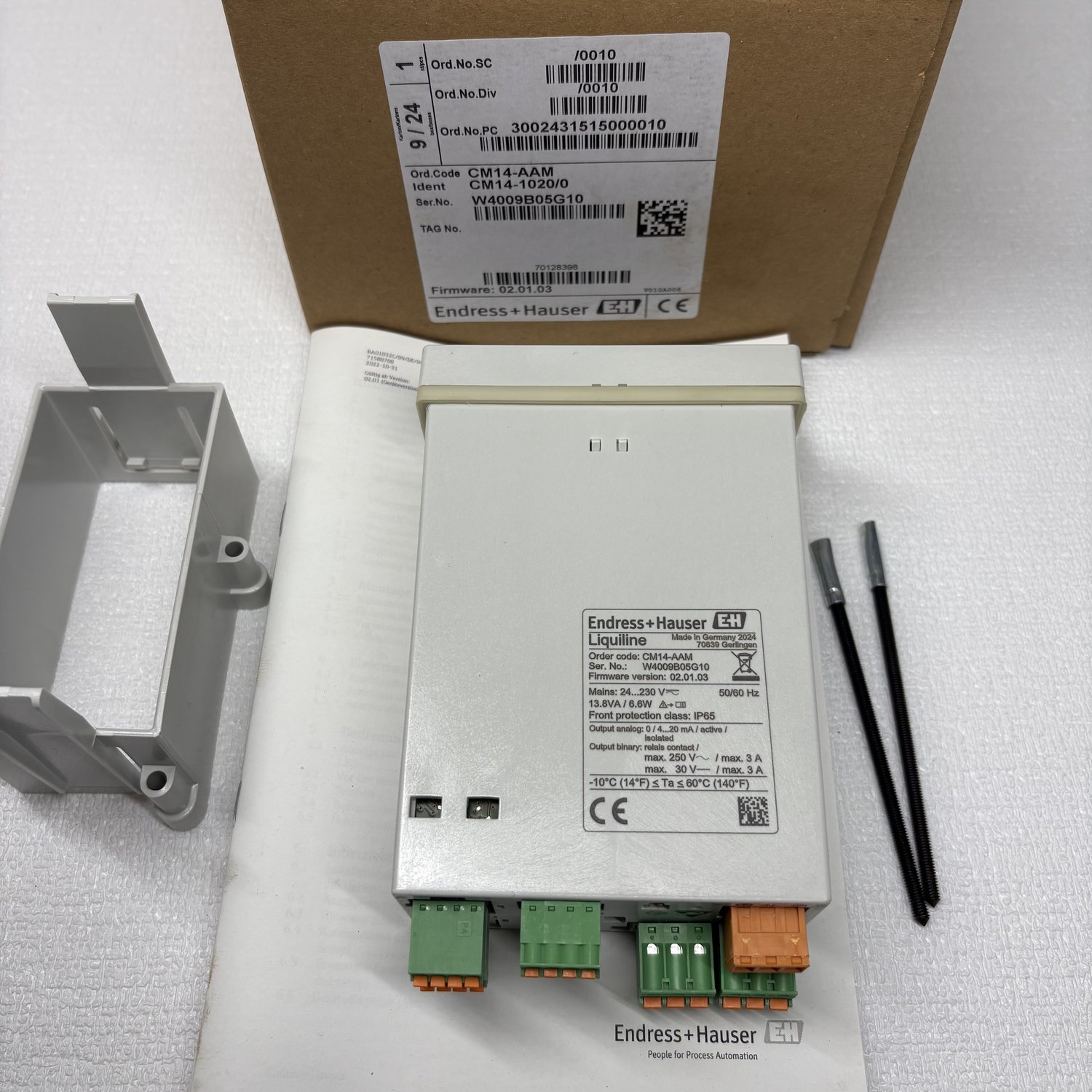

E+H CM14-AAM CM14-1020/0 Compact Panel Transmitter (Liquiline CM14 Series)

• Input: 1-Channel Digital Memosens Hot plug-and-play configuration with pre-calibrated digital sensors.
• Output: 2 x 0/4 to 20 mA Current Loops Primary output for main value; Second output dedicated to temperature.
• Relays: 2 x Contacts Serves as limit contactors or alarm switches.
• Display: Two-line backlight LCD Visualizes measured values, sensor status, and error states.
• Dimensions: 48 x 96 x 152 mm Compact build matching common DIN cabinet cut-outs.
• Ingress Protection: Front: IP65 / NEMA 4X; Body: IP20 Provides high splash resistance when panel-mounted.
• Housing Material: Polycarbonate Polyester front membrane.
• Memosens Technology Integration: True galvanic isolation from the sensor prevents ground loops and electrical interference.
• Laboratory Calibration: Digital integration allows you to calibrate sensors in a lab environment and swap them hot in the field, reducing downtime.
• Safety Hold: Built-in manually or automatically triggered freeze function (Setup → Manual hold) ensures system parameters remain safe during field calibration loops.
• Official Product Page: Read through features on the Endress+Hauser Liquiline CM14 Product Hub.
• Complete Technical Information (PDF): For structural diagrams, loop diagnostics, and wiring instructions, refer to the Endress+Hauser Portal Document Index.
• Third-Party Archive: Alternatively, access indexed technical sheets directly via the Alldatasheet Archive for CM14.

Brand New E+H CM14-AAM CM14-1020/0 Compact Panel Transmitter (Liquiline CM14 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
