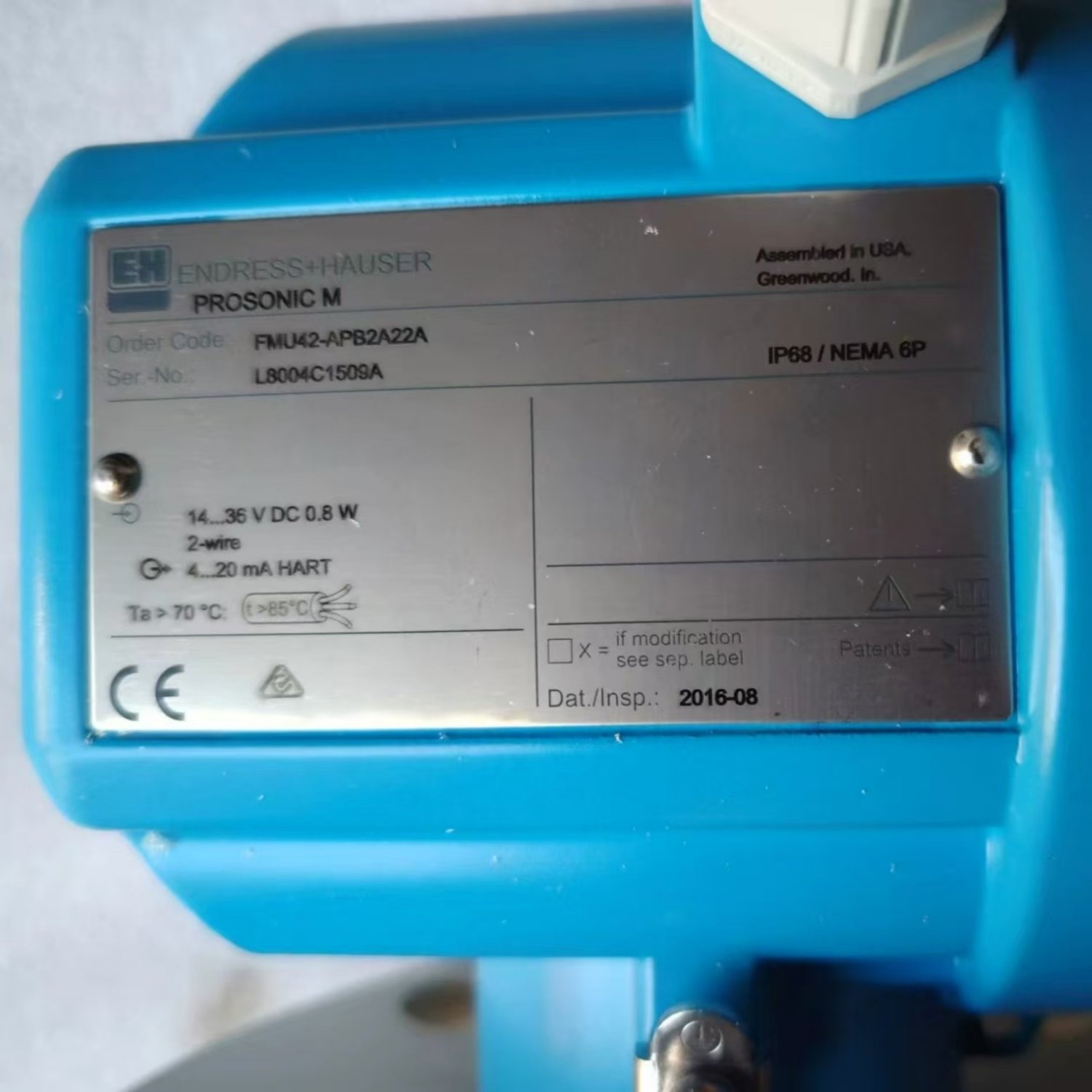

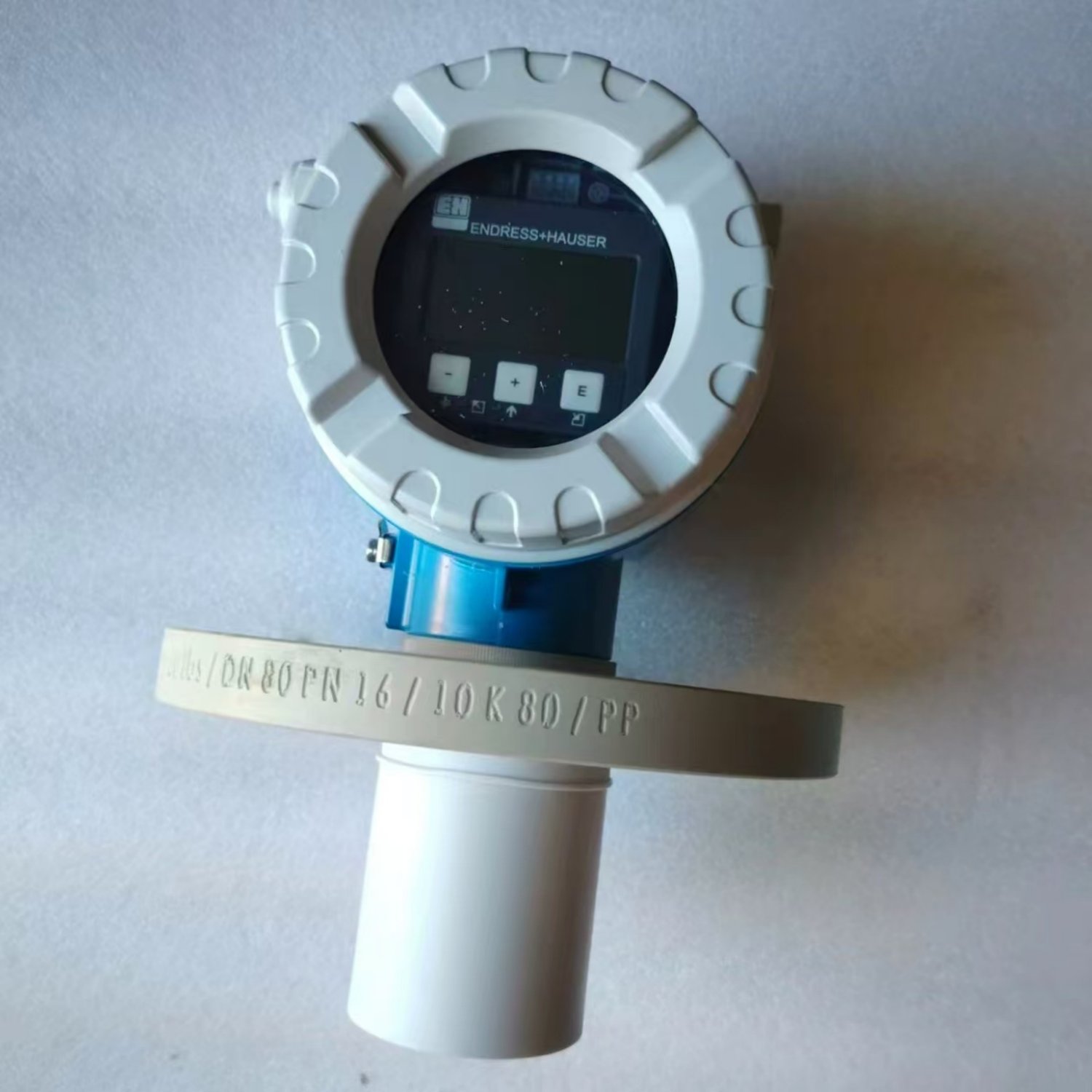

E+H FMU42-APB2A22A Ultrasonic Level Transmitter (Prosonic FMU42)

• Code Segment: Parameter Feature
• Operating Distance: Measures up to 10 m (33 ft) in liquids and up to 5 m (16 ft) in coarse bulk solids under standard conditions.
• System Accuracy: Measuring tolerance is rated within ± 4 mm (± 0.16 in) or ± 0.2% of the designated span range.
• Temperature Matrix: The integrated PVDF sensor body handles process environments between -40 °C and 80 °C (-40 °F to 176 °F).
• Pressure Threshold: Optimized for low-pressure systems operating from 0.7 bar up to a maximum overpressure limit of 2.5 bar absolute (10 psi to 36 psi).
• Software Capabilities: Features EchoFOX dynamic signal mapping to automatically filter out false echo disruptions caused by internal tank obstructions or agitators. Includes a 32-point linearisation calculation table to convert levels directly into volume or open-channel flow rates.
• Physical Logistics: The sensor unit features a net device weight of approximately 3 kg (6.62 lbs) and a total boxed shipping package weight of 4 kg to 6 kg.

Brand New E+H FMU42-APB2A22A Level Instrument. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
