Showing 945–960 of 2246 results
-
- Brand: Eaton
- Model: NZM2-XS-L
- Series: Moeller NZM
- Catalog number: 266642
- Frame size: NZM2
- Mounting orientation: Left-side panel mounting
- Function: Main switch assembly kit
- Handle style: Door-coupling rotary handle
- Lockable: Yes
- Standard color: Black / grey
- Product dimensions: 190 × 120 × 110 mm (L × W × H)
- Product weight: 0.989 kg
- EAN: 4015082666422
- Compliance: IEC, UL/CSA and RoHS conforming
-
- Manufacturer: EATON
- Model / Part Number: PKZM4-32
- Current Range: 25 to 32 Amps (adjustable).
- Power Rating: 15 kW at 380–400 Volts.
- Voltage Rating: Up to 690 V AC.
- Breaking Capacity: 50 kA at 400 V AC.
- Mounting: Standard 35 mm DIN rail.
- Overload Protection: The built-in thermal mechanism can be finely tuned to match your motor's exact needs so it doesn't overheat.
- Short-Circuit Protection: The magnetic trip instantly disconnects power if a short circuit occurs.
- Phase-Loss Sensitivity: It protects three-phase motors from burning out if one of the power lines drops out.
-
REQUEST A QUOTE
- Feature / Attribute: Specification Details
- Manufacturer: Eaton / Moeller
- North American Equivalent: XTOB010BC1 / XTOB010BC1C
- Thermal Protection Class: Class 10 (Trips within 10 seconds at 6x current rating)
- Adjustable Current Range: 6.0 to 10.0 Amperes
- Core Protection Faults: Motor Overload, Phase Asymmetry (unbalance), Phase Failure
- Auxiliary Contacts: 1 NO (Normally Open) + 1 NC (Normally Closed)
- Reset Options: Manual and Automatic Reset selectors
- Mounting Compatibility: Direct mounting to the load side of DILM7, DILM9, or DILM12 contactors
- Terminal Type: Screw terminals
EATON ZB12C-10 Thermal Overload Relay (ZB Series).
-
REQUEST A QUOTE
- Brand/Manufacturer: ebm-papst
- Model Number: D1G133-AB39-22
- Motor Model: M1G074-BF
- Nominal Voltage: 48V DC (Operating range: 36V to 57V DC)
- Power Consumption: 105 Watts (0.105 kW)
- Current Draw: 2.8 Amps
- Rated Speed: 1,780 RPM
- Air Flow Capacity: ~745 m³/h
- Impeller Diameter: 133 mm
- Material: Galvanized sheet steel housing and impeller
- Bearing Type: Sealed dual ball bearings
- Ingress Protection / Insulation: IP42 rated, Class "B" insulation
- Operating Temperature Range: -25°C to +60°C
- Electrical Connection: 4-wire configuration
ebm-papst D1G133-AB39-22（48VDC，105W） EC Centrifugal Blower Fan (D1G Series).
-
REQUEST A QUOTE

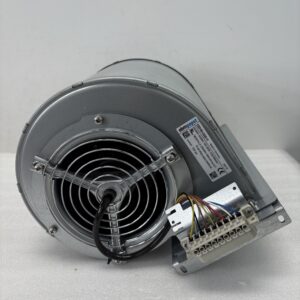

- Manufacturer: ebm-papst
- Model / Part Number: D2D160-CE02-11
- Impeller diameter: 160 mm
- Supply: 230 V delta / 400 V star, three-phase
- Power at 50 Hz: 700 W
- Speed at 50 Hz: 2700 rpm
- Current at 50 Hz: 1.9 A at 230 V / 1.1 A at 400 V
- Power at 60 Hz: 1055 W
- Speed at 60 Hz: 2960 rpm
- Mass: 11.1 kg
-
REQUEST A QUOTE
- Thread Size: M14 x 1.25mm thread with a 13/16 Hex nut.
- Dimensions: Features a 70mm (2.76") extended ceramic insertion depth and a 1.5mm electrode gap.
- Operating Range: Rated to withstand severe thermal conditions from -100°C up to 1350°C.
- Housing Material: Built with extended ceramic housing for high-temperature electrical isolation, preventing arcing against the burner assembly.
- Eclipse ThermJet (TJ): Models TJ0050, TJ0075, TJ0100, TJ0150, and TJ0200.
- Eclipse RatioAir (RA): Models RA0075, RA0100, and RA0200.
- Eclipse FurnNOx (FN): Models FN0050, FN0100, FN0150, and FN0200.
- Eclipse AH & AH-MA: Air heating burner models.
- Replaces Legacy Part: Replaces older Eclipse part number 16927-1.
- Third-Party Alternatives: Generic equivalents are manufactured by Crown Engineering (SKU: CA508) and Heat Treat Depot.
ECLIPSE 10019728 Burner Spark Ignitor (Eclipse Series).
-
REQUEST A QUOTE
- Digital Inputs: 8 Channels (8DI)
- Signal Type: PNP
- Channel Connections: 8 x M8 3-pin connection ports
- Bus Connection: 2 x M12 B-coded ports
- Operating Voltage: 24 V DC
- Enclosure Rating: IP67 (dust-tight and water-resistant for harsh machine-mount environments)
- Housing Material: Plastic
- Key Feature: The "011" Distinction
Elco SPDB-0800D-011 Digital Extension I/O Module (Spider67 Series).
-
REQUEST A QUOTE
- Physical Dimensions: Front panel: 74 × 32 mm; Depth: 59 mm
- Drilling Template (Cutout): 71 × 29 mm (2.80 × 1.14 in)
- Power Supply Options: Available in 115 Vac or 230 Vac configurations (±10%), 50/60 Hz
- Analogue Inputs: 2 NTC inputs (Probe 1: Cabinet Temperature / Probe 2: Evaporator/Defrost)
- Digital Inputs: 1 voltage-free configurable digital input
- Temperature Display Range: NTC: -50.0°C to +110°C (-58.0°F to +230°F)
- Relay Outputs: Compressor: 12(8)A / Up to 2HPDefrost: 8(4)AFans: 3(2)A or 5A resistive
- Connectivity: TTL port for connection to CopyCard, Unicard, or DMI for rapid programming
- Power Supply: Connect live and neutral lines to terminals 3 and 4.
- Relay Power Loop: Bridge the incoming phase line (Terminal 3) to the common supply terminals of your relays (Terminal 2 for compressor/fan and Terminal 5 for defrost).
ELIWELL EWPLUS 974 Digital Controller (EWPlus).
-
REQUEST A QUOTE
- Power Supply: 230V AC (50/60Hz)
- Output Relays: 3 Total
- Compressor: 1 SPST relay, 2Hp (12FLA / 72LRA) max at 240V
- Inputs: 2 NTC or PTC analog probe inputs + 1 voltage-free digital input
- Connectivity: TTL port for quick parameter programming via a Copy Card
- Dimensions: Front panel is 74×32 mm with a depth of 59 mm (Fits a standard 71×29 mm panel cutout).
Eliwell EWPlus 974（EQ2EDI0XC4780） Electronic Temperature Controller (EWPlus Series).
-
REQUEST A QUOTE
- Form Factor: 1U Rackmount / Industrial
- Total Power Output: 200 Watts
- Input Voltage: 100–240V AC (Auto-switching, 47–63 Hz)
- Output Rails: 12V DC, 9A (Continuous delivery configurations)
- Cooling: 1x Internal Cooling Fan
- Connector Variants: Important: Manufactured in multiple pin configurations depending on the terminal layout:
- Certifications: CE, FCC, RoHS, UL
EMACS P1U-6200P Server Power Supply (EMACS).
-
REQUEST A QUOTE
- Position / Configuration: 2-Way, Normally Closed (NC)
- Operation Type: Pilot-operated
- Stem Type: Equipped with a mounting stud
- Nominal Capacities: R-22: 8.0 Tons
- Max Working Pressure: 500 PSIG (34.5 bar)
- MOPD & Fluid Temp: 300 PSIG maximum operating pressure drop; 250°F (121°C) max temperature
- Refrigerant Compatibility: Approved for standard and common A1, A2L, and A3 class refrigerants
- Extended Copper Ends: The extended ODF connections allow for easy brazing installation without damaging internal components.
- Universal Coil Family: Features a single coil system architecture where one standard Emerson coil size fits all valve variations across the series. (Note: This item is sold as a valve body; the solenoid coil must be purchased separately depending on your required voltage).
- Bi-Flow Conversion Capability: It can be converted from a standard directional flow to a bi-directional flow configuration using the internal component transformation kit # KS30293.
EMERSON 200RB4T3T Solenoid Valve (200RB Series).
-
- Manufacturer: Emerson
- Model / Part Number: EC3-X33
- Superheat Control: Uses an auto-adaptive PID algorithm to automatically adjust the expansion valve.
- MOP (Maximum Operating Pressure): Limits the evaporating pressure to protect the compressor from overloading.
- Low Superheat Alarm: Monitors conditions to prevent liquid refrigerant floodback.
- Backup Power Supply: Features an internal battery backup that automatically closes the electrical expansion valve during an unexpected power outage to prevent system damage.
- Signal Feed-Through: Passes a 4–20mA signal from the evaporator pressure sensor down to analog outputs for other control systems.
- External Setup Unit: Requires the optional ECD-002 display and keypad unit for initial configuration and programming, though it can be unplugged once the controller is running.
-
REQUEST A QUOTE
- Series: EV1000 (Variable Speed Drive)
- Application Rating (G): General Purpose / Constant Torque
- Control Mode: Economical open-loop control with high torque and built-in PI Control
- Automation Features: Built-in Simple PLC capabilities and flexible I/O terminals
- Display/Keypad: Interfaces with the LED Keypad Display Unit (TDP-LED02)
- Environmental Protection: Enhanced anti-tripping performance against severe power grids, dust, temperature, and high humidity
- Certification: CE Certified
EMERSON EV1000-4T0037G Variable Frequency Drive (EV1000).
-
- Manufacturer: EMERSON
- Model / Part Number: IC121CX-11200
- System Capabilities: It is optimized for systems featuring 1 refrigerant circuit and up to 2 compressors.
- Power Supply: Runs on a 12V to 24V AC/DC low-voltage power connection.
- Sensor Inputs: It supports up to 4 temperature probe inputs:
- Relay Outputs: Includes 5 built-in 8-amp relay outputs to switch on compressors, fans, and alarms.
- Fan Speed Control: Equipped with a PWM (Pulse Width Modulation) signal output to control variable-speed condenser fans directly without needing extra hardware.
- User Interface: Features a dual-line digital icon display to show temperatures and working status simultaneously.
-
REQUEST A QUOTE
- Model Family: Control Techniques Commander SK (Size A)
- Power Rating: 0.75 kW / 1 HP
- Input Voltage: Single-Phase (1~) 200 to 240 Vac ±10%, 50-60Hz
- Input Current: 10.5 A
- Output Voltage: 3-Phase (3~) 0 to 240 V
- Continuous Output Current: 4.0 A
- Overload Capacity: 6.0 A for 60 seconds
- Output Frequency Range: 0 to 1500 Hz
- Enclosure Protection: IP20 rating (suitable for indoor panel mounting)
- Dimensions: 75 mm x 140 mm x 145 mm
EMERSON SKA1200075 AC Inverter Drive (Commander SK Series).
-
- Manufacturer: Emerson
- Model / Part Number: SKB3400075
- Power Rating: 0.75 kW / 1 HP
- Input Supply Voltage: 3-Phase 380V to 480V AC (±10%) at 50/60Hz
- Continuous Output Current: 2.1 Amps
- Overload Capacity: 3.2 Amps for 60 seconds
- Control Type: Open Loop Vector Control
- Enclosure Rating: IP20 / NEMA 1 (suitable for panel or DIN-rail mounting)
