Showing 961–976 of 2246 results
-
- Manufacturer: EMERSON
- Model / Part Number: SKC3400300
- Rated Power: 3 kW / 3 HP (Normal Duty)
- Input Supply Voltage: 380 V to 480 V AC (±10%), 3-Phase, 50/60 Hz
- Continuous Output Current: 7.2 A
- Overload Capacity: 10.8 A for up to 60 seconds
- Control Methods: Open Loop Vector Control or V/Hz Control
- Enclosure Rating: IP20
- Physical Footprint: Dimensions measure 100 mm x 240 mm x 173 mm, weighing approximately 2.1 kg.
- Vertical Space: Minimum of 100 mm of ventilation clearance directly above and below the drive chassis.
- Horizontal Space: Side clearance of 10 mm, which must be extended to 50 mm if multiple drives are positioned adjacently in a row.
- Mounting Configuration: Secured via 4 rear mounting holes tailored for M4 screws, configured on 70.7 mm x 240 mm hole centers.
-
REQUEST A QUOTE
- Model / Part Number: SP0405
- Series Platform: Control Techniques Unidrive SP (500 Series)
- Input Voltage: 460 VAC (380V – 460V operating range)
- Motor Power Rating: 2 HP / 1.5 kW (Note: Some light-duty configurations scale down to 0.55 kW)
- Continuous Output Current: 4.2 A
- Short-Term Overcurrent: 6.3 A for up to 60 seconds (Transient peak handling)
- Protection Rating: IP20 (Enclosed cabinet mounting required)
- Physical Weight: ~ 8 kg (17.6 lbs)
- High Performance Control: Supports multi-mode motor control, including open-loop, closed-loop vector, and servo control for synchronous and asynchronous standard three-phase AC motors.
- Space-Efficient Design: Features a compact book-style footprint with an IP20 rating optimized for clean, space-saving panel thermal layouts.
EMERSON SP0405 Variable Frequency Drive (Unidrive SP).
-
- Manufacturer: Emerson
- Model / Part Number: SP1401
- Power Rating (Heavy Duty): 0.75 kW (1.0 HP) with a maximum continuous current of 2.1 A.
- Power Rating (Normal Duty): 1.1 kW (1.5 HP) with a maximum continuous current of 2.8 A.
- Input Voltage Range: 380V to 480V AC, 3-Phase.
- Frame Size: Size 1 (panel-mounted module).
- I/O Capabilities: 3 analog inputs, 2 analog outputs, 6 digital inputs, and 4 digital outputs.
- Feedback Support: Compatible with both incremental and absolute encoders.
-
REQUEST A QUOTE
- Manufacturer: Emerson Industrial Automation / Control Techniques (Nidec)
- Model Series: Unidrive SP
- Frame Size: Size 1
- Power Output (HP): 7.5 HP
- Power Output (kW): 5.5 kW
- Continuous Output Current: 11 Amps
- Input Supply Voltage: 3 Phase, 380 to 480 VAC (±10%)
- Input Frequency: 48 to 65 Hz (Compatible with 50/60 Hz systems)
- Mounting Style: Wall Mount
- Physical Weight: Approximately 7 kg (15.5 lbs)
EMERSON SP1406 Variable Speed AC Drive (Unidrive SP).
-
- Manufacturer: Emerson
- Model / Part Number: SP2403
- Power Rating: 11 kW (15 HP)
- Input Voltage: 380V to 480V AC, 3-phase, 48 to 65 Hz
- Output Current: 25.0A to 29.0A continuous current capacity
- Output Frequency Range: 0 to 550 Hz
- Physical Frame Size: Size 2 (Type SP 16 T)
- Enclosure Rating: IP20 protection class (designed for panel mounting inside control cabinets)
-

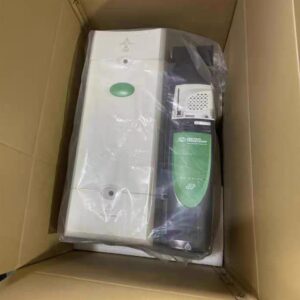

- Manufacturer: Emerson
- Model / Part Number: SP4401
- Input Voltage: 380 to 480 VAC, 3-phase input.
- Normal Duty Power: 37 kW / 50 Horsepower (HP).
- Normal Duty Current: 68 A continuous output current.
- Heavy Duty Power: 30 kW / 40 HP.
- Heavy Duty Current: 60 A continuous output current.
- Configuration: Shipped standard without a keypad.
-
REQUEST A QUOTE
- Nominal Capacity: 12 RT (~35.2 kW)
- Compatible Refrigerants: R22, R407C
- Inlet/Outlet Connections: 5/8" ODF / 7/8" ODF (Brazed)
- Max Working Pressure: 450 psig (31 bar)
- Features: Bi-Flow capability, Externally adjustable, Modular design
- Bulb Charge: Standard, No MOP protection
- Modular Assembly & Brazing: Properly align components and protect internal parts from heat damage when brazing 5/8" and 7/8" connections.
- Sensing Bulb Positioning: Secure the bulb on a clean, horizontal suction line, typically at the 4 or 8 o'clock position to avoid oil accumulation.
- External Equalizer Line: Connect to the top of the suction line downstream of the bulb.
- Reduce superheat (increase flow): Turn stem counter-clockwise.
EMERSON TCLE12HCA Thermostatic Expansion Valve (ALCO T-Series).
-
REQUEST A QUOTE
- Valve Series: TRAE+ / TRAES Series (Features a square body and a fully interchangeable cage assembly).
- Capacity: 10 Tons (R-22 capacity rating at 100 PSI).
- Refrigerant Code: H (Specifically designed for R-22 systems, though often compatible with R-407A/C depending on application parameters).
- Charge Code: CA (Medium temperature applications).
- Connection Size: 5/8 inch ODF Inlet x 7/8 inch ODF Outlet.
- Equalizer: External equalizer for precise pressure sensing and balanced performance across varying evaporator pressures.
- Double Balanced Port Design: This architecture provides highly stable, precise superheat control even across fluctuating system loads or wide evaporator temperature ranges.
- Replaceable Power Element: Built with a stainless steel power element that can be independently replaced, lowering long-term maintenance costs.
EMERSON TRAES10HCA Thermostatic Expansion Valve (TRAE Series).
-
REQUEST A QUOTE
- Manufacturer: ETRI
- Model / MPN: 148VK0281000
- Fan Type: AC Axial Flow Fan
- Dimensions: 172 mm × 150 mm × 38 mm (often classified under 170mm or 172mm round fan sizes)
- Voltage Rating: 208–240V AC
- Frequency: 50 / 60 Hz
- Power Consumption: 35W at 60Hz / 33W at 50Hz
- Current: 200 mA / 170 mA
- Air Flow: >80 CFM
- Bearing Type: Dual Ball Bearing (highly durable for continuous operation)
ETRI 148VK0281000 High-Temperature AC Axial Cooling Fan (148VK Series).
-
REQUEST A QUOTE
- Component: Technical Detail / Configuration
- Electronic Handwheel: 100 pulses per revolution with a wear-free magnetic detent mechanism.
- Emergency Stop: Dual-channel, tamper-proof EMERGENCY STOP device compliant with EN ISO 13850.
- Enabling Pushbuttons: 2x pushbuttons, 2-stage mechanism, featuring 1 Normally Open (NO) contact each.
- Selector Switches: 2x rotary selector switches, 5 positions each:
- Foil/Membrane Buttons: 3x membrane pushbuttons, 1 Normally Open (NO) contact each.
- Physical Weight: Approximately 2.15 lbs (0.98 kg), optimized for extended handheld use.
EUCHNER HBA-079827 Manual Pulse Generator (HBA Series).
-
REQUEST A QUOTE
- Manufacturer: Euchner
- Order Number (SKU): 083691
- Series / Design: NP Series (Design 1)
- Switch Type: Mechanical safety position switch / Gate switch (Type 2)
- Contact Configuration: 2 NC (Normally Closed), positively driven safety contacts
- Switching Element: Slow-action switching contact
- Housing Material: Glass-fiber reinforced thermoplastic (Plastic housing)
- Actuator Head: 5-way entry head orientation
- Electrical Rating: 4 Amp current rating (AC-15: 4A 230V / DC-13: 4A 24V)
- Cable Entry: M20 x 1.5 threaded entry
EUCHNER NP1-638AS-M Safety Position Switch (NP Series).
-
REQUEST A QUOTE
- Housing Design: Upright housing with a small flange.
- Plunger Spacing: 12 mm.
- Number of Plungers: 2 plungers.
- Degree of Protection: IP67 rating according to IEC 60529 (dust-tight and immersion-resistant).
- Weight: Approximately 0.360 kg (0.8 lbs).
- Country of Origin: Germany.
EUCHNER SN02D12-502-MC1688 Mechanical Multiple Limit Switch (SN02 Series).
-
REQUEST A QUOTE

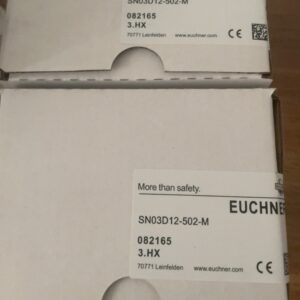

- Manufacturer: EUCHNER
- Model / Part Number: SN03D12-502-M
- Order number: 082164
- Switching positions: 3
- Contacts: 3 NO and 3 NC, snap action
- Plunger spacing: 12 mm
- Plunger form: Chisel
- Cable entries: 2 × M20 × 1.5
- Housing: Anodized die-cast aluminum
- Protection: IP67
- Operating temperature: −5 to +80 °C
-
REQUEST A QUOTE
- Guard Locking Principle: Closed-circuit current (Power-to-Unlock / Spring-locked). The switch locks mechanically via spring force and unlocks when an electrical voltage is applied to the internal solenoid.
- Operating Voltage: 24V AC/DC.
- Switching Element: Slow-action switching contact 2NC (2 Normally Closed contacts).
- Door Monitoring: Without door position contacts (it monitors guard locking status exclusively).
- Conduit / Connection Size: 3 x M20 x 1.5 threaded cable entries.
- Enclosure Rating: IP67 dust and water protection.
- Housing Material: Reinforced Thermoplastic.
- Auxiliary Release: Features a mechanical auxiliary release on the front to manually unlock the guard in the event of a power failure.
EUCHNER TP1-538A024M Safety Switch (TP Series).
-
REQUEST A QUOTE
- Metric: Specification
- Configuration: Single Switch (N-Channel Module)
- Technology: IGBT3 (Low switching losses, high robustness)
- Housing Size: Standard 62 mm Package (106.4 mm x 61.4 mm)
- Termination Type: M6 Screw Terminals
EUPEC FZ600R12KE3 High-Power IGBT Single-Switch Module (FZ Series).
-
REQUEST A QUOTE
- Input Points: 32 points
- Input Voltage: 24 V DC (operational range: 20.4 to 26.4 V DC)
- Input Current: 4.1 mA per point
- Input Type: Sink/Source (DC voltage)
- Common Terminals: 8 points per common
- Isolation Method: Photocoupler isolation
- External Connection: One 40-pin connector
- On/Off Thresholds: ON state is ≥16.0 V DC (≤5.8 mA); OFF state is ≤3.2 V DC (≤0.9 mA)
F3XD32-3F YOKOGAWA Digital Input Module.
