Showing 577–592 of 2131 resultsSorted by latest
-
- Manufacturer: FATEK
- Model / Part Number: FBS-10MCT2-AC
- Total Input/Output (I/O) Points: 10 points total
- Digital Inputs: 6 points (24VDC)
- Digital Outputs: 4 points using NPN Transistors (Sink type)
- Power Supply: 100 to 240VAC line power
- Communication: 1 built-in RS-232 port (expandable up to 5 ports total)
- Hardware Features: Built-in Real-Time Clock (RTC / Calendar)
- Wiring: 7.62mm fixed terminal block
- FBs: Refers to FATEK's premier, high-performance PLC series.
- MC: "Main Control" unit, meaning it belongs to the advanced type with high-speed counting and positioning features.
- AC: Operates on standard alternating current electricity (100–240VAC).
-
- Manufacturer: FANUC
- Model / Part Number: A20B-3300-0170
- Component Type: CPU Control Board / Module
- Processor Architecture: MMX-based CPU
- Weight: Approximately 0.98 lbs (0.44 kg)
- Memory Integration: Includes a dedicated slot for a DRAM memory module expansion
- Form Factor: Plug-in printed circuit board (PCB) designed for modular rack slots
- CNC Controllers: It is primarily utilized in FANUC Series 16i, 18i, and 21i (Model A) controller systems.
- Variant Models: Commonly found in F16iS and F18iS configurations.
- Motherboard Pairing: It typically plugs directly into main standalone motherboards like the A16B-3200-042x or A20B-8100-013x series.
-
- Manufacturer: DUNGS
- Model / Part Number: MB-DLE420B01S50
- Connection Size: 2" NPT or Flange (DN50)
- Operation: Single-stage gas control block
- Media Compatibility: Suitable for gases of families 1, 2, 3 (Natural gas, propane, butane) and other neutral gaseous media
- Part Number / SKU: 226805
-
- Manufacturer: DEUBLIN
- Model / Part Number: 1109-023-212
- Rotor Connection: M16 x 1.5 Left-Hand (LH) thread
- Pilot Size: 18 mm
- Housing Port (Inlet): G 1/4" (BSP) thread
- Max Liquid/Coolant Pressure: 2,030 PSI (~140 bar)
- Max MQL Pressure: 150 PSI (~10 bar)
- Max Fluid Flow Rate: 6.4 Gallons Per Minute (GPM)
- Max Temperature: 160°F (70°C)
- Rotational Speed: Up to 20,000 RPM
-
- Manufacturer: DELTA
- Model / Part Number: DVP06AD-S
- Power Supply: 24 VDC (20.4 VDC to 28.8 VDC)
- Analog Inputs: 6 channels (selectable voltage or current via wiring)
- Voltage Input Range: ±10 VDC (Resolution: 1.25mV)
- Current Input Range: ±20 mA (Resolution: 5µA)
- Digital Conversion Range: ±8,000 for Voltage / ±4,000 for Current
- Resolution: 14-bit (Voltage), 13-bit (Current)
- Response Time: ~3 ms
- Power Consumption: 2 W
- Communication: Built-in RS-485 port
- Mounting Type: 35mm DIN Rail (Right-side expansion)
- PLC Communication: The master PLC reads and writes data to the module's 49 control registers (CR) using FROM/TO instructions.
- Isolation: Features optical coupling insulation between the internal PLC digital circuits and the analog inputs.
- Certifications: CE and cULus approved for industrial environments.
- Delta: Analog Input Module (DVP06AD-S) – E-Motion Supply
-
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1361
- Manufacturer: Eaton Bussmann
- Current Rating: 25 A
- Voltage Rating: 690 Vac (IEC) / 700 Vac (UL)
- Interrupting Rating (IR): 200 kA RMS Symmetrical
- Fuse Size & Body Style: Size 000 / 80 (Square body blade)
- Operating Class: gR (Full-range semiconductor protection)
- Power/Watt Losses: 9 W
- Mounting Type: DIN 43653 Bolted Stud / Bolt Down
- Status Indicator: Visual single indicator
- Body Size: 21 mm x 40 mm x 100 mm
- Fixing Centers: 80 mm (standard stud mount length for Type 80)
-

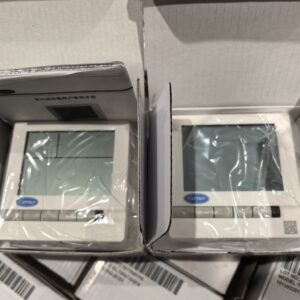

- Manufacturer: CARRIER
- Model / Part Number: TMS710SFA
- Device Type: Wired LCD Digital Wall Thermostat / Temperature Controller Switch.
- Compatibility: Directly backward-compatible with or replaces the TMS710SA model line.
- Application: Controls heating, cooling, and fan speeds (typically 3-speed fan setups) for multi-line central air conditioners.
- Material: Industrial-grade white plastic housing with a digital LCD interface.
- Power Inputs: Typically labeled for Line voltage or standard 24VAC control power, depending on your air handler or fan coil relay sub-panel configuration.
- Fan Relays: Separate outputs to switch between High Speed, Medium Speed, and Low Speed blower fan settings.
- Valve Control: Signal terminals designated to open or close the motorized cold water/hot water valves or activate compressor stages.
- The Indoor Unit Panel: The exact wiring configuration matching your thermostat is usually stuck to the inside access panel of your indoor fan coil or air handler unit.
- Carrier Alternative Manuals: For general programmatic options (like setting up sleep modes or temporary holds), you can reference equivalent functional layouts via ManyManuals Carrier Thermostat Guides.
-
- Manufacturer: CARLO GAVAZZI
- Model / Part Number: RAM1A40D50GM
- Switching Mode: Zero Cross (switches ON when the AC power sine wave passes through 0V, minimizing electrical noise).
- Operating Voltage: 42 to 440 VAC.
- Rated Load Current: 50 Amps AC.
- Control Voltage Range (Input): 4 to 32 VDC.
- Mounting Style: Panel mount (often referred to as a "hockey puck" design).
- Terminal Type: Screw terminals with a captive clamp.
- IP Rating: IP20 touch protection with a clip-on cover.
- Visual Indicator: Integrated LED to display the input control status.
-
- Manufacturer: CAREL
- Model / Part Number: IR33C0LR00
- Power Supply: Operates on a 12 to 24 VAC (or VDC) electrical supply.
- Outputs: Equipped with 4 relay outputs to manage various parts of a cooling unit.
- Inputs: Includes 2 NTC sensor probe inputs to accurately monitor room and defrost temperatures.
- Display & Build: Features a clear, green or red digital display, a built-in alarm buzzer, and an IP65 waterproof rating for the front panel.
-
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1412
- Current Rating: 32 Amps
- Voltage Rating: 690 Volts AC (IEC standard) / 700 Volts AC (UL standard)
- Interrupting Rating (Breaking Capacity): 200 kA
- Fuse Size: DIN 000
- Body Type: Square body with a TN/80 model code
- Operating Class: gR (Full-range semiconductor protection)
- Visual Indicator: Features a single visual indicator to show if the fuse has blown
- Mounting Style: Bolt mount with live gripping lugs
- Length: 100 mm
- Height: 53 mm
- Width: 21 mm
- Weight: 145.8 grams
- Safety Certifications: UL Recognized, IEC Rated, and CSA Approved
- Environmental Standards: CE Marked and RoHS Compliant
-
- Manufacturer: BELIMO
- Model / Part Number: LRS24A-TP
- Voltage: AC/DC 24 V (50/60 Hz)
- Torque: 5 Nm (Newton-meters)
- Running Time: 90 seconds for a 90° turn
- Power Consumption: 1.5 W during operation / 0.4 W at rest
- Protection Rating: IP54 (dust and splashing water resistant) / NEMA 2
- Connection Type: Terminals (-TP indicates screw terminal blocks instead of a pre-wired cable)
- Terminal Connection (-TP): The "TP" at the end of the part number means the unit has built-in connection terminals. You can wire your power and control cables directly into the actuator housing without needing a separate junction box.
- High Reliability: The motor is entirely overload-proof. It does not require any mechanical limit switches and stops automatically once it reaches its physical end stop.
- Model Breakdown: "SR" vs "Floating Point"
-
- Manufacturer: BANNER
- Model / Part Number: Q5XKLAF5000-Q8
- Sensing Range: 50 mm to 5,000 mm (0.05 to 5 meters).
- Sensing Light: Visible red laser (Class 2 laser).
- Sensing Mode: Proximity with background and foreground suppression.
- Input Voltage: 10 to 30 V DC.
- Connection Type: 4-pin M12 rotatable quick-disconnect (QD) connector.
- Environmental Protection: Rated IP67 for water and dust resistance.
- Background/Foreground Suppression: The sensor ignores background surfaces (like reflective walls or shiny metallic frames) or foreground obstructions, focusing strictly on the target object.
- Versatile Range: Capable of detecting objects from a few inches away up to 16.4 feet.
-
- Manufacturer: AUTONICS
- Model / Part Number: E50S8-3600-3-T-24
- Resolution: 3,600 Pulses per Revolution (P/R)
- Shaft Diameter: Ø8 mm
- Control Output: Totem pole type
- Output Phases: 3 Phases (A, B, Z)
- Power Supply: 12–24VDC ±5%
- Connection Type: Axial cable type
- Max Rotation: 5,000 RPM
- Max Frequency: 300 kHz
- Ingress Protection: IP50 rating
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-09A4-3
- Power Rating: 4 kW (about 5 Horsepower).
- Input Voltage: 3-phase, 380V to 415V AC.
- Frame Size: R1 (ABB's smallest physical size for this lineup).
- Control Tech: Uses Direct Torque Control (DTC) for highly precise motor control without needing extra sensors.
- Efficiency: Highly efficient at over 97% to 98%.
- Weight: Around 10.4 kg (23 lbs).
-
- Manufacturer: INOVANCE
- Model / Part Number: IS620FS1R6I
- Product Series: IS620F Series (Industrial Profinet Network variant)
- Current Rating: 1.6 Amps (S1R6 designation)
- Compatible Motor Power: Optimized primarily for 200W servo motors
- Communication Interface: Profinet Industrial Ethernet
- Feedback System: Supports Inovance high-resolution absolute encoders
- High Bandwidth: Features a 1.2 kHz speed loop bandwidth for lightning-fast dynamic responses.
- Vibration Suppression: Equipped with an adaptive notch filter and built-in mechanical damping filters to cancel out low-frequency resonance.
- Diagnostic Data: Stores up to 30 historical fault codes to help engineers monitor the drive's health and predict component lifetimes.
- I/O Connections: The CN1 terminal handles reference input/output and safety signals, while the CN2 terminal links directly to the motor encoder.
- Dedicated Hardware Cable: For direct physical debugging or downloading parameters, the drive utilizes the Inovance S6N-L-T00-3.0 USB Debugging Cable.
-

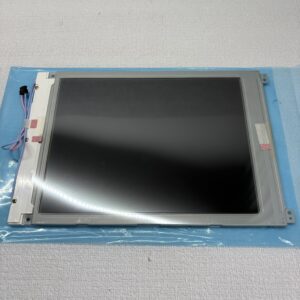

- Manufacturer: HITACHI
- Model / Part Number: SP24V001
- Screen Size: 9.4 inches (diagonal)
- Resolution: 640 × 480 pixels (VGA format)
- Display Type: F-STN (Film-compensated Super-Twisted Nematic) LCD
- Color Capability: Monochrome (Black & White mode)
- Native Backlight: Cold Cathode Fluorescent Lamp (CCFL)
- Operating Voltage: 5V
- Ruggedization: Built with high vibration resistance (up to 55 Hz) to withstand sustained industrial environment mechanical stress.
