Showing 545–560 of 2131 results
-
REQUEST A QUOTE

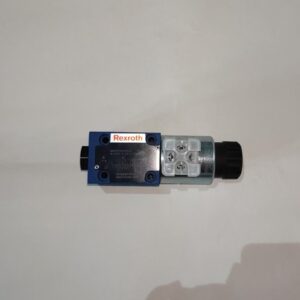

- Manufacturer: Bosch Rexroth
- Model / Part Number: R900052392
- Type code: M-3SED 6 CK1X/350CG24N9K4
- Nominal size: 6
- Actuator ports: 3
- Maximum operating pressure: 350 bar
- Maximum flow: Approximately 25 L/min
- Coil voltage: 24 V DC
- Actuation: Wet-pin solenoid with removable coil
- Manual override: Concealed, N9
- Electrical interface: DIN EN 175301-803, K4
- Mating connector: Ordered separately
-
REQUEST A QUOTE
- Sensing Type: Diffuse reflective
- Sensing Distance: 400 mm (15.75 inches)
- Sensing Target: Translucent and opaque materials
- Output Type: PNP open collector
- Operation Mode: Selectable Light ON / Dark ON via control wire
- Power Supply: 12–24 VDC (operating range up to 10–30 VDC)
- Response Time: Under 1 ms
- Light Source: Infrared LED (850 nm)
- Housing Size: M18 (18mm diameter), nickel-plated brass body
- Protection Rating: IP66 (IEC standard)
- Connection: 2-meter cable
BR400-DDT-P AUTONICS Diffuse-Reflective Photoelectric Sensor.
-
REQUEST A QUOTE
- Manufacturer: Brahma S.p.A. (Italy)
- Application Type: Forced draft or atmospheric gas/oil burners (1-3 stages)
- Mains Supply Voltage: • 200–240 V AC @ 50/60 Hz
- Power Consumption: 32 VA to 50 VA (Depending on supply voltage variant)
- Timing Profiles: TW (Waiting/Pre-purge Time): ~1.5s | TS (Safety Time): ~10s
- Flame Detection: • Gas: Ionization Probe or Photodiode (FD)
- Operating Temperature: -20°C to +70°C (-4°F to 158°F)
- Maximum Humidity: 95% maximum at 40°C
- Protection Degree: IP00
- Physical Dimensions: 115 mm x 95 mm x 40 mm
BRAHMA TGRD61 Automatic Burner Control Unit (TGRD Series).
-
REQUEST A QUOTE
- Operating Voltage: 310V DC
- Power Output: 34W
- Rotational Speed: 1000 RPM
- Configuration: 8-Pole motor configuration
- Steering / Rotation: Reverse rotation
- Wiring Scheme: Three-wire setup typically consisting of White (WHI), Yellow (YEL), and Blue (BLU) lines
- Cross-Reference Part Numbers: RDN-310-34-8, ZKFN-34-8-1, WZDK3438GW, and RDN310348
- Product Summary: HEXEH WZDK34-38G-W RDN-310-34-8 Air Conditioning Outdoor Unit Fan Brushless DC Motor * Air conditioner fan motors…
BRUSHLESS WZDK34-38G-W BLDC Fan Motor (WZDK Series).
-
REQUEST A QUOTE
- Sensing Type: Through-beam type (slot/groove style)
- Sensing Distance: Fixed 5mm width
- Groove Depth: 9mm
- Control Output: NPN open collector output (Max 30 VDC, Max 100mA)
- Power Supply: 5-24 VDC ±10%
- Operation Mode: Light-ON / Dark-ON selectable via control terminal wiring
- Response Frequency: 2 kHz high-speed response
- Light Source: Infrared LED (940nm)
- Connection Type: Connector type
- Indicator: Red LED operation indicator
- Dust Protection: Emitters and receivers are sealed with a protective window to ensure reliable tracking in dusty industrial settings.
- Output Variation Note: The base BS5-T2M utilizes an NPN open collector output. If your system integration requires a PNP open collector layout, you will need the companion model BS5-T2M-P.
BS5-T2M AUTONICS Through-Beam Photoelectric Sensor.
-
REQUEST A QUOTE
- Brand / Manufacturer: Eaton Bussmann Series
- Component Type: High-Speed Fuse Microswitch
- Voltage Rating: 250 V
- Current Rating: 2 A to 5 A
- Contact Configuration: 1NO – 1NC
- Indicator Compatibility: Type-K Indicator
- Connection & Mounting: Lug terminals; Snap-on adaptor
- Environmental Protection: IP54
- Dual-State Signal Monitoring: Featuring a 1NO-1NC contact layout, the switch can simultaneously toggle a local warning light (normally open closes on trip) and drop a control interlock circuit (normally closed opens on trip).
- Snap-On Design: The device utilizes a factory-mounted adapter on the fuse body for quick, toolless snap-on integration.
BUSSMANN 170H0069 High-Speed Fuse Microswitch (170H Series).
-
REQUEST A QUOTE
- Product Type: Fixed Centre Fuse Base (80mm distance)
- Amperage Rating: 630 A
- Voltage Rating: 1000 Vac/Vdc (UL rated up to 700V / IEC rated up to 690V)
- Number of Poles: 1 (Single Pole)
- Connection Type: M10 Connector Terminal / Screw-On / Base Mount
- Standard / Mounting: DIN 43 653 Compliant / Surface or DIN Rail Mount
- Dimensions: 5.433 in L x 0.315 in W x 2.087 in H (Note: Variant measurements can extend up to 203mm L x 77mm H x 64mm W depending on hardware extensions)
- Material Feature: Halogen-free construction
- UPC / GTIN: 051712804646
- Target Fuses: Specifically engineered for use with high-speed semiconductor fuses featuring an 80 mm center distance (such as the Bussmann Typower ZILOX series or DIN 43653 blade fuses).
BUSSMANN 170H3003 Single-Pole Semiconductor Fuse Base (170H Series).
-
REQUEST A QUOTE
- Component Type: Fixed Center Fuse Base / Holder
- Amperage Rating: 1250 A
- Voltage Rating: 1000 Vac / Vdc (Also compatible with 690V/700V applications)
- Number of Poles: 1-Pole
- Fixing Centers: 80 mm center distance
- Mounting Standard: Conforms to DIN 43 653 (Stud/Screw style)
- Speed Application: High Speed (Class aR)
- Compatibility: Typower ZILOX 80 mm center distance high-speed fuses
- Dimensions: 217 mm Length × 64 mm Width × 82 mm Height (approx. 5.43" L × 0.31" W × 2.08" H depending on specific terminal layout)
- Compliance & Approvals: CE, IEC, RoHS, UL Listed
BUSSMANN 170H3004 Single-Pole Fuse Block (170H Series).
-
REQUEST A QUOTE
- Manufacturer / Brand: Eaton / Bussmann
- Part Number (MPN): 170H3005
- UPC / GTIN: 051712804660
- Current Rating: 630 A
- Voltage Rating: 1400 Vac/Vdc (Note: Often listed downstream as 690V/700V depending on regulatory testing curves)
- Number of Poles: 1 Pole
- Configuration Type: Fixed Centre Fuse Base
- Center Distance: 110 mm (4.33 in)
- Connection / Terminal: Screw-On (M10 Connector)
- Dimensions: 5.433 in L x 0.315 in W x 2.087 in H
BUSSMANN 170H3005 Semiconductor Fuse Holder (170H Series).
-
REQUEST A QUOTE
- Amperage Rating: 1250 A
- Voltage Rating: 1400 Vac/Vdc (also handles 690V/700V applications)
- Fixing Centers / Distance: 110 mm fixed center distance
- Configuration: 1-Pole (Single Pole)
- Standards/Compliance: DIN 43 653, UR (UL Recognized)
- Connection & Mounting: Stud terminal connection; Surface mount execution
- Compatibility: Specifically optimized for Typower ZILOX 110 mm center-distance high-speed fuses
- Weight: 3.1 lbs (1.4 kg)
- Dimensions: 5.433 in L x 0.315 in W x 2.087 in H (approx. 138 mm x 8 mm x 53 mm)
BUSSMANN 170H3006 Industrial Semiconductor Fuse Base (170H Series).
-
REQUEST A QUOTE
- Current Rating: 10 A
- Voltage Rating: 690 V (IEC) / 700 V (UL)
- Interrupting Rating: 200 kA
- Operating Class: gR
- Body Size / Type: Size 000U / 80
- Mounting Type: DIN 43 620 Blade
- Visual Indicator: Non-Indicating
BUSSMANN 170M1308 High-Speed Semiconductor Fuse (170M Series).
-
REQUEST A QUOTE
- Current Rating: 16 A
- Voltage Rating: 690 VAC (IEC) / 700 VAC (UL)
- Interrupting Rating (Breaking Capacity): 200 kA
- Fuse Class: gR (Full-range semiconductor protection)
- Body Size / Design: DIN 000 U/80 (Square body, non-indicating)
- Mounting / Terminal Type: Bolt-down / Stud mount via blade terminals
- Approvals: CE, CSA, UR, UL, IEC, RoHS
BUSSMANN 170M1309 High-Speed Semiconductor Fuse (170M Series).
-
REQUEST A QUOTE
- Manufacturer: Bussmann
- Model / Part Number: 170M1312
- Rated current: 32 A
- Rated voltage: 690 V AC (IEC); 700 V (UL)
- Breaking capacity: 200 kA
- Utilization category: gR
- Fuse size: 000
- Connection: Blade end × blade end; slotted offset bolted tags
- Indicator: None
- Connection center distance: 76.7 mm
- Mounting dimension: M8
- Pre-arcing I²t: 40 A²s
- Clearing I²t: 270 A²s at 660 V
- Power loss: 10 W
- Dimensions: 100 × 40 × 21 mm (W × H × D)
- Weight: 139 g
-
REQUEST A QUOTE
- Manufacturer: Bussmann
- Model / Part Number: 170M1313
- Rated current: 40 A
- Rated voltage: 690 V AC, IEC
- Utilization category: gR
- Breaking capacity: 200 kA
- Body size: DIN 000
- Connection: Offset bolted tags
- Power loss: 12 W
-
- Manufacturer: Bussmann
- Model / Part Number: 170M1316
- Amperage Rating: 80 A
- Voltage Rating: 690 VAC (IEC) / 700 VAC (UL)
- Interrupting Rating: 200 kAIC
- Fuse Class: aR (Partial-range short-circuit protection for semiconductors)
- Body Size / Type: Size 000, Type U/80
-
REQUEST A QUOTE
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1318
- Amperage Rating: 125 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Interrupting Rating (Breaking Capacity): 200 kA
- Class: aR (Partial-range semiconductor protection)
- Body Size / Type: Size 000, Square body
- Terminal Type: Slotted offset bolted tags (Type U/80)
- Indication: Non-indicating
- Frequency Range: 45 to 1000 Hz
