Showing 161–176 of 283 results
-
- Manufacturer: Festo
- Model / Part Number: PEV-1-4-B-M12 192488
- Pressure Range: Adjustable from 1 to 12 bar (15 to 175 PSI).
- Pneumatic Connection: G 1/4 female thread
- Electrical Connection: 4-pin M12x1 plug connector design.
- Operating Voltage: Up to 48V AC or DC.
- Switching Element: Changeover switch (can be wired as Normally Open or Normally Closed).
- Protection Rating: IP65 (dust-tight and protected against water jets).
-
REQUEST A QUOTE
- Manufacturer / Part Number: Festo / 553744
- Design / Slot Type: T-slot (inserted into the slot from above)
- Sensing / Measuring Range: Up to ≤ 40 mm
- Analog Output Signal: 0 – 10 V DC
- Displacement Resolution: 0.02 mm
- Accuracy: ± 0.1 mm on Cylinders / ± 0.025 mm on Grippers
- DC Operating Voltage Range: 15 V – 30 V DC (24 V DC nominal)
- Electrical Connection: 0.3 m pigtail cable with an M8x1 A-coded 4-pin male connector
- Housing Material: Polyamide 6 (PA6) reinforced
- Protection Class: IP65 / IP68
FESTO SMAT-8M-U-E-0.3-M8D 553744 Magnetic Position Transmitter (SMAT Series).
-
REQUEST A QUOTE
- Measuring Principle: Magnetic Reed (Contact-based, bipolar)
- Switching Element Function: N/O (Normally Open) contact
- Operating Voltage Range: 12 V – 27 V AC/DC (24 V Nominal)
- Electrical Connection: Pre-wired 0.3 m (30 cm) cable with an in-line 3-pin M8 male connector
- Visual Indicator: Yellow LED switching status light
- Repetition Accuracy: ± 0.2 mm
- Environmental Protection: IP65 / IP67
- Ambient Temperature Range: -20°C to +70°C (Static cable installation)
- Housing Materials: Nickel-plated brass / PPS / High-alloy stainless steel
- Tightening Torque: Max. 0.1 Nm
FESTO SME-10-SL-LED-24 173212 Magnetic Proximity Sensor (SME Series).
-
REQUEST A QUOTE
- Measuring Principle: Magnetic Reed
- Operating Voltage (AC/DC): 3 V to 230 V
- Switching Output: Contact-based, Bipolar
- Switching Element Function: Normally Open (N.O.) Contact
- Electrical Connection: 2-wire / Open-end cable
- Standard Cable Length: 2.5 meters (8.2 feet)
- Mounting Profile: Clamped in T-Slot (Lengthwise insertion)
- Status Indicator: Integrated LED (Yellow switching status)
- Operating Temperature Range: -5°C to +60°C (23°F to 140°F)
- Tightening Torque: 0.2 Nm
FESTO SME-8-K-LED-230 152820 Magnetic Proximity Sensor (SME Series).
-
REQUEST A QUOTE
- Feature / Attribute: Specification
- Sensing Method: Magnetic Reed (Contact-based, bipolar)
- Switching Function: Normally Open (N.O. / N/O contact)
- Operating Voltage: 12 V to 30 V AC / DC (24 V Nominal)
- Response Speeds: Turn-on time: 0.5 ms | Release time: 0.03 ms
- Ingress Protection: IP67 (Fully dust-tight and water immersion proof)
- Operating Temperature: -40°C to +70°C (Static cable) | -5°C to +70°C (Flexible loop installations)
- Status Indicator: Integrated Yellow LED
- Housing Materials: Polycarbonate (PC), PET, Epoxy Resin, High-alloy Stainless Steel
- Environmental Compliance: RoHS Compliant, free of Copper and PTFE
FESTO SME-8-S-LED-24 150857 Magnetic Proximity Sensor (SME Series).
-
REQUEST A QUOTE
- Measuring Principle: Magnetic Reed
- Switching Output: Contacting, bipolar
- Switching Element Function: Normally Open (N.O.) contact
- Operating Voltage Range: 5 V – 30 V DC / 5 V – 30 V AC
- Electrical Connection: 3-wire cable with an Open End (stripped flying leads)
- Cable Length: 2.5 meters (TPE-U / PUR sheath material)
- Mounting: Direct, vertical insertion into the T-slot from above (flush mount, does not protrude)
- Ingress Protection: IP65 and IP68 rated (dust-tight and submersible)
- Operating Temperature Range: -40°C to +70°C
FESTO SME-8M-DS-24V-K-2,5-OE 543862 Magnetic Proximity Sensor (SME Series).
-
REQUEST A QUOTE
- Sensing Method: Magnetic, non-contact detection
- Design / Form Factor: Block / Rectangular design without mounting kit
- Pneumatic Connection: PK-3 Barbed Fitting
- Operating Pressure Range: 2 to 6 Bar (29 to 87 PSI)
- Operating Temperature Range: -15°C to +60°C (5°F to 140°F)
- Materials: Brass, Polyamide (PA), Polyoxymethylene (POM)
- Ingress Protection Rating: IP65 (Dust-tight and protected against water jets)
- Wiring Configuration: 3-wire contact setup
FESTO SMPO-1-H-B 31008 Pneumatic Proximity Sensor (SMPO Series).
-
REQUEST A QUOTE
- Valve Function: 3/2-way, normally closed (NC)
- Pneumatic Connection: M5 internal thread
- Operating Pressure: 2 bar to 8 bar
- Measuring Principle: Magnetic
- Reproducibility: ±0.2 mm
- Switching Status Indication: Visual/Optical window
- Operating Medium: Compressed air conforming to ISO 8573-1:2010 (Lubricated operation is not possible)
- Ingress Protection: IP65 rated
FESTO SMPO-8E 178563 Pneumatic Proximity Switch (SMPO Series).
-
REQUEST A QUOTE

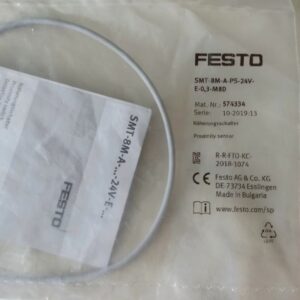

- Manufacturer: Festo
- Model / Part Number: SMT-8M-A-PS-24V-E-0,3-M8D 574334
- Type code: SMT-8M-A-PS-24V-E-0,3-M8D
- Part number: 574334
- Installation: T-slot
- Measured variable: Position
- Measuring principle: Magneto-resistive
- Output: PNP, normally open
- Nominal voltage: 24 V DC
- Operating voltage: 5–30 V DC
- Maximum output current: 100 mA
- Maximum switching capacity: 2.8 W DC
- Maximum switching frequency: 130 Hz
- Repetition accuracy: 0.2 mm
- Switch-on time: ≤1.3 ms
- Switch-off time: ≤7.3 ms
- Voltage drop: <1.5 V
- Connection: M8 × 1, A-coded, 3-pin; cable with plug
- Cable length: 0.3 m
- Ambient temperature: −40 to +85 °C
- Electrical protection: Short-circuit, overload and reverse-polarity protection
-
REQUEST A QUOTE
- Voltage Supply Range: 10 – 30 VDC.
- Output Current: Under 100 mA.
- Adjustment: Teach-in button setup.
- Indicators: Green LED for power/alignment status and a Yellow LED for the output indicator.
- Enclosure Rating: IP65 protection against dust and water jets.
- Operating Temperature: -20 °C to +50 °C.
- Dimensions: Subminiature rectangular body measuring 16.2 mm x 8 mm x 10.8 mm.
FHDK 07P6901 BANNER Diffuse Photoelectric Sensor.
-
REQUEST A QUOTE
- Sensor Type: Electrochemical / Galvanic cell (requires no external power supply for sensor operation and no warmup time).
- Measurement Range: 0% to 100% Oxygen (O₂).
- Response Time: Approximately 14 ± 2 seconds.
- Connection/Mounting: Features a distinctive threaded top (M16x1) for secure screw-in physical installation.
- Chemical Resistance: Virtually unaffected by interfering background gases like CO₂, CO, H₂S,
- Safety: Ambient air conditioning monitoring, commercial oxygen detectors, and fire detection units.
- Biotechnology & Food Industry: Oxygen levels in biological incubators, agricultural greenhouses, and commercial refrigeration monitoring.
- Environmental Monitoring: Combustion flue gas monitoring and Continuous Emissions Monitoring Systems (CEMS).
Figaro KE-25F3 Electrochemical Oxygen Sensor (KE-25 Series).
-
REQUEST A QUOTE
- Model: Flygt ENM-10 (13M Variant)
- Cable Length: 13 meters (approx. 42 feet)
- Switch Type: Microswitch, SPDT (Single Pole Double Throw) for NO/NC control
- Electrical Rating (AC): 250 VAC / 10 A resistive load; 250 VAC / 3 A inductive (cos φ = 0.5)
- Electrical Rating (DC): 24 VDC, minimum 10 mA, maximum 6 A
- Liquid Density Range: 0.95 to 1.10 g/cm³ (standard buoyancy calibration)
- Operating Temperature: 0°C to 60°C (32°F to 140°F); must not be allowed to freeze
- Enclosure Protection: IP68 (completely dust-tight and continuously submersible)
- Casing Material: Polypropylene (welded and screwed together; no adhesives used)
- Cable/Strain Relief: Special compound PVC & NBR/PVC sheathing; EPDM rubber bending relief
FLYGT ENM-10 13M Electronic Level Regulator (ENM Series).
-
REQUEST A QUOTE
- Sensing Method: Retro-reflective / Mirror Reflex (requires MR-1 mirror)
- Sensing Distance: Up to 2.0 meters (200 cm / approx. 6.5 feet)
- Operating Voltage: Universal: 12 ~ 240 VDC or 24 ~ 240 VAC (50/60 Hz)
- Control Output: Relay Output (Mechanical contact)
- Contact Rating: High-capacity 3A / 250VAC max
- Output Status: Normally Open (NO) — triggers when the beam is broken / "Received ON"
- Light Source: Invisible Infrared LED
- Sensitivity Adjuster: None (Fixed sensitivity, factory pre-set for standard environments)
- Protection Class: IP-65 (Dust-tight and protected against water jets)
- Housing Material: Heavy-duty ABS case; Polycarbonate (PC) lens
FOTEK A3G-2MRS+MR-1 Photoelectric Sensor (A3 Series).
-
REQUEST A QUOTE
- Sensing Type: Retro-reflective / Mirror Reflex (Infrared LED)
- Sensing Distance: Up to 4.0 meters (approx. 13.1 feet)
- Operating Voltage: DC: 12 ~ 240 V
- AC: 24 ~ 240 V (50/60 Hz)
- Output Method: Relay Contact
- Output Status: Normally Open (NO)
- Contact Current Rating: 3A / 250VAC max capacity
- Protection Rating: IP-65 (Dust-tight and water-jet resistant)
- Sensitivity Adjuster: None (Fixed sensitivity standard type)
- Integrated Multi-Surge Killer: The internal circuitry features heavy-duty protection built to suppress power spikes and surge damages typical of industrial environments.
FOTEK A3G-4MX+MR-1 Photoelectric Sensor (A3 Series).
-
REQUEST A QUOTE
- Sensing Type: Reflex / Retroreflective
- Sensing Distance: Up to 1.0 Meter (100 cm / ~3.28 ft)
- Operating Voltage: 12 ~ 240 VDC or 24 ~ 240 VAC (50/60 Hz)
- Output Method: Relay Output (SPDT Contact)
- Output Status: NO (Normally Open / Received ON)
- Sensitivity Adjuster: 270° Trimmer
- Light Source: Infrared LED
- Response Time: Max 15 ms
- Protection Class: IP65
- Connection Method: Pre-wired 2-meter cable
FOTEK A3R-1MX Photoelectric Sensor (A3 Series).
-
REQUEST A QUOTE
- Sensing Type: Thru-Beam (Emitter + Receiver)
- Sensing Distance: 10 Meters (32.8 feet)
- Operating Voltage: Multi-Voltage: 12~240 VDC or 24~240 VAC (50/60 Hz)
- Output Method: Mechanical Relay Contact
- Output Status: Normally Open (NO) / Break On
- Contact Rating: Max 3A at 250 VAC
- Light Source: Infrared LED
- Sensitivity Adjuster: Fixed (Without manual adjustment trimmer)
- Protection Class: IP-65 (Dust-tight and water-jet resistant)
- Housing Material: High-intensity ABS case; Polycarbonate (PC) lens
FOTEK A3T-10MX Thru-Beam Photoelectric Sensor (A3 Series).
