Showing 177–192 of 283 results
-
REQUEST A QUOTE
- Sensor Type: Photoelectric (Mirror Reflex / Retro-reflective)
- Form Factor: M18 Tubular (Threaded barrel)
- Sensing Direction: Horizontal (Standard barrel) / Vertical option
- Sensing Distance: 0.1 meters to 2.5 meters (0.1m ~ 2.5m)
- Operating Voltage: 10 to 30 VDC
- Current Draw: 20 mA max.
- Output Method: Simultaneous NPN & PNP (150 mA max)
- Output Status: Normally Open (NO)
- Sensitivity: 270° Trimmer adjustment
- Protection Rating: IP66
FOTEK CDM-2MX+MR-1 Photoelectric Sensor (CDM Series).
-
REQUEST A QUOTE
Technical Specifications
- Manufacturer: FOTEK Controls
- Model Number: E3T-10MX+BR-1
- Sensor Type: Thru-Beam (Requires a separate emitter and receiver pair)
- Sensing Distance: Up to 10.0 meters (approx. 32.8 feet)
- Sensitivity Adjuster: None (Fixed baseline sensitivity)
- Environmental Protection: IP-66 rated (Dust-tight and protected against powerful water jets)
- Product Group: Industrial Automation & Motion Controls
- Long-Range Detection: Perfect for conveyor systems, automated gates, and large machinery monitoring where components are spaced far apart.
- Rugged Construction: Built with an IP-66 enclosure, making it resilient against wet, dusty, or harsh manufacturing environments.
- High Reliability: The through-beam configuration offers the most reliable form of photoelectric sensing because the object directly interrupts the light beam between two units, minimizing false reads from color or reflectivity variations.
FOTEK E3T-10MX+BR-1 Photoelectric Sensor (E3 Series).
-
REQUEST A QUOTE
- Sensing Type: Reflex / Diffuse Reflective Type
- Sensing Distance: 10 cm to 15 cm
- Operating Voltage: 10~30 VDC (Ripple < 20% peak-to-peak)
- Output Method: NPN & PNP two-way simultaneous output
- Output Status: NO (Normally Open)
- Protection Rating: IP-65 dust and water resistance
- Adjustment: 270° Trimmer sensitivity adjuster
- Light Source: Infrared LED emitter
- Circuit Protection: Short circuit & Polarity reversal protection
FOTEK MR-10X Miniature Waterproof Reflex Photoelectric Sensor (MS Series).
-
REQUEST A QUOTE
- Control Logic: Artificial Intelligence Fuzzy + PID Control or On/Off
- Main Output: Voltage Pulse Output (specifically engineered to drive SSRs)
- Alarm Output: 1x Relay Output (Normally Open, rated 3A / 250VAC)
- Supported Sensors: Multi-input type: K-type, J-type thermocouple, or Pt100 RTD
- Display Panel: 4-digit red LED digital process value/setting value display
- Display Accuracy: ±0.1% of Full Scale + 1 digit
- Display Range: -999 to +9999 °C
- Operating Power: 90 ~ 265 VAC, 50/60 Hz universal operating voltage
- Dimensions: Front Panel: 72 x 72 mm | Body Depth: 80 mm to 130 mm
- Certifications: UL Safety Standards & CE Certified
FOTEK MT72-V Timer (MT Series).
-
REQUEST A QUOTE
- Manufacturer & Series: Gefran — LT Series (With Shaft)
- Part Number: LT-M-0100-S (Factory Code: F003494)
- Useful Electrical Stroke: 100 mm (3.93 inches)
- Ohmic Resistance: 5 kΩ (±20% tolerance)
- Independent Linearity: ±0.05%
- Resolution: Infinite
- Electrical Connection: 4-pole connector (DIN 43650 / ISO 4400 Form A)
- Mechanical Linkage: Pull shaft, M5 or M6 threaded ball joint
- Max Displacement Speed: 5 m/s (16.4 ft/s)
- Ingress Protection (IP): IP60 rating
GEFRAN LT-M-0100-S Position Transducer (LT Series).
-
REQUEST A QUOTE
- Transducer Type: Potentiometer (rectilinear displacement)
- Stroke Length: 130 mm (approx. 5.1 inches)
- Resistance: 5 kOhm standard
- Linearity: ± 0.05%
- Electrical Connection: 4-Pole DIN 43650 Form A connector
- Protection Rating: IP60
- Lifespan: Up to 25 million cycles

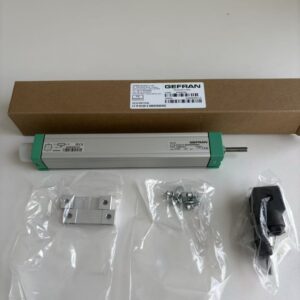

GEFRAN LT-M-0130-S Linear Potentiometer Displacement Transducer (LT-M Series).
-
REQUEST A QUOTE
- Manufacturer: Gefran
- Model / Part Number: LT-M-0150-S 0000X000X0C
- Full model: LT-M-0150-S 0000X000X0C
- Manufacturer code: F049752
- Measuring principle: Potentiometric
- Electrical stroke: 150 mm
- Resistance: 5 kΩ
- Independent linearity: ±0.05%
- Electrical connection: LT-M 4-pole connector, DIN 43650 / ISO 4400
- Protection version: S, IP60
- Mechanical actuation: Shaft with M6 thread
- Repeatability: 0.01 mm
- Operating temperature: −30 to +100 °C
-
REQUEST A QUOTE
- Manufacturer: GESTRA
- Model / MPN: NRG19-50
- Electrode Length (L): 100 mm (determines the low-water switchpoint)
- Mechanical Connection: G ¾ A threaded connection (ISO 228-1)
- Pressure Rating: PN 160 (Nominal pressure capability)
- Max Service Pressure: 100 bar at a temperature of 311 °C
- Measuring Principle: Conductive (utilizes the electrical conductivity of water)
- Body Material: High-grade stainless steel
- Boiler Protection: When the water level drops below the tip of the 100mm electrode, it triggers an instant low-water alarm (LW), cutting power to the boiler heating elements to prevent catastrophic dry-firing damage.
- Self-Monitoring Safety: The system features advanced internal diagnostics. It triggers a safety alarm automatically if the electrode insulation degrades, develops a leak, or suffers an electrical connection failure.
- Installation Requirements: It can be mounted inside a boiler vessel or within an external level pot/standpipe. Per GESTRA Installation Manuals, you cannot install two NRG19-50 limiters inside the same single standpipe.
Gestra NRG19-50 L=100mm G3/4 PN160 Conductive Level Electrode (NRG19 Series).
-
REQUEST A QUOTE
- Instrument System: Core Specification Features & Capabilities
- Digital Oscilloscope: 2 Channels, 250MHz Bandwidth, 1 GSa/s Real-time Sampling Rate • 8M storage depth
- Waveform Generator: 1 Channel, 25MHz Frequency, 12-bit Resolution • 200 MSa/s sampling rate
- Digital Multimeter: 4000 Counts Resolution • Measures AC/DC voltage/current, resistance, capacitance, diode, and continuity
- Interface: Features a 7-inch TFT color capacitive multi-touch screen (800×480 resolution) for intuitive gesture operations.
- Power: Equipped with a massive 10,000mAh detachable lithium battery that supports Type-C 18W fast charging and can function as a temporary power bank.
- Form Factor: Built with an anti-fall, anti-seismic rugged casing and a unique suspension foot stand to allow hands-free benchtop operation.
- Analysis Tools: Features built-in hardware frequency counters, Math functions, FFT spectrum analysis, and up to 42 automatic measurement capabilities.
Hantek TO1252D Portable Tablet Oscilloscope (TO1000 Series).
-
REQUEST A QUOTE
- Transmission Type: Half-duplex two-way transmission
- Transmission Method: Pulse modulation via Near-Infrared LED
- Transmission Time: 40 msec or less
- Verification Method: Parity check
- Power Source: 24VDC (Available range: 10 to 30VDC)
- Current Consumption: 100mA Max
- Output Type: NPN Open-collector (30V, 50mA or less)
- Ambient Temperature: -10 to +50°C
- Optical Communication: Replaces physical trailing cables or Wi-Fi networks in harsh industrial environments prone to radio frequency interference.
- Industrial Environment Tolerance: Features high resistance to ambient illumination (up to 4,000 lux) and robust vibration/impact protection to handle heavy factory floor dynamics.
HOKUYO DMS-HB1-N Optical Data Transmission Device (DMS Series).
-
REQUEST A QUOTE
- Component Type: Replacement Ultraviolet (UV) Flame Sensing Power Tube.
- Temperature Rating: 0°F to 250°F (-18°C to 121°C).
- Primary Applications: Industrial burners, commercial boilers, central furnaces, public ovens, and intense combustion systems.
- Country of Origin: United States (USA).
HONEYWELL 129464M UV Flame Sensing Tube (129464).
-
REQUEST A QUOTE
- Component Type: Replacement UV Power Sensing Tube with Base
- Operating Temperature: -40°F to +250°F (-40°C to +121°C)
- Dimensions: Height: 69 mm
- Diameter: 19 mm
- Weight: 0.038 kg (0.08 lbs)
- Tariff Code: 85408900
- Flame Amplifiers: Compatible with Honeywell R7849A/B UV flame amplifiers used in standard 7800 SERIES Burner Management Systems.
- Fuel Profiles: Engineered to monitor ultraviolet radiation from gas-, oil-, and coal-fired burners.
- High-Temperature Environments: If installing the companion primary detector in areas exceeding the baseline temperature limit, utilize specialized Honeywell F leadwires (Specification No. 32004766-003). This specialized wiring is continuously rated up to 400°F (250°C).
- Wiring Considerations: For non-high-temperature sections, utilize moisture-resistant No. 14 AWG wire rated for the peak ambient temperatures expected inside the burner enclosure.
HONEYWELL 129464N UV Flame Sensing Tube (129464).
-
- Brand: Honeywell
- Model: C7061A1053
- Series: C7061A
- Detection method: Ultraviolet
- Self-checking: Yes
- Supply rating: 120 V AC, 50/60 Hz
- Pipe connection: 1 inch
- Lead length: 8 ft
- Ambient temperature: -40 to +175 °F
- Flame amplifier: R7861, as marked on detector
-
REQUEST A QUOTE
- Control Action: Proportional plus Integral (P+I) or basic On/Off control for stable temperature management.
- Power Supply: 24 Vac.
- Analog: Modulating 2 to 10 Vdc or 4 to 20 mA (reversible) to drive valve or damper actuators.
- Digital: 2A On/Off relay output for secondary sequence control, changeovers, or alarms.
- Temperature Range: Broad reach from -20°C to 110°C when utilizing an external sensor, making it robust enough for steam or chilled water systems.
- Enclosure & Wiring: IP30-rated compact housing that supports wall, panel, or standard DIN rail mounting with plug-in screw terminals.
HONEYWELL T9275A1002 Temperature Controller (T9275 Series).
-
REQUEST A QUOTE
- Power Supply: 220/230VAC, 50/60Hz.
- Temperature Setting Range: 10°C to 32°C.
- Operating Ambient Limits: 0°C to 49°C.
- Enclosure Protection: IP20 rating against solid particles.
- Built-in Protections: Integrated low-temperature freeze protection and four distinct keypad locking options.
HONEYWELL TF428WN/U Fan Coil Thermostat (TF428 Series).
-
REQUEST A QUOTE
- Model Series: EDS 3400 (Electronic Pressure Switch with dual-plane rotatable digital display)
- Mechanical Connection: G1/4 A ISO 1179-2 external thread
- Electrical Connection: M12x1, 4-pin connector
- Modification Number: 000 (Standard design)
- HYDAC Part Number: 923625 or 908129
- Multi-Plane Rotatable Display: The 4-digit digital LED screen can be rotated independently from the fluid connection on two axes. This allows you to mount the device in virtually any orientation while keeping the display perfectly readable.
- Configurable Units: The sensor actively measures and displays pressure in bar, psi, or MPa, auto-converting any saved threshold programming when units are swapped.
- Durable Construction: Utilizes a stainless steel measuring cell with a thin-film strain gauge for extended duty-cycle longevity.
HYDAC EDS 3446-2-0100-000 Electronic Pressure Switch with Digital Display (EDS 3400 Series).
