SME-10-SL-LED-24 173212 Sensor For FESTO

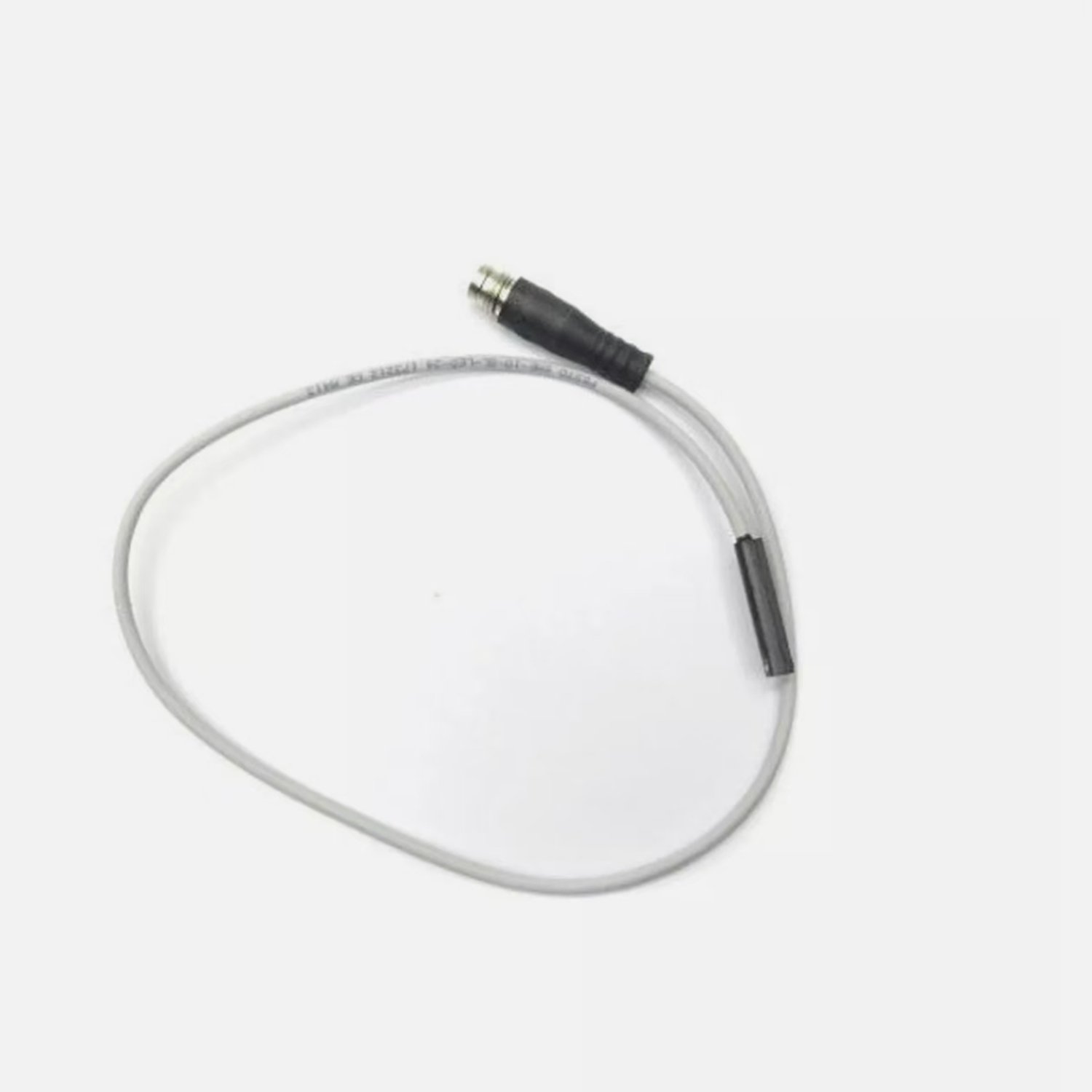

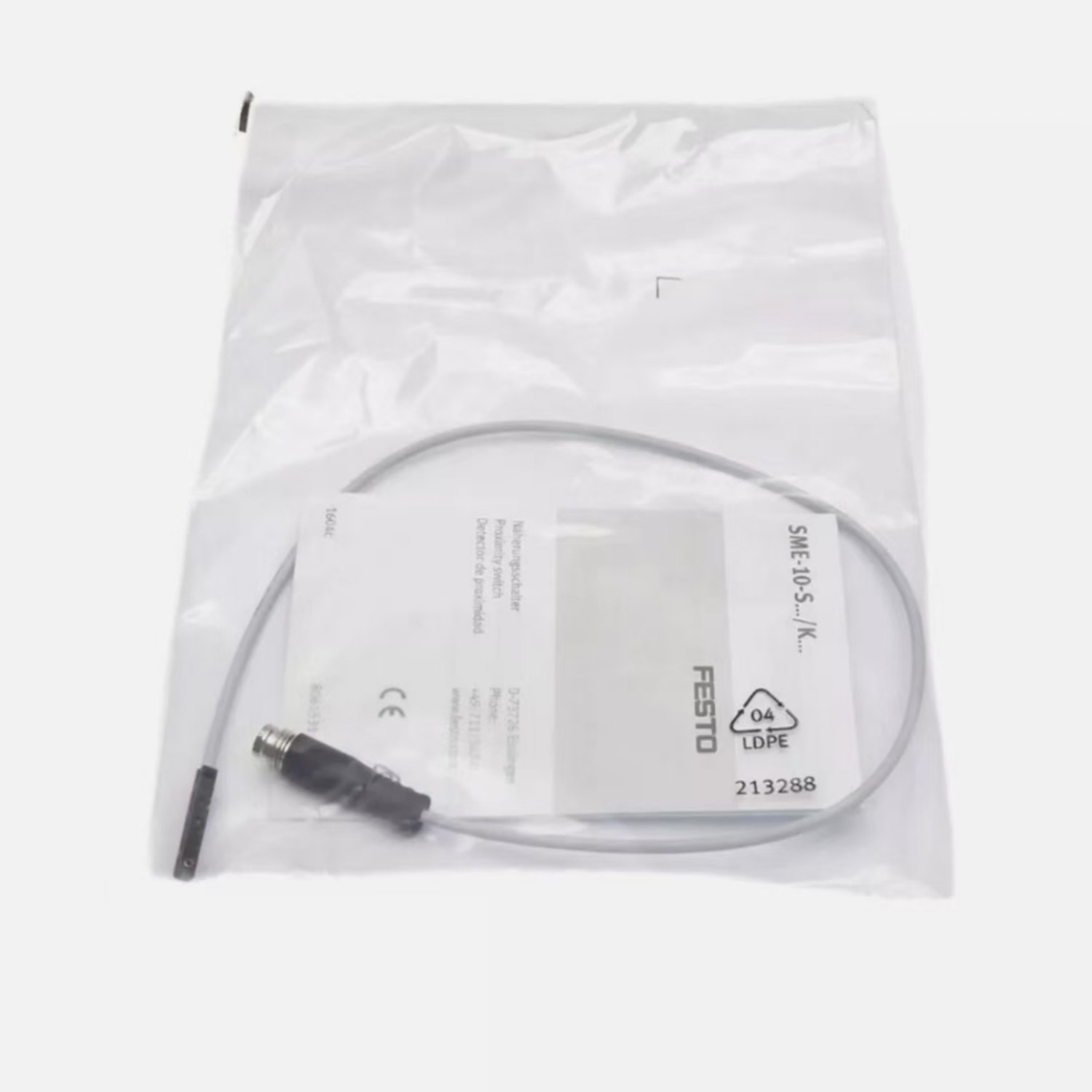

FESTO SME-10-SL-LED-24 173212 Magnetic Proximity Sensor (SME Series) - Image 2

FESTO SME-10-SL-LED-24 173212 Magnetic Proximity Sensor (SME Series)

REQUEST A QUOTE

Measuring Principle: Magnetic Reed (Contact-based, bipolar)
Switching Element Function: N/O (Normally Open) contact
Operating Voltage Range: 12 V – 27 V AC/DC (24 V Nominal)
Electrical Connection: Pre-wired 0.3 m (30 cm) cable with an in-line 3-pin M8 male connector
Visual Indicator: Yellow LED switching status light
Repetition Accuracy: ± 0.2 mm
Environmental Protection: IP65 / IP67
Ambient Temperature Range: -20°C to +70°C (Static cable installation)
Housing Materials: Nickel-plated brass / PPS / High-alloy stainless steel
Tightening Torque: Max. 0.1 Nm

Brand New FESTO SME-10-SL-LED-24 173212 Sensor. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
