Showing 65–80 of 94 results
-
REQUEST A QUOTE
- Control / Coil Voltage: 24 V DC
- Current & Contact Rating: 5 A max switching current
- Contact Configuration: 2 enabling current paths (DPST-NO / 2 Form A) and 1 confirmation signal path (SPST-NC).
- Safety Ratings: Up to SIL 3 (IEC 61508) and Performance Level e (EN ISO 13849).
- Housing & Dimensions: Narrow 17.5 mm width, yellow PA housing.
- Connection Type: Plug-in screw connection.
- Special Features: Integrated test pulse filter to prevent accidental triggering from controller test pulses, extending service life.
PHOENIX CONTACT 2986960 Safe Coupling Relay (PSR-SCP).
-
- Manufacturer: PILZ
- Model / Part Number: 475695
- Model Identifier: PNOZ 1 24VDC 3S1O (3S10)
- Operating Voltage: 24V DC
- Power Consumption: 3.5W (2W maximum)
- Output Contacts: 3 N/O (Normally Open) safety contacts + 1 N/C (Normally Closed) auxiliary contact
- Switching Capacity: 5A at 230V AC / 7A at 24V DC
- Response Time: Very fast release time of 20 milliseconds
- Mounting Style: Standard DIN rail mount
-
REQUEST A QUOTE
- Switching Type: Magnetic, non-contact operation to minimize mechanical wear.
- Contact Configuration: 2 Normally Open (2NO / DPST-NO) contacts.
- Supply / Switched Voltage: 24 VDC maximum.
- Operating Distance: Assured switching distance of 8 mm (with a switch-off distance of 26 mm).
- Connection Type: 4-pin M8 male connector.
- Protection Rating: IP67 (dust-tight and water-resistant).
- Housing Material: PBT (Polybutylene Terephthalate) plastic, square design.
- Dimensions: 36 mm (or up to 42.8 mm depending on bracket inclusion) x 26 mm x 13 mm.
- Status Indication: Standard variant without LED.
- Package Contents: Includes 1 safety sensor unit along with its matching coded magnetic actuator.
PILZ 504220 Magnetic Safety Switch (PSEN).
-
REQUEST A QUOTE
- Type: PSEN cs1.1p / PSEN cs1.1
- Technology: Non-contact coded RFID
- Safety Outputs: 2 semiconductor OSSD outputs
- Auxiliary Outputs: 1 semiconductor output
- Operating Voltage: 24 VDC
- Connection: 8-pin M12 male connector
- Assured Switch-On Distance: 15 mm
- Assured Switch-Off Distance: 40 mm
- Protection Rating: IP65 / IP67
- Actuation Directions: 4
- Diagnostics: Safety Device Diagnostics (SDD)
- Set Components: Coded switch 540050 and actuator 540080
PILZ 540000 is a PSEN cs1.1p / PSEN cs1.1 coded safety switch set for safety-gate and position monitoring. It uses RFID technology and operates at 24 VDC.
-
REQUEST A QUOTE
- Technology & Coding: RFID transponder technology with unique coding to provide a high level of tamper resistance.
- Safety Outputs: Features 2 safe semiconductor (OSSD) outputs that are short-circuit proof.
- Electrical Ratings: Operates on 24 Vdc supply voltage with a low power consumption of 1W.
- Connection Type: Integrated 8-pin M8 male connector.
- Nominal switching distance: 11 mm
- Enclosure Rating: Certified at IP67 and IP69K, meaning it is fully sealed against heavy dust and high-pressure washdowns.
- Actuation: Operates via a single actuation direction. A complete unit includes both the safety switch and the matching actuator.
- Diagnostics: Built-in 3-LED interface providing immediate visual status for the actuator, inputs, and power/fault conditions.
- Manufacturer Portal: View data sheets and downloads directly on the official Pilz Product Page.
PILZ 541010 Safety Relay (PNOZ).
-
REQUEST A QUOTE
- Product Type: RFID Safety Switch (Coded Switch without Actuator)
- Supply Voltage: 24 Vdc (1W Power Rating)
- Outputs: 2 Safe Semiconductor (OSSD) / 1 Signal Output
- Connection Type: M12, 5-Pin Male Connector
- Protection Rating: IP67 / IP69K
- Operating Temp: -25°C to 70°C
- Housing Material: Polybutylene Terephthalate (PBT)
- Operating Frequency: 122 kHz – 128 kHz
- Highest Tamper Protection: Employs RFID transponder technology. The switch will only actuate when matched with a compatible coded actuator element, preventing manual override bypasses.
- OSSD Safety Outputs: Delivers 2 safe semiconductor outputs directly to your safety controller or relay setup.
PILZ 541053 RFiD Safety Switch (PSEN cs3.1n).
-
REQUEST A QUOTE
Compact coded RFID safety switch for non-contact guard monitoring in industrial automation systems.
Technical Specifications
- Supply Voltage: 24 V DC, 1 W
- Safety Outputs: 2 x OSSD semiconductor outputs
- Connection: 0.15 m pigtail, 8-pin M12 male
- Coding: Coded transponder; actuator not included
- Protection: IP67 / IP69K
- Dimensions: 26 x 37 x 18 mm
- Operating Temperature: -25 °C to +70 °C
PILZ 541059 RFiD Safety Switch (PSEN cs3.1).
-
REQUEST A QUOTE
- Manufacturer: Pilz GmbH & Co. KG
- Product Series: PSENcode (Compact Design)
- Operating Voltage: 24 Vdc (1 W power consumption)
- Connection Type: 5-pin M12 male connector
- Outputs: 2 safe semiconductor (OSSD) digital outputs (100mA)
- Sensing Distances: 11 mm operating distance
- Actuation: 1 actuation direction
- Coding Level: Low coding according to ISO 14119 (Switch only; actuator sold separately)
- Protection Rating: IP67 / IP69K (high dust and water ingress resistance)
- Operating Temperature: -25°C to +55°C
PILZ 541353 RFiD Safety Switch (PSEN cs3.19n).
-
- Manufacturer: Pilz
- Model / Part Number: 750102
- Supply Voltage: 24V DC (Acceptable range: 20.4V to 26.4V DC)
- Power Consumption: 2 Watts
- Input Channels: 1-channel wiring (without short-circuit detection across contacts)
- Safety Outputs: 3 Normally Open (N/O) instantaneous contacts
- Auxiliary Outputs: 1 Normally Closed (N/C) contact + 1 Semiconductor output
- Switching Capacity: 6 Amps at 240V AC / 24V DC
- Housing Width: 17.5 mm (Slim compact design)
- Terminal Style: Plug-in screw terminals
- Mounting: DIN rail mounting (35mm)
- Safety Ratings: Up to SIL 3 / PL e / Category 4
- Safety Integrity: Built with positive-guided relay outputs and safe separation to prevent internal failures from overriding safety commands.
- Visual Diagnostics: Features built-in LED indicators to monitor supply voltage, input status, reset circuits, and errors.
-
REQUEST A QUOTE
- Product Line / Model: PNOZmulti 2 / PNOZ m B0.1
- Supply Voltage: 24 V DC
- Total Safe Inputs: 20 safe digital inputs (12 dedicated + 8 configurable)
- Safe Outputs: 4 safe semiconductor outputs
- Test Pulse Outputs: 4 outputs
- Programming Interface: Mini USB connection
- Storage Medium: Requires a 32 kB chip card (not included)
- Mounting & Housing: DIN35 rail mounting, IP20 protection
- Expandable Architecture: The base unit can be expanded with digital I/O modules, relay outputs, or communication fieldbus modules (e.g., PROFINET, EtherNet/IP, Modbus).
- Software Configuration: Configured graphically via drag-and-drop using the PNOZmulti Configurator software platform.
PILZ 772104 Configurable Safety Controller (PNOZ m).
-
REQUEST A QUOTE
- Manufacturer: Pilz GmbH & Co. KG
- Product ID / MPN: 774041
- Supply Voltage: 24 V DC (Acceptable range: 20.4–26.4 V DC)
- Inputs: 1-channel wiring (single safety input, 24Vdc/50mA)
- Safety Outputs: 1 N/O (Normally Open) delayed safety contact (6A capacity)
- Auxiliary Outputs: 2 N/C (Normally Closed) delayed auxiliary contacts
- Time-Delay Range: 0 to 3 seconds, selectable across 12 distinct levels (0.3s to 3.0s)
- Safety Integrity: Up to SIL 3 / PL d / Cat. 3 depending on implementation architecture
- Connection Type: Built-in fixed screw terminals
- Mounting & Width: 45 mm wide housing, DIN rail mounting
PILZ 774041 Safety Relay (PNOZ X).
-
REQUEST A QUOTE
- Series: Pilz PNOZ X Series
- Outputs: 2 Normally Open (N/O) instantaneous safety contacts
- Inputs: 1/2-channel wiring configuration with or without cross-circuit short detection
- Physical Profile: 45 mm compact width, designed for DIN rail railing mounting
- Terminals: Integrated fixed screw termination
- Safety Ratings: Up to SIL 3 / PL e / Cat. 4 depending on installation wiring
- E-STOP Pushbuttons: Detects dual-channel or single-channel emergency stop breaks.
- Safety Gates: Monitors interlocking switches or limit switches on machine guards.
- Pressure-Sensitive Mats: Configured to monitor short-circuit principle safety mats.
- Feedback Loop: Built-in capability to monitor external relays or contactors.
PILZ 774066 Safety Relay (PNOZ 16).
-
REQUEST A QUOTE
- Operation Mode: Power to Unlock (Solenoid latching)
- Supply / Control Voltage: 24 VAC / VDC
- Contact Configuration: 6 contacts total: 4 NC (Normally Closed) + 2 NO (Normally Open)
- Electrical Connection: Screw terminals with 4 M16 x 1.5 cable entries
- Housing Material: Glass-fiber reinforced, self-extinguishing thermoplastic
- Protection Rating: IP67 (dust and water immersion resistant)
- Dimensions: 130 mm x 90 mm x 30 mm
- Mechanical Life: > 1,000,000 operations
- Safety Standards: EN 60947-5-1, BG-GS-ET-19, EN ISO 13849-1
- Incorrect Locking Protection: Built-in mechanism ensures that the switch cannot be locked or activated unless the machine guard is fully closed and aligned.
- Manual Release: Equipped with a lateral manual release function for maintenance or emergency override scenarios.
- Double-Insulated Housing: Eliminates the need for a separate protective earth grounding connection.
- Wiring Optimization: Designed with a large wiring compartment to facilitate simpler field terminations and cable routing.
Schmersal AZM 161SK-12/12RK-024 Solenoid Safety Interlock Switch (AZM 161 Series).
-
REQUEST A QUOTE
- Operating Voltage: 24V AC/DC (40–60 Hz)
- Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
- Enclosure Rating: IP67 (complete protection against dust and water submersion)
- Wiring Terminals: Screw terminals via 1 x M20 x 1.5 cable entry
- Dimensions: 90 mm x 84 mm x 30 mm
- Mechanical Lifespan: Minimum 1,000,000 operations
- Operating Temperature: -25°C to 60°C
- Incorrect Locking Protection: The mechanical interlock mechanism prevents the device from locking up unless the matching actuator key is fully inserted.
- Manual Release: Equipped with a physical escape release override on the housing for emergency or maintenance access during power loss.
- Robust Build: The double-insulated thermoplastic housing ensures high durability and resistance against chemical exposure in harsh industrial environments.
SCHMERSAL AZM 170SK-11ZRKA Solenoid Safety Interlock Switch (AZM 170).
-
REQUEST A QUOTE
- Manufacturer: SCHNEIDER
- Model / Part Number: XPSAK311144
- Supply Voltage: 24V AC/DC
- Safety Outputs: 3 NO (Normally Open) instantaneous volt-free relay outputs
- Additional Signaling: 1 NC relay output + 4 solid-state outputs for PLC communication
- Safety Integrity: Achieves Category 4 / PL e conforming to EN/ISO 13849-1, and SILCL 3 conforming to EN/IEC 62061
- Mounting Type: 35mm symmetrical DIN rail mounting
- Diagnostics: 4 front-facing LEDs for instant status monitoring

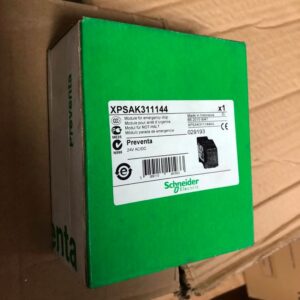

SCHNEIDER XPSAK311144 Safety Relay Module. Key specifications include Supply Voltage: 24V AC/DC; Safety Outputs: 3 NO (Normally Open) instantaneous volt-free relay outputs; Additional Signaling: 1 NC relay output + 4 solid-state outputs for PLC communication; Safety Integrity: Achieves Category 4 / PL e conforming to EN/ISO 13849-1, and SILCL 3 conforming to EN/IEC 62061.
-
REQUEST A QUOTE
- Supply Voltage: 230 V AC (with an incorporated 24 V DC option)
- Safety Contacts: 3 Normally Open (N/O) safety relay outputs
- Auxiliary/Signalling Contacts: 1 Normally Closed (N/C) volt-free signaling contact
- Additional Outputs: 4 solid-state outputs that duplicate the front-panel status LEDs for PLC communication
- Reset Methods: Configurable for automatic or manual starting
- Mounting: 35 mm symmetrical DIN rail (45 mm compact housing width)
SCHNEIDER XPSAK371144 Safety Relay (Preventa).
