504220 Safety Switch For PILZ
PILZ 504220 Magnetic Safety Switch (PSEN) - Image 2
PILZ 504220 Magnetic Safety Switch (PSEN) - Image 3

PILZ 504220 Magnetic Safety Switch (PSEN)

REQUEST A QUOTE

  • Switching Type: Magnetic, non-contact operation to minimize mechanical wear.
  • Contact Configuration: 2 Normally Open (2NO / DPST-NO) contacts.
  • Supply / Switched Voltage: 24 VDC maximum.
  • Operating Distance: Assured switching distance of 8 mm (with a switch-off distance of 26 mm).
  • Connection Type: 4-pin M8 male connector.
  • Protection Rating: IP67 (dust-tight and water-resistant).
  • Housing Material: PBT (Polybutylene Terephthalate) plastic, square design.
  • Dimensions: 36 mm (or up to 42.8 mm depending on bracket inclusion) x 26 mm x 13 mm.
  • Status Indication: Standard variant without LED.

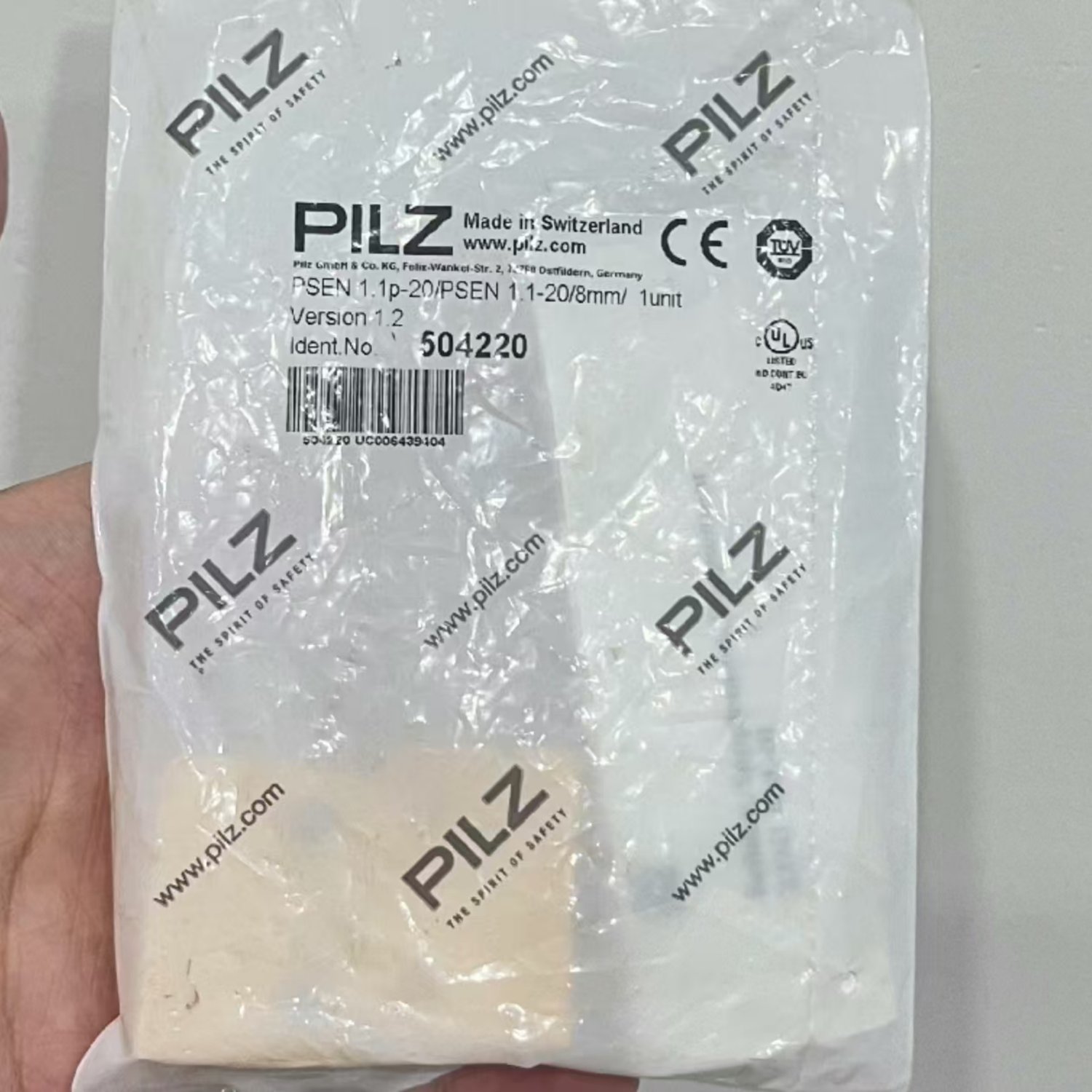

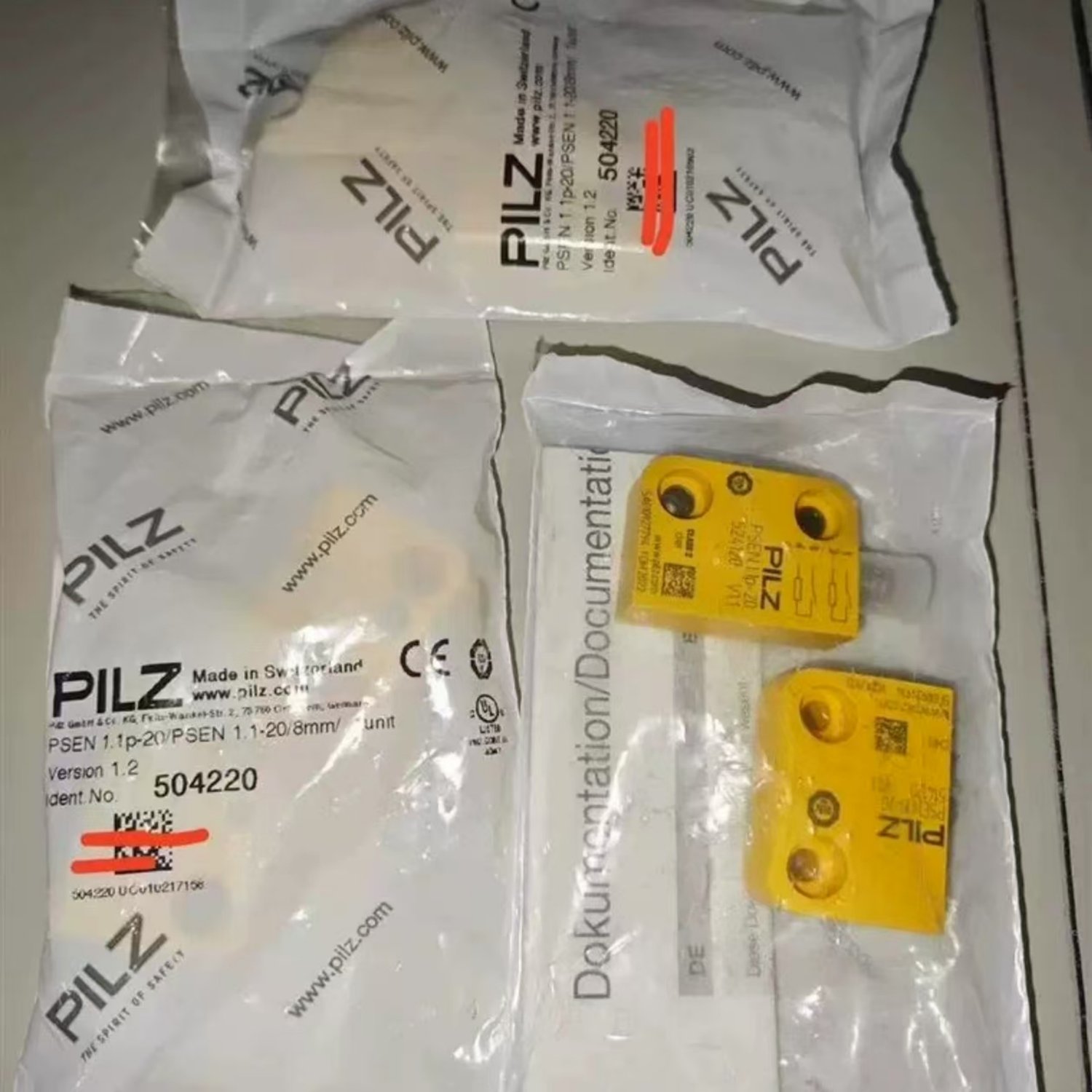

  • Package Contents: Includes 1 safety sensor unit along with its matching coded magnetic actuator.

PILZ 504220 Magnetic Safety Switch (PSEN).

  • SKU: 504220
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
