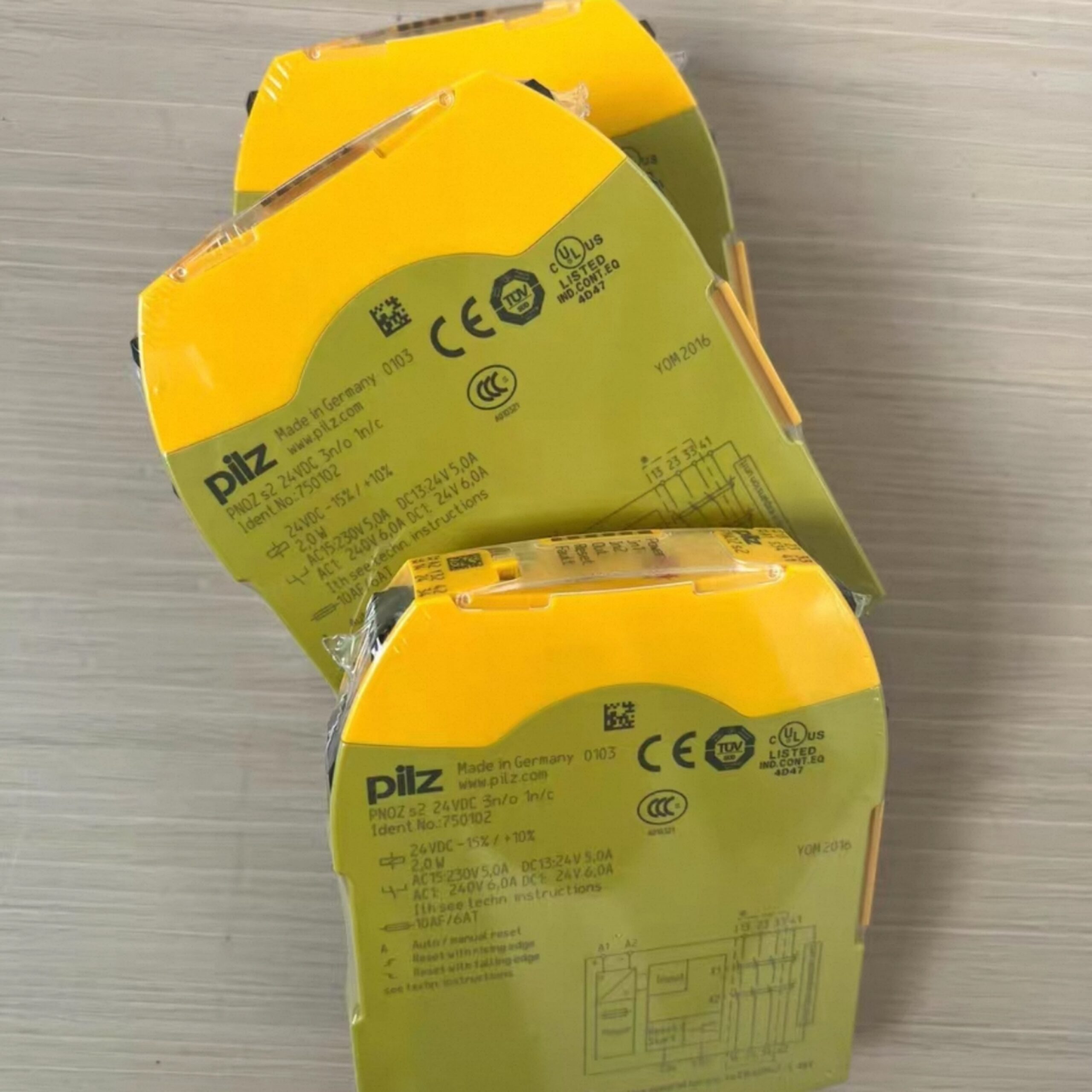

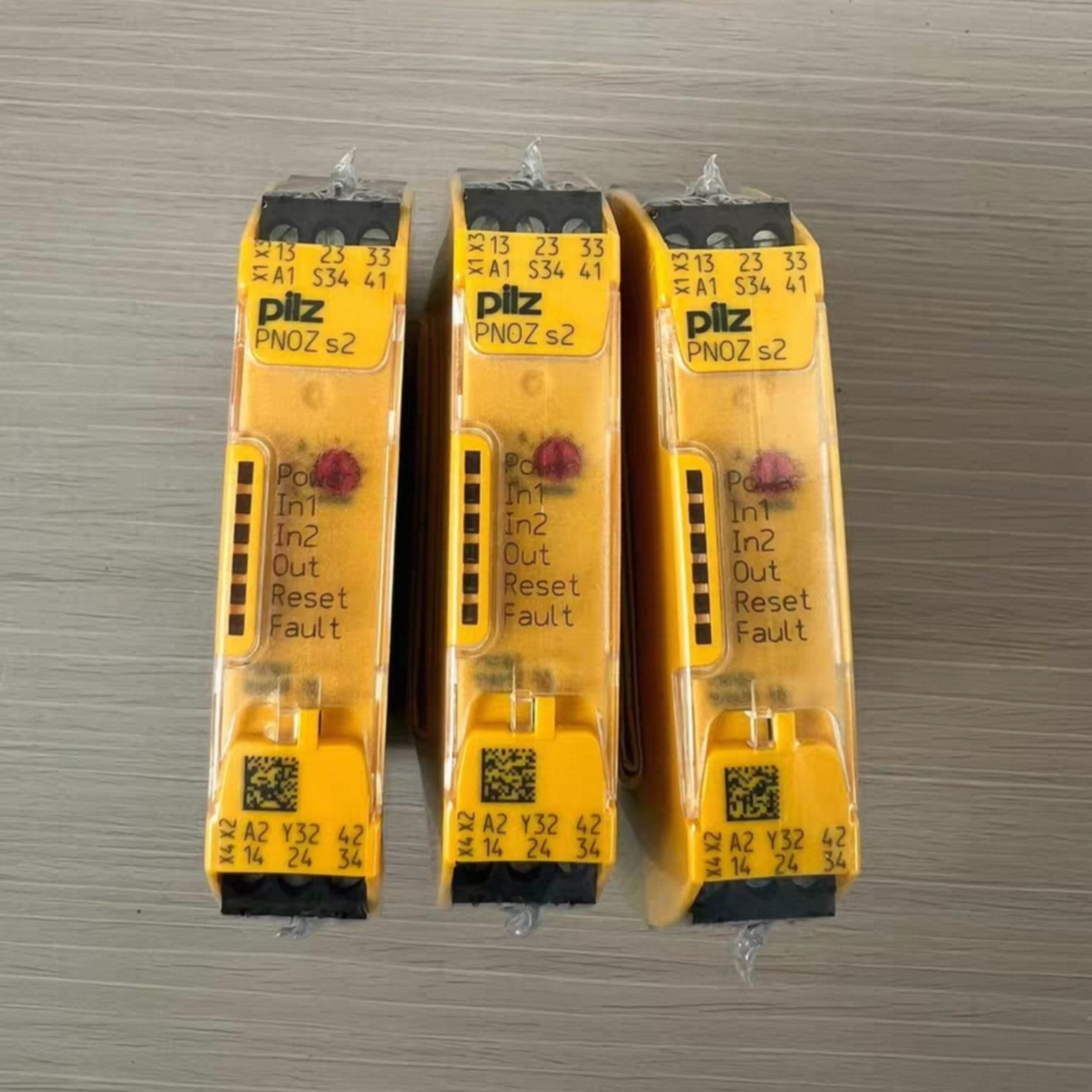

Pilz 750102 Safety Relay
- Manufacturer: Pilz
- Model / Part Number: 750102
- Supply Voltage: 24V DC (Acceptable range: 20.4V to 26.4V DC)
- Power Consumption: 2 Watts
- Input Channels: 1-channel wiring (without short-circuit detection across contacts)
- Safety Outputs: 3 Normally Open (N/O) instantaneous contacts
- Auxiliary Outputs: 1 Normally Closed (N/C) contact + 1 Semiconductor output
- Switching Capacity: 6 Amps at 240V AC / 24V DC
- Housing Width: 17.5 mm (Slim compact design)
- Terminal Style: Plug-in screw terminals
- Mounting: DIN rail mounting (35mm)
- Safety Ratings: Up to SIL 3 / PL e / Category 4
- Safety Integrity: Built with positive-guided relay outputs and safe separation to prevent internal failures from overriding safety commands.
- Visual Diagnostics: Features built-in LED indicators to monitor supply voltage, input status, reset circuits, and errors.
- SKU: 750102
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
Availability & Delivery
- Availability shown is for reference only and will be confirmed at the time the order is processed.
- Published quantities may change without prior notice.
- The customer is responsible for verifying part number and specifications before confirming the purchase.
- Certain products may be considered special order items depending on availability.
