- Core Function: Safety monitoring for E-stops, light curtains, and safety gates.
- Safety Integrity: Up to SIL 3, Cat. 4, and PL e compliance according to EN ISO 13849 standards.
- Control Voltage: 24 V AC/DC nominal input.
- Contact Configuration: 3 Enabling current paths (3 NO / DPST-NO) and 1 signaling path (1 NC).
- Switching Capacity: Max. 6 A continuous current / 250 V AC/DC switching voltage.
- Connection & Mounting: Plug-in screw terminal blocks mounted on standard DIN rails.
- Activation Modes: Supports both manually monitored and automatic activation within a single device.
Brand New PHOENIX CONTACT 2963763 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Safety Ratings: SIL 3 (IEC 61508) • Cat. 4 / PL e (EN ISO 13849-1)
- Nominal Input Voltage: 24 V AC/DC
- Power Consumption: ~1.68 W
- Typical Input Current: 140 mA AC / 65 mA DC
- Output Contacts: 3 Enabling current paths (N/O) • 1 Signaling current path (N/C)
- Response / Release Time: 20 ms (manual start) • 10 ms (two-channel release)
- Connection Method: Plug-in screw terminal block
- Operating Temperature: -20 °C … 55 °C
- Flexible Control: Supports both 1-channel and 2-channel operation loops.
- Activation Modes: Configurable for manual monitored activation or automatic start.
Brand New PHOENIX CONTACT 2963776 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Control & Channels: 1- or 2-channel control with options for automatic or manually monitored activation.
- Contact Configuration: Features 8 enabling current paths (8PST-NO) and 1 signaling current path (SPST-NC).
- Electrical Ratings: Operates on a 24V AC/DC rated control supply voltage with a maximum switching current of 6 A per contact.
- Installation: Designed for standard DIN Rail mounting and features user-friendly plug-in screw terminal blocks.
Brand New PHOENIX CONTACT 2963912 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Supply Voltage: 24 V DC (-15 % / +10 %)
- Typical Input Current: 50 mA DC
- Maximum Inrush Current: < 1 A
- Control Channels: 1-channel control
- Contact Configuration: 2 enabling current paths (NO), 1 signaling current path (NC, Type B according to EN 50205)
- Contact Material: Silver tin oxide with gold flash (AgSnO2, gold-flashed)
- Maximum Switching Voltage: 250 V AC/DC
- Minimum Switching Voltage: 10 V
- Limiting Continuous Current: 6 A
- Response Time: 60 ms (Automatic/manual start)

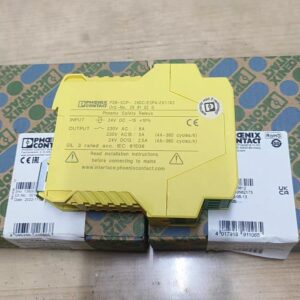

Brand New PHOENIX CONTACT 2981020 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Safety Integration: Achieves up to SIL 3 (IEC 61508) and PL e / Category 4 (ISO 13849-1) compliance.
- Control Configuration: Offers flexible 1- or 2-channel control with manually monitored or automatic activation options.
- Contact Pathways: Features 3 enabling (normally open) current paths and 1 signaling (normally closed) path.
- Electrical Ratings: Operates on a 24 V AC/DC nominal input voltage with a continuous switching current rating of 6 A up to 250 V AC/DC.
- Wiring System: Features a user-friendly, plug-in screw terminal block connection.

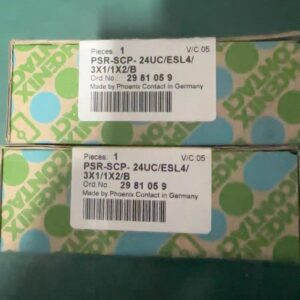

Brand New PHOENIX CONTACT 2981059 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Control / Coil Voltage: 24 V DC
- Current & Contact Rating: 5 A max switching current
- Contact Configuration: 2 enabling current paths (DPST-NO / 2 Form A) and 1 confirmation signal path (SPST-NC).
- Safety Ratings: Up to SIL 3 (IEC 61508) and Performance Level e (EN ISO 13849).
- Housing & Dimensions: Narrow 17.5 mm width, yellow PA housing.
- Connection Type: Plug-in screw connection.
- Special Features: Integrated test pulse filter to prevent accidental triggering from controller test pulses, extending service life.
Brand New PHOENIX CONTACT 2986960 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Switching Type: Magnetic, non-contact operation to minimize mechanical wear.
- Contact Configuration: 2 Normally Open (2NO / DPST-NO) contacts.
- Supply / Switched Voltage: 24 VDC maximum.
- Operating Distance: Assured switching distance of 8 mm (with a switch-off distance of 26 mm).
- Connection Type: 4-pin M8 male connector.
- Protection Rating: IP67 (dust-tight and water-resistant).
- Housing Material: PBT (Polybutylene Terephthalate) plastic, square design.
- Dimensions: 36 mm (or up to 42.8 mm depending on bracket inclusion) x 26 mm x 13 mm.
- Status Indication: Standard variant without LED.
- Package Contents: Includes 1 safety sensor unit along with its matching coded magnetic actuator.
Brand New PILZ 504220 Safety Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Technology & Coding: RFID transponder technology with unique coding to provide a high level of tamper resistance.
- Safety Outputs: Features 2 safe semiconductor (OSSD) outputs that are short-circuit proof.
- Electrical Ratings: Operates on 24 Vdc supply voltage with a low power consumption of 1W.
- Connection Type: Integrated 8-pin M8 male connector.
- Nominal switching distance: 11 mm
- Enclosure Rating: Certified at IP67 and IP69K, meaning it is fully sealed against heavy dust and high-pressure washdowns.
- Actuation: Operates via a single actuation direction. A complete unit includes both the safety switch and the matching actuator.
- Diagnostics: Built-in 3-LED interface providing immediate visual status for the actuator, inputs, and power/fault conditions.
- Manufacturer Portal: View data sheets and downloads directly on the official Pilz Product Page.
Brand New PILZ 541010 Safety Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product Type: RFID Safety Switch (Coded Switch without Actuator)
- Supply Voltage: 24 Vdc (1W Power Rating)
- Outputs: 2 Safe Semiconductor (OSSD) / 1 Signal Output
- Connection Type: M12, 5-Pin Male Connector
- Protection Rating: IP67 / IP69K
- Operating Temp: -25°C to 70°C
- Housing Material: Polybutylene Terephthalate (PBT)
- Operating Frequency: 122 kHz – 128 kHz
- Highest Tamper Protection: Employs RFID transponder technology. The switch will only actuate when matched with a compatible coded actuator element, preventing manual override bypasses.
- OSSD Safety Outputs: Delivers 2 safe semiconductor outputs directly to your safety controller or relay setup.
Brand New PILZ 541053 Safety Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
Compact coded RFID safety switch for non-contact guard monitoring in industrial automation systems.
Technical Specifications
- Supply Voltage: 24 V DC, 1 W
- Safety Outputs: 2 x OSSD semiconductor outputs
- Connection: 0.15 m pigtail, 8-pin M12 male
- Coding: Coded transponder; actuator not included
- Protection: IP67 / IP69K
- Dimensions: 26 x 37 x 18 mm
- Operating Temperature: -25 °C to +70 °C
Brand New PILZ 541059 RFID Safety Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Pilz GmbH & Co. KG
- Product Series: PSENcode (Compact Design)
- Operating Voltage: 24 Vdc (1 W power consumption)
- Connection Type: 5-pin M12 male connector
- Outputs: 2 safe semiconductor (OSSD) digital outputs (100mA)
- Sensing Distances: 11 mm operating distance
- Actuation: 1 actuation direction
- Coding Level: Low coding according to ISO 14119 (Switch only; actuator sold separately)
- Protection Rating: IP67 / IP69K (high dust and water ingress resistance)
- Operating Temperature: -25°C to +55°C
Brand New PILZ 541353 Safety Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product Line / Model: PNOZmulti 2 / PNOZ m B0.1
- Supply Voltage: 24 V DC
- Total Safe Inputs: 20 safe digital inputs (12 dedicated + 8 configurable)
- Safe Outputs: 4 safe semiconductor outputs
- Test Pulse Outputs: 4 outputs
- Programming Interface: Mini USB connection
- Storage Medium: Requires a 32 kB chip card (not included)
- Mounting & Housing: DIN35 rail mounting, IP20 protection
- Expandable Architecture: The base unit can be expanded with digital I/O modules, relay outputs, or communication fieldbus modules (e.g., PROFINET, EtherNet/IP, Modbus).
- Software Configuration: Configured graphically via drag-and-drop using the PNOZmulti Configurator software platform.
Brand New PILZ 772104 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Pilz GmbH & Co. KG
- Product ID / MPN: 774041
- Supply Voltage: 24 V DC (Acceptable range: 20.4–26.4 V DC)
- Inputs: 1-channel wiring (single safety input, 24Vdc/50mA)
- Safety Outputs: 1 N/O (Normally Open) delayed safety contact (6A capacity)
- Auxiliary Outputs: 2 N/C (Normally Closed) delayed auxiliary contacts
- Time-Delay Range: 0 to 3 seconds, selectable across 12 distinct levels (0.3s to 3.0s)
- Safety Integrity: Up to SIL 3 / PL d / Cat. 3 depending on implementation architecture
- Connection Type: Built-in fixed screw terminals
- Mounting & Width: 45 mm wide housing, DIN rail mounting

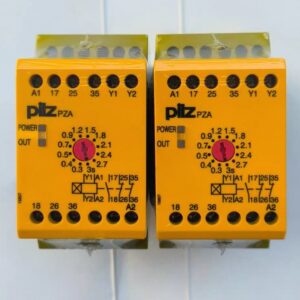

Brand New PILZ 774041 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series: Pilz PNOZ X Series
- Outputs: 2 Normally Open (N/O) instantaneous safety contacts
- Inputs: 1/2-channel wiring configuration with or without cross-circuit short detection
- Physical Profile: 45 mm compact width, designed for DIN rail railing mounting
- Terminals: Integrated fixed screw termination
- Safety Ratings: Up to SIL 3 / PL e / Cat. 4 depending on installation wiring
- E-STOP Pushbuttons: Detects dual-channel or single-channel emergency stop breaks.
- Safety Gates: Monitors interlocking switches or limit switches on machine guards.
- Pressure-Sensitive Mats: Configured to monitor short-circuit principle safety mats.
- Feedback Loop: Built-in capability to monitor external relays or contactors.
Brand New PILZ 774066 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operation Mode: Power to Unlock (Solenoid latching)
- Supply / Control Voltage: 24 VAC / VDC
- Contact Configuration: 6 contacts total: 4 NC (Normally Closed) + 2 NO (Normally Open)
- Electrical Connection: Screw terminals with 4 M16 x 1.5 cable entries
- Housing Material: Glass-fiber reinforced, self-extinguishing thermoplastic
- Protection Rating: IP67 (dust and water immersion resistant)
- Dimensions: 130 mm x 90 mm x 30 mm
- Mechanical Life: > 1,000,000 operations
- Safety Standards: EN 60947-5-1, BG-GS-ET-19, EN ISO 13849-1
- Incorrect Locking Protection: Built-in mechanism ensures that the switch cannot be locked or activated unless the machine guard is fully closed and aligned.
- Manual Release: Equipped with a lateral manual release function for maintenance or emergency override scenarios.
- Double-Insulated Housing: Eliminates the need for a separate protective earth grounding connection.
- Wiring Optimization: Designed with a large wiring compartment to facilitate simpler field terminations and cable routing.
Brand New Schmersal AZM 161SK-12/12RK-024 Solenoid Safety Interlock Switch (AZM 161 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operating Voltage: 24V AC/DC (40–60 Hz)
- Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
- Enclosure Rating: IP67 (complete protection against dust and water submersion)
- Wiring Terminals: Screw terminals via 1 x M20 x 1.5 cable entry
- Dimensions: 90 mm x 84 mm x 30 mm
- Mechanical Lifespan: Minimum 1,000,000 operations
- Operating Temperature: -25°C to 60°C
- Incorrect Locking Protection: The mechanical interlock mechanism prevents the device from locking up unless the matching actuator key is fully inserted.
- Manual Release: Equipped with a physical escape release override on the housing for emergency or maintenance access during power loss.
- Robust Build: The double-insulated thermoplastic housing ensures high durability and resistance against chemical exposure in harsh industrial environments.

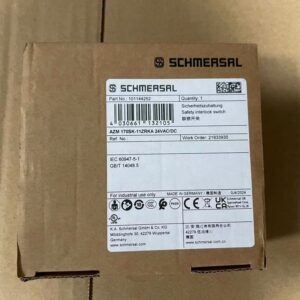

Brand New SCHMERSAL AZM 170SK-11ZRKA Safety Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
