Showing 1505–1520 of 2013 results
-
REQUEST A QUOTE
- Serial Ports: 2 x RS-232 ports via DB9 Male connectors
- Ethernet Port: 1 x 10/100BaseT(X) auto-sensing port via RJ45
- Input Voltage: 12 to 48 VDC
- Power Inputs: Dual power inputs: 1 x power jack & 1 x 3-contact terminal block
- Power Consumption: 119 mA @ 12 VDC
- Surge Protection: 0.5 kV serial surge protection; level 3 surge for power/Ethernet
- Dimensions: 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in) with mounting ears
- RealCOM Mode: Creates virtual COM ports on Windows/Linux PCs so legacy software can access the networked device as if it were locally plugged in.
- COM Port Grouping: Allows you to cluster multiple NPort units into a single logical COM port group on a central PC, enabling a single software application to multicast data to several serial devices simultaneously.
- Hardware Connection: Connect an Ethernet cable directly from your PC to the NPort's RJ45 port, and plug in a compatible 12–48 VDC power supply.
MOXA NPORT 5210A Serial Device Server (NPort 5210A).
-
REQUEST A QUOTE
- Serial Ports: 2 x RS-422 / RS-485 (5-pin terminal block connectors)
- Network Interface: 1 x 10/100 Mbps RJ45 Ethernet port
- Optical Isolation: 2 kV isolation protection for all serial signals
- Surge Protection: Built-in 15 kV ESD protection
- Baudrate Support: 110 bps to 230.4 Kbps
- Input Voltage: 12 to 48 VDC via removable 3-contact terminal block
- Housing & Mounting: Metal chassis, DIN-rail or wall mountable
- Real COM Mode: Provides bundled Windows/Linux drivers to map the network device as a local COM/TTY port, enabling legacy software to work without modifications.
- TCP Server / TCP Client: Establishes direct network sockets utilizing Winsock or BSD Sockets APIs.
- UDP Mode: Offers low-latency, point-to-multipoint unicast or multicast data transfers.
MOXA NPORT 5232I Serial Device Server (NPort 5232I).
-
REQUEST A QUOTE
- Number of Ports: 1
- Speed: 10/100 Mbps (Auto MDI/MDIX)
- Connector Type: 8-pin RJ45
- Magnetic Isolation: 1.5 kV built-in
- Ethernet Line Protection: EN 61000-4-5 (Surge) Level 2
- Ports & Standards: 2 ports supporting RS-232, RS-422, or RS-485 via DB9 male connectors
- Protection & Control: 0.5 kV surge protection (EN 61000-4-5), with ADDC for RS-485
- Baudrate: 50 bps to 921.6 kbps
- Settings: 5-8 data bits, 1-2 stop bits, and various parity/flow control options (RTS/CTS, XON/XOFF)
- Modes: Real COM, TCP Server/Client, UDP, Pair Connection, and more
MOXA NPORT 5250A Serial Device Server (NPort 5250A).
-

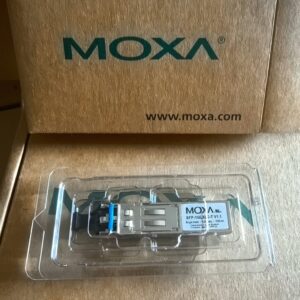

- Brand: Moxa
- Model: SFP-1GLXLC-T
- Series: SFP-1G
- Ethernet interface: 1000BaseLX
- Optical ports: 1
- Connector: Duplex LC
- Fibre type: Single-mode, G.652
- Wavelength: 1310 nm
- Typical link distance: 10 km, subject to link budget
- Transmit power: -9 to -3 dBm
- Receive power: -21 to -3 dBm
- Link budget: 12 dB
- Power consumption: 1 W maximum
- Operating temperature: -40 to +85 °C
- Relative humidity: 5–95%, non-condensing
-
REQUEST A QUOTE
- Serial Standards: RS-232, RS-422, RS-485 (2-wire and 4-wire)
- Number of Ports: 2 ports
- Baudrate: 50 bps to 921.6 kbps (Supports non-standard baudrates)
- Isolation Protection: 2 kV Optical Isolation
- Surge Protection: 16 kV ESD (Electrostatic Discharge) protection
- Pull High/Low Resistor: 1 kΩ, 150 kΩ (for RS-485)
- Housing: Robust IP30-rated metal enclosure
- Dimensions: 67 x 100.4 x 22 mm (2.64 × 3.93 × 0.87 in)
- Weight: 148 g (0.33 lb)
- Mounting Options: DIN-rail mountable or wall mounting (kits included)
MOXA TCC-100I Serial Media Converter (TCC-100).
-
REQUEST A QUOTE
- Specification Attribute: Details & Ratings
- Serial Standards: RS-422, RS-485 (2-wire and 4-wire)
- Number of Ports: 2 × Terminal Block interfaces
- Baudrate: 50 bps to 921.6 kbps (Supports non-standard baudrates)
- Optical Isolation: 2 kV
- ESD Protection: 15 kV
- Input Power: 12 to 48 VDC via external terminal block
- Power Consumption: 180 mA @ 12 VDC
- Operating Temp: -20 to 60°C (-4 to 140°F)
- Mounting Options: DIN-rail mounting, Wall mounting
MOXA TCC-120I Serial Media Converter (TCC-120).
-
REQUEST A QUOTE
- Serial Standards: RS-232, RS-422, RS-485
- Baudrate: 300 bps to 115.2 kbps
- Data Direction Control: ADDC® (Automatic Data Direction Control)
- ESD Protection: 15 kV built-in protection
- Isolation: None on standard TCC-80 / 2 kV electrical isolation on TCC-80I models
- Input Voltage: 5 to 12 VDC
- Input Current: 30 mA @ 5 to 12 VDC
- Power Source: Port-powered via RS-232 lines (TxD, RTS, DTR); external power optional
- Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
- Weight: 50 g (0.11 lb) [0.11 lb] [0.11 lb]
MOXA TCC-80 Serial Media Converter (TCC-80).
-
REQUEST A QUOTE
- Serial Standards: RS-232, RS-422, and RS-485 (2-wire and 4-wire)
- Fiber Optic Type: Single-mode, SC Connector
- Max Transmission Distance: Up to 40 km (24.85 miles) via single-mode fiber
- Baudrate Speed: Supports throughput ranging from 50 bps up to 921.6 kbps
- Flow Control: Automatic Data Direction Control (ADDC) for RS-485
- Power Inputs: 12 to 48 VDC terminal block connector
- Enclosure & Rating: IP30 rugged metal housing
- Mounting Options: Standard wall mounting (optional DIN-rail mounting with extra kit)
- Dimensions: 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in) with ears
- Weight: 320 g (0.71 lb)
MOXA TCF-142-S-SC Serial-to-Fiber Converter (TCF-142).
-
REQUEST A QUOTE
- Number of Channels: 1
- Supply Voltage: 20 to 35 V DC
- Safe-Area Input Signal: 4 to 20 mA (Under/over-range: 1 to 24 mA)
- Maximum Load Resistance: 800 Ω Maximum
- Digital Bandwidth: 500 Hz to 10 kHz (Supports bi-directional HART® communication)
- Hazardous Area Location: Zone 0, IIC, T4–6 / Class I, Div 1, Group A
- Line Fault Detection: Integrated diagnostic capabilities for field wiring loops
- Operating Temperature: -20°C to +60°C
- Galvanic Isolation: Prevents high-energy faults in the control room or safe area from traveling down the loop to spark an explosion in volatile field environments.
- Smart Communication: Passes bi-directional digital high-frequency signals seamlessly, allowing engineers to connect handheld HART® communicators or operator stations directly to the loop without signal degradation.
MTL MTL 5046 Isolating Driver (MTL5000).
-
REQUEST A QUOTE
- Number of Channels: 2 independent channels.
- Safe-Area Output: Two relays equipped with single-pole, changeover contacts.
- Hazardous-Area Inputs: Inputs conform strictly to NAMUR/DIN 19234 standards for proximity detectors.
- Voltage Applied to Sensor: 7V to 9V DC from 1kΩ ±10%.
- Line Fault Detection (LFD): A user-selectable feature designed to identify open or short circuits within the field wiring circuits.
- Phase Reversal Control: Independent channel configuration allowing an alarm or output condition to be signaled for either state of the input sensor.
- Galvanic Isolation: 250V AC or DC continuous between the power supply, hazardous-area circuits, and relay outputs.
- Switches: Zone 0, IIC, T6 hazardous areas, or Class I, Div 1, Group A hazardous locations.
- Proximity Detectors: Zone 0, IIC, T4–T6 hazardous areas (if suitably certified), or Class I, Div 1, Group A hazardous locations.
MTL MTL5018 Switch Proximity Detector Interface (MTL5000 Series).
-
REQUEST A QUOTE
- Number of Channels: 2 channels (supporting independent field inputs)
- Barrier Type: Galvanic Isolation
- Supply Voltage: 20 to 35 V DC
- Signal Input Type: NAMUR Input (conforming to BS EN60947–5–6:2001) or Switch
- Signal Output Type: Changeover Relay Contacts
- Sensor Voltage Supply: 7 to 9 V DC from 1kΩ ±10%
- Operating Temperature: -20°C to +60°C (-4°F to 140°F)
- Width: Compact 16mm DIN-rail mount housing
- Legacy Replacement: Official replacement model for the legacy MTL3013
- Line Fault Detection (LFD): The interface features built-in line fault detection capable of monitoring open or short-circuit conditions in the field wiring. When an error occurs, it is indicated via top-facing LEDs. LFD can be enabled or disabled via user-selectable switches located on the side of the housing.
MTL MTL5516C Switch/Proximity Detector Interface (MTL5500).
-
REQUEST A QUOTE
- Model Designation: RC 3 RG-400…575/4-M20 X 1,5 M6
- Suppression Type: RC (Resistor-Capacitor) network
- Voltage Range: 3× 400 V AC to 3× 575 V AC
- Motor Power Rating: Up to 4 kW
- Frequency Range: 50 to 60 Hz
- Dimensions: 44 x 39 x 39 mm
- Connection Type: Open-end cable
MURR 23141 Motor EMI Line Filter.
-
REQUEST A QUOTE
- Model Designation: MICO Classic 2.10
- Input Voltage: 24 V DC (Operating range: 18 to 30 V DC)
- Number of Channels: 2 independent monitoring channels
- Current Adjustments: 4 A, 6 A, 8 A, or 10 A (Adjustable per channel via rotary switch)
- Inrush Capacity: Max. 20 mF per channel (ideal for high-capacitive loads)
- Connection Type: Spring clamp / spring-loaded terminals
- Mounting Method: DIN-rail mountable TH35 (EN 60715)
- Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)
- IP Protection Rating: IP20
- Approvals & Compliance: cULus, cCSAus, CE, EAC, UKCA, RoHS
MURR 9000-41042-0401000 Circuit Protection Module (MICO).
-
REQUEST A QUOTE
- Model / Series: MICO+ 4.10 (Intelligent Power Distribution Module)
- Number of Channels: 4 independent monitoring channels
- Input Voltage: Nominal 24 V DC (Operating range: 18–30 V DC)
- Output Current Settings: Adjustable per channel: 4 A, 6 A, 8 A, or 10 A
- Inrush Capacity: Max. 20 mF per channel (ideal for high-capacitive loads)
- Termination / Connection: Maintenance-free, vibration-resistant Spring Clamp Terminals
- Mounting Type: 35mm DIN Rail Mount (Net width: 70 mm)
- Status Indicators: Multi-color LED status indicators for each individual channel
- Control Functions: Remote start/reset, switch-off capabilities, and group alarm contact
- Operating Temperature: 0°C to +55°C
MURR 9000-41084-0401000 Circuit Protection Module (MICO+).
-
REQUEST A QUOTE
- Code Number: 1797
- Outer Diameter: ø30 mm
- Maximum Motor Speed: 19,000 RPM (at 0.5 MPa / 71 PSI)
- Maximum Power Output: 130 W
- Air Consumption: 180 NL/min (6.29 CFM)
- Proper Air Pressure: 0.3 – 0.5 MPa (42 – 71 PSI)
- Net Weight: 298 g (excluding hoses)
- Modular System: Designed as a separate-type system. It can be combined with various Nakanishi ø30 mm spindles or speed reducers (such as the ARG-011E 1/4 speed reducer) depending on the torque requirements of the application.
- Thermal Management: Engineered to withstand long, continuous operation without significant heat generation.
- Noise Reduction: Equipped with an inline silencer to minimize exhaust noise during operation.
- Required Accessories: To run this motor safely, it must be paired with an Air Line Kit (AL-M1202 or AL-M1203BS2) providing filtered, regulated, and lubricated air.
- Type: Motor; Outer Diameter: φ30 mm; Motor speed: 19,000 min-1 (0.5 MPa); Max. power: 130 W; Proper air pressure: 0.3–0.5 MPa; Air…
NAKANISHI AM-3020R Vane-Type Air Motor (Air-Speed Series).
-
- Manufacturer: NAKANISHI
- Model / Part Number: AM-310R
- Maximum Speed: Up to 30,000 RPM (at 0.5 MPa / 71 PSI)
- Max Output Power: 108 Watts
- Rotation Direction: Clockwise (Forward) only
- Outer Diameter: 22.8 mm (0.897 inches)
- Air Pressure Range: 0.3 to 0.5 MPa (approximately 43.5 to 72.5 PSI)
- Air Consumption: 190 NL/min (Normal Liters per minute)
- Weight: 203 grams (about 7.2 ounces without hoses)
- Continuous Operation: Engineered to withstand long, continuous usage without overheating.
- Quiet Design: Equipped with a built-in silencer system to keep industrial workplace noise to a minimum.
