MURR 9000-41042-0401000 Circuit Protection Module (MICO)
- Model Designation: MICO Classic 2.10
- Input Voltage: 24 V DC (Operating range: 18 to 30 V DC)
- Number of Channels: 2 independent monitoring channels
- Current Adjustments: 4 A, 6 A, 8 A, or 10 A (Adjustable per channel via rotary switch)
- Inrush Capacity: Max. 20 mF per channel (ideal for high-capacitive loads)
- Connection Type: Spring clamp / spring-loaded terminals
- Mounting Method: DIN-rail mountable TH35 (EN 60715)
- Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)
- IP Protection Rating: IP20
- Approvals & Compliance: cULus, cCSAus, CE, EAC, UKCA, RoHS

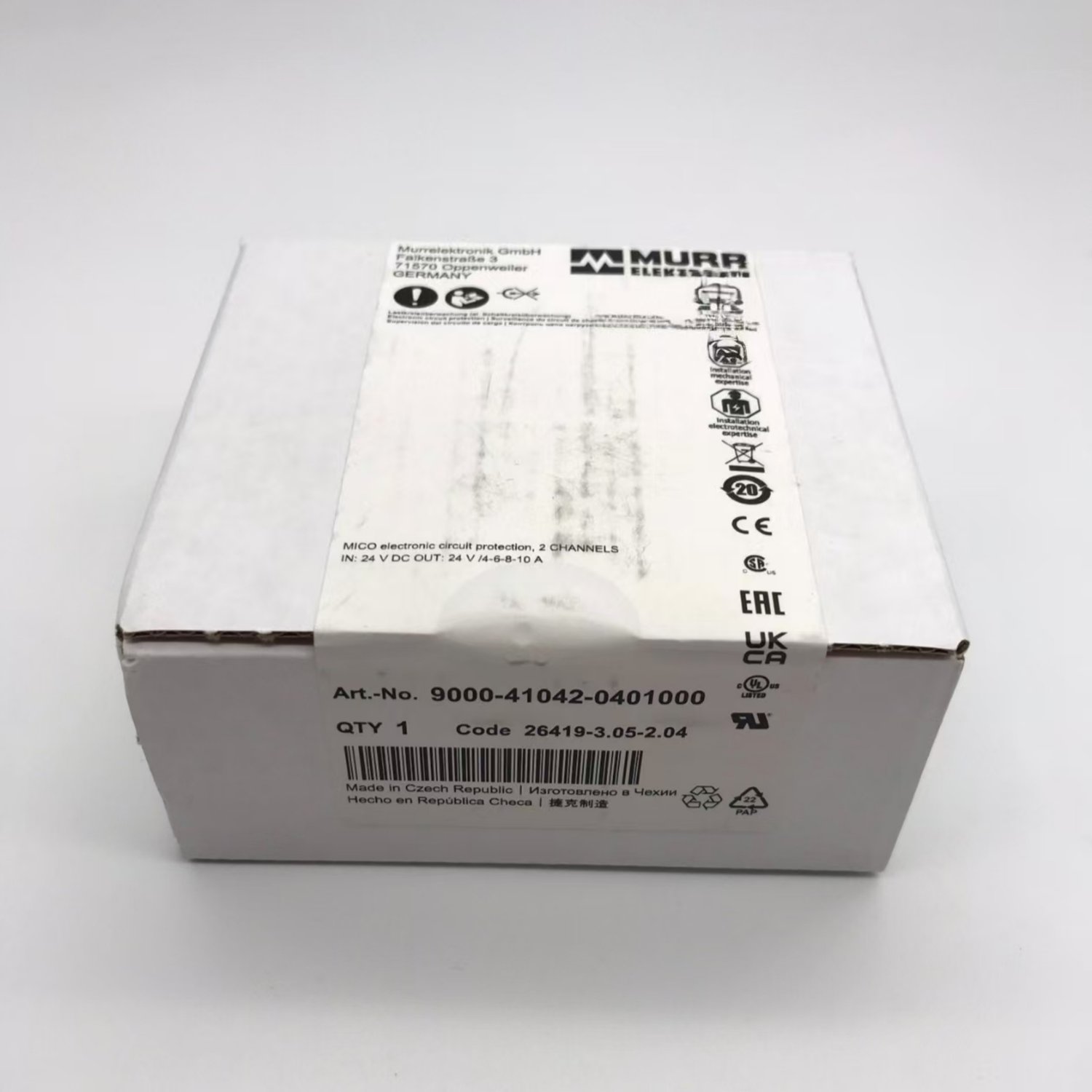

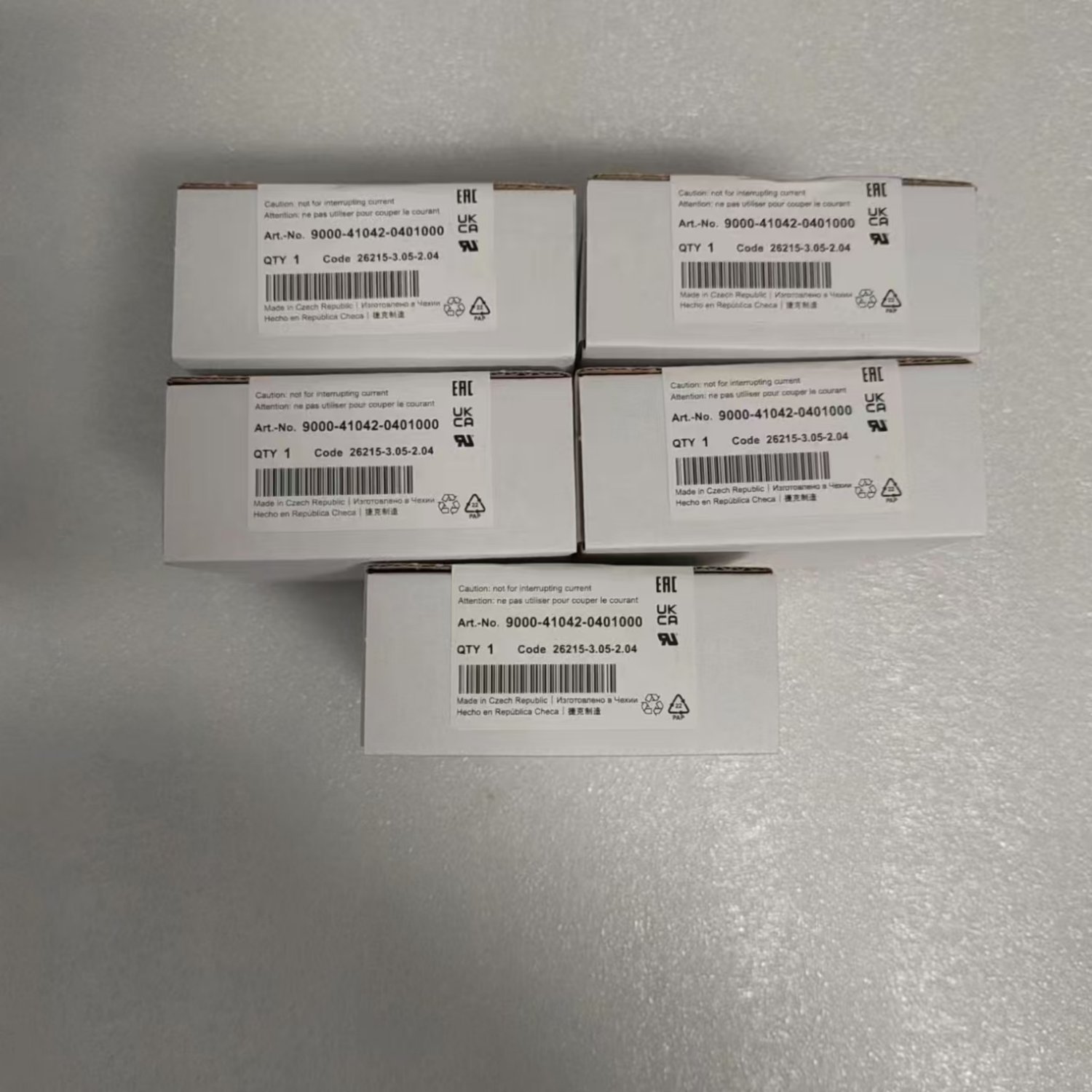

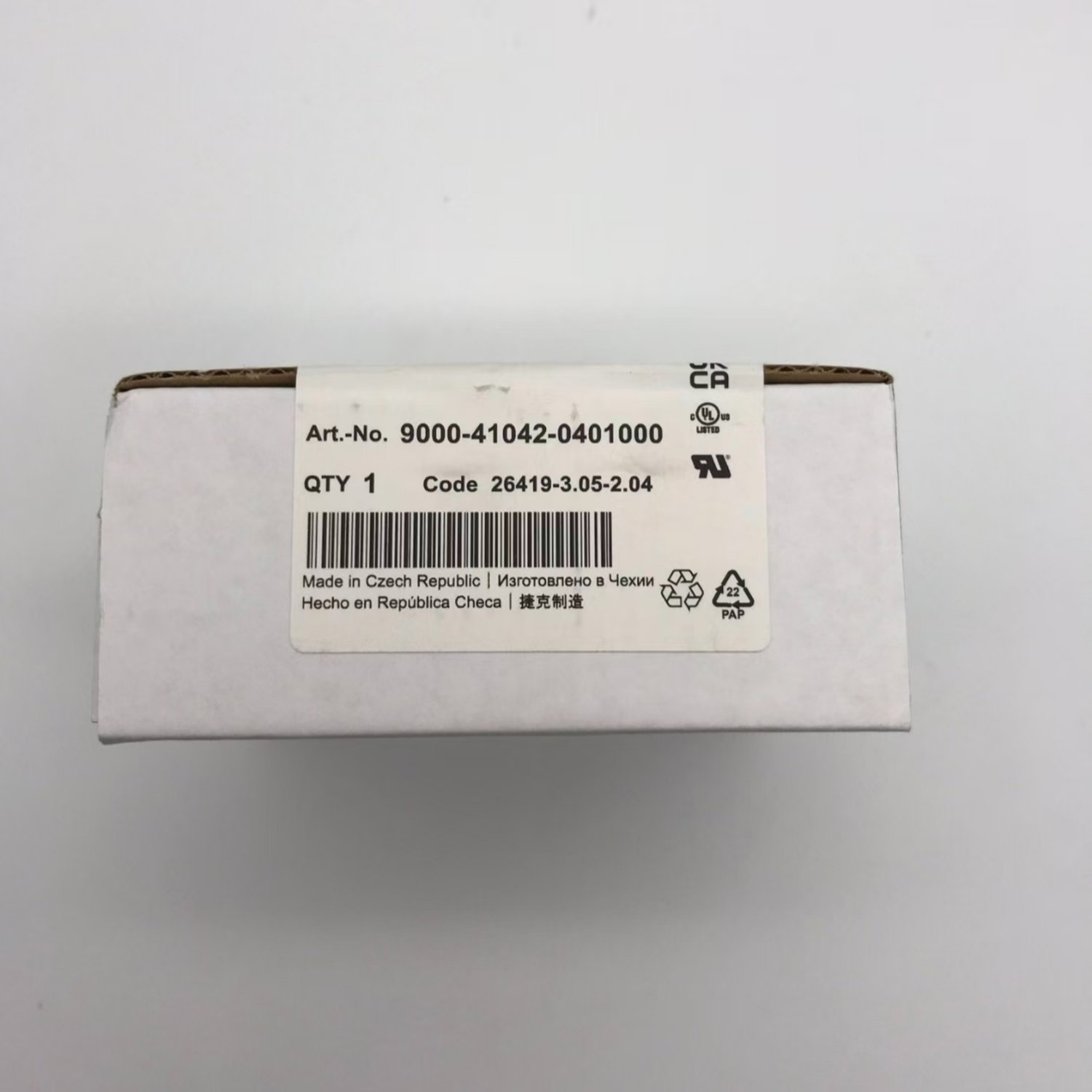

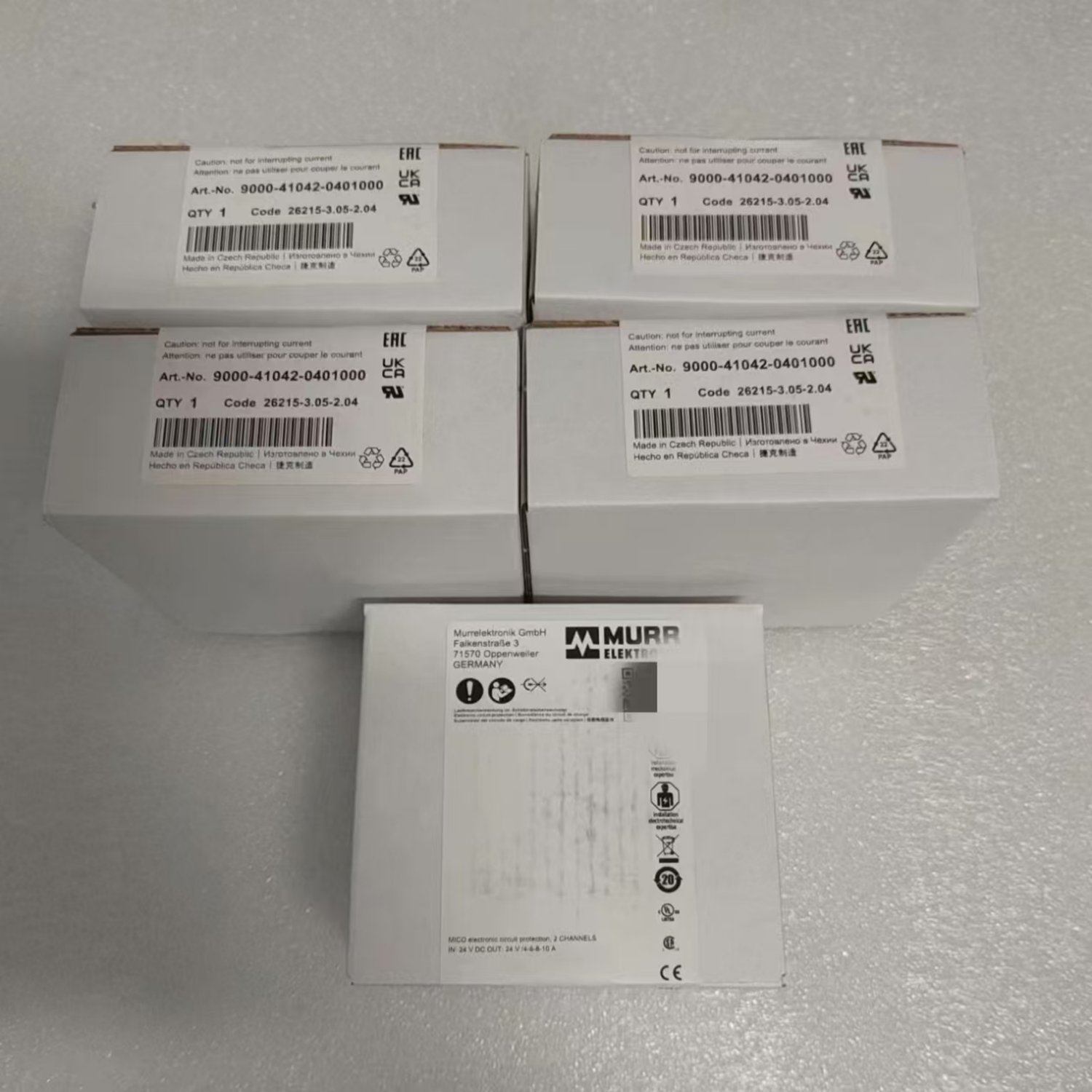

MURR 9000-41042-0401000 Circuit Protection Module (MICO).
- SKU: 9000-41042-0401000
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
