Showing 1265–1280 of 2013 results
-
REQUEST A QUOTE
- Device Type: IO-Link I/O Hub (Class A or Class B port compatible expansion module).
- Channel Capacity: Maximum of 16 configurable channels for digital input or output.
- Signal Type: PNP switching logic with single-wire digital I/O configuration.
- Connector Type: M12 industrial standard circular connectors for signal and network connection.
- Housing/Enclosure: Rugged IP67-rated engineering plastic housing designed for direct machine mounting without a control cabinet.
- PROFINET: IOL7-PN01B-8A (8-port Class A)
- EtherNet/IP: IOL7-EI01B-8A (8-port Class A)
- EtherCAT: IOL7-EC01B-8A (8-port Class A)
IOL7-16CB-M12 sDot IO-Link I/O Hub.
-

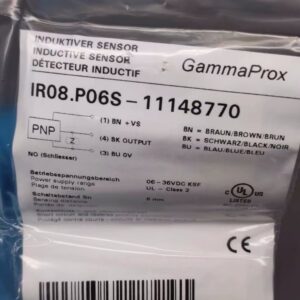

- Manufacturer: IPF ELECTRONIC
- Model / Part Number: IR08.P06S-11148770
- Mounting: Non-flush
- Output: PNP normally open
- Supply Voltage: 6–36 VDC
- Switching Frequency: 400 Hz
- Housing: M8 stainless-steel threaded body
- Connection: M8, 3-pin
- Degree of Protection: IP67
-
REQUEST A QUOTE
- Outputs: 4 Solid State Relays (SSR)
- Inputs: 2 Universal Analog Inputs (supports NTC, NTC-HT, PTC, PT100, PT1000, Thermocouple J/K, Voltage, and Current) + 2 Digital Inputs (DI)
- Power Supply: 115 to 230 Vac operational voltage
- Form Factor: Panel mount measuring 76.2 mm x 34.2 mm with a panel depth of 94 mm
- Protection Rating: IP65 front panel protection
- Connectivity: Features integrated RS485 digital communications for remote monitoring and telemaintenance systems
- Key Functions: PID control with autotuning and two independent control loops
IR33A9HR20 CAREL Digital Electronic Controller.
-
REQUEST A QUOTE
- Outputs: 1 configurable relay + 1 analog output (0 to 10 V)
- Power Supply: 115 to 230 VAC, single-phase, 50 Hz
- Mounting: Panel mounting (enclosure style)
- Ingress Protection: IP65 front panel
- Inputs: Temperature sensor inputs
- Application: HVAC/R and industrial temperature regulation
IR33B7HR20 CAREL Digital Electronic Controller.
-
REQUEST A QUOTE
- Insert Size: 16 (16 mm / 0.63" length)
- Threading Position: ER (External Right-Hand)
- Chipbreaker: M (M-Class Profile)
- Thread Profile Type: AG60 (60° Partial Profile)
- Inscribed Circle (IC): 3/8" (9.53 mm)
- Insert Thickness: 0.143" (3.63 mm) [0.1430 Decimal Inch]
- Corner Radius (RE): 0.08 mm (0.0031")
- Substrate Material: Hard, submicron fine-grain carbide compound yielding high plastic deformation resistance and superb cutting edge toughness.
- Coating Finish: TiAlN (Titanium Aluminum Nitride).
- Thermal Performance: Excellent heat-resistance that protects the cutting edge from breaking down at rapid surface speeds.
ISCAR 16ERM AG60 IC908 Carbide Threading Insert (ISCAR).
-
REQUEST A QUOTE
- Switch Type: Single-Pole, Double-Throw (SPDT)
- Connection Size: 1" MNPT (Male National Pipe Thread)
- Paddle Size: 6-inch segment paddle (interchangeable or trimmable for 1" to 6" pipe variations)
- Enclosure Rating: NEMA 1 (general purpose indoor enclosure)
- Maximum Fluid Pressure: 150 psig (1,034 kPa)
- Fluid Temperature Range: 32°F to 250°F (0°C to 121°C)
- Electrical Ratings: 120-277 VAC; 16A FLA at 120V / 8.8A FLA at 240V
JOHNSON CONTROLS F61KB-11C Liquid Flow Switch (F61 Series).
-
REQUEST A QUOTE
- Model: SF120E
- Applicable Motor Power: 120W
- Power Supply Voltage: Single-Phase 220V AC (Voltage Code "E")
- Power Frequency: 50 / 60 Hz
- Control Technology: MCU Digital Control
- Mounting Configuration: Panel Mount (Built-in running capacitor)
- Certification: CE Certified
- Smart Speed Matching: The integrated panel knob automatically matches and sets the maximum speed parameters, preventing over-speed hazardous conditions.
- Dual Mode Control: Supports physical panel-button operation as well as remote/external terminal switch control configurations.
- Soft Start/Stop: Built-in programmable capabilities for smooth, slow acceleration and deceleration profiles alongside rapid-stopping functions.
JSCC SF120E AC Motor Speed Controller (SF Series).
-
REQUEST A QUOTE
- Contact Rating: 10 A @ 250 V AC
- Contact Configuration: 1C (1 NO / 1 NC, Snap Action)
- Actuator Type: Roller Plunger
- Contact Material: 24K Gold Plated Contacts
- Operating Force (OF): 600 g maximum
- Release Force (RF): 100 g minimum
- Safety Feature: Forcefully separates contacts if contact welding occurs
KACON ZLN15G030 Roller Plunger Limit Switch (ZLN Series).
-
REQUEST A QUOTE
- Dimensions: 208 mm x 208 mm x 72 mm
- Operating Voltage: 220–240V AC (50/60 Hz)
- Rotational Speed: 2900 RPM (at 50 Hz) / 3300 RPM (at 60 Hz)
- Airflow Volume: ~808 to 930 CFM (Cubic Feet per Minute)
- Bearing Type: Dual Ball Bearing (rated for ~50,000 hours of continuous operation)
- Noise Level: 69 to 72 dBA
- Termination: Lead wire (typically 2-wire connection)
KAKU KA2072HA2 Heavy-Duty AC Axial Cooling Fan (KA2072 Series).
-
REQUEST A QUOTE
- Installation Distance: 140 to 180 mm
- Detection Area: 13 × 13 mm to 52 × 52 mm
- Digital Zoom: 1X to 4X (17 adjustable steps)
- Light Receiving Element: Black & White (BW) CMOS
- Transmitter Light Source: Infrared LED (850 nm wavelength)
- Lighting Method: Pulsed illumination
- Status Indicators: 1 multi-color LED (Green / Red / Orange)
- Enclosure Rating: IP67 (Dust-tight and water-immersion resistant)*
- Operating Temperature: -10 to +50°C (No freezing)
- Operating Humidity: 35 to 85% RH (No condensation)
KEYENCE AI-H160 Sensor Head (AI Series).
-
REQUEST A QUOTE
- Application Type: Gauge pressure / Negative pressure (Vacuum)
- Rated Pressure Range: 0 to -101.3 kPa
- Pressure Resistance: 500 kPa
- Fluid Compatibility: Clean air and non-corrosive gases
- Pressure Port (Thread): M5 male thread
- Temperature Characteristics: ±2% of F.S. (relative to 25°C / 77°F)
- Material Composition: Case: PBT | Screw: SUS303 | Cable: PVC
- Operating Ambient Temperature: 0 to +50°C (32 to 122°F), with no freezing
- Operating Relative Humidity: 35% to 85% RH, with no condensation
- Vibration Resistance: 10 to 55 Hz, 1.5 mm (0.06") double amplitude, 4 hours each in X, Y, and Z axes
KEYENCE AP-41 Vacuum Sensor (AP Series).
-
REQUEST A QUOTE
- Model Type: Main Unit, Negative-Pressure (Vacuum) Type
- Rated Pressure Range: 0 to -101.3 kPa
- Compatible Fluid Type: Air or non-corrosive gases
- Pressure Type: Gauge pressure
- Control Output Type: NPN open collector (Note: The AP-C31WP variant uses PNP)
- Power Supply Voltage: 12 to 24 VDC
- Display: 3 ½-digit, 2-color, 7-segment LED (Character height: 11 mm)
- Display Resolution: Normal Mode: 0.1 kPa | Focus Mode: 0.01 kPa
- Power Consumption: Normal: ≤ 720 mW (60 mA) at 12V / ≤ 960 mW (40 mA) at 24V
- Eco Mode: ≤ 480 mW (40 mA) at 12V / ≤ 720 mW (30 mA) at 24V
KEYENCE AP-C31W Digital Pressure Sensor (AP-C30).
-
REQUEST A QUOTE
- Pressure Type: Positive Pressure (Gauge Pressure)
- Rated Pressure Range: 0 to +1.000 MPa (0 to 10 bar)
- Fluid Compatibility: Air or non-corrosive gases
- Supply Voltage: 12 to 24 VDC
- Normal Power Consumption: 12 V: ≤ 720 mW (60 mA) | 24 V: ≤ 960 mW (40 mA)
- Eco-Mode Power Consumption: 12 V: ≤ 480 mW (40 mA) | 24 V: ≤ 720 mW (30 mA)
- Response Time Options: 2.5 ms, 5 ms, 100 ms, or 500 ms (selectable chattering prevention)
- Repeatability: ± 0.2% of Full Scale (F.S.)
- Display Type: 3 1/2-digit, 2-color, 7-segment LED (11 mm character height)
- Pressure Port Connection: Rc (PT) 1/8 with 180° rotation flexibility
KEYENCE AP-C33W Digital Pressure Sensor (AP-C30).
-
REQUEST A QUOTE
- Model/Mounting: AP-V80P standard unit, DIN-rail.
- Output: PNP open collector × 2, 30 VDC, 100 mA; Analog 4-20 mA.
- Power: 12 to 24 VDC; 1,380-1,920 mW (Eco mode available).
- Display: Dual-row, 7-segment LED (red/green).
- Performance: 0.5% (Std) / 0.1% (High-res) F.S. repeatability.
- Environmental: -10 to +50°C; IP-rated for industrial use.
- Usage Constraints: Not for explosive/corrosive fluids.
- Compatibility: Must use with AP-1xS(K) series heads.
- Initialization: 1-second power-on reset time.
KEYENCE AP-V80P Amplifier Unit (AP-V80).
-
REQUEST A QUOTE
- Manufacturer: KEYENCE Corporation
- Model Number: CA-DSW3
- Lighting Type: Back Light (Produces uniform background illumination)
- LED Color: White
- Input Voltage: 12 VDC
- Power Consumption: 5.8 W
- Illumination Area: 63 × 32 mm Rectangular
- Silhouette Inspection: Positioned directly underneath or behind a target object to block surface details and emphasize external silhouettes and profiles.
- Stable Image Processing: Integrates seamlessly with KEYENCE vision systems (such as the CV-X, XG-X, or VJ series) to ensure consistent, high-contrast visual evaluation.
- Target Inspections: Commonly used for verifying target dimensions, checking thread pitches, counting components, or detecting structural flash/burrs on manufacturing lines.
KEYENCE CA-DSW3 LED Lighting (CA-D Series).
-
REQUEST A QUOTE
- Image Element: Color CMOS, square-pixel with 11×/16× high-speed reading
- Valid Pixel Count: 4.99 Megapixels (2432 × 2050 pixels)
- Unit Cell Size: 3.45 μm × 3.45 μm (0.14 mil × 0.14 mil)
- Image Size: Equivalent to 2/3" optical format
- Scanning / Transfer System: Progressive; Digital serial transfer
- Frame Readout Rate: 11× Speed: 61.2 ms
- Pixel Transfer Frequency: 11× Speed: 132 MHz
- Electronic Shutter: 0.05 ms to 9000 ms (Interval parameters: 1/15 to 1/20,000 sec)
- Lens Mount Type: Standard C-mount
- Enclosure Rating: IP64 (Requires KEYENCE-specified IP64 lens and environment-resistant cable)
KEYENCE CA-H500C Camera Head (CA-H Series).
