Showing 1217–1232 of 2013 results
-

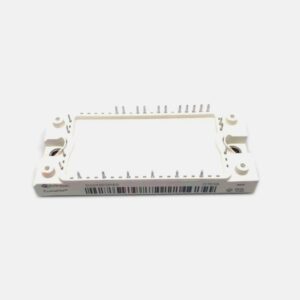

- Manufacturer: Infineon
- Model / Part Number: BSM10GP60
- Voltage Rating: 600 V
- Current Rating: 10 A nominal
- Topology Type: Power Integrated Module (PIM) layout.
- Channel Type: N-Channel.
- Three-Phase Input Bridge: A built-in rectifier to convert raw incoming AC power into DC power.
- Three-Phase Inverter Stage: Six internal IGBT switches that turn the DC power back into adjustable AC power to run a motor at different speeds.
-

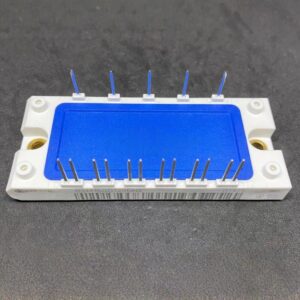

- Manufacturer: INFINEON
- Model / Part Number: BSM15GD120DN2
- Circuit Configuration: Three-phase six-pack
- Collector-Emitter Voltage: 1200 V
- Collector Current: 15 A
- Integrated Diodes: Freewheeling diodes
-

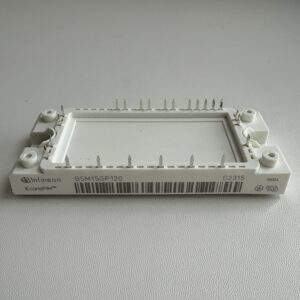

- Manufacturer: INFINEON
- Model / Part Number: BSM15GP120
- Voltage Rating: Handles a maximum collector-emitter voltage (
- Current Rating: Supports a continuous DC collector current (
- Power Dissipation: Can safely disperse up to 180W of heat power.
- Internal Setup: Configured for 3-phase industrial applications and includes an integrated fast-recovery freewheeling diode to protect the system from power spikes.
- Temperature Range: Built to survive harsh environments, working from -40 °C up to +125 °C.
- Motor Drives: Managing variable frequency drives (VFDs) and servo systems that run large factory machinery or elevators.
- Inverters: Changing battery power into grid power for renewable energy setups, like solar panels or wind turbines.
- Power Supplies: Regulating heavy industrial power equipment.
-

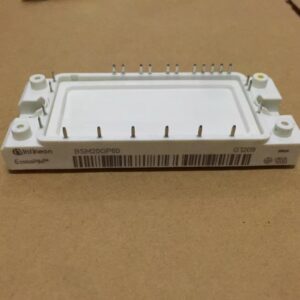

- Manufacturer: INFINEON
- Model / Part Number: BSM20GP60
- High Efficiency: Utilizes advanced Trench and Field-Stop IGBT technology to decrease switching and conduction losses. This reduces heat output, allowing for smaller heatsinks.
- Simpler PCB Layout: Integrating six separate switches into one unit drastically minimizes component count, cuts down parasitic inductance, and prevents voltage overshoots.
- Integrated Brake Chopper: Features built-in brake circuit flexibility to safely handle voltage spikes when motors slow down.
-

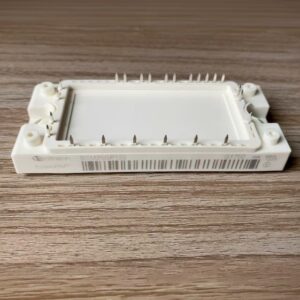

- Manufacturer: INFINEON
- Model / Part Number: BSM25GP120
- Collector-Emitter Voltage: 1200 V
- Collector Current: 25 A
- Module Configuration: Power integrated module with rectifier, inverter and brake chopper
- Package: 34 mm module housing
-
- Manufacturer: INFINEON
- Model / Part Number: BSM300GB120DLC
- Voltage Rating: 1200V. This high voltage handles spikes in industrial power lines.
- Current Rating: 300A continuous. It supports peak currents up to 600A for heavy motor startups.
- Configuration: Dual IGBT module (half-bridge) featuring low-loss IGBT2 chips and integrated EmCon freewheeling diodes.
- Package Style: Standard 62mm low-inductance industrial housing.
- Power Dissipation: Can safely handle up to 2.5 kW of total heat distribution.
-

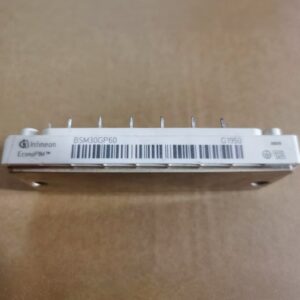

- Manufacturer: INFINEON
- Model / Part Number: BSM30GP60
- Configuration: Six-pack structure. It packages six distinct IGBT chips paired alongside six rapid freewheeling diodes inside a single housing. This design creates a three-phase inverter bridge circuit capable of driving alternating current (AC) motors directly.
- Control Gate: The gate-emitter threshold voltage sits between 4.5V and 6.5V, allowing precise turn-on activation using industrial-standard gate driver electronics.
- Thermal Management: Engineered with an isolated copper baseplate. It draws heat efficiently away from the silicon chips to prevent thermal overload during heavy workloads.
-

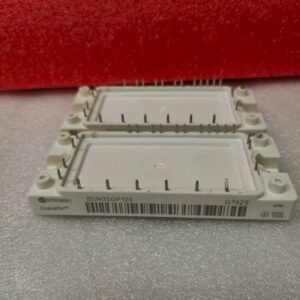

- Manufacturer: INFINEON
- Model / Part Number: BSM35GP120
- Collector-Emitter Voltage: 1200 V
- Collector Current: 35 A
- Configuration: Power integrated module with rectifier, inverter and brake chopper
- Package: 34 mm module housing
-

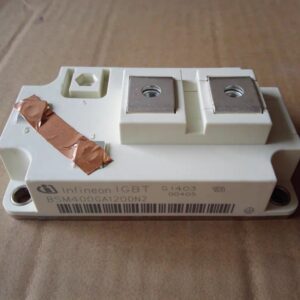

- Manufacturer: INFINEON
- Model / Part Number: BSM400GA120DN2
- Circuit Configuration: Single switch
- Technology: Non-punch-through IGBT
- Package: 62 mm industrial module housing
-

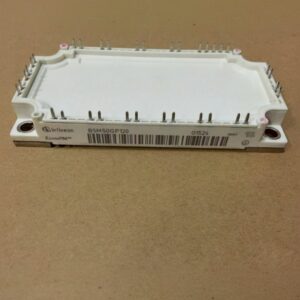

- Manufacturer: INFINEON
- Model / Part Number: BSM50GP120
- Collector-Emitter Voltage: 1200 V
- Collector Current: 50 A
- Configuration: Six-pack PIM with rectifier, three-phase inverter and brake chopper
- Package: EconoPIM3 / 34 mm footprint
- Short-Circuit Withstand Time: 10 µs
-

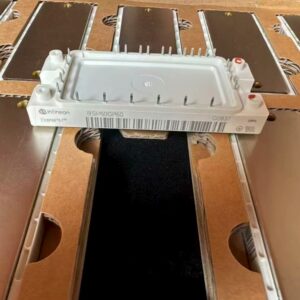

- Manufacturer: INFINEON
- Model / Part Number: BSM50GP60
- Collector-Emitter Voltage: 600 V
- Collector Current: 50 A at 80 °C
- Configuration: Three-phase bridge inverter with brake chopper
- Temperature Sensor: Integrated NTC thermistor
- Package: 34 mm module housing
-

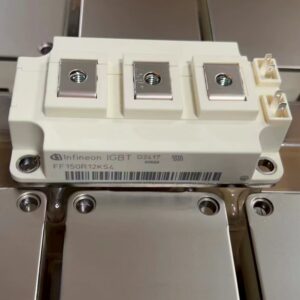

- Manufacturer: INFINEON
- Model / Part Number: FF150R12KS4
- Voltage Rating: 1200 Volts (1.2kV) maximum collector-emitter voltage.
- Current Rating: 150 Amperes continuous nominal current (can peak higher up to 225A).
- Power Dissipation: Capable of handling up to 1.25 Kilowatts (kW) of heat dissipation.
- Circuit Configuration: Half-Bridge (2 switches inside one module).
- Isolated Copper Base Plate: Provides extreme thermal conductivity to giant heatsinks while keeping the electrical current safely separated.
-
REQUEST A QUOTE
- Topology: Half-Bridge (Dual)
- IGBT Technology: IGBT3 (Trench Field Stop)
- Package / Dimensions: Standard 62mm Series
- Industrial Drive Systems: Frequency-controlled inverter motor drives (pumps, fans, and compressors).
- Uninterruptible Power Supplies (UPS): High-efficiency power inverter stages.
- Renewable Energy: Solar power central inverters and wind turbine traction auxiliaries.
INFINEON FF200R12KE3 IGBT Module (FF200R).
-
REQUEST A QUOTE
- Manufacturer: INFINEON
- Model / Part Number: FP50R12KT3
- Topology: 3-Phase Inverter with integrated input rectifier and brake chopper (Converter-Brake-Inverter / PIM)
- Thermal Sensor: Integrated NTC thermistor for temperature monitoring
- Package/Case Type: EconoPIM™ 2 / Econo 3 housing with solderable pins and a copper base plate
- Rated Voltage: 1200 V
- Rated Current: 50 A
INFINEON FP50R12KT3 IGBT Power Module. Key specifications include Topology: 3-Phase Inverter with integrated input rectifier and brake chopper (Converter-Brake-Inverter / PIM); Thermal Sensor: Integrated NTC thermistor for temperature monitoring; Package/Case Type: EconoPIM™ 2 / Econo 3 housing with solderable pins and a copper base plate; Rated Voltage: 1200 V.
-
REQUEST A QUOTE
- Configuration: Sixpack (3-Phase Bridge)
- IGBT Technology: IGBT3 – T3 (Trench Fieldstop)
- Housing Dimensions: 107.5 mm × 45 mm (EconoPACK™ 2)
- Operating Temperature Range: -40°C to +125°C
- Target Applications: Commonly deployed in industrial motor controllers, AC/DC inverters, medical equipment power stages, and uninterruptible power supplies (UPS).
INFINEON FS50R12KT3 IGBT Module (FS50R).
-
REQUEST A QUOTE
- Screen Size: 5.6 inches diagonal
- Resolution: 640 × 480 pixels (VGA) with a 4:3 aspect ratio
- Display Technology: a-Si TFT-LCD, TN Mode (Normally White, Transmissive)
- Brightness: 200 cd/m² (Nits)
- Contrast Ratio: 500:1
- Signal Interface: Parallel RGB (typically a 50-pin connector)
- Backlight: White LED (WLED)
- Response Time: 10 to 15 ms
- Operating Voltage: 3.3V (Typical logic power supply)
INNOLUX AT056TN52 V.3 Industrial TFT-LCD Display Panel (AT056TN52 Series).
