Showing 1185–1200 of 1316 results
-
REQUEST A QUOTE
- Brand/Series: Siemens Sentron Series (SITOR)
- Designated Size: NH1 (Low Voltage HRC design)
- Current Rating: 250 Amp
- Voltage Rating: 1000 V AC / 440 V DC
- Operating Class: aR (accompanied semiconductor protection for super-quick cut-off)
- Interrupting Rating: 100 kA
- Contact Type: Slotted blade contacts
- Power Loss: 50 W at rated current
- Status Indicator: Front indicator for easy visual identification of a blown fuse
- Approvals: UL, CE, CCC, EAC, VDE
Brand New SIEMENS 3NE3227 250A 1000V Fuse. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Motor Power Rating: 0.55 to 3 kW
- Current Adjustment Range: 1.6 to 7.0 A
- Control Supply Voltage: 24 V DC
- Main Circuit Voltage: 500 V
- Connection Type: Push-in / screw terminals (mixed connection)
- Width: 22.5 mm (ultra-narrow space-saving design for DIN rails)
- Enclosure Rating: IP20

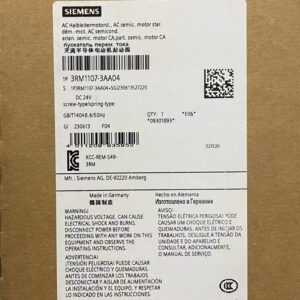

Brand New SIEMENS 3RM1107-3AA04 Motor Starter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Current Adjustment Range: 4.5 to 6.3 Amps (adjustable thermal overload release)
- Instantaneous Magnetic Trip: 82 Amps (actuates at short-circuit detection)
- Trip Class: Class 10 (standard motor protection response time)
- Power Rating: 2.2 kW at 400 VAC
- Connection Type: Screw terminals
- Mounting Type: 35 mm standard DIN rail
- Actuator Style: ON/OFF rocker switch
Brand New SIEMENS 3RV1011-1GA10 Motor Starter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Control Supply Voltage: 24 V DC
- Output Contacts: Total of 4 Normally Open (NO) safety paths.
- Adjustable Time Delay: 0.05 to 3 seconds for the delayed contacts.
- Connection Type: Reliable screw terminals.
- Dimensions: 22.5 mm Width x 100 mm Height x 121.6 mm Depth.
- Safety Integrity Level: Capable of achieving SIL 3 (IEC 61508) and Performance Level e (ISO 13849-1).
- Brand: Siemens. Part Number # : 3SK11211CB41. SKU #:, 2282304. Amperage Rating: 5 mA. Coil Voltage: 24 V DC. Contact Form: 4NO 4 F…
Brand New SIEMENS 3SK1121-1CB41 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Technical Parameter: Specification Value
- Maximum Switching Current: 5 A (at 24 / 115 / 230 V AC or 24 V DC)
- Insulation Voltage Rating: 300 V
- Maximum Power Loss: 2.5 W
- Connection Terminal Type: Screw connection
- Enclosure Protection Class: IP20 (Finger-safe)
- Operating Temperature Range: -25 °C to +60 °C
- Mechanical Service Life: 10,000,000 switching cycles
- Safety Integrity Level: SIL 3 according to IEC 61508.
- Performance Level: PL e according to EN ISO 13849-1.
Brand New SIEMENS 3SK1211-1BB40 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Control Supply Voltage: 24 V DC
- Housing Width: 45 mm
- Terminal Type: Screw terminals
- Instantaneous Enabling Circuits: 2 NO (Normally Open) safety contacts
- Delayed Enabling Circuits: 2 NO safety contacts with an adjustable time delay range of 0.5 to 30 seconds
- Signaling Contacts: 1 NC (Normally Closed) auxiliary contact
- Reset Method: Monitored start
- Safety Ratings: Achieves up to Safety Category 4 / SIL 3 / PL e for instantaneous circuits, and Category 3 / SIL 2 / PL d for the time-delayed circuits.
- Enclosure Rating: IP20
- IQElectro: Available in new condition at IQElectro.
Brand New SIEMENS 3TK2827-1BB40 Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display Design: TFT widescreen display with LED backlighting
- Screen Diagonal: 12 inches
- Resolution: 1280 x 800 pixels
- Color Depth: 65,536 colors
- Control Elements: Combined tactile keys (10 programmable function keys) and an analog resistive touchscreen
- Backlight Lifespan: 20,000 hours MTBF at 25 °C (100% dimmable)
- Rated Supply Voltage: 24 V DC
- Permissible Range: 19.2 V to 28.8 V DC
- Rated Current Consumption: 510 mA
- Power Consumption: ~12.2 W
- Network Interface: 1 x Industrial Ethernet/PROFINET interface (RJ45 port)
- USB Interface: 1 x USB port (supports system expansion or data archiving up to 16 GB)
- Supported Protocols: PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MODBUS TCP/IP, and EtherNet/IP
- Configuration Software: WinCC Basic V13 or STEP 7 Basic V13 (TIA Portal) and higher
- Enclosure Material: Durable plastic housing
- Protection Class: IP65 dust/water protection on the front side
- Mounting Positions: Supports both vertical (portrait) and horizontal (landscape) installation layouts
- Dimensions: 330 mm x 245 mm x 60 mm
- Weight: 2.16 kg
Brand New Siemens 6AV2123-2MB03-0AX0 HMI Basic Panel (SIMATIC KTP1200 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display Type: STN Blue Mode, 4 distinct blue levels
- Screen Size: 5.7-inch diagonal display
- Resolution: 320 x 240 pixels
- Input Interface: Resistive analog touchscreen (operable with gloves or stylus)
- Communication Ports: MPI / PROFIBUS-DP / PPI
- Configuration Software: ProTool/Lite (from V5.2) or WinCC flexible
- Memory Capacity: 320 KB of configuring user memory
- Power Supply: 24 V DC (rated at ~0.24 A)
- Dimensions: Front: 212 x 156 mm | Cutout: 198 x 142 mm | Depth: 45 mm
Brand New SIEMENS 6AV6545-0BA15-2AX0 Touch Screen. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display: 5.7-inch STN display (Blue Mode, CCFL backlight).
- Interfaces: Built-in MPI (Multi-Point Interface) and PROFIBUS DP interface.
- Configuration: Programmed using WinCC flexible 2004 Compact HSP or higher.
- Physical Profile: Net weight of approximately 0.988 kg (2.178 lb) with packaging dimensions of roughly 25.3 x 19.5 x 9.1 cm.
- Compatibility: Commonly paired with Siemens S7-300 and S7-400 modular PLCs.
Brand New SIEMENS 6AV6642-0AA11-0AX1 Touch Screen. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Nominal Output Voltage: 24 V DC
- Battery Capacity: 2.5 Ah
- Max Charging Current: 5 A
- Rated Output Current: 16 A (for 4.3 minutes)
- Short-Circuit Protection: Battery fuse 15 A / 32 V (blade-type fuse + support)
- Protection Class: Class III; IP00 rating
- Operating Temperature: -40°C to +60°C (Extended range for high/low temps)
- Dimensions: 151 mm (Height) x 265 mm (Width) x 91 mm (Depth)
- Weight: ~4 kg
- Mounting: DIN rail mounting or direct wall mounting
Brand New SIEMENS 6EP1935-6MD31 Switching Power Supply. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Channels: 2 Digital Inputs (DI) Standard.
- Rated Voltage: 24 V DC (operational power drawn from the power module).
- Form Factor: Slim 15 mm width module housing.
- Address Space: Max 1 byte per module (2 bits when packed).
- Power Loss: Typical power dissipation is low at 0.4 W.
- Protection Features: Integrated reverse polarity protection.
- Connection Profile: Connects directly to Terminal Modules (TM-E).
- Lifecycle Status: This specific part number is officially designated as a Spare Part by Siemens, meaning it has been succeeded in newer system designs but remains highly active for system expansions, maintenance, and legacy line repairs.
Brand New SIEMENS 6ES7131-4BB01-0AA0 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Inputs: 2 Digital Inputs (DI).
- Nominal Input Voltage: 24 V DC.
- Module Width: 15 mm.
- Dimensions & Weight: 9.00 x 8.00 x 6.50 cm; 0.174 Kg.
- Kempston Controls: New (Pack of 5)
Brand New SIEMENS 6ES7131-4BB01-0AB0 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Module Type: Digital Input Module (4DI DC24V ST)
- Number of Inputs: 4 digital inputs
- Input Voltage: 24 V DC (with reverse polarity protection)
- Module Width: 15 mm
- Dimensions: 9.4 x 8.3 x 6.5 cm
- Weight: 0.174 Kg (approx. 0.38 lbs)
- Diagnostics: Green LED status indicator per channel; group fault (SF) LED
- Lifecycle Status: Product Phase-out began in October 2020, followed by complete product cancellation in October 2023.
Brand New SIEMENS 6ES7131-4BD01-0AA0 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series: SIMATIC DP / ET 200S Distributed I/O System
- Input Channels: 4 digital inputs
- Voltage Rating: 24V DC
- Module Type: High Feature (HF) with parameterized input delay
- Width: 15 mm
- Diagnostics: Short-circuit protection for encoders; integrated System Fault (SF) LED indicator for group faults.
- Power Loss: Approximately 0.7W
- Dimensions & Weight: 9.00 x 8.3 x 6.2 cm; 0.177 kg
Brand New SIEMENS 6ES7131-4BD01-0AB0 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Number of Inputs: 8 digital inputs.
- Rated Supply Voltage: 24 V DC (provided via a power module).
- Module Width: 15 mm.
- Input Characteristics: Meets IEC 61131, type 1 standards; supports 2-wire sensor connections.
- Isochronous Mode: Supported
- Power Loss: Typically 1.2 W.
- Address Space: Maximum of 1 byte per module.
- Dimensions & Weight: 9.00 x 6.30 x 2.20 cm; weighs approximately 0.042 kg (0.04 lbs).
Brand New SIEMENS 6ES7131-4BF00-0AA0 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series: SIMATIC S7-300 (CPU 312)
- Work Memory: 32 KB
- Power Supply: Integrated 24 V DC
- Communication Interface: 1 x MPI (RS-485)
- Required Accessory: A Micro Memory Card (MMC) is mandatory to serve as load memory.
- Dimensions & Weight: 15.1 x 12.9 x 5.1 cm; 0.317 Kg
Brand New SIEMENS 6ES7312-1AE13-0AB0 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
