Showing 449–464 of 2131 results
-
- Manufacturer: Beckhoff
- Model / Part Number: KL4004
- Number of Channels: 4 independent analog outputs.
- Signal Range: 0 to 10 V DC standard voltage signals.
- Resolution: 12-bit, providing smooth, fine-graded signal transitions.
- Electrical Isolation: 500 V between the internal K-bus and the process data signals.
- Ground Potential: All 4 channels share a single, common ground connection.
- Housing Size: Compact 12 mm width to optimize space on a standard DIN rail.
-
- Manufacturer: Beckhoff
- Model / Part Number: KL4434
- Signal Range: -10 V to +10 V.
- Resolution: 12 bits
- Number of Channels: 4 analog outputs.
- Conversion Time: Typically 4 ms.
- Connection Method: 2-wire installation per output.
- Ground Potential: Common reference ground shared through the 0 V power contact.
-
REQUEST A QUOTE
- Display Type: 7.0-inch TFT LCD touchscreen with a resistive touch overlay.
- Resolution: 800 x 480 pixels (16:9 widescreen format).
- Operating System & Runtime: Powered by Windows Embedded CE 6.0 running the iX runtime environment.
- Memory Capacity: 80 MB of dedicated application storage.
- Power Requirements: +24 VDC input voltage (operating range of 18–32 VDC) with a maximum consumption of 6.0 W.
- Physical Build: Powder-coated aluminum housing measuring 204 x 143 x 52.2 mm and weighing approximately 0.7 kg.
- Runtime Backups: You can backup the compiled project runtime directly from the HMI's hardware service menu without needing the original developer source code. To access this, reboot the HMI and press and hold anywhere on the screen when the hourglass icon appears. This allows you to export the runtime to a USB drive or SD card to facilitate direct replacement on an identical T7A terminal.
Beijer 630000202 Operator Panel HMI (iX T7A Series).
-
REQUEST A QUOTE

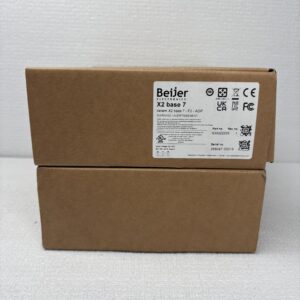

- Manufacturer: Beijer Electronics
- Model / Part Number: X2 base 7-F2-ADP
- Part number: 630022205
- Variant: X2 base 7-F2-ADP
- Display size: 7 inches
- Resolution: 800 × 480 pixels
- Touch input: Resistive
- Supply: 24 V DC
- Nameplate current: 0.4 A
- Connections: 2 D-sub serial connectors, 1 Ethernet port and 1 USB port
-
REQUEST A QUOTE
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Torque: 18 Nm (Motor) / 12 Nm (Spring Fail-Safe)
- Control Type: Open / Close (On/Off)
- Running Time: ~120 seconds (Motor) / ~16 seconds (Spring-return)
- Integrated Signaling: 2x Built-in Auxiliary switches (SPDT) for remote position tracking
- Mechanical Interface: 12×12 mm form-fit square hollow shaft
- Protection Class: IP54
- Variant: Key Characteristic
BELIMO BF24 Fire Damper Actuator (BF Series).
-
REQUEST A QUOTE
- Torque: 4 Nm motor / 3 Nm spring-return.
- Nominal Voltage: AC 230 V (at 50/60 Hz).
- Power Consumption: 2.6 W during operation and 0.7 W in its rest position.
- Control Type: Open/Close (On/Off).
- Running Time: Motor takes roughly 60 seconds to open; the spring-return functions swiftly during emergencies.
- Integrated Switches: Includes 2x SPDT built-in auxiliary microswitches for remote position signaling.
- Mechanical Interface: Form fit 12×12 mm continuous hollow shaft.
- Protection Class: IP54 rated enclosure protecting against dust and moisture splashes.
BELIMO BFL230 Fire Damper Actuator (BFL Series).
-
REQUEST A QUOTE
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Torque Motor / Spring: 4 Nm / 3 Nm
- Control Type: Open / Close
- Power Consumption: 2 W to 2.5 W (in operation) / 0.7 W to 0.8 W (at rest)
- Mechanical Interface: Form fit 12×12 mm, continuous hollow shaft
- Safety Devices: Often paired with a thermoelectric tripping device (BAT at 72°C or 95°C) depending on the sub-model (e.g., BFL24-T)
BELIMO BFL24 Fire Damper Actuator (BFL Series).
-
REQUEST A QUOTE
- Torque: 4 Nm motor torque / 3 Nm spring-return torque.
- Nominal Voltage: AC/DC 24 V (50/60 Hz).
- Control Type: Open/close operation.
- Running Time: ~60 seconds to open.
- Mechanical Interface: Form-fit 12×12 mm continuous hollow shaft.
- Integrated Switches: 2 x SPDT (Single-Pole Double-Throw) auxiliary switches for position signaling.
- Degree of Protection: IP54 (dust and splash water protection).
- Thermoelectric Tripping Device (BAT): It comes equipped with a thermal sensor set to trip at 72°C. If the ambient or duct temperature hits this threshold, it permanently interrupts the power supply, causing the internal spring to slam the damper shut safely.
- Fail-Safe Function: In normal operation, the electric motor holds the damper open. During a power failure or fire emergency, the mechanical spring energy takes over to completely close the damper and prevent the spread of smoke and fire.
- Service Life: Rated for a minimum of 60,000 safe positions.
BELIMO BFL24-T Fire Damper Actuator (BFL Series).
-
REQUEST A QUOTE
- Nominal Voltage: AC 230 V (50/60 Hz)
- Torque (Motor / Spring): 9 Nm / 7 Nm
- Control Type: Open / Close (On/Off)
- Running Time: ~60 seconds
- Integrated Auxiliary Switches: 2 x SPDT (Single-Pole Double-Throw)
- Protection Rating: IP54 (dust and splashing water protection)
- Mechanical Connection: Form-fit 12×12 mm continuous hollow shaft
- Connection Type: Pre-installed electrical cable
- Wiring & Mounting: Consult the Belimo BFN Installation Instructions to see accurate wiring diagrams for the built-in auxiliary switches.
- Regulatory Compliance: Download the EU Declaration of Conformity if you require structural or safety inspection sign-offs.
BELIMO BFN230 Fire Damper Actuator (BFN Series).
-
REQUEST A QUOTE
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Torque: 9 Nm (Motor) / 7 Nm (Spring-return)
- Control Type: Open/Close (On/Off)
- Running Time: ~60 seconds (Motor)
- Mechanical Interface: Form fit 12×12 mm, continuous hollow shaft
- Protection Rating: IP54 (dust and splash water protection)
- Auxiliary Switches: 2x SPDT (Integrated for position feedback)
BELIMO BFN24 Fire Damper Actuator (BFN Series).
-
REQUEST A QUOTE
- Application Compatibility: Optimized strictly for Cooling Only applications within 2-pipe systems.
- Power & Voltage: Operates on standard AC 220–240V, 50/60Hz line voltage (with some variations supporting 24V inputs).
- Operating Range: Handles an ambient environment range of 0 to 50°C.
- Fan Speed Control: Integrated physical slide or button configuration for 3-speed fan operation (Low, Medium, High).
- Actuator Control: Supports open-close toggle command signaling for either 2-wire or 3-wire valve actuators via built-in VO (Valve Open) and VC (Valve Close) dry contacts.
- Terminal Mark: Connection Purpose
- I / II / III: Fan Outputs (Low, Mid, High Speeds respectively)
- VO: Output signal to open the actuator
- VC: Output signal to close the actuator
BELIMO CFU-M212 Fan Coil Thermostat (CFU-M Series).
-
REQUEST A QUOTE
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Nominal Voltage Range: AC/DC 19.2…28.8 V
- Power Consumption (Operating): 0.5 W @ nominal torque
- Power Consumption (At Rest): 0.2 W
- Wire Sizing: 1 VA
- Torque: Min. 2 Nm
- Control Type: Open-Close or 3-Point
- Angle of Rotation: 0…287.5° (Endless without limitation; 315° with end stop clip)
- Running Time: 75 seconds / 90°
- Sound Power Level: Max. 35 dB(A)
BELIMO CM24-L Damper Actuator (CM Series).
-
REQUEST A QUOTE
- Torque: 2 Nm (Newton meters)
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Control Signal Input: 2…10 V proportional
- Position Feedback: 2…10 V (operating range U)
- Running Time: 75 seconds for a 90° rotation
- Enclosure Rating: IP54 / NEMA 2
- Power Consumption: 1 W in operation / 0.5 W in standby
- Brushless DC Motor Technology: Utilizes an Application Specific Integrated Circuit (ASIC) to monitor rotation and prevent damage during stall conditions, eliminating the need for mechanical limit switches.
- Overload Protection: Completely electronic overload protection guarantees high functional safety by automatically stopping when it hits a mechanical end stop.
- Manual Override: Equipped with a magnet or button mechanism that disengages the internal gear train, allowing manual damper adjustment.
BELIMO CM24-SR-L Modulating Damper Actuator (CM Series).
-
REQUEST A QUOTE
- Torque: 2 Nm (Newton meters)
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Control Input (Y): 2…10 V modulating signal
- Position Feedback (U): 2…10 V
- Running Time: 75 seconds for a 90° rotation
- Angle of Rotation: 95° max, fixed setting with adjustable mechanical stops
- Power Consumption: 1 W during operation / 0.5 W in rest position
- Mechanical Interface: Form fit 8×8 mm shaft connection
- Non-Spring Return: This is a non-fail-safe actuator, meaning it maintains its last position if power is lost.
- Overload Protection: It features automatic overload protection and does not require limit switches; it simply stops when it hits a mechanical end stop.
BELIMO CM24-SR-R Modulating Damper Actuator (CM Series).
-
REQUEST A QUOTE
- Sensing Element: NTC resistor
- Power Supply: AC 85~260V, 50/60Hz
- Set-Point Range: 5°C to 35°C
- Display Range: 0°C to 55°C
- Accuracy: ±1°C
- Switch Current Rating: Resistive: 2 A / Inductive: 1 A
- Dimensions: 90 × 88 × 15.5 mm with a standard 60 mm hole pitch
- Protection Class: IP30
- Housing: Fire-retardant PC + ABS plastic
- Visual Display: Includes a large LCD display showing working status (Cooling, Heating, Ventilation), fan speed (High, Medium, Low), and room temperature.
BELIMO EXT-HA-8023 Fan Coil Thermostat (EXT-HA Series).
-
REQUEST A QUOTE
- Fail-Safe Operation: Employs a mechanical spring-return that forces the damper to its safe position in under 15 seconds upon loss of electrical power.
- Torque & Capacity: Delivers 70 in-lb (8 Nm) of torque, making it capable of driving dampers up to 12 square feet at elevated temperatures.
- High-Temperature Resilience: Designed to withstand extreme conditions, operating safely at temperatures up to 350°F (177°C) for at least 30 minutes to satisfy UL555S requirements.
- Electrical Ratings: Operates on a nominal 24 VAC/VDC supply, pulling 24VA during running mode and 6.5VA while holding.
- Code Compliance: It is UL555 and UL555S listed when tested as an assembly with authorized damper manufacturers.
- HVAC Brain: Available as a standard replacement unit under the official SKU FSNF24-S US.
- PTAC Solutions: Stocks the 24V fire & smoke variant complete with auxiliary switches.
- Zot Supply: Offers both individual units and a bulk 60-piece multipack (SKU: FSNF24-S.1 US) for large mechanical projects.
- Official Documentation: Detailed wiring schematics, mounting dimensions, and certificates can be downloaded directly from the official Belimo US Product Page.
BELIMO FSNF24-S Fire & Smoke Actuator (FSNF Series).
