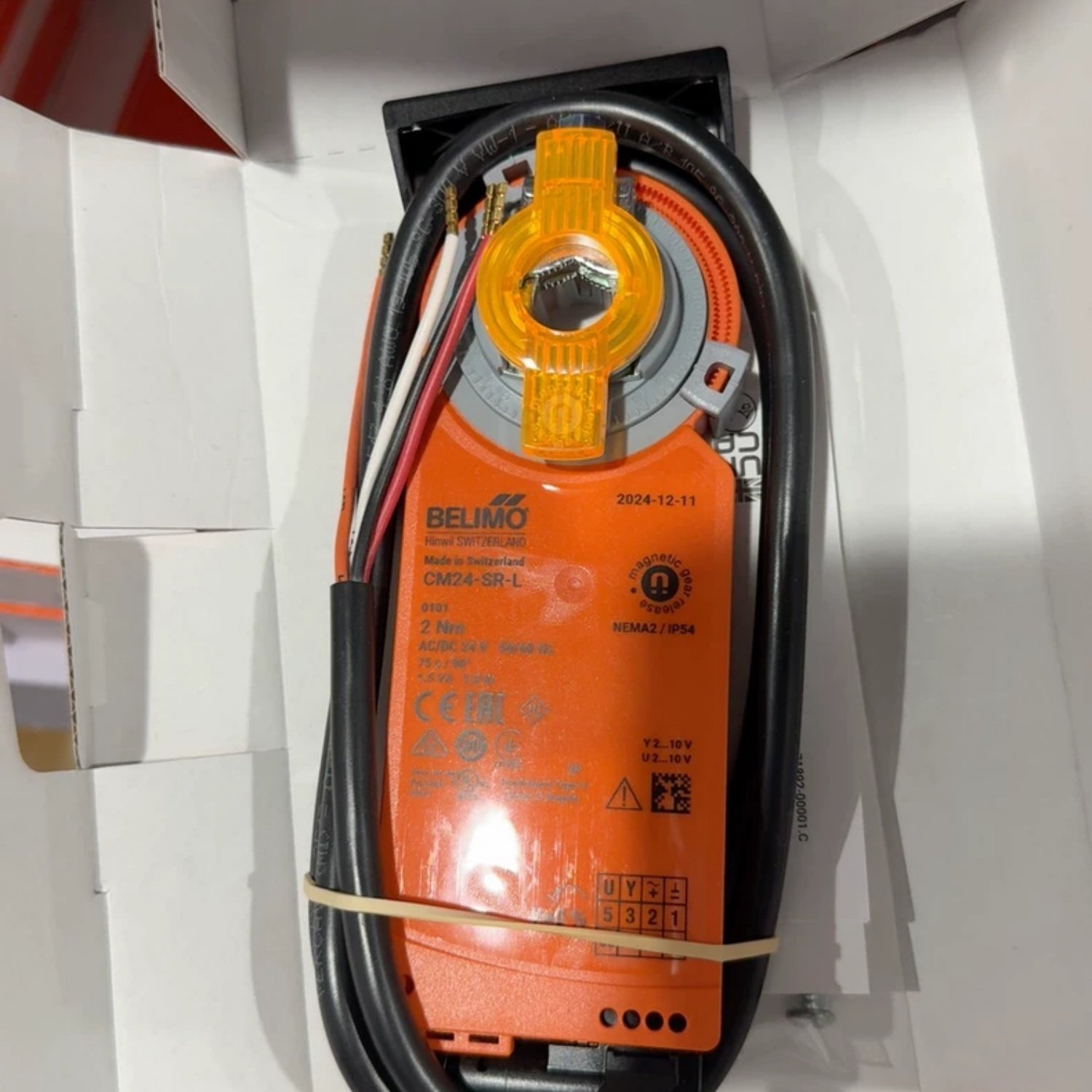

BELIMO CM24-SR-L Modulating Damper Actuator (CM Series)

• Torque: 2 Nm (Newton meters)
• Nominal Voltage: AC/DC 24 V (50/60 Hz)
• Control Signal Input: 2…10 V proportional
• Position Feedback: 2…10 V (operating range U)
• Running Time: 75 seconds for a 90° rotation
• Enclosure Rating: IP54 / NEMA 2
• Power Consumption: 1 W in operation / 0.5 W in standby
• Brushless DC Motor Technology: Utilizes an Application Specific Integrated Circuit (ASIC) to monitor rotation and prevent damage during stall conditions, eliminating the need for mechanical limit switches.
• Overload Protection: Completely electronic overload protection guarantees high functional safety by automatically stopping when it hits a mechanical end stop.
• Manual Override: Equipped with a magnet or button mechanism that disengages the internal gear train, allowing manual damper adjustment.

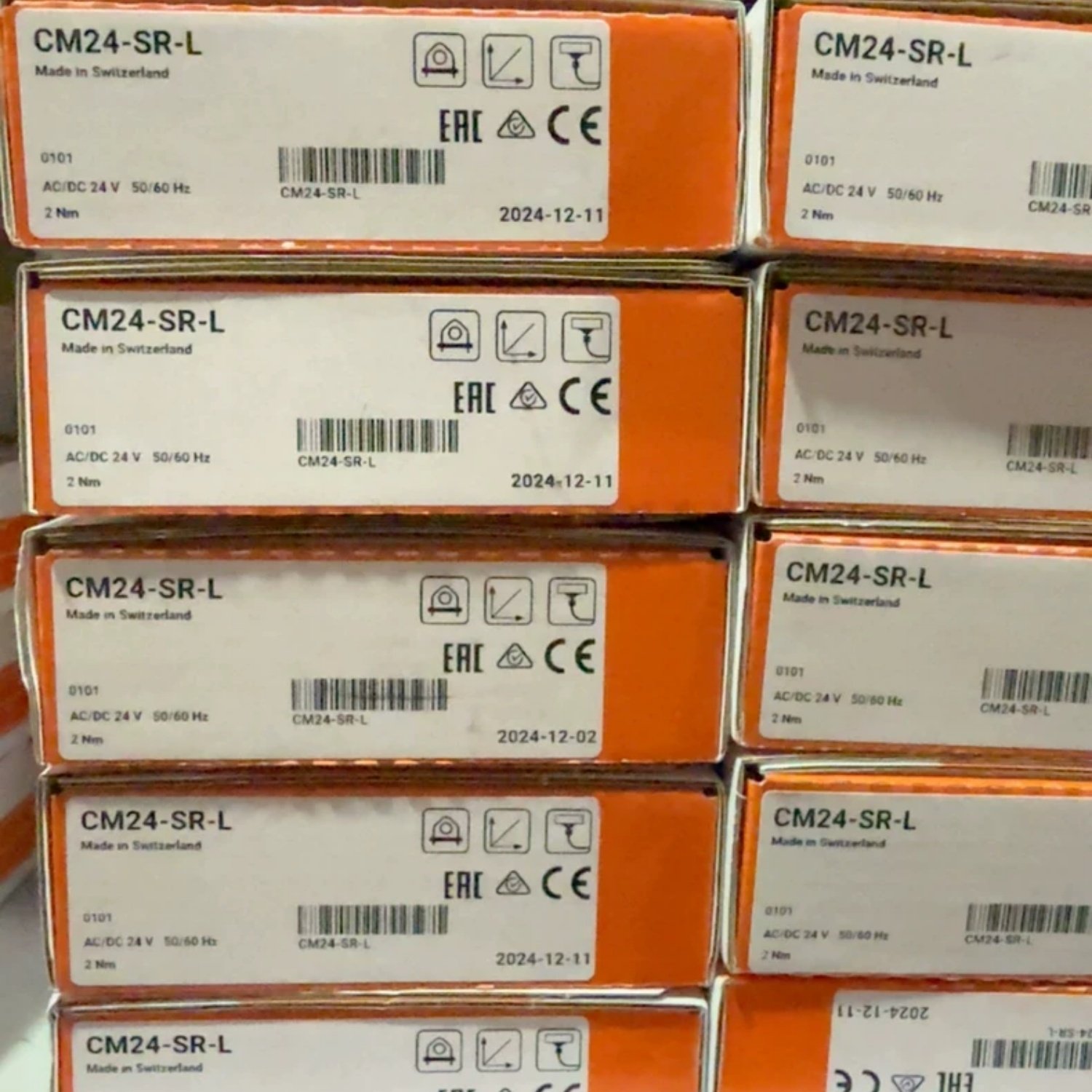

Brand New BELIMO CM24-SR-L Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
