Showing 2193–2208 of 2246 results
-
REQUEST A QUOTE
- Operation Type: Diaphragm type, Normally Open (Energized Open).
- Applicable Fluids: Water, air, inert gases, and light oils (kerosene, diesel equivalent, viscosity ≤ 20cSt).
- Pressure Range: 0 to 1.0 MPa.
- Fluid Temperature: 5°C to 60°C.
- End Connection: JIS Rc Thread (Screw-in).
- Body Material: Cast Bronze (CAC408).
- Diaphragm Material: NBR rubber.
- Coil Insulation: Class B insulation, wrapped in a heat-resistant thermosetting resin.
- Mounting Position: Supports both vertical and horizontal installation (for sizes up to 50A).
- Nominal Diameter (Size): Face-to-Face Length (L)
VENN WS-22-F Solenoid Valve (WS-22 Series).
-
REQUEST A QUOTE
- Output Frequency Range: 0.1 to 400 Hz.
- Control Modes: Selectable Constant V/f mode or high-torque sensorless vector control.
- Overload Capacity: 150% for 60 seconds.
- Compact & Vertically Oriented: Features a vertical main circuit terminal block layout resembling a power distributor, making wiring straightforward and saving enclosure space.
- Energy Saving: Features an automated auto-energy-saving mode optimized for fans, pumps, and small machinery.
- User-Friendly Setup: Includes a "turn-and-push" setting dial and rapid access to standard configuration parameters.
- Durability: Rated for up to a 10-year operating life under standard industrial environments and supports ambient operating temperatures up to 60°C (with current derating).
- Communication: Includes a built-in RS-485 port supporting standard Modbus RTU communication.
VFNC3C-4004P TOSHIBA Variable Frequency Drive.
-
REQUEST A QUOTE
- Maximum Flow Rate: Up to 80 LPM (21 GPM).
- Maximum Operating Pressure: 350 bar (5076 PSI) at ports A, B, and P.
- Tank Port Rating: Up to 210 bar (3045 PSI) maximum.
- Power Consumption: 30 Watts.
- Seal Material: Standard Buna-N (Viton options exist under variant codes).
VICKERS DG4V-3-2N-M-U-H7-60 Solenoid Directional Valve (DG4V).
-
- Manufacturer: VICKERS
- Model / Part Number: DG4V-3-6C-M-U-H7-60
- Maximum Flow Rate: 80 L/min (21 US gal/min)
- Maximum Pressure at P, A and B Ports: 350 bar (5075 psi)
- Maximum Tank Port Pressure: 210 bar (3045 psi)
- Seal Material: Nitrile rubber
- Operating Temperature: -20 to 70 °C
-
REQUEST A QUOTE
- Mounting Interface: ISO 4401-03 (Size 03 / CETOP 3 / NG6 stackable)
- Maximum Operating Pressure: 4,500 psi (315 bar)
- Maximum Flow Rate: 16 USgpm (60 L/min)
- Cracking Pressure: 14.5 psi (1 bar)
- Body Material: Cast Iron
- Seal Material: Standard Buna-N (Viton variants available depending on strict industrial model suffixes)
- Design Series: 41 Series
- SB Industrial Supply: Carries new stock units ready for delivery SB Industrial Supply.
VICKERS DGMPC-3-ABK-BAK-41 Directional Control Valve (DGMPC).
-
REQUEST A QUOTE

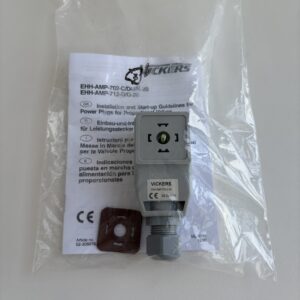

- Manufacturer: Vickers
- Model / Part Number: EHH-AMP-702-D-20
- Part number: 02-326010
- Nominal supply: 24 V DC
- Command input: 0–10 V
- Adjustable ramp time: 50 ms to 5 seconds
- Valve interface: ISO 4400 / DIN 43650
- Adjustments: Gain, ramp, deadband compensation and dither
- Circuit protection: Short-circuit and reverse-polarity protection
- Enclosure protection: IP67 when properly installed
-
REQUEST A QUOTE
Technical Specifications
- Voltage: 24V DC
- Power Consumption: 30W
- Core Inner Diameter (ID): 23mm to 23.5mm
- Length: 60 mm
- Electrical Connection: "G" DIN 43650 Connector
- Duty Cycle: Continuous duty
- Enclosure Protection: IP65–IP69K rated (with integrated connections)
- Alternative Part Numbers: 507848, H507848, H-507848, 103690, H 0507848
- Construction & Agriculture: Excavators, bulldozers, cranes, harvesters, and concrete pump trucks.
- Industrial Machinery: Hydraulic presses, punch machines, and injection molding systems.
- Material Handling: Conveyor belts and hydraulic lifting platforms.
- WiAutomation US: Offers the OEM Eaton Vickers 507848 Coil in new condition.
- FridayParts: Provides an Aftermarket Replacement Coil for H507848 designed for heavy equipment.
- WD Part: Stocks the Solenoid Valve Coil H507848 as a budget-friendly option.
Vickers H-507848 DC24V Solenoid Valve Coil (DG4V Series).
-
REQUEST A QUOTE

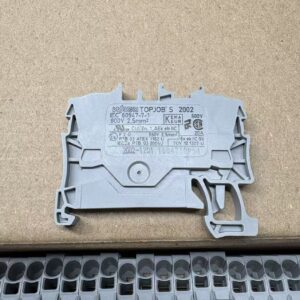

- Manufacturer: WAGO
- Model / Part Number: 2002-1201
- Connections: 2
- Potentials: 1
- Levels: 1
- Connection technology: Push-in CAGE CLAMP
- Nominal conductor area: 2.5 mm²
- Solid or fine-stranded conductor: 0.25–4 mm²
- Insulated ferrule conductor: 0.25–2.5 mm²
- Strip length: 10–12 mm
- IEC rated voltage: 800 V
- IEC rated current: 24 A
- UL rated voltage: 600 V
- UL rated current: 20 A
- Mounting: DIN-35 rail
- Width: 5.2 mm
- Height: 48.5 mm
- Depth above rail: 32.9 mm
- Color: Gray
- Insulation: PA66, UL94 V0
- Mass: 5.1 g
-
REQUEST A QUOTE
- Manufacturer: WAGO
- Model / Part Number: 750-1504
- Digital outputs: 16
- Output voltage: 24 V DC
- Output current: 0.5 A per channel
- Switching type: Positive switching
- Conductor size: 0.08–2.5 mm²
- Wire range: 28–14 AWG
- Strip length: 8–9 mm
- Dimensions: 12 × 64 × 100 mm (W × H × D)
- Weight: 49.5 g
-
REQUEST A QUOTE

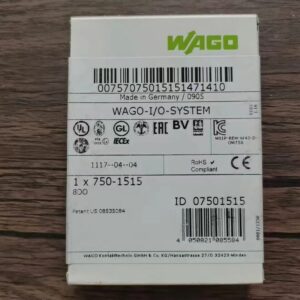

- Manufacturer: WAGO
- Model / Part Number: 750-1515
- Outputs: 8 digital outputs
- Output voltage: 24 V DC
- Output current: 0.5 A per channel
- Switching type: High-side switching
- Field wiring: Two-conductor connection
- System: WAGO I/O System 750
-
REQUEST A QUOTE

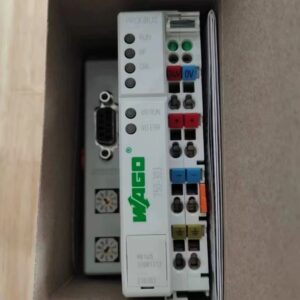

- Manufacturer: WAGO
- Model / Part Number: 750-303
- Fieldbus: PROFIBUS DP/FMS, EN 50170
- Baud rate: 9.6 kbaud to 12 Mbaud
- Maximum modules per node: 64
- Maximum input/output process image: 128 bytes input and 128 bytes output
- System and field supply: 24 V DC, −25%/+30%
- Typical input current at nominal load: 500 mA at 24 V
- Internal 5 V consumption: 350 mA
- System supply total current: 1650 mA
- Power-contact capacity: 10 A
- Isolation: 500 V system/field
- Fieldbus connection: 9-pin female D-Sub
- Power terminals: CAGE CLAMP
- Mounting: 35 mm DIN rail
- Dimensions: 50.5 × 100 × 71.1 mm
- Protection: IP20
- Operating temperature: 0 to +55 °C
- Mass: Approximately 185.2 g
-
REQUEST A QUOTE

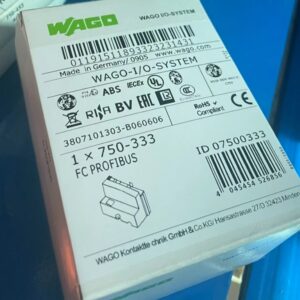

- Manufacturer: WAGO
- Model / Part Number: 750-333
- Fieldbus: PROFIBUS DP, second generation
- Baud rate: 9.6 kbaud to 12 Mbaud
- Maximum modules per node: 63
- Maximum process image: 244 bytes input and 244 bytes output
- System and field supply: 24 V DC, −25%/+30%
- Internal 5 V current consumption: 200 mA
- System supply total current: 1800 mA
- Typical input current at rated load: 500 mA at 24 V
- Power-contact current capacity: 10 A
- Isolation: 500 V system/supply
- Fieldbus connection: 9-pin female D-Sub
- Power terminals: CAGE CLAMP
- Mounting: 35 mm DIN rail
- Dimensions: 50.5 × 71.1 × 100 mm
- Protection: IP20
- Operating temperature: 0 to +55 °C
- Mass: Approximately 183 g
-
REQUEST A QUOTE

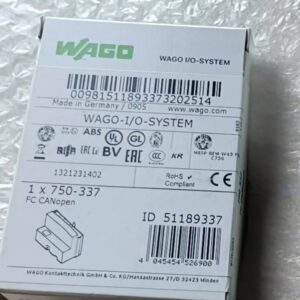

- Manufacturer: WAGO
- Model / Part Number: 750-337
- Protocol: CANopen
- Baud rate: 10 kbit/s–1 Mbit/s
- Maximum bus segment: 1000 m, depending on baud rate
- Maximum modules per node: 64
- PDOs: 32 transmit and 32 receive
- SDOs: 2 SDO servers
- Maximum process image: 512 input bytes and 512 output bytes
- Node ID setting: DIP switches
- System and field supply: 24 V DC, −25%/+30%
- Internal system current: 350 mA at 5 V DC
- Total system supply current: 1650 mA
- Power-jumper current capacity: 10 A
- System-to-field isolation: 500 V
- Fieldbus connection: Five-pole male connector
- Mounting: 35 mm DIN rail
- Dimensions: 50.5 × 100 × 71.1 mm
- Protection: IP20
- Ambient temperature: 0–55 °C
- Mass: 184 g
-
REQUEST A QUOTE
- Function: Closes the communication path and marks the termination point of the module node.
- Mounting: 35mm DIN-rail mounting (Horizontal or Vertical orientation).
- Dimensions: 12 mm Width × 100 mm Length × 64 mm Height.
- Environmental Protections: IP20 safety protection rating; operating temperature range from 0°C to 55°C.
- Industrial Certifications: UL 508, ANSI/ISA 12.12.01, ATEX, CCC, KEMA, and CE conformity.
Wago 750-600 I/O End Module (750 Series).
-
REQUEST A QUOTE
- Manufacturer: WAGO
- Model / Part Number: 750-628
- Function: Internal bus extension coupler
- Conductor cross-section: 0.08–2.5 mm²
- Wire range: 28–14 AWG
- Strip length: 8–9 mm
- Dimensions: 25 × 65 × 100 mm (W × H × D)
- Weight: 73.73 g
- Colour: Light grey
-
REQUEST A QUOTE
- Networking & Topology: Features two ETHERNET interfaces with an integrated switch. This hardware setup supports a line topology, eliminating the need for external network switches or hubs.
- Supported Protocols: Fully compatible with industrial standards like Modbus/TCP and EtherNet/IP for seamless integration with SCADA systems or Human-Machine Interfaces (HMIs).
- Programming Environment: Programmable to the IEC 61131-3 standard, primarily configured using CODESYS V2.3 software.
- Local Processing: It automatically detects connected digital and analog I/O modules, synthesizing them into a localized process image map.
- Onboard Configuration: Includes an integrated web server for status monitoring, diagnostic checks, and system configuration. A physical DIP switch allows manual hardcoding of the final byte of its IP address.
WAGO 750-881 Ethernet Controller (WAGO 750).
