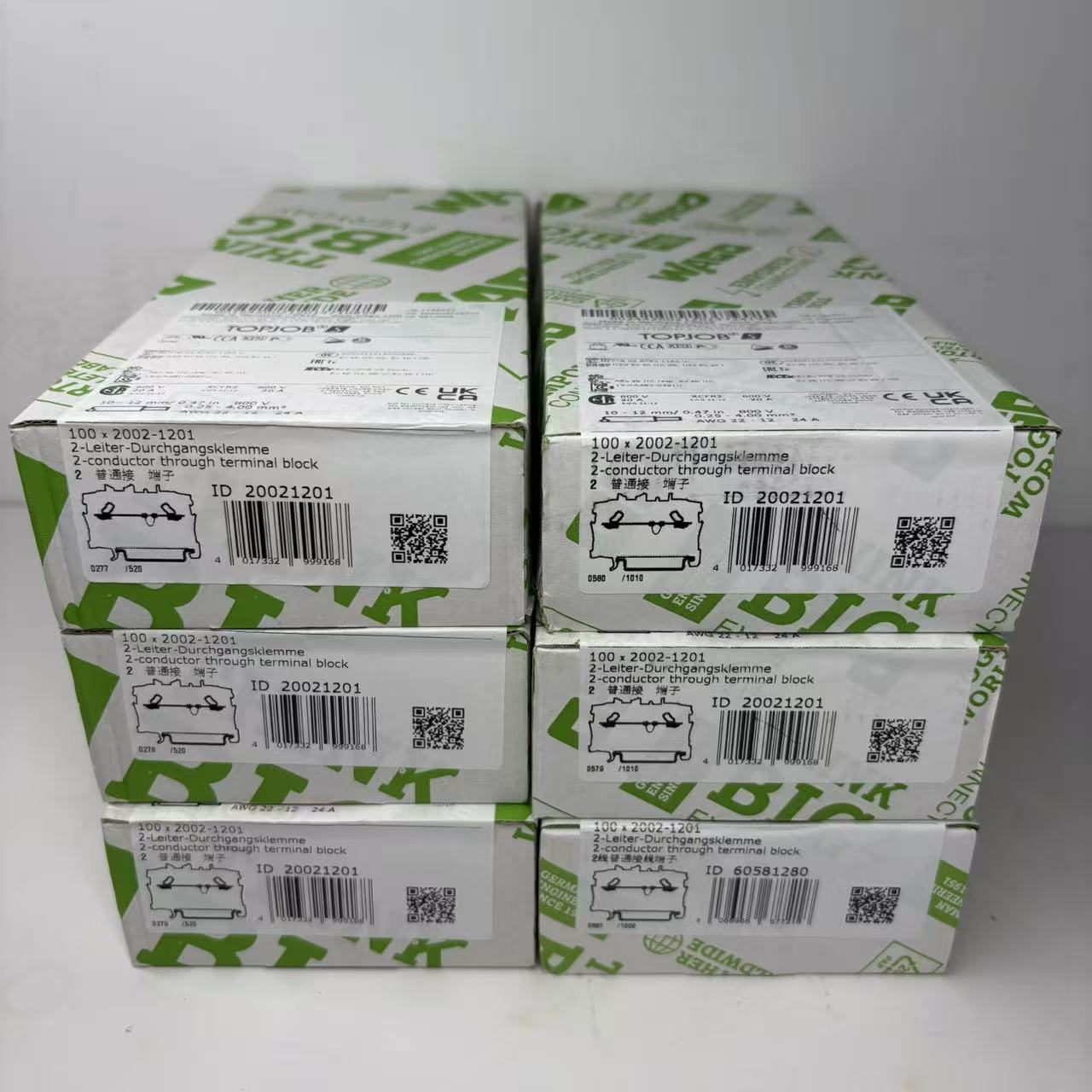

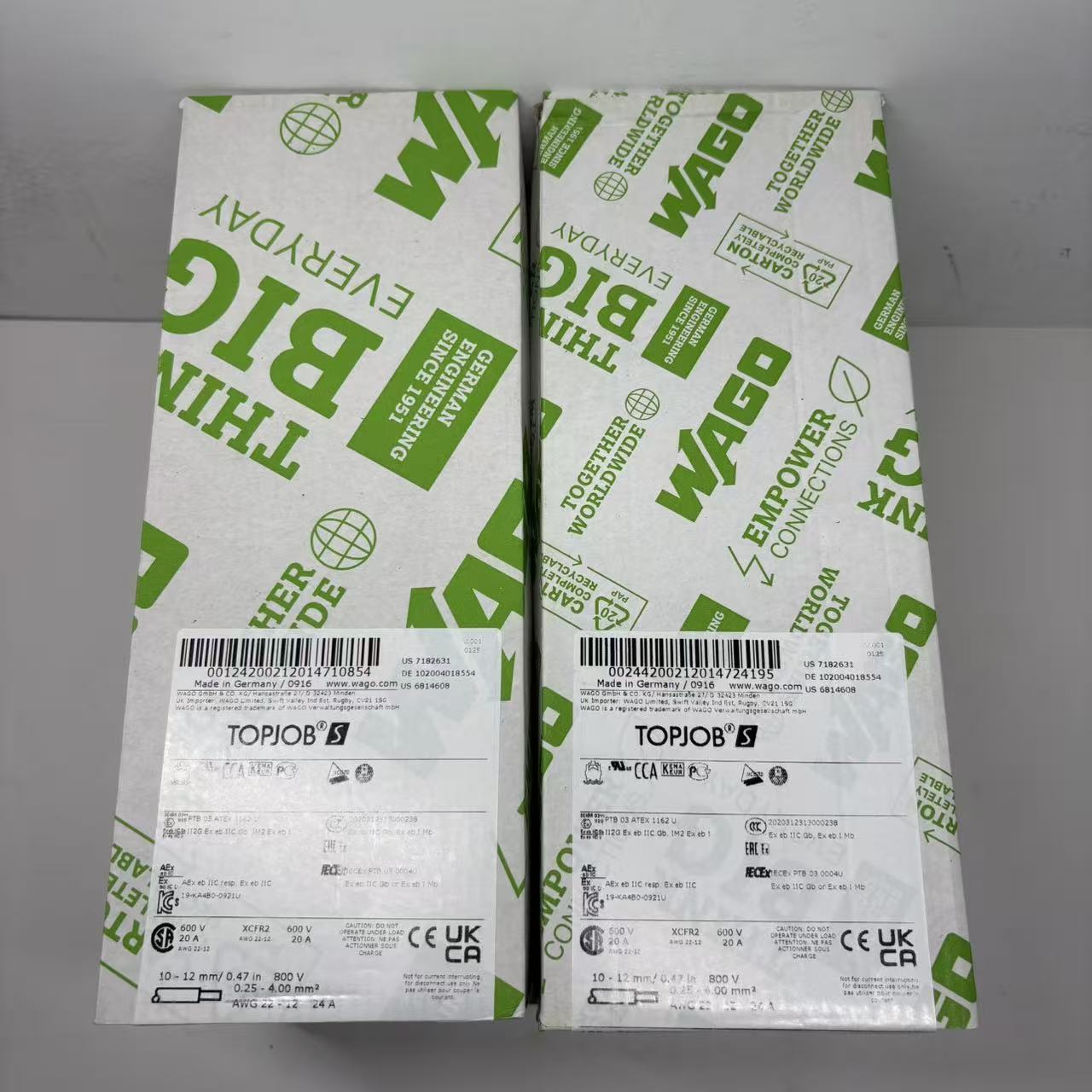

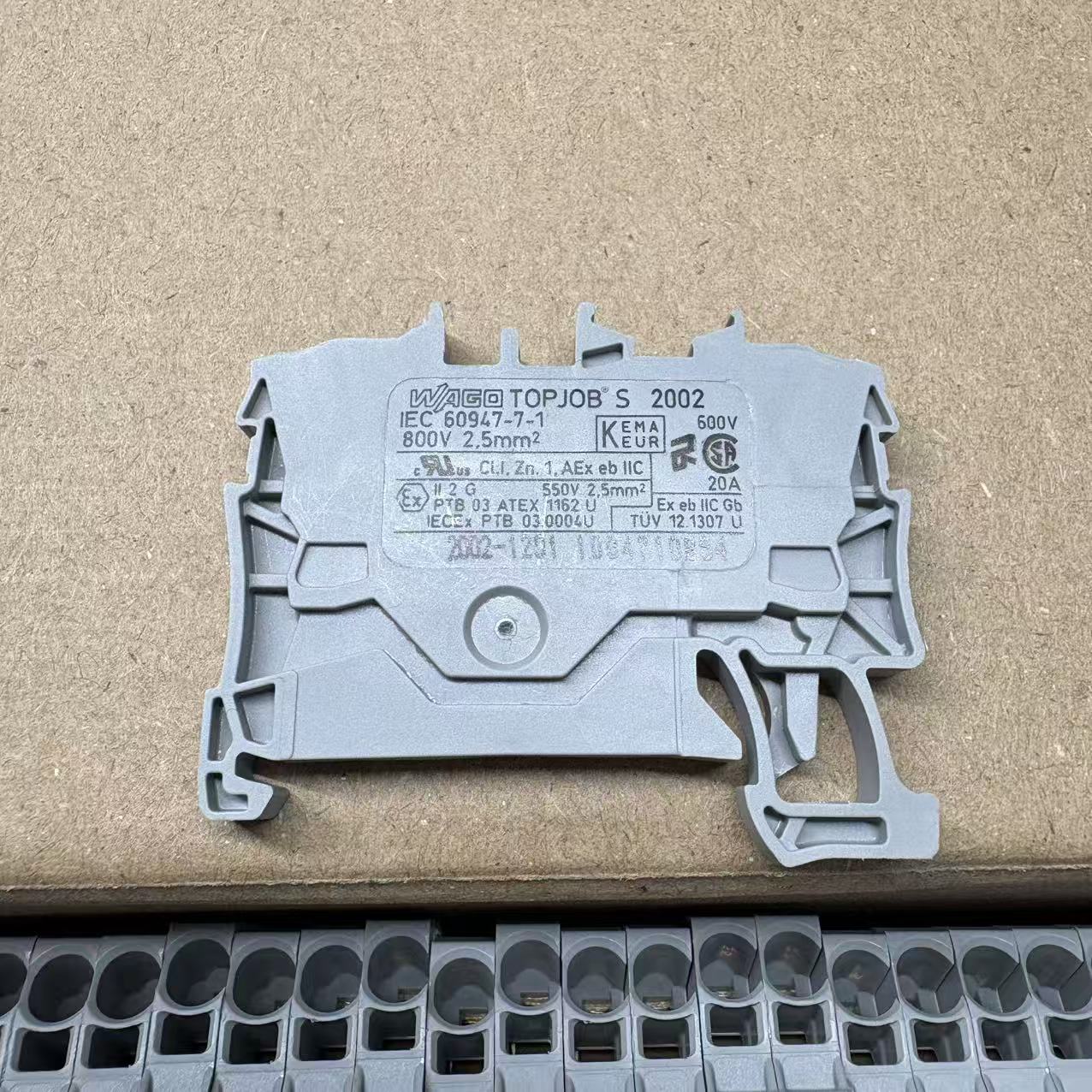

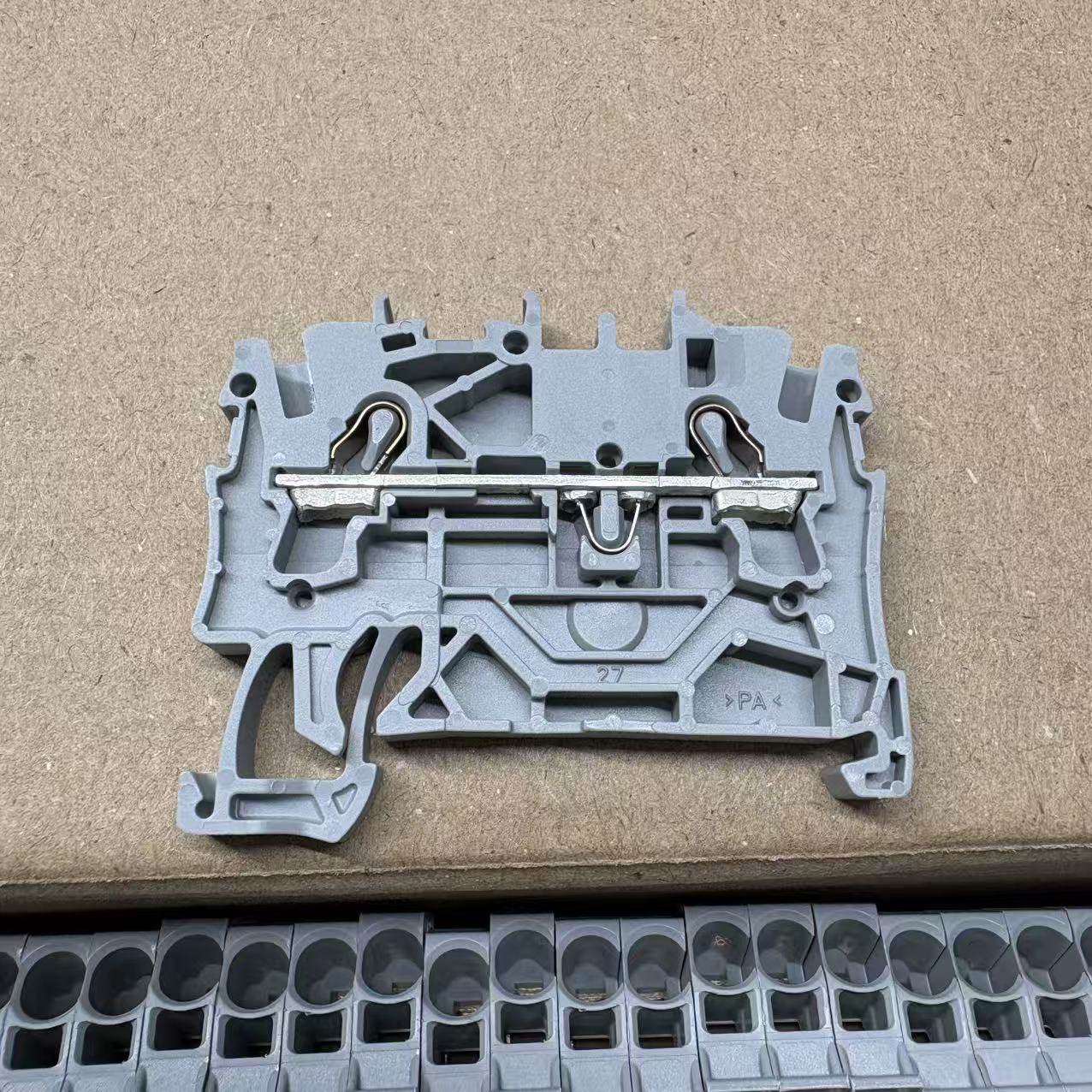

WAGO 2002-1201 Feed Through Terminal Block
- Manufacturer: WAGO
- Model / Part Number: 2002-1201
- Connections: 2
- Potentials: 1
- Levels: 1
- Connection technology: Push-in CAGE CLAMP
- Nominal conductor area: 2.5 mm²
- Solid or fine-stranded conductor: 0.25–4 mm²
- Insulated ferrule conductor: 0.25–2.5 mm²
- Strip length: 10–12 mm
- IEC rated voltage: 800 V
- IEC rated current: 24 A
- UL rated voltage: 600 V
- UL rated current: 20 A
- Mounting: DIN-35 rail
- Width: 5.2 mm
- Height: 48.5 mm
- Depth above rail: 32.9 mm
- Color: Gray
- Insulation: PA66, UL94 V0
- Mass: 5.1 g
- SKU: 2002-1201
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
