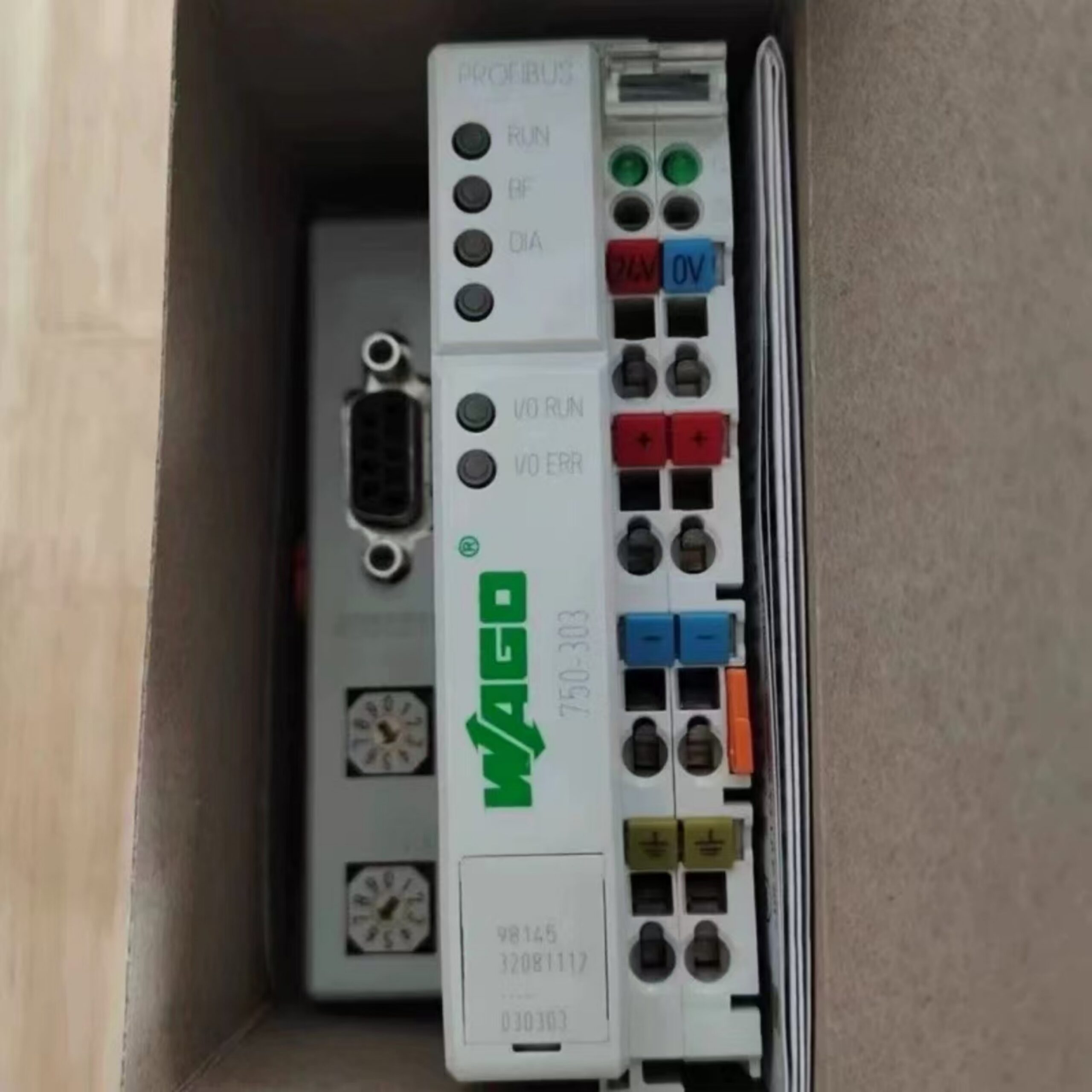

WAGO 750-303 PROFIBUS Fieldbus Coupler
- Manufacturer: WAGO
- Model / Part Number: 750-303
- Fieldbus: PROFIBUS DP/FMS, EN 50170
- Baud rate: 9.6 kbaud to 12 Mbaud
- Maximum modules per node: 64
- Maximum input/output process image: 128 bytes input and 128 bytes output
- System and field supply: 24 V DC, −25%/+30%
- Typical input current at nominal load: 500 mA at 24 V
- Internal 5 V consumption: 350 mA
- System supply total current: 1650 mA
- Power-contact capacity: 10 A
- Isolation: 500 V system/field
- Fieldbus connection: 9-pin female D-Sub
- Power terminals: CAGE CLAMP
- Mounting: 35 mm DIN rail
- Dimensions: 50.5 × 100 × 71.1 mm
- Protection: IP20
- Operating temperature: 0 to +55 °C
- Mass: Approximately 185.2 g
- SKU: 750-303
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
