MOXA NPORT 5110A Serial Device Server (NPort 5110A)

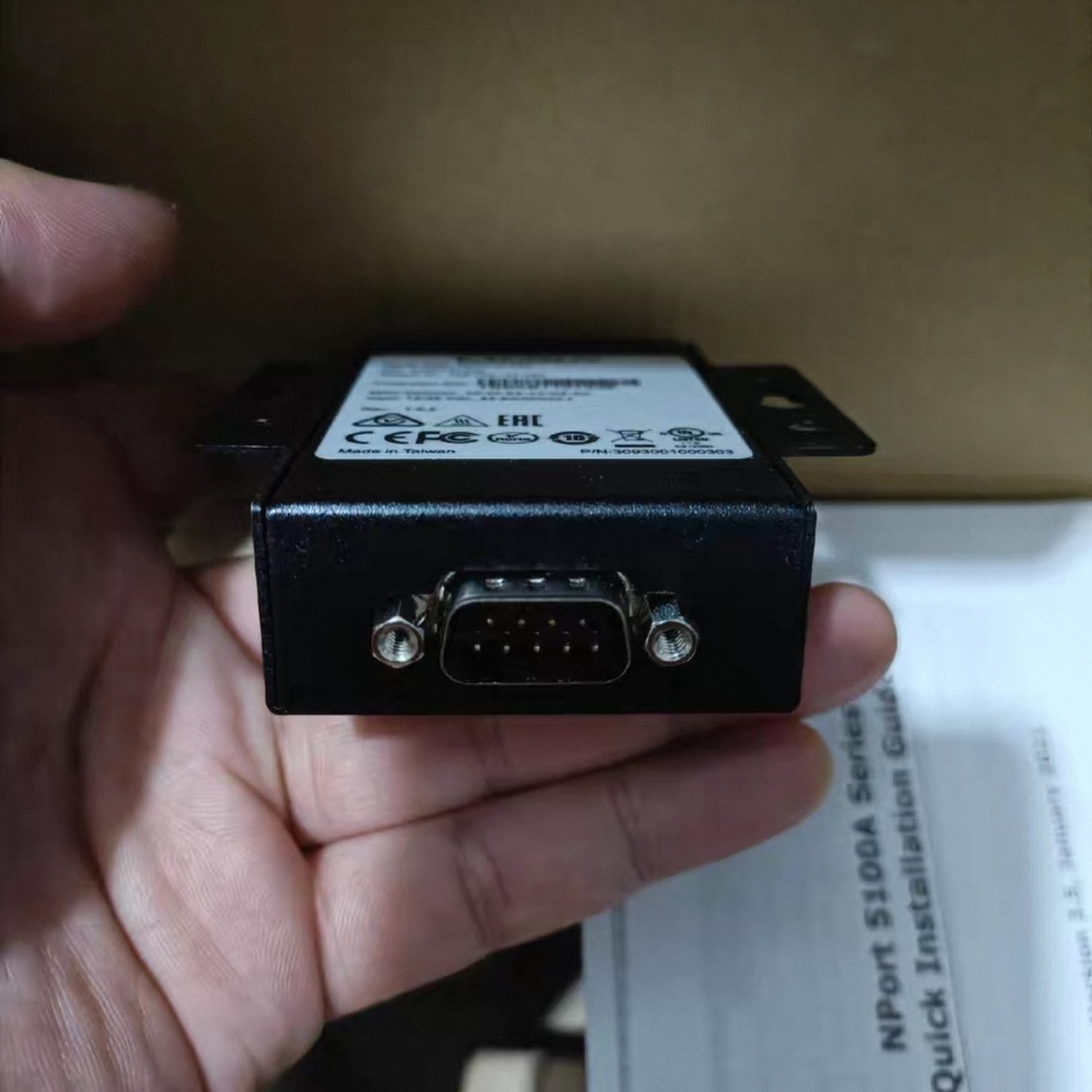

- Serial Interface: 1 x RS-232 (DB9 male connector)
- Ethernet Interface: 1 x 10/100BaseT(X) port (RJ45 connector)
- Power Consumption: 1 Watt (82.5 mA @ 12 VDC)
- Input Voltage: 12 to 48 VDC via power jack or screw connector
- Surge Protection: 0.5 kV serial surge protection (15 kV ESD)
- Operating Temperature: 0 to 60°C (32 to 140°F) (Note: The "-T" variant supports -40 to 75°C)
- Physical Dimensions: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
- Housing & Mounting: Metal housing; Desktop, Wall, or DIN-rail mounting
- Versatile Operation Modes: Supports standard network architectures including Real COM (mapping virtual COM ports on Windows/Linux), TCP Server, TCP Client (for continuous active data streaming), and UDP.
- Multi-Host Connectivity: Can connect up to 8 TCP hosts simultaneously, allowing multiple operators or systems to monitor the same serial device at once.
Brand New MOXA NPORT 5110A Serial Device Server. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: NPORT 5110A
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
