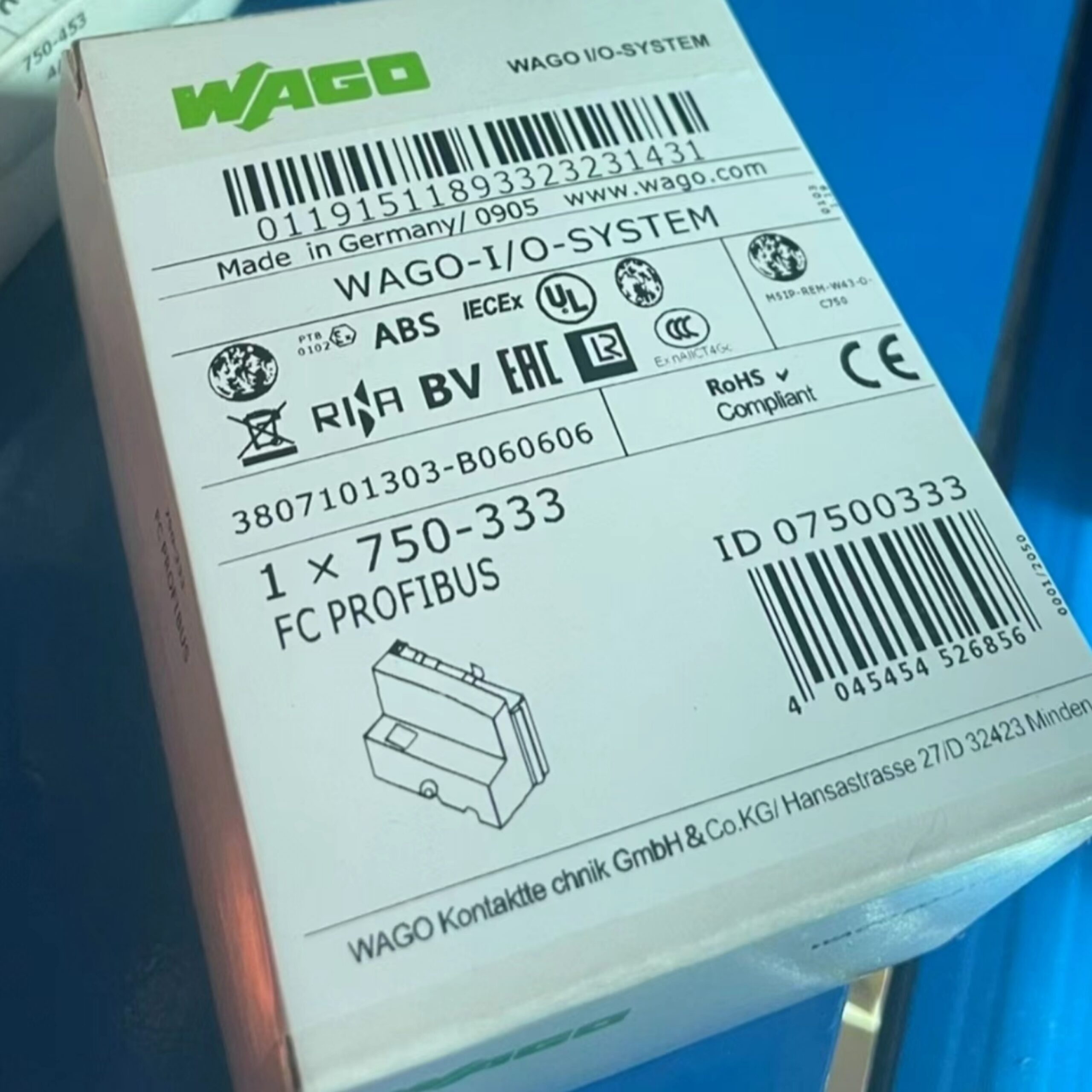

WAGO 750-333 PROFIBUS DP Fieldbus Coupler
- Manufacturer: WAGO
- Model / Part Number: 750-333
- Fieldbus: PROFIBUS DP, second generation
- Baud rate: 9.6 kbaud to 12 Mbaud
- Maximum modules per node: 63
- Maximum process image: 244 bytes input and 244 bytes output
- System and field supply: 24 V DC, −25%/+30%
- Internal 5 V current consumption: 200 mA
- System supply total current: 1800 mA
- Typical input current at rated load: 500 mA at 24 V
- Power-contact current capacity: 10 A
- Isolation: 500 V system/supply
- Fieldbus connection: 9-pin female D-Sub
- Power terminals: CAGE CLAMP
- Mounting: 35 mm DIN rail
- Dimensions: 50.5 × 71.1 × 100 mm
- Protection: IP20
- Operating temperature: 0 to +55 °C
- Mass: Approximately 183 g
- SKU: 750-333
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
