Showing 65–80 of 105 results
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-045A-3
- Supply voltage: 3-phase 380…480 V AC
- Nominal input current (I1): 45 A
- Nominal output current (I2N): 45 A
- Maximum output current (Imax): 64 A
- Nominal motor power (Pn): 22 kW
- Apparent power (Sn): 31 kVA
- Light-duty output: 43 A / 22 kW
- Heavy-duty output: 38 A / 18.5 kW
- Frame size: R4
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-04A0-3
- Supply voltage: 3-phase 380…480 V AC
- Nominal input current (I1): 4.0 A
- Nominal output current (I2N): 4.0 A
- Maximum output current (Imax): 5.6 A
- Nominal motor power (Pn): 1.5 kW
- Apparent power (Sn): 2.8 kVA
- Light-duty output: 3.8 A / 1.5 kW
- Heavy-duty output: 3.3 A / 1.1 kW
- Frame size: R1
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-087A-3
- Power Rating: 45 kW (Kilowatts)
- Current Output: 87 A (Amps) nominal rating
- Voltage Range: 380V to 415V (classified by the "-3" voltage code for 400V 3-phase power)
- Horsepower (HP): 60 HP for Normal Duty / 50 HP for Heavy Duty
- Frame Size: R5
- Enclosure Rating: IP21 standard protection against dust and dripping water (upgradable to IP55)
- Weight: Approximately 23 kg (50.7 lbs)
-

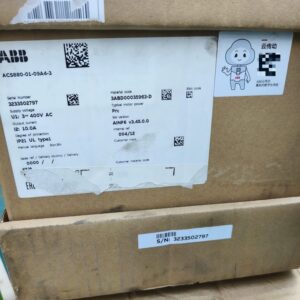

- Manufacturer: ABB
- Model / Part Number: ACS880-01-09A4-3
- Power Rating: 4 kW (about 5 Horsepower).
- Input Voltage: 3-phase, 380V to 415V AC.
- Frame Size: R1 (ABB's smallest physical size for this lineup).
- Control Tech: Uses Direct Torque Control (DTC) for highly precise motor control without needing extra sensors.
- Efficiency: Highly efficient at over 97% to 98%.
- Weight: Around 10.4 kg (23 lbs).
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-105A-3
- Power Output: 55 kW (approx. 75 Horsepower) 45 kW (approx. 60 Horsepower)
- Current Output: 105 Amps 87 Amps
- Enclosure Rating: IP21 (NEMA Type 1) standard, which keeps fingers and large dust particles out of the electronics.
- Weight: It weighs about 43 kg (95 lbs), making it a solid piece of industrial machinery.
- Direct Torque Control (DTC): This is ABB's special technology. It lets the drive control the motor's power with incredible precision and speed without needing extra sensors on the motor.
- Built-in Safety: It comes with a safety feature called Safe Torque Off (STO). This safely cuts power to the motor so it cannot spin accidentally during maintenance, keeping workers safe.
- Removable Memory: All the drive's settings and programs are saved on a tiny removable memory unit. If the drive ever breaks, you can just pop the memory card into a new drive and it is ready to go instantly.
- Works with Anything: It can talk to almost any major factory network (like Ethernet or Profibus) using add-on communication modules.
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-12A6-3
- Output Current: 12.6 A to 12.9 A
- Input Voltage: 3-Phase, 380V to 415V AC
- Frequency: 50 / 60 Hz
- Control Technology: Direct Torque Control (DTC) for extreme precision
- Mounting Style: Wall-mounted, compact frame
- Universal Compatibility: It works seamlessly with almost any AC motor type, including standard induction, permanent magnet, and synchronous reluctance motors.
- Direct Torque Control: ABB's proprietary DTC tech responds to changes in motor load in microseconds. This gives you precise speed hold even without an external sensor encoder.
- Energy Optimizer: Inside the programming is a smart feature that reduces power draw by adjusting the energy used to match the exact load required.
- Built-in Safety: Features like Safe Torque Off (STO) come standard. This helps safely shut down power to prevent accidental motor startups during machine maintenance.
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-145A-3
- Power Output: 75 kW (translates to about 100 Horsepower for light-duty or 75 Horsepower for heavy-duty industrial use).
- Frame Size: R6 (This tells technicians the physical build size for cabinet planning).
- Enclosure Rating: IP21 (Basic protection against dust and dripping water; intended for indoor use).
- Weight: 45 kg (About 99 pounds).
- Motor Control: Uses Direct Torque Control (DTC), which provides incredibly precise control over the motor's speed and twist power without needing extra sensor wires.
-

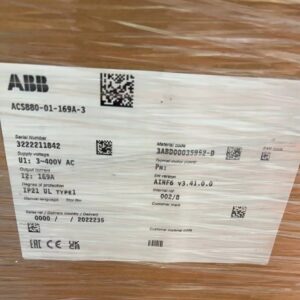

- Manufacturer: ABB
- Model / Part Number: ACS880-01-169A-3
- Product ID: 3AUA0000108027
- Voltage Rating: 3-phase, 380 V to 415 V (400V nominal)
- Frame Size: R7
- Frequency: 50/60 Hz input; 0 to 500 Hz output
- Enclosure Protection: IP21 standard (IP55 optional)
- Efficiency: IE2 level
- Load Type: Current (Amps) Power (kW) Equivalent HP
- Height: 880 mm (34.65 in)
- Width: 284 mm (11.18 in)
- Depth: 365 mm (14.37 in)
- Net Weight: 53 kg (116.8 lbs)
- Digital Inputs: 6
- Digital Outputs: 2
- Analog Inputs: 2
- Analog Outputs: 2
- Relay Outputs: 3
- Built-in Interfaces: RS-485 (Modbus RTU), USB
- Optional Fieldbus: PROFINET IO, Profibus DP, EtherNet/IP, Modbus/TCP
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-246A-3
- Power Rating (Normal Duty): 132 kW (approximately 175 Horsepower)
- Power Rating (Heavy Duty): 110 kW (approximately 150 Horsepower)
- Current Rating: 246 Amps
- Voltage Range: 380 V to 415 V (3-phase input and output)
- Frame Size: R8
- Enclosure Rating: IP21 (NEMA Type 1 protection for standard indoor wall-mounting)
- Weight: 68.0 kg (149.91 lbs)
- Direct Torque Control (DTC): Built-in DTC provides precise motor speed and torque control without needing an encoder sensor.
- Harmonic Filtering: Includes a built-in choke to reduce electronic noise distortion and protect your factory grid.
- Broad Connectivity: Supports major communication protocols including EtherNet/IP, Modbus, Profibus, and Profinet.
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-293A-3
- Power Rating: 160 kW (roughly 175 to 215 Horsepower depending on the heavy-duty or light-overload environment).
- Frame Size: R8 (this refers to its physical dimensions and footprint inside an electrical room).
- Enclosure Rating: IP21 standard protection (keeps out fingers and vertical water drops, meant for indoor walls or clean cabinets).
- Control Type: Direct Torque Control (DTC). This is a special math system built into the drive that reads and corrects the motor's performance in microseconds without needing extra sensor wires.
- Weight: Approximately 70 kilograms (154 lbs).
-
REQUEST A QUOTE
- Number of Channels: 8 channels
- Resolution: 12-bit
- Full-Scale Error: 0.1%
- Temperature Drift: Typical 30 ppm/°C, Maximum 50 ppm/°C
- Maximum Field Cable Length: 600 meters (656 yards)
- Protocol Support: No HART capabilities, no SOE (Sequence of Events) timing, and no built-in module redundancy.
- Power Dissipation: 3.8 W
- Current Consumption: 70 mA (+5 V) / 200 mA (+24 V)
- Isolation: 50 V rated / 500 V a.c. test
- Protection: Short-circuit proof; OSP (Output Status Retention) on timeout.
ABB AO801 3BSE020514R1 Analog Output Module (S800 I/O).
-
REQUEST A QUOTE
- Product ID / Part Number: 64605666 (Alternative kit parts: 68249457)
- Primary Function: Power Supply & Inverter Communication Board
- Voltage/Current Ratings: 1 Amp, Up to 690 V (On-board Transformer), 24V Output
- Common Markings: CP5 94V-0, PCB revision markings 64493647D 1/2 or 2/2
ABB APOW-01C Power Supply & Interface Board (ACS800).
-
REQUEST A QUOTE
- Manufacturer: ABB
- Part Numbers / ID: CDP312R, 68281059, 64378660G
- Legacy Replacements: Replaces 61085301, 64378660, and 3BHB015055R0001
- Display Type: Alphanumeric 4-line × 20-character LCD screen
- Keypad Layout: 16-button flat tactile keypad (includes Start/Stop, Reset, Mode Selection)
- Operating Voltage: 24V DC
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Net Weight: 0.234 kg (Panel alone) to 0.5 kg (Assembly kit)
- Communication Interface: Detachable serial interface via an RJ-45 connection
ABB CDP312R Control Panel (Keypad) (ACS800 Series).
-
REQUEST A QUOTE
- Rated Measuring Voltage: 3×350 to 580 V AC, 50/60 Hz
- Output Contacts: 2 c/o (DPDT) rated at 250 V / 4 A
- Adjustable Off-Delay Time: 0.1 to 30 seconds
- Power Supply: Powered directly via the measuring circuit (No external power required)
- Mounting Format: Standard DIN Rail installation
- Operating Temperature: -25°C to +60°C
- Safety Approvals: GL, UL (Suitable for industrial & railway applications)
- Overvoltage & Undervoltage: Features adjustable threshold values.
- Phase Failure Detection: Instantaneous trip during the loss of any operational phase.
- Phase Unbalance / Imbalance: Protects motors against thermal loads caused by asymmetrical supply networks.
ABB CM-MPN.52S 1SVR750487R8300 Three-Phase Monitoring Relay (CM Series).
-
REQUEST A QUOTE
- Catalog / Order Number: 1SVR730884R3300
- Measuring & Supply Voltage (L-L): 300 to 500 V AC, 50/60 Hz
- Output Contacts: 2 c/o (SPDT / DPDT) relays rated at 250 V / 4 A
- Tripping Delay Range: Adjustable from instantaneous (0 s) up to 30 s
- Connection Technology: Double-chamber cage screw terminals
- Mechanical Life: > 10 million operations
- Environmental Protection: IP20 (Housing) / IP40 (Front panel face)
- Operating Temperature Range: -25°C to +60°C
- Physical Dimensions: 22.5 × 85.6 × 103.7 mm (W × H × D)
- Over- and Undervoltage Monitoring: Detects when phase voltage exceeds or drops below safe, custom-configured constraints.
ABB CM-MPS.41S Three-Phase Monitoring Relay (CM Series).
-
REQUEST A QUOTE
- Catalog / Part Number: CM-PAS.41S / 1SVR730774R3300
- Measuring Voltage Range (L-L): 300 to 500 V AC (50/60 Hz)
- Monitored Parameters: Phase Failure, Phase Sequence, Phase Unbalance (Asymmetry)
- Output Contacts: 2 c/o (DPDT / Double Pole Double Throw) contacts
- Output Contact Rating: 250 V AC / 4 A (Resistive / AC-12)
- Tripping Time Delay: Adjustable ON-delay (0 s or 0.1 to 30 s)
- Response Time: < 100 ms on fault detection
- Terminal Connection Type: Screw Technology (Double-chamber cage connection terminals)
- Mounting Format: 35 mm DIN Rail (Top hat rail according to IEC/EN 60715)
- Operating Temperature: -25 °C to +60 °C (-13 °F to +140 °F)
ABB CM-PAS.41S Three-Phase Monitoring Relay (CM Series).
