- Current Rating: 63 A (IEC)
- Max Operational Voltage: 750 V AC (IEC)
- Number of Poles: 3-Pole
- Cable Cross-Section: 1.5 mm² to 35 mm²
- Mounting Capability: DIN-Rail or Base Plate
- Terminal Style: Screw / Protected Clamp
- Standards & Approvals: IEC 60947-3, UL 508, CSA
- Industrial Machinery Safety Lockout: Safely cuts off supply downstream during mechanical lockout/tagout (LOTO) maintenance procedures.
- Motor Control Centers (MCC): Acts as a high-durability, compact isolation link directly feeding sub-panel motor starters or variable frequency drives (VFDs).
- Solar & Building Infrastructure: Utilized as a main AC switch within commercial panelboards and distribution equipment.
ABB OT63F3 Switch Disconnector (Load Break Switch) (SwitchLine OT).
-
REQUEST A QUOTE
- Manufacturer Part Number: 64610805 / 3ABD64610805
- Primary Function: Pulse encoder interface for accurate motor speed/position feedback
- Drive Compatibility: ABB ACS800 series and DCS800 series drives
- Supported Encoder Signals: Differential and single-ended signals
- Supply Voltage Output: Configurable 15 VDC or 24 VDC to power the encoder
- Maximum Frequency: 200 kHz
- Power Consumption: 55 mA from the drive's internal power supply
- Physical Dimensions: 165 mm (H) x 115 mm (L) x 40 mm (W) (Note: Standard card width is approx 40 mm)
- Net Weight: 0.35 kg (0.77 lbs)
- High-Accuracy Control: Essential for demanding applications (like cranes, winders, and heavy positioning equipment) where standard sensorless vector control cannot deliver exact zero-speed torque or precise speed regulation.
ABB RTAC-01 Pulse Encoder Interface Module (ABB Drives).
-

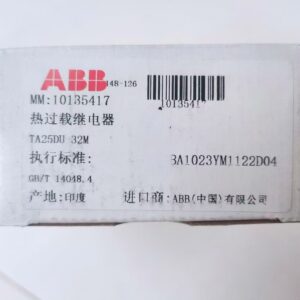

- Brand: ABB
- Model: TA25DU-32M
- Series: TA25DU
- Relay type: Thermal overload
- Current adjustment range: 24–32 A
- Trip class: 10A
- Terminal type: Screw terminals
-
REQUEST A QUOTE
- Pneumatic Supply Pressure: Minimum 1.4 bar (20 psi) to Maximum 6.0 bar (90 psi).
- Air Purity Requirement: Must use oil-free, dry, and dust-free instrument air matching DIN/ISO 8573-1 Class 3.
- Vibration Immunity: Exceptional resistance to process plant environments, rated up to 10g at frequencies up to 80 Hz.
- Operating Weight: Net unit weight is 1.7 kg (3.75 lbs).
- Commissioning: Features ABB's proprietary Autostroke and adaptive software gains for real-time control optimization and fully automated configuration.
- Air Line Blowout: Prior to plumbing the pneumatic connections to the 1/4" NPT supply or actuator ports, blow out all air piping lines to remove dust, metal chips, moisture, or dirt particles that could damage the internal sensitive I/P module.
- Wiring Polarity: Unbolt the front varnished cover. Loop power and input signal are shared on the same line. Terminate the positive lead to Terminal 11 and the negative lead to Terminal 12. Do not apply voltage before confirming alignment with the nameplate specs.
- Fail-Action Verification: Note that this unit is Double-Acting (controls pressure on both sides of a piston or diaphragm) and Fail-Freeze. Verify that your process safety protocol tolerates the valve locking in place rather than springing wide open or shut during an emergency electrical trip.
ABB V18345-1010521001 TZID-C Digital Electro-Pneumatic Positioner (TZIDC).
-
REQUEST A QUOTE
- Supply Pressure Range: 1.4 to 6 bar (20 to 90 psi)
- Instrument Air Quality: Must be oil-free, water-free, and dust-free in accordance with ISO 8573-1 (typically Class 3 filtration).
- Shock & Vibration Resistance: Extensively isolated up to 10g across frequencies up to 80 Hz, or 2g up to 300 Hz under severe process vibration.
- Operational Control: Fully automatic self-adaptation of P-gain, I-time, and D-time via local pushbuttons and a built-in LCD screen.
ABB V18345-1020421001 Electro-Pneumatic Valve Positioner (TZIDC).
-

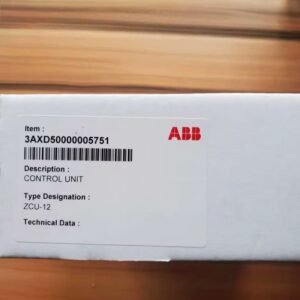

- Manufacturer: ABB
- Model / Part Number: ZCU-12
- Memory Unit: Requires a separate plug-in memory card, specifically the ZMU-02 or ZMU-03 module, to store drive parameters and firmware.
- Input Power: Works on standard internal 24V DC control voltage.
- Supported Protocols: Capable of handling fieldbus communication add-ons including Modbus, CANopen, and EtherCAT.
-
- Manufacturer: ABB
- Model / Part Number: ZCU-12L
- Supply Voltage: 24 VDC
- Current Consumption: Approximately 150 mA
- Digital Inputs: 24 VDC digital inputs
- Analog Inputs: 0–10 V and 4–20 mA
-

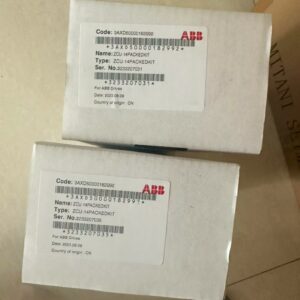

- Manufacturer: ABB
- Model / Part Number: ZCU-14
- Product ID: 3AXD50000182992
- Alternative Product ID: 3AXD5000005164
- Safety Function: Safe Torque Off (STO)
- Motor Control: Direct Torque Control (DTC)
- Communication: Modbus RTU
-

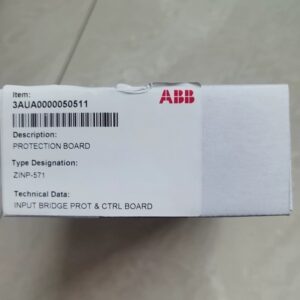

- Manufacturer: ABB
- Model / Part Number: ZINP-571
- Product ID: 3AUA0000050511
- Alternative Part Number: 69012396
- Power-Switch Control: Thyristor and diode triggering circuits
- Input Protection: Surge absorption and input-bridge protection
- EMC Filtering: Integrated EMC components
- Operating Temperature: -25 to +70 °C
