Showing 33–48 of 105 results
-
The ABB ACS310-03E-17A2-4 is a general purpose low-voltage AC drive from the ABB ACS310 series (0.37 to 22 kW family), configured for three-phase 380 to 480 V AC supply and rated for a typical motor power of 7.5 kW (10 hp). It delivers a maximum continuous output current of 17.2 A (I2N, at 40 °C ambient without overloa
-
- Manufacturer: ABB

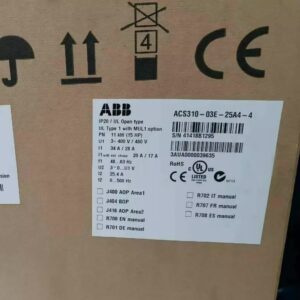

- Model / Part Number: ACS310-03E-25A4-4
- Power Rating: 11 kW / 15 HP.
- Electrical Output: 3-phase, 0 to 500 Hz output frequency range.
- Frame Size: R3 frame.
- Enclosure Class: IP20 protection rating (open type, suitable for cabinet installation).
- Control Style: Scalar (V/f) control, which is the standard choice for simple motor speeds like HVAC systems.
- I/O Connectivity: Includes 5 digital inputs, 1 digital output, 2 analog inputs, and 1 analog output.
-
- Manufacturer: ABB
- Model / Part Number: ACS310-03E-34A1-4
- Global Product ID: 3AUA0000039636
- Number of Phases: 3-phase input and output
- Input Supply Voltage: 380 V to 480 V AC (± 10%)
- Rated Output Power: 15.0 kW / 20.0 Horsepower
- Rated Output Current: 34.1 A
- Output Frequency Range: 0 to 500 Hz
-
The ABB ACS310-03E-41A8-4 is the largest power class of the ABB ACS310 general purpose AC drive family (0.37 to 22 kW series), configured for three-phase 380 to 480 V AC supply and rated for a typical motor power of 18.5 kW (25 hp). It provides a maximum continuous output current of 41.8 A (I2N, at 40 °C ambient withou
-
- Manufacturer: ABB

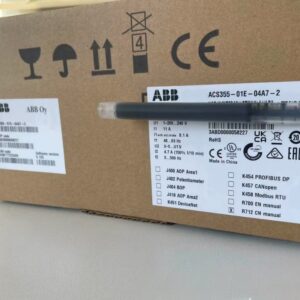

- Model / Part Number: ACS355-01E-04A7-2
- Input Power: Single-phase 200–240 V AC
- Output Voltage: Three-phase 230 V AC
- Output Frequency: 0 to 500 Hz range
- Enclosure Rating: IP20
- Control Modes: Supports scalar V/Hz control and sensorless vector control
-
- Manufacturer: ABB
- Model / Part Number: ACS355-01E-06A7-2
- Supply voltage: 1-phase 200…240 V AC (type code 01E, built-in EMC filter connected)
- Typical motor power: 1.1 kW (1.5 hp)
- Rated output current (I2N): 6.7 A
- Output current 1 min/10 min (I2): 10.1 A
- Maximum output current (I2max): 11.7 A
- Input current without choke (I1N): 16 A
-
- Manufacturer: ABB
- Model / Part Number: ACS355-01E-07A5-2
- Supply voltage: 1-phase 200…240 V AC (type code 01E, built-in EMC filter connected)
- Typical motor power: 1.5 kW (2 hp)
- Rated output current (I2N): 7.5 A
- Output current 1 min/10 min (I2): 11.3 A
- Maximum output current (I2max): 13.1 A
- Input current without choke (I1N): 17 A
-
REQUEST A QUOTE
- Power Rating: 1.1 kW (1.5 HP)
- Input Voltage Range: 3-Phase 380V to 480V AC
- Output Voltage Range: 3-Phase 0 to Input Voltage
- Output Frequency: 0 to 600 Hz
- Rated Output Current: 3.3 Amps
- Enclosure Rating: IP20 / UL Open Type
- Motor Compatibility: AC Induction & Permanent Magnet
- Integrated Safe Torque Off (STO): Built-in dual-channel SIL3/PL e compliant safety circuit eliminates the need for expensive external safety contactors.
- Sequence Programming: Allows the drive to execute independent, time- or event-driven state logic, drastically reducing the programming and I/O overhead required from an external PLC.
- Cabinet Optimization: Designed with a unified height and depth across the product framework, enabling side-by-side DIN-rail mounting to minimize physical cabinet space.
ABB ACS355-03E-03A3-4 Variable Frequency Drive (VFD) (ACS355).
-
- Manufacturer: ABB

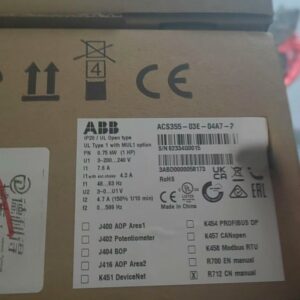

- Model / Part Number: ACS355-03E-04A7-2
- Output Power: 0.75 kW / 1 Horsepower (HP).
- Nominal Current: 4.7 Amps.
- Input Voltage: 200 V to 240 V AC (Three-Phase).
- Frequency Range: 48 to 63 Hz.
- Overload Capacity: 150% for 1 minute out of every 10 minutes.
- Protection Class: IP20 / UL Open Type (Intended for cabinet mounting).
-
REQUEST A QUOTE
- Product ID / MPN: 3AUA0000058190
- Phase Type: 3-Phase Input & 3-Phase Output
- EMC Filter: European Filter Equipped (C3)
- Amperage Rating: 12.5 A
- Voltage Class: 380 V to 480 V AC
- Power Rating: 5.5 kW (7.5 HP)
- Enclosure Rating: IP20 / UL Open Type
- Control Modes: Scalar (V/f) and Sensorless Vector Control
- Safety Function: Built-in Safe Torque Off (STO)
- Brake Chopper: Built-in as standard
ABB ACS355-03E-12A5-4 Variable Frequency Drive (VFD) (ACS355).
-
- Manufacturer: ABB
- Model / Part Number: ACS380-040S-09A4-4
- Product ID: 3AXD50000031892
- Input Voltage: 380 V to 480 VAC
- Nominal Power Output: 4 kW / 5 HP
- Rated Output Current: 9.4 A (Nominal)
- Frame Size: R1
- Enclosure Rating: IP20 / Open
-
- Manufacturer: ABB
- Model / Part Number: ACS530-01-017A-4
- Power Rating: 7.5 kW (10 HP)
- Voltage Rating: 380V to 480V (3-Phase)
- Enclosure Rating: IP20 standard protection
- Physical Weight: 6.5 kg (Unit net weight)
-
- Manufacturer: ABB

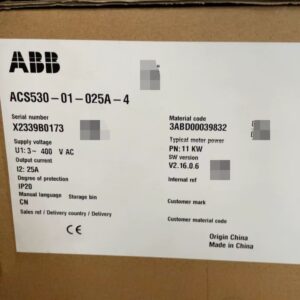

- Model / Part Number: ACS530-01-025A-4
- Product ID (Part Number): 3ABD00039832
- Frequency (f): 47.5 to 63 Hz
- Frame Size: B2
- Degree of Protection: IP20 / Open Type NEMA standard
- Efficiency Level: IE2
- Net Weight: 6.5 kg
-
- Manufacturer: ABB
- Model / Part Number: ACS530-01-02A7-4
- Rated Power: 0.75 kW (1 hp)
- Output Current: 2.6 A
- Input Voltage: Three-phase 380–480 VAC
- Output Frequency: 0–500 Hz
- Enclosure: IP20
- Frame Size: R1
- Control Features: PID control and application macros
-
- Manufacturer: ABB
- Model / Part Number: ACS530-01-04A1-4
- Power Rating: 1.5 kW (Kilowatts)
- Output Current Rating: Nominal 4.1 A (Amperes) / Input 4 A
- Voltage Input: 380–480V AC, Three Phase
- Frequency Range: 0–500 Hz
- Enclosure Class: IP20
- Control Interfaces: Built-in Modbus / Fieldbus communication protocols with pre-programmed application macros.
-
- Manufacturer: ABB

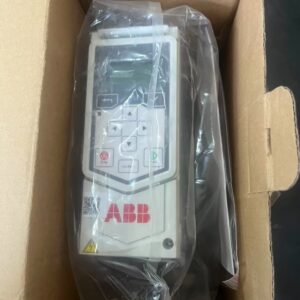

- Model / Part Number: ACS530-01-05A6-4
- Power Rating: 2.2 kW (3.0 HP) for normal duty
- Input Voltage: 3-phase, 380V to 480V AC (+10% / -15%)
- Output Current: 5.6 A (normal duty)
- Frame Size: R1
- Weight: Approximately 3.5 kg (7.7 lbs) net weight.
