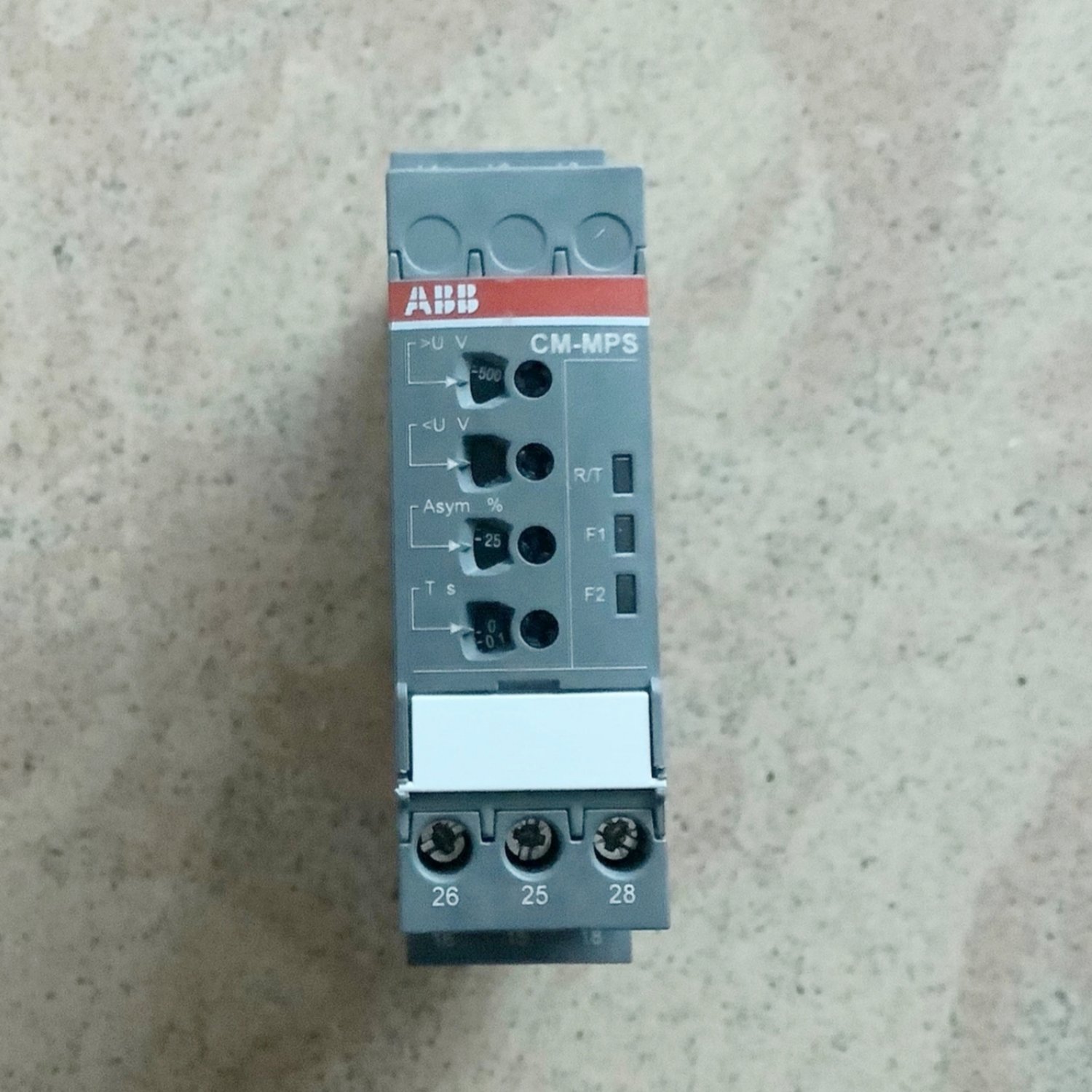

CM-MPS.41S Phase Monitoring Relay For ABB
ABB CM-MPS.41S Three-Phase Monitoring Relay (CM Series) - Image 2

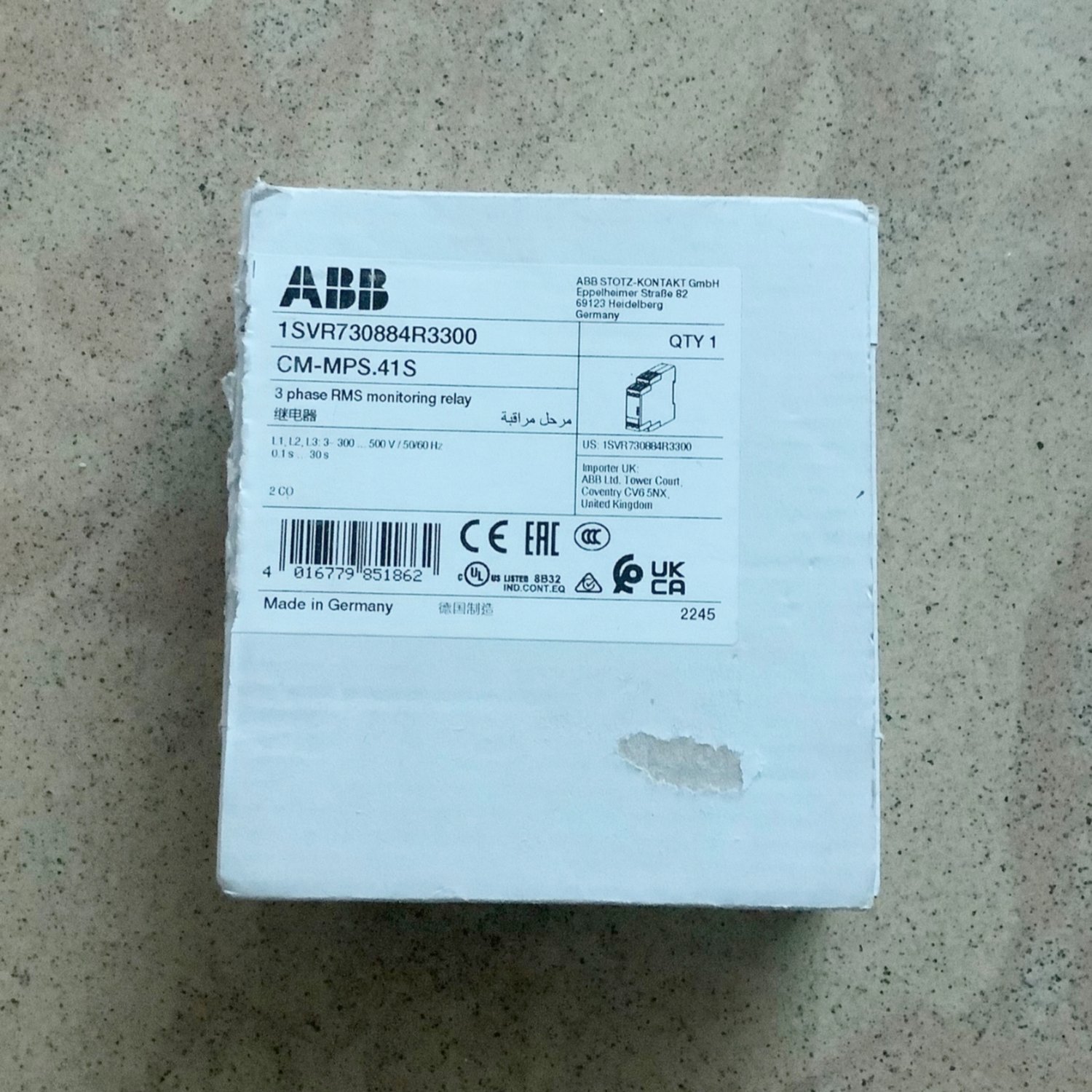

ABB CM-MPS.41S Three-Phase Monitoring Relay (CM Series) - Image 3

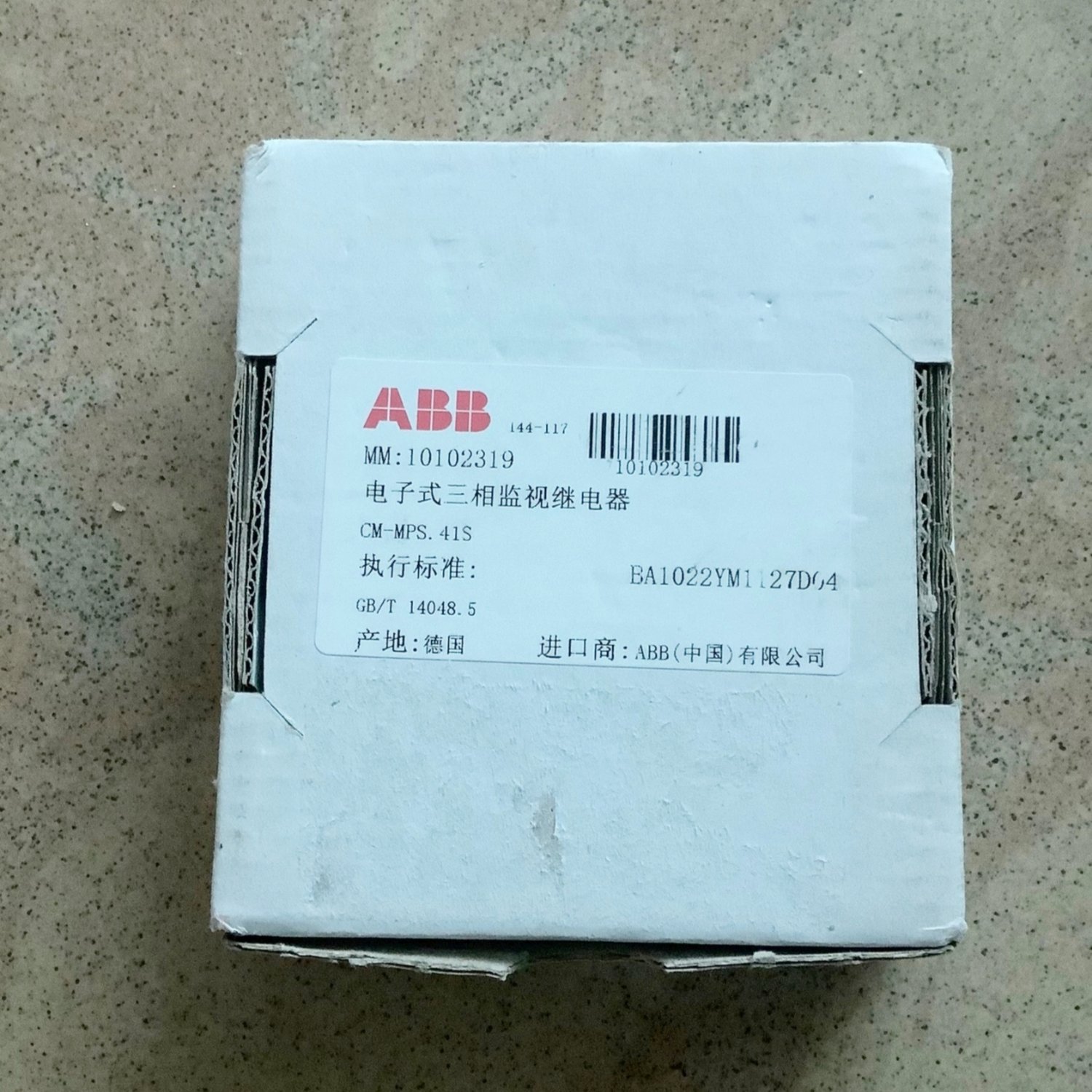

ABB CM-MPS.41S Three-Phase Monitoring Relay (CM Series) - Image 4

ABB CM-MPS.41S Three-Phase Monitoring Relay (CM Series)

REQUEST A QUOTE

  • Catalog / Order Number: 1SVR730884R3300
  • Measuring & Supply Voltage (L-L): 300 to 500 V AC, 50/60 Hz
  • Output Contacts: 2 c/o (SPDT / DPDT) relays rated at 250 V / 4 A
  • Tripping Delay Range: Adjustable from instantaneous (0 s) up to 30 s
  • Connection Technology: Double-chamber cage screw terminals
  • Mechanical Life: > 10 million operations
  • Environmental Protection: IP20 (Housing) / IP40 (Front panel face)
  • Operating Temperature Range: -25°C to +60°C
  • Physical Dimensions: 22.5 × 85.6 × 103.7 mm (W × H × D)
  • Over- and Undervoltage Monitoring: Detects when phase voltage exceeds or drops below safe, custom-configured constraints.

Brand New ABB CM-MPS.41S Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.

  • SKU: CM-MPS.41S
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
