Showing 1441–1456 of 2013 results
-
- Manufacturer: MEAN WELL
- Model / Part Number: LRS-350-24
- Rated Power: 350 W
- Output Voltage: 24 VDC
- Output Current: 14.6 A
- AC Input Range: 90–132 VAC or 180–264 VAC, switch selectable
- DC Input Range: 240–370 VDC
- Protection: Short circuit, overload, overvoltage and overtemperature
-
REQUEST A QUOTE
- Output Voltage: 5V DC (Adjustable from 4.5V – 5.5V via onboard potentiometer)
- Rated Current: 60A maximum
- Rated Power: 300W
- AC Input Range: 90 ~ 132VAC or 180 ~ 264VAC (Selectable via manual slide switch)
- Efficiency: 83.5%
- Cooling: Forced air cooling via a built-in DC fan (Thermostatically controlled: kicks on at 122°F / 50°C)
- Protections: Short circuit, Overload (110%–140% via Hiccup Mode), Over voltage, Over temperature
- Dimensions: 215mm × 115mm × 30mm (8.46" × 4.53" × 1.18")
- Weight / Mounting: Chassis mount with M4-0.7 screw holes
- Check the Input Voltage Switch: Before plugging the unit in for the first time, check the position of the physical 115V / 230V slide switch. Units frequently ship preset to 230V. Powering a unit switched to 115V with 230V mains will permanently destroy the internal circuitry.
MEAN WELL LRS-350-5 Switching Power Supply (LRS-350).
-
- Manufacturer: Mean Well
- Model / Part Number: NDR-240-24
- Output Voltage: 24V DC
- Output Current: 10A
- Rated Power: 240W
- Input Voltage Range: 90 – 264V AC or 127 – 370V DC
- Frequency Range: 47 – 63 Hz
- Typical Efficiency: 88.5%
- Ripple & Noise: ≤ 150 mVp-p
- Voltage Adjustment Range: 24 – 28V
- Built-in Active PFC: Features active power factor correction to improve energy efficiency.
- Slim Design: At just 63mm wide, it saves valuable space inside control cabinets.
- Convection Cooling: Uses a metal case designed for free air convection cooling with no fans needed.
- DIN Rail Compatible: Snaps easily onto standard TS-35/7.5 or TS-35/15 mounting rails.
- Full Protections: Includes built-in safety features against short circuits, overloads, overvoltage, and overtemperature.
- Overload Handling: Uses constant current mode protection, making it great for inductive or capacitive loads.
- Dimensions: 63mm x 125.2mm x 113.5mm (W x H x D)
- Weight: 1.0 kg (2.2 lbs)
- Working Temperature: -20°C to +70°C (Note: power output starts reduction/derating above 50°C).
-
- Manufacturer: MEAN WELL
- Model / Part Number: NES-350-27
- Output Voltage: 27V DC
- Output Current: 13A
- Rated Power: 351W
- Cooling: Active cooling via a built-in DC fan
- Built-in Protections: Automatically guards against short circuits, overloads, overvoltages, and high temperatures.
-
REQUEST A QUOTE
- Metric: Specification
- DC Output Voltage: 48V DC
- Rated Current: 7.3A
- Current Range: 0 ~ 7.3A
- Rated Power: 350.4W
- Input Voltage Range: 115VAC or 230VAC (Selected by manual slide switch)
- Switching Frequency: 25 KHz
- Cooling: Forced air cooling via built-in DC fan (with automatic ON/OFF control)
- Dimensions: 215mm x 115mm x 50mm (L x W x H)
- Overload: Constant current limiting, which automatically recovers after the fault condition is removed.
MEAN WELL S-350-48 Switching Power Supply (S-350).
-
REQUEST A QUOTE
- Function & Type: 3/2 Normally Closed (NC), Monostable.
- Connection Port Size: 1/8" Connection (Female NPT or BSPP variants).
- Operating Pressure: 2.5 bar minimum to 10 bar maximum (36 to 145 psi).
- Temperature Range: -10°C to +60°C.
- Flow Rate Coefficient: Cv = 0.55.
- Coil Dependency: Please note that solenoid coils are ordered separately. This allows you to select your preferred operating voltage ranging from 12V DC up to 220V AC depending on your control circuit.
- Solenoid Valve: pneumatic, 3-port (3-way) (PN# 7010020200U) | AutomationDirect
METALWORK 7010020200 Electro-Pneumatic Solenoid Valve (Series 70).
-
REQUEST A QUOTE
- Brand/Manufacturer: Mettler Toledo
- Model Designation: XK3124 / IND245
- Power Requirements: 100-240V AC, 50/60 Hz power supply
- Resolution / Division: 0-6,000d (OIML approved legal-for-trade accuracy)
- Display Type: Backlit LCD display with adjustable contrast
- Keyboard: Full alphanumeric and numeric keypad for rapid tare and ID entry
- Versatile Applications: Frequently deployed as a control terminal for platform scales, bench scales, and weighbridges/truck scales.
- User-Friendly Interface: Built with real-time operator prompts to minimize processing errors, featuring one-click switching between simple weighing and advanced applications.
- Automation-Ready: Capable of communicating with automated systems or machines to execute process loops like filling and dosing.
Mettler Toledo XK3124（IND245） 100-240VAC 0-6000d Weighing Indicator Terminal (IND245 Series).
-
REQUEST A QUOTE
- Cylinder Slot Type: C-slot
- Switching Output: PNP
- Switching Function: Normally Open (N/O)
- Operating Voltage: 10 to 30 V DC
- Continuous Current: ≤ 100 mA
- Switching Frequency: 1000 Hz
- Enclosure Rating: IP67 (dust tight and water immersion resistant)
- Connection Type: 0.3-meter cable length
- Operating Temperature: -25°C to +75°C
- Certifications: CE, UKCA, LABS, REACH, and RoHS
MFS02-S-KHC-P1-PNP Zimmer Magnetic Cylinder Switch.
-
REQUEST A QUOTE
- Brand / System Compatibility: Designed natively for Midea Global HVAC systems but cross-compatible with select Carrier, SystemAir, and Trane ducted or VRF indoor units.
- Physical Dimensions: Compact 86 mm x 86 mm x 20 mm square form factor weighing approximately 100g.
- Primary Functions: Allows full control over temperature modification, multi-stage fan speed options, system mode selection (cooling, heating, dehumidifying, fan-only), and basic real-time system error monitoring.
Midea WDC-86E/KD DC18V 17317100003096 Wired Thermostat Controller (WDC Series).
-
REQUEST A QUOTE
- Model Series: Mindman MACP300
- Bore / Port Size: 10A (3/8" NPT or BSP-G depending on variant)
- Components: MAFR300 (Filter/Regulator) + MAL300 (Lubricator)
- Medium: Compressed Air Only
- Operating Pressure: 0.05 ~ 1 MPa (7.25 ~ 145 psi)
- Proof Pressure: 1.5 MPa (217 psi)
- Regulated Pressure Range: 0.05 ~ 0.85 MPa (7.25 ~ 123 psi)
- Max Flow Rate: 1300 L/min
- Filter Element: Standard: 5μm (Optional: 40μm)
- Drain Type: Semi-auto drain (Drains automatically below 0.05 MPa)
- Lubrication Capacity: 55 c.c. (Uses Turbine oil ISO-VG32)
- Temperature Range: -5 ~ +60°C (No freezing)
- Weight: 724 g
- Standard Attachments: Pressure gauge (PG-40) and T-type mounting bracket
- Integrated Component Assembly: Combines the filter and regulator into a single space-saving space-saver unit (MAFR300) combined with a modular lubricator (MAL300).
- Bowl Material Options: Standard configurations typically offer Polycarbonate (PC) bowls, with optional Nylon or metal bowls available depending on ambient chemical environments.
MINDMAN MACP300-10A FRL Air Treatment Unit (MACP300 Series).
-

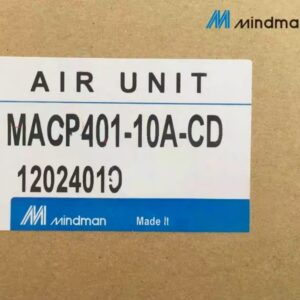

- Manufacturer: MINDMAN
- Model / Part Number: MACP401-10A-CD
- Medium: Compressed air.
- Operating Pressure Range: 0.15 to 1.0 MPa (constrained by the auto-drain function).
- Proof Pressure: 2.0 MPa.
- Ambient Temperature: -5°C to +60°C (with zero freezing).
- Filter Element: 40μm standard filtration level.
- Drain Capacity: 70 cm³.
- Lubricator Capacity: 200 cm³.
- Recommended Lubricating Oil: Turbine oil ISO-VG32.
-
REQUEST A QUOTE
- Model Series: MCSH (Compact Precision Slide Cylinder)
- Stroke Length: 20 mm
- Acting Type: Double acting
- Guide Rail Width: 9 mm
- Port Size: M5 × 0.8
- Operating Medium: Compressed Air
- Operating Pressure Range: 0.05 MPa to 0.7 MPa
- Proof Pressure: 1.07 MPa
- Ambient Temperature: -10°C to +60°C (No freezing)
- Speed Range: 50 to 500 mm/sec
MINDMAN MCSH-16-20 Slide Cylinder (MCSH Series).
-
REQUEST A QUOTE
- Series: MVAA-220
- Function: 5-Port, 2-Position (5/2 Way, Bistable)
- Actuation Type: Dual Pneumatic Pilot (A2)
- Port Size: Rc 1/4 (Standard) or NPT 1/4
- Bore Number: 8A
- Operating Medium: Compressed Air
- Operating Pressure Range: 0 to 0.8 MPa (0 to 8 Bar)
- Pilot Pressure Range: (0.3 × Operating Pressure + 0.1) to 0.8 MPa
- Proof Pressure: 1.0 MPa
- Effective Orifice: 18 mm²
MINDMAN MVAA-220-4A2 Directional Valve (MVAA Series).
-

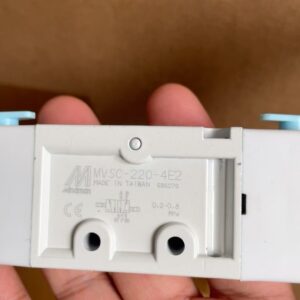

- Manufacturer: MINDMAN
- Model / Part Number: MVSC-220-4E2-DC24V
- Operating Pressure Range: Works efficiently between 2 to 8 bar (roughly 30 to 116 PSI).
- Response Time: Shifts incredibly fast in just 30 milliseconds.
- Power Consumption: Uses very little energy, requiring only 2 watts of power to run.
- Working Temperature: Can operate in environments from -5°C to 50°C (without freezing).
-
REQUEST A QUOTE
- IGBT Technology Type: Trench Gate
- Package / Mounting: Screw-mount, structurally isolated copper baseplate
- Industrial Motor Drives: Used for speed and torque regulation in AC servo controls and heavy industrial machinery.
- Uninterruptible Power Supplies (UPS): Serves in the inverter or rectifier conversion stages.
- General Purpose Inverters: Implemented in renewable energy power networks (e.g., solar inverters, wind turbines).
- High-Power DC-DC Converters: Integrated into large-scale battery storage and battery-powered supply networks.
- Status: This module is officially classified as Obsolete / End-of-Life (EOL) by the manufacturers.
- Datasheets: View and download the official multi-page documents on the Alldatasheet Portal or check structural definitions via the Ineltron Data Repository.
MITSUBISHI CM200DU-24F IGBT Module (CM200).
-
REQUEST A QUOTE
- Configuration: Dual (Half-Bridge)
- Integrated Protection: Freewheeling Diodes
- Motor Drives: Used to orchestrate AC and DC motor control, as well as servo amplifiers.
- Power Converters: Frequently integrated into large industrial inverters, Uninterruptible Power Supplies (UPS), and induction heating rigs.
- Renewable Energy: Acts as a stage-power switching element for commercial solar inverters and wind turbine networks.
- DIY & High Voltage Projects: Highly favored in the hobbyist community for constructing heavy-duty Dual Resonant Solid State Tesla Coils (DRSSTC), notably running off a doubled 120VAC line to achieve electric arc discharges spanning over 6 feet (1.83 meters).
- Datasheet Review: The official structural schematic and thermal curves can be cross-examined via the ALLDATASHEET CM300DY-12NF PDF.
MITSUBISHI CM300DY-12NF IGBT Module (CM300).
