- Manufacturer: ABB
- Model / Part Number: ACS355-03E-04A7-2
- Output Power: 0.75 kW / 1 Horsepower (HP).
- Nominal Current: 4.7 Amps.
- Input Voltage: 200 V to 240 V AC (Three-Phase).
- Frequency Range: 48 to 63 Hz.
- Overload Capacity: 150% for 1 minute out of every 10 minutes.
- Protection Class: IP20 / UL Open Type (Intended for cabinet mounting).
-
- Manufacturer: Beckhoff
- Model / Part Number: KL4434
- Signal Range: -10 V to +10 V.
- Resolution: 12 bits
- Number of Channels: 4 analog outputs.
- Conversion Time: Typically 4 ms.
- Connection Method: 2-wire installation per output.
- Ground Potential: Common reference ground shared through the 0 V power contact.
-
- Manufacturer: Autonics
- Model / Part Number: MT4W-DV-41
- Measurement Type: DC Voltage
- Power Supply: 100–240 VAC (~ 50/60 Hz)
- Display Method: 4-digit, 7-segment red LED display (character height: 14.2 mm)
- Display Range: -1999 to 9999
- Selectable Input Ranges: 0-500V, 0-100V, 0-50V, 0-10V, 0-5V, 0-1V, 0-250mV, 0-50mV
- Main Control Output: 3 Relay Outputs (HI, GO, LO comparative values)
-
- Manufacturer: Belimo
- Model / Part Number: LRB24-SR
- Torque: 45 in-lb (5 Nm)
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Control Input (Operating Range Y): 2…10 VDC (or 4…20 mA with a 500 Ω resistor)
- Position Feedback: 2…10 VDC
- Power Consumption: 1.5 W during operation / 0.4 W in rest (holding) position
- Transformer Sizing: 3 VA
-
- Manufacturer: HIOS
- Model / Part Number: CL-2000
- Torque Range (Metric): 0.02 – 0.2 N·m (0.2 – 2 kgf·cm)
- Torque Range (Imperial): 0.18 – 1.8 lbf·in
- No-load Rotation Speed: 680 RPM (HI) / 490 RPM (LOW)
- Drive Size / Type: 4.0 mm HIOS Drive (Wing style Hex)
- Operation Type: Lever Start
- Clutch Mechanism: Full Auto Shut-Off
-
- Manufacturer: GE Fanuc
- Model / Part Number: IC693PWR331
- Module Type: High-Capacity Power Supply
- PLC Platform: Series 90-30
- Nominal Input Voltage: 24 VDC
- Input Voltage Range: 12 to 30 V DC
- Total Load Capacity: 30 Watts
- Full Load Power Rating: 50 Watts (Input consumption)
-
- Manufacturer: Fuji Electric
- Model / Part Number: V606EM20
- Display Type: 5.7-inch Monochrome STN liquid crystal screen
- Resolution: QVGA (Quarter VGA)
- Touch Interface: Analog resistive touchscreen
- Power Requirements: 24 VDC (Operating at approximately 0.4 Amps)
- Communication Ports: Built-in RS-232C and RS-422/485 serial interfaces
- Dual Driver Support: It can simultaneously connect and communicate with two different PLCs (Programmable Logic Controllers) or temperature controllers.
-

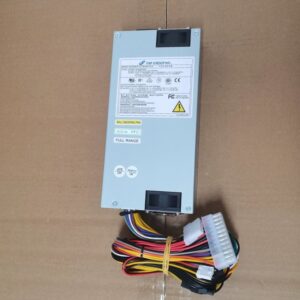

- Manufacturer: FSP
- Model / Part Number: FSP250-601U
- Form Factor: 1U Server / IPC
- Output Wattage: 250 Watts
- Dimensions: 100mm x 215mm x 40mm
- Input Voltage: 100V AC to 240V AC (Auto-sensing, 50/60 Hz)
- Power Factor Correction (PFC): Active PFC
- Main Connector Type: Standard ATX
-

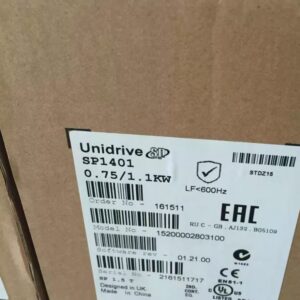

- Manufacturer: Emerson
- Model / Part Number: SP1401
- Power Rating (Heavy Duty): 0.75 kW (1.0 HP) with a maximum continuous current of 2.1 A.
- Power Rating (Normal Duty): 1.1 kW (1.5 HP) with a maximum continuous current of 2.8 A.
- Input Voltage Range: 380V to 480V AC, 3-Phase.
- Frame Size: Size 1 (panel-mounted module).
- I/O Capabilities: 3 analog inputs, 2 analog outputs, 6 digital inputs, and 4 digital outputs.
- Feedback Support: Compatible with both incremental and absolute encoders.
-
- Manufacturer: Delta
- Model / Part Number: DVP04PT-H2
- Input Channels: 4 independent channels.
- Sensor Types: Platinum (e.g., Pt100, Pt1000) and Nickel (e.g., Ni100, Ni1000) RTD sensors.
- System Series: Advanced DVP-H / DVP-EH series extension unit.
- Data Conversion: Converts analog temperature sensor signals into 14-bit digital values.
- Communication: Built-in RS-485 interface supporting standard Modbus ASCII/RTU protocols.
- Sensor Configuration: Use 3-wire temperature sensors to prevent line resistance from altering measurement results.
-

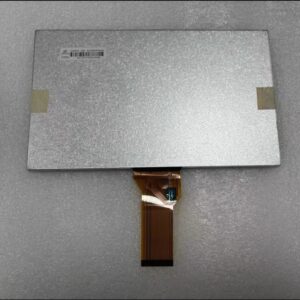

- Manufacturer: CHIMEI
- Model / Part Number: ZJ090NA-03B
- Screen Size: 9.0 inches (measured diagonally)
- Resolution: 800 × 480 pixels (WVGA format)
- Display Type: a-Si TFT-LCD, active matrix
- Display Mode: TN (Twisted Nematic), Normally White, Transmissive
- Brightness: 500 cd/m² (nits), providing good clarity under indoor lighting
- Contrast Ratio: 500:1
-
- Manufacturer: Carel
- Model / Part Number: IR33B7LR20
- Outputs: Equipped with 1 relay output and 1 analog 0-10 V output for proportional or modulating control.
- Power Supply: Operates on low-voltage configurations, compatible with 12–24 VAC (50/60 Hz) or 12–30 VDC.
- Universal Inputs: Supports multiple probe types including NTC, NTC-HT, PTC, PT1000, PT100, TC J/K, as well as direct voltage and current signals.
- User Interface: Compact panel-mount design featuring a large digital display with icons, plug-in screw terminals, an integrated alarm horn, and an infrared (IR) receiver for remote control operation.
- Control Features: Built-in PID autotuning capabilities and dual independent control loops.
-
- Manufacturer: Beckhoff
- Model / Part Number: EK1100
- Task in System: Coupling of EtherCAT Terminals to 100BASE-TX EtherCAT networks
- Connection Technology: 2 x RJ45 sockets (Upper: Network In, Lower: Optional downstream extension)
- Data Transfer Rate: 100 Mbit/s (Ethernet 100BASE-TX)
- Max Cable Length: Up to 100 m between stations (CAT5 or higher)
- Max Number of Terminals: Up to 65,535 in the overall system
- System Power Supply: 24 V DC (-15% / +20%)
-
- Manufacturer: Banner
- Model / Part Number: GM-FA-10J
- Supply Voltage: 24 V AC/DC universal power
- Safety Outputs: 2 NO (Normally Open), 6 A resistive switching capacity
- Housing & Dimensions: 22.5 mm width, robust polycarbonate housing, IP20 rated
- Mounting Type: 35mm DIN rail mount
- Termination: Removable plug-in screw terminal blocks
- Reset Configurations: Automatic reset or monitored manual reset
-
- Manufacturer: Autonics
- Model / Part Number: MP5W-41
- Display: 5-digit, 7-segment, high-brightness red LED with a 14mm character height.
- Measurement Range: -19,999 to 99,999.
- Input Capabilities: Supports input frequencies from 0.0005Hz up to 50kHz. It is compatible with both Voltage input (PNP) and No-voltage input (NPN) proximity or photoelectric sensors.
- Power Supply: Universal 100–240VAC at 50/60Hz.
- Output Configuration: Features 3 triple relay control outputs for limit alerts or system automation triggers.
- Dimensions: Built for standard 96x48mm panels with a required panel cutout of roughly 92x45mm.
-
- Manufacturer: ABB
- Model / Part Number: ACS380-040S-09A4-4
- Product ID: 3AXD50000031892
- Input Voltage: 380 V to 480 VAC
- Nominal Power Output: 4 kW / 5 HP
- Rated Output Current: 9.4 A (Nominal)
- Frame Size: R1
- Enclosure Rating: IP20 / Open
