- Output Power: 30 Watts
- Output Voltage: 24V DC (adjustable from 24–28V DC)
- Output Current: 1.3A at 24V; 1.1A at 28V
- Input Voltage Range: 85–264V AC (Single-phase) or 88–375V DC
- Efficiency: Up to 87.5%
- Form Factor: Compact 45mm width rugged plastic housing
- Termination Type: Toolless, quick-connect spring-clamp terminals
- Operating Temperature: Full output power performance between -10°C and +60°C (derating up to +70°C)
- Certifications: UL508 Listed for industrial control equipment, NEC Class 2 compliance, and CE.
- Automation Distribution: Stocked for industrial applications via Automation Distribution.
PULS ML30.100 DIN Rail Power Supply (MiniLine).
-
- Manufacturer: PULS
- Model / Part Number: QS10.121
- Nominal Output Voltage: 12 VDC, adjustable from 12 to 15 VDC
- Output Current: 15 A at 12 VDC; 13.5 A at 15 VDC
- Rated Output Power: 180 W
- AC Input Voltage: 100 to 240 VAC
- DC Input Voltage: 110 to 150 VDC
- Efficiency: Up to 91.8%
- Housing Width: 60 mm
- Power Reserve: 22.5 A for up to 4 seconds
- Terminals: Spring-clamp terminals
- Status Output: DC-OK indicator and relay contact
-
- Manufacturer: Puls
- Model / Part Number: QS20.241
- Output Voltage: 24 VDC (Adjustable from 24 to 28 VDC via a front potentiometer)
- Output Current: 20 A at 24 V or 17.5 A at 28 V
- Total Output Power: 480 W continuous
- Input Voltage: Single-phase AC 100–240 V (±15%) or DC 110–150 V
- Efficiency: Up to 93.9%
- Dimensions: 82 mm width x 124 mm height x 127 mm depth
- Termination: Quick-connect, vibration-safe spring-clamp terminals
- HiccupPLUS Overload Protection: Safely manages short circuits and continuous overloads by cycling power on and off to protect your wiring and equipment.
- Negligible Inrush Current: Features active inrush current limitation, meaning it won't trip input fuses or main breakers when you first turn it on.
- DC-OK Relay Contact: Built-in floating relay contact that monitors the output voltage and lets you send status signals to a PLC (Programmable Logic Controller).
- Active PFC: Active power factor correction reduces electrical noise and ensures compliance with global harmonic standards.
-
- Manufacturer: Puls
- Model / Part Number: QS5.241
- Power Output: 24V DC (adjustable between 24–28V) at a continuous 5 Amps (120 Watts).
- Bonus Power (BonusPower): It provides 150% peak load capacity (up to 180W for 4 seconds) to safely start heavy industrial loads.
- Reliable Connections: Equipped with quick-connect spring-clamp terminals for fast, vibration-proof wiring.
- Status Monitoring: Features an integrated DC-OK relay contact to easily signal status to control systems like a PLC.
-
REQUEST A QUOTE
- Sensor Type: Contactless 80 GHz Radar Level Sensor
- Model / Series: VEGAPULS 31 (PS31.XXXXXGMHB)
- Measuring Range: Up to 20 meters (65.6 ft)
- Accuracy: ±2 mm
- Output Signal: 4-20 mA / HART (2-wire loop powered)
- Process Connection: 1.5" G/BSP threaded mounting
- Housing Material: PVDF body with Fluorelastomer seals
- Technology: 80 GHz high-frequency radar for non-contact measurement
RA-222229 Vega Radar Level Transmitter.
-
REQUEST A QUOTE
- Dimensions: 220 mm × 220 mm × 60 mm (commonly categorized as a 22cm or 22060 frame size).
- Frame Material: Heavy-duty die-cast aluminum frame.
- Voltage Options: Most commonly found in 220V–240V AC configurations (50/60Hz), though a 100V–125V AC variant exists for lower voltage electrical grids.
- Current Draw: 0.42A to 0.46A depending on frequency.
- Wiring: Standard 2-wire setup, available with either terminal connectors or lead wires.
- Bearing & Protection: Features a high-flow design typically built with high-temperature resistance suited for continuous industrial operation.
RAH2260B2-C XINRUILIAN AC Axial Cooling Fan.
-
REQUEST A QUOTE
- Manufacturer: Red Lion Controls
- Display Type: 8-digit LCD with user-selectable red or green backlighting (0.46" / 11.7mm digit height)
- Input Frequency: Up to 20 kHz max
- Supply Voltage: 9 to 28 VDC
- Environmental Protection: NEMA 4X / IP65 front panel (water/dust resistant)
- Operating Temperature: -35°C to +75°C
- Counting Modes: Bi-directional counting, up/down control, quadrature sensing, batch counting
- Dynamic Color Changes: You can program the backlight to automatically switch from green to red (or vice versa) when a specific preset limit is reached.
- Modular Expansion: Built-in capabilities can be enhanced using plug-in optional cards available from Red Lion:
- Brand: Red Lion. Part Number # : CUB5B000. SKU #:, 2143103. Dimensions: 1.54 in H x 2.95 in W x 1.71 in D. Frequency Rating: 20 kH…
Red Lion CUB5B000 Dual Counter Rate Indicator (CUB5 Series).
-

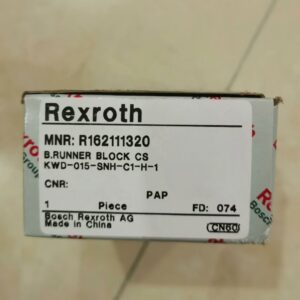

- Manufacturer: REXROTH
- Model / Part Number: R162111320
- Format SNH: This means the block has a Slimline width, Normal length, and High height. It is perfect for tight sideways spaces.
- Accuracy Class H: This stands for High Accuracy. It ensures very straight, precise movement.
- Material: It is made of sturdy Carbon Steel (CS).
- Width: 34 mm
- Length: 58.2 mm
- Height: 28 mm
- Dynamic Load Capacity: 9,860 Newtons (how much weight it can move dynamically)
- Static Load Capacity: 12,700 Newtons (how much weight it can hold still)
-
REQUEST A QUOTE
- Size: 25
- Format Type: FNS (Flange, Normal length, Standard height)
- Material: Unalloyed carbon steel (CS)
- Preload Class: C1 (Low / Light preload)
- Accuracy Class: N (Normal / Standard grade)
- Dynamic Load Capacity (C): 28,600 N to 36,036 N (depending on testing standard benchmarks)
- Weight: 0.669 kg
- F (Flanged): Extended flanged mounting surface that allows attachments to be secured from either above or below.
- N (Normal): Standard block body length optimizing space and load requirements.
- S (Standard): Standard overall assembly height when paired with compatible guide rails.
REXROTH R165121420 Ball Runner Block (Rexroth).
-
REQUEST A QUOTE
- Material: Carbon Steel (CS)
- Block Width: 70 mm
- Block Length: 86.2 mm
- Overall Height: 29.9 mm (36 mm assembled on rail)
- Dynamic Load Capacity (C): 28,600 N (28.6 kN)
- Maximum Speed: 5 m/s
- Maximum Acceleration: 500 m/s²
- Weight: ~0.7 kg
- High Precision: Features a patented entry zone design that increases travel smoothness and accuracy by a factor of six.
- Low Maintenance: Shipped pre-lubricated with roller bearing grease (Dynalub) and includes built-in all-round sealing to keep out contaminants.

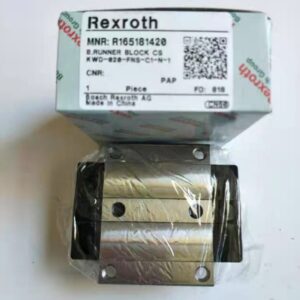

REXROTH R165129420 Ball Runner Block (KWD Series).
-
- Manufacturer: REXROTH
- Model / Part Number: R165181420
- Width (A): 63 mm
- Length (B): 75 mm
- Total Mounted Height (H): 30 mm (when sitting on the matching rail)
- Dynamic Load Capacity (C): 23,400 Newtons (N)
- Max Speed: 5 meters per second (m/s)
- Weight: About 0.45 kg (approx. 1 lb)
-
REQUEST A QUOTE
- Model / Order Code: 4WE6E6X/EG24N9K4 / R900561278
- Valve Type: Directional spool valve, direct operated, solenoid actuation
- Size: 6 (NG6)
- Spool Symbol: E (4/3-way, all ports blocked in center position)
- Operating Voltage: 24 V DC
- Max Pressure: 350 bar
- Max Flow: 80 L/min
Rexroth R900561278 4WE6E62-EG24N9K4 Directional Spool Valve (4WE6 Series).
-
REQUEST A QUOTE
Technical Specifications
- Size & Mounting: Size 6 with a CETOP 3 porting pattern, compliant with ISO 4401-03-02-0-05 for subplate mounting.
- Operating Pressure: Maximum operating pressure of 350 bar (approx. 5,076 PSI).
- Maximum Flow Rate: Up to 80 L/min for DC applications.
- Spool Symbol: Type E (4/3-way or 4/2-way options depending on execution, typically three-position spring-centered with all ports blocked in the center position).
- Electrical Rating: 24 VDC power supply via a standard 3-pole square plug-in connector.
- Actuation Type: High-power, wet-pin dual solenoids featuring a detachable coil. Coils can be rotated 90° and replaced smoothly without releasing any hydraulic fluid.
- Seals: Built with standard Nitrile (NBR) seals, ensuring compatibility with a wide range of mineral oil-based and synthetic hydraulic fluids (HL, HLP, HVLP, etc.).
- Manual Override: Outfitted with a concealed/flush manual override for safe testing or troubleshooting.
- Configuration: Delivered without a locating pin hole, position switch, or factory throttle inserts.
REXROTH R900561278 Directional Spool Valve (Rexroth).
-
REQUEST A QUOTE
- Voltage & Power: 24VDC operating voltage with a power rating under 50VA.
- Current Output: 1.8A max solenoid current rating.
- Signal Input: Command value input range of ±9 V / ±10 V.
- Form Factor: Euro-card format featuring an integrated 32-pin male multipoint connector (Form D/DIN 41612) for effortless mounting in 19-inch racks or card holders.
- Adjustability: Features onboard potentiometers allowing for the custom adjustment of up to 4 distinct command values.
REXROTH R900579497 Proportional Valve Amplifier (VT 5035).
-
REQUEST A QUOTE
- Pressure Range: Measures up to 400 bar (approx. 5,800 psi) as specified by the model code, within a broader product family capable of up to 630 bar.
- Signal Output: 4 to 20 mA analog current output, which includes DNV-GL marine approval.
- Electrical Connection: Standard M12x1 connector, 4-pole, A-coded.
- Hydraulic Port: G1/4 parallel thread with an integrated throttle element in the pressure channel to minimize pressure peaks.
- Accuracy: < 0.5% Full Scale (FS) accuracy class, with an outstanding non-repeatability of less than 0.05%.
- Operating Temperature: Extends from –40 °C to +85 °C (–40 °F to 185 °F).
- Response Time: Fast dynamic response with a signal rise time of < 1 ms.
- Premium Material Construction: Features a robust thin-film measuring cell. All internal components exposed to the fluid media are crafted from durable stainless steel to resist corrosion.
- Integrated Protections: Built-in safeguards protect the unit against overvoltage, reversed polarity, and short circuits.
- Application Scope: Extensively utilized across SANY excavator parts, automated manufacturing lines, industrial power units, pumps, and valves.
REXROTH R901342033 Hydraulic Pressure Transducer (Rexroth).
-
REQUEST A QUOTE
- Brand/Manufacturer: Line Seiki
- Panel Size: 48 × 48 mm (DIN standard, cutout size 45 × 45 mm)
- Display Type: 6-Digit LCD with high-brightness backlight (10mm x 5mm digit size)
- Preset Configuration: 1-Level Preset
- Power Source: AC 100–240V (-15% to +10%)
- Input Options: Contact, Open Collector, or Voltage input (selectable)
- Counting Speeds: 30 Hz, 1 kHz, or 5 kHz (selectable)
- Count Modes: Addition, Subtraction, and 90-degree phase difference (quadrature) input
- Individual Digit Keys: The front interface features dedicated keys for each of the 6 digits, making manual adjustments fast and frictionless.
- Pre-scale Function: Allows scale factors ranging from 0.001 to 99.999 to accurately convert raw pulses into physical units like meters, liters, or pieces.
- Free Write Capability: Permits setting an arbitrary starting value from which the unit will add or subtract.
- Built-in Memory: Features an E²PROM backup mechanism that retains counting data and program configurations even during unexpected power losses.
- Environmental Protection: Rated at IP54 on the front panel, providing adequate resistance against dust and oil droplets in rugged industrial environments.
Rhein G48-305 Electronic Preset Counter (G48 Series).
