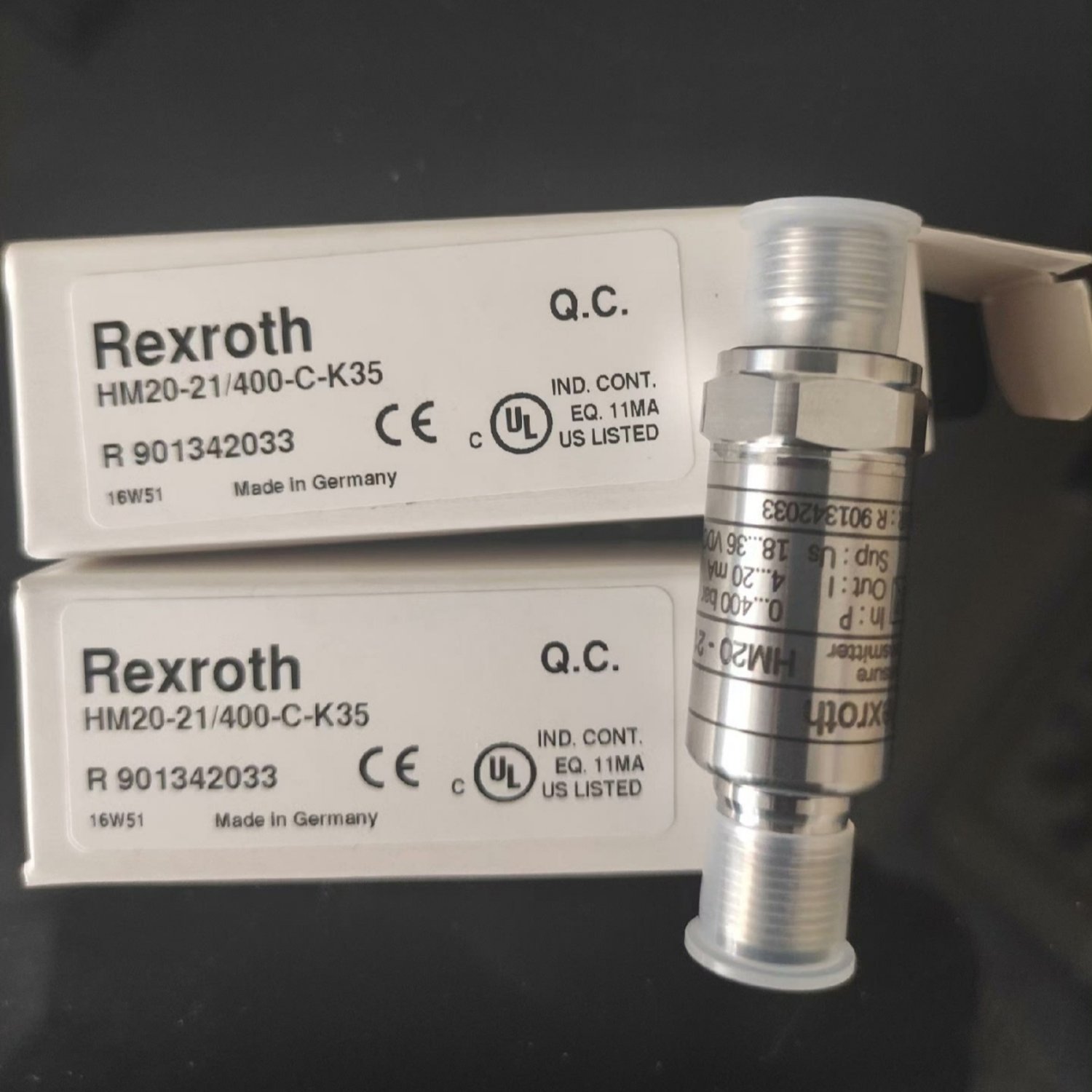

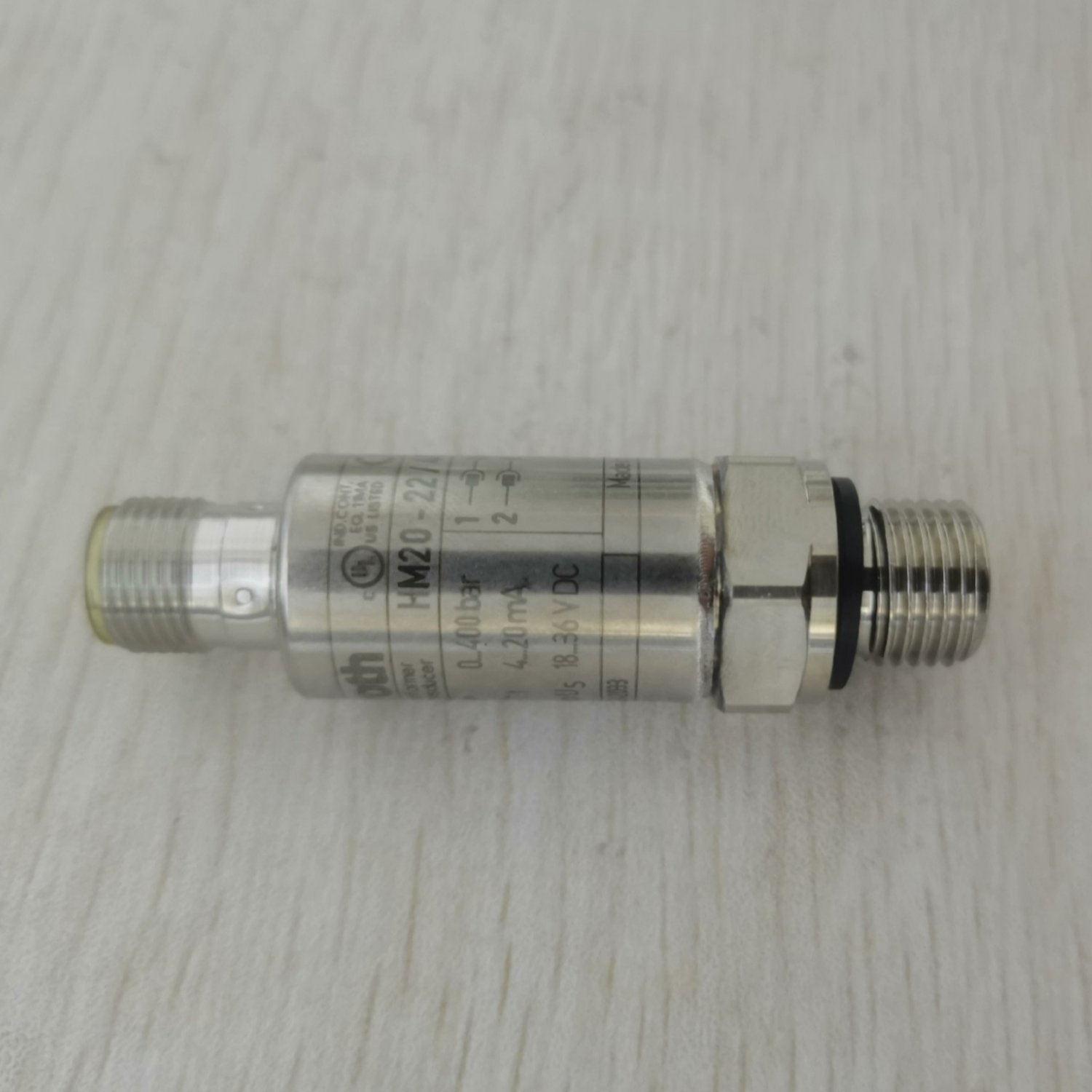

REXROTH R901342033 Hydraulic Pressure Transducer (Rexroth)

• Pressure Range: Measures up to 400 bar (approx. 5,800 psi) as specified by the model code, within a broader product family capable of up to 630 bar.
• Signal Output: 4 to 20 mA analog current output, which includes DNV-GL marine approval.
• Electrical Connection: Standard M12x1 connector, 4-pole, A-coded.
• Hydraulic Port: G1/4 parallel thread with an integrated throttle element in the pressure channel to minimize pressure peaks.
• Accuracy: < 0.5% Full Scale (FS) accuracy class, with an outstanding non-repeatability of less than 0.05%.
• Operating Temperature: Extends from –40 °C to +85 °C (–40 °F to 185 °F).
• Response Time: Fast dynamic response with a signal rise time of < 1 ms.
• Premium Material Construction: Features a robust thin-film measuring cell. All internal components exposed to the fluid media are crafted from durable stainless steel to resist corrosion.
• Integrated Protections: Built-in safeguards protect the unit against overvoltage, reversed polarity, and short circuits.
• Application Scope: Extensively utilized across SANY excavator parts, automated manufacturing lines, industrial power units, pumps, and valves.

Brand New REXROTH R901342033 Pressure Sensor. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
