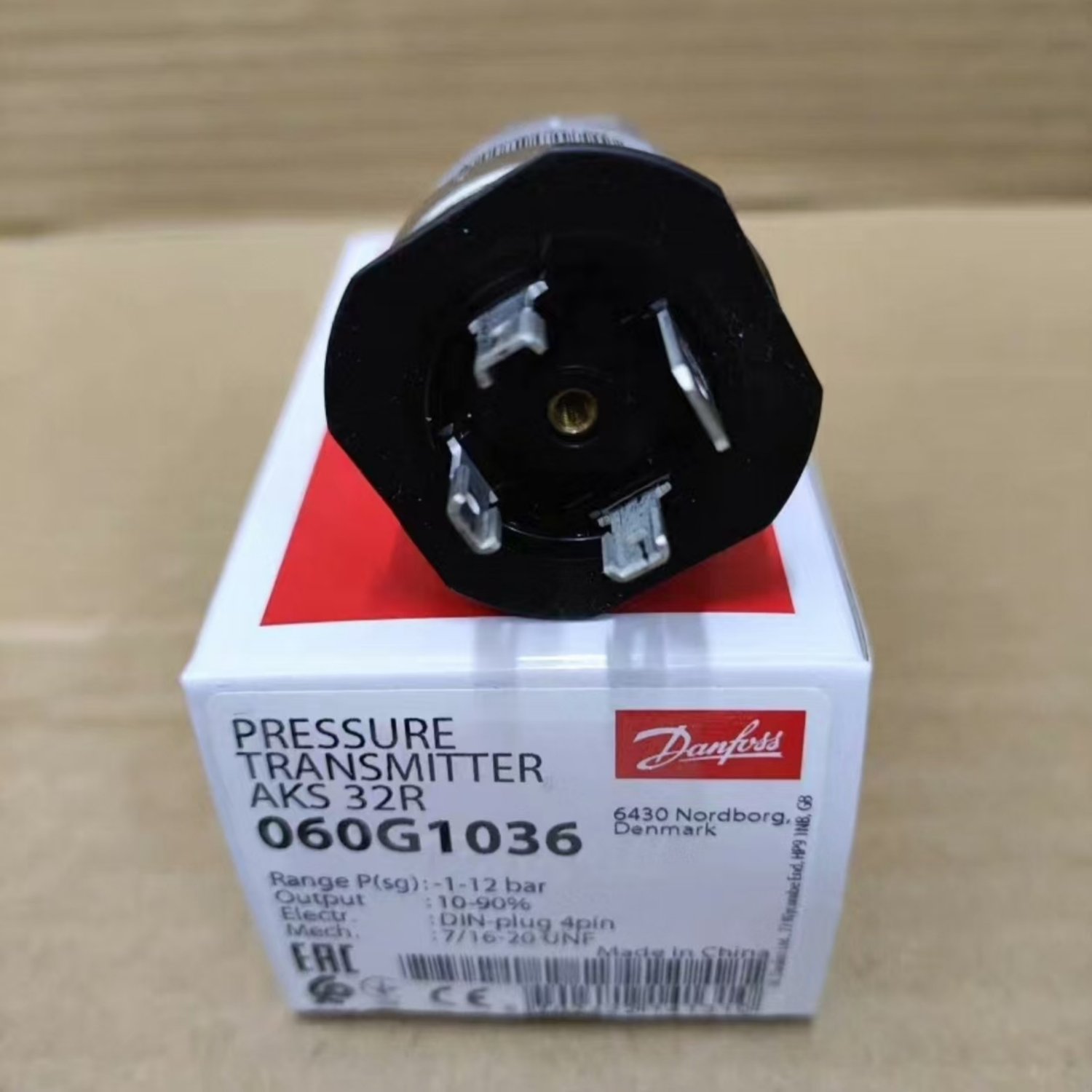

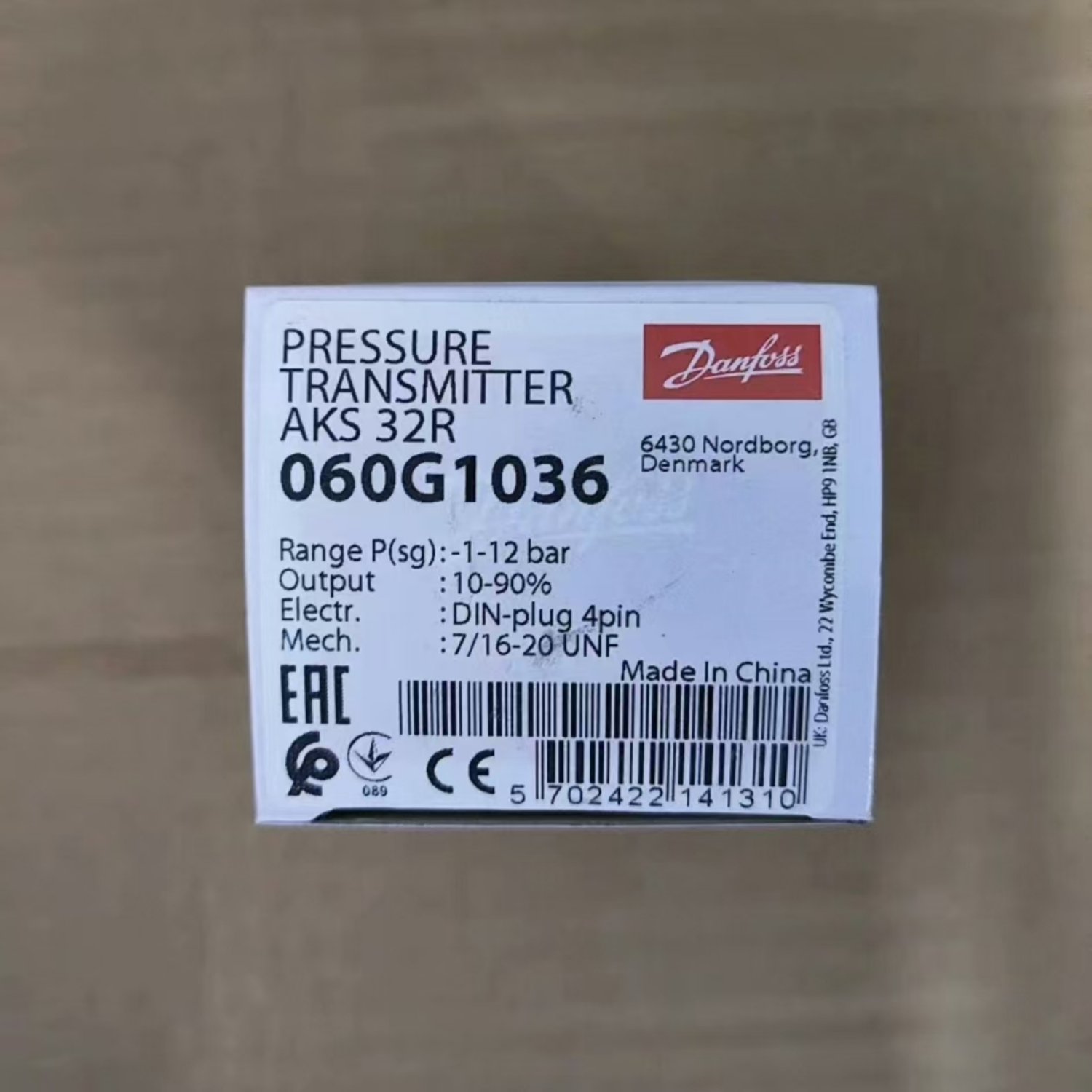

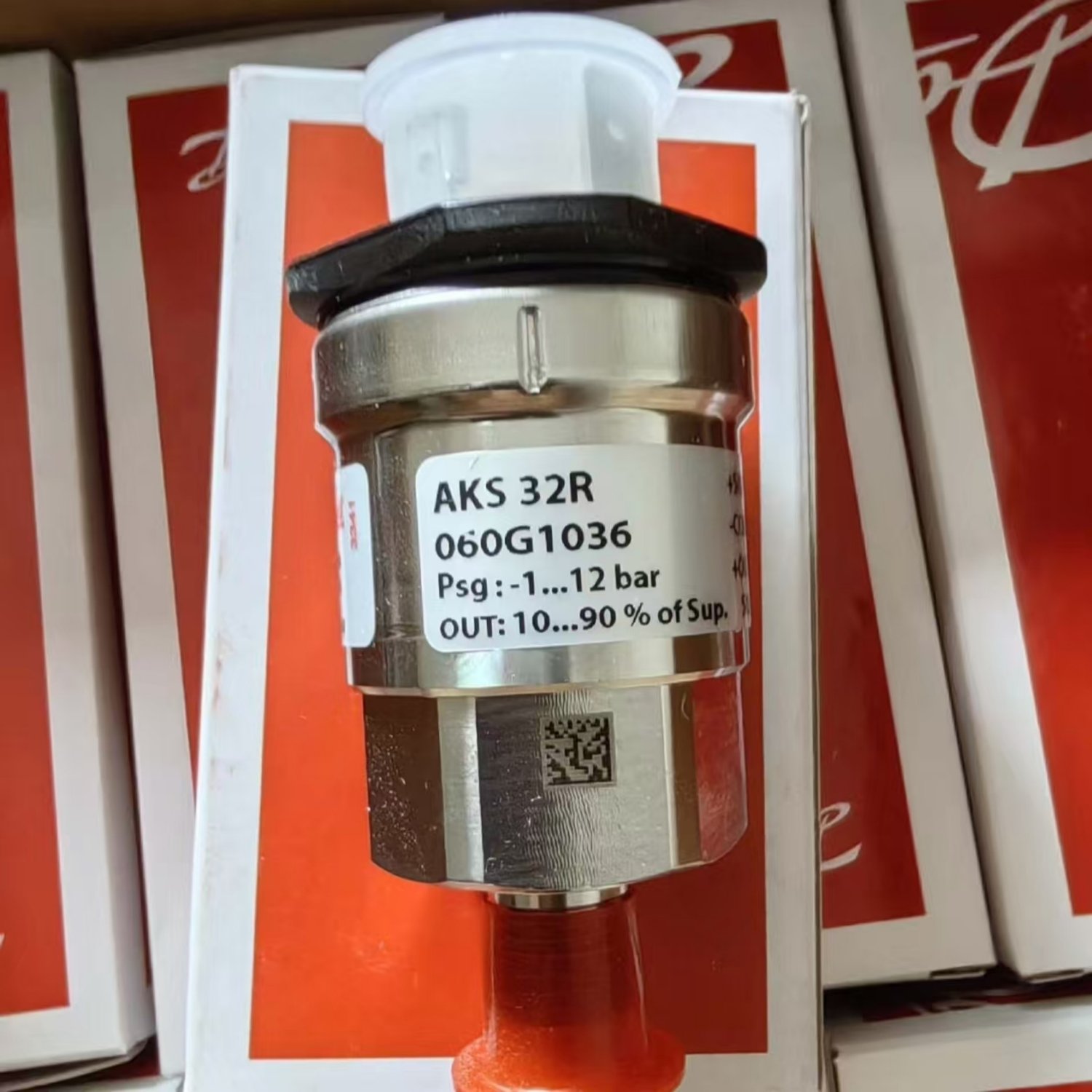

Danfoss 060G1036 Pressure Transmitter
- Brand: Danfoss
- Model: 060G1036
- Series: AKS 32R
- Pressure range: -1 to 12 bar, sealed gauge
- Permissible working pressure: 33 bar
- Pressure connection: 1/4-inch flare, 7/16-20 UNF
- Electrical connector: DIN plug, 4 pins
- Supply voltage: 4.75–8 V DC
- Output signal: 10–90% of supply voltage; 0.5–4.5 V at 5 V supply
- Current consumption: Less than 5 mA at 5 V
- Response time: Less than 4 ms
- Accuracy: ±0.3% FS typical; ±0.8% FS maximum
- Compensated temperature: -30 to +40 °C
- Ambient temperature: -40 to +85 °C
- Protection: IP65 with mating connector
- Wetted material: Stainless steel 316L
- SKU: 060G1036
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
