Showing 81–96 of 107 results
-
- Manufacturer: OMRON
- Model / Part Number: S82K-05024
- Input Voltage: 100 to 240 Volts AC (Universal input)
- Output Voltage: 24 Volts DC (Adjustable)
- Output Current: 2.1 Amperes
- Power Rating: 50 Watts
- Mounting Style: DIN Rail (it clips onto a standard metal rail inside electrical boxes)
-
- Manufacturer: OMRON
- Model / Part Number: S82K-10024
- Input Voltage: Universal input handling 100–120V AC or 200–240V AC (50/60Hz).
- Output Voltage: 24V DC.
- Output Current: Around 4.2A to 4.5A.
- Total Power: 100W to 108W.
- Mounting Type: Built to snap directly onto a standard DIN rail.
-
REQUEST A QUOTE
- Output Voltage: 12 VDC (Adjustable)
- Output Current: 4.3 A
- Rated Power: 50 W
- Input Voltage (AC): 100 to 240 VAC nominal (Permissible: 85 to 264 VAC)
- Input Voltage (DC): 80 to 370 VDC permissible
- Efficiency: 86% typical
- Number of Outputs: 1 branch
- Isolation Voltage: 3 kV
- MTBF: 135,000 hours
- Physical Housing: Enclosed style featuring a durable metal frame with an integrated DIN-rail mounting bracket.
OMRON S8FS-G05012CD Switching Power Supply (S8FS-G).
-
- Manufacturer: OMRON
- Model / Part Number: S8FS-G10024CD
- Output Voltage: 24 VDC
- Output Current: 4.5 A
- Rated Power: 100 W
- AC Input Voltage: 100 to 240 VAC, single-phase
- DC Input Voltage: 80 to 370 VDC
- Efficiency: Up to 89%
- Mounting: DIN rail or direct panel mounting
- Connection: Screw terminal blocks
- Operating Temperature: -20 to 70 °C
-
REQUEST A QUOTE
- Output Wattage: 60 W
- Output Voltage: 24 VDC (Adjustable from -10% to +15% via front potentiometer)
- Output Current: 2.5 A
- Input Voltage Range: Universal 85 to 264 VAC (100–240 VAC nominal) or 90 to 350 VDC
- Efficiency: 88%
- Operating Temperature: -25°C to +60°C
- Protection & Safety: IP20 rating, overload protection, and certifications for UL508, CSA C22.2, and EN50178.
- Physical Profile: Compact book-type enclosure with an enhanced vibration-resistant DIN rail mounting clip.
OMRON S8VK-C06024 DIN Rail Power Supply (S8VK-C).
-
REQUEST A QUOTE
- Input Voltage Range: Universal 85 to 264 VAC (single-phase) or 90 to 350 VDC
- Output Voltage: 12 VDC (adjustable via a front trimmer potentiometer from -10% to +15%)
- Rated Current: 2.5 A
- Power Boost Function: Supports 120% output current power boost for temporary peak loads
- Efficiency: 82% typical
- Operating Temperature: Extremely wide range from -40°C to 70°C (-40°F to 158°F)
- Safety & Protections: Automatic reset overload protection, overvoltage protection, and UL Class 2 output compliance
OMRON S8VK-G03012 DIN Rail Power Supply (S8VK-G).
-
REQUEST A QUOTE

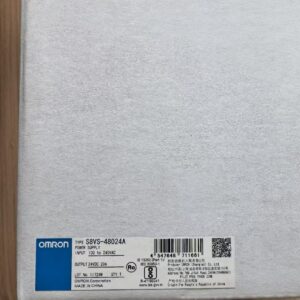

- Manufacturer: OMRON
- Model / Part Number: S8VS-48024A
- Power Rating: 480 Watts
- Output Profile: 24 VDC output voltage, adjustable from -10% to +15% using a built-in potentiometer. Continuous output current is 20 A, with a maximum peak capacity of 30 A.
- Input Range: Universal 100 to 240 VAC nominal input voltage (with an operational variance range of 85 to 264 VAC). It can also accept an 80 to 370 VDC input under specific conditions.
- Efficiency: Typically reaches 89% at 100 VAC input and scales up to 93% at 200 VAC input.
- Form Factor & Dimensions: Measures roughly 5.01" L x 5.91" W x 4.53" H (127.2 mm x 150.1 mm x 115.0 mm) and mounts securely onto standard 35mm DIN rails.
- Safety Certifications: UL 508 listed, cULus, cURus, CE, and VDE compliant. Includes built-in overvoltage and overload protection.
OMRON S8VS-48024A Switching Power Supply. Key specifications include Power Rating: 480 Watts; Output Profile: 24 VDC output voltage, adjustable from -10% to +15% using a built-in potentiometer. Continuous output current is 20 A, with a maximum peak capacity of 30 A.; Input Range: Universal 100 to 240 VAC nominal input voltage (with an operational variance range of 85 to 264 VAC). It can also accept an 80 to 370 VDC input under specific conditions.; Efficiency: Typically reaches 89% at 100 VAC input and scales up to 93% at 200 VAC input..
-
REQUEST A QUOTE
- Input Voltage: 100–240 V AC nominal (Range: 85–264 V AC) | 110–250 V DC
- Output Voltage: 48 V DC (adjustable secondary voltage)
- Output Current: 5 A nominal
- Maximum Power: 240 W
- Mounting Style: DIN Rail Mount
- Connections: Tool-free Push-in connection technology
- Operating Temperature: -25°C to +70°C (with device startup operational down to -40°C)
- Protections: Short-circuit-proof, idle-proof, and features an IP20 protection rating
- Dimensions: 132 mm (H) x 42 mm (W) x 160 mm (D)
- Dynamic Boost: Delivers up to 150% of the nominal current for 5 seconds to help start up heavy, demanding loads.
PHOENIX CONTACT 2903159 DIN Rail Power Supply (TRIO-PS).
-
- Manufacturer: PULS
- Model / Part Number: CD10.241
- Rated Power: 240 W
- Input Voltage: 18 to 35 VDC, 24 VDC nominal
- Output Voltage: 24 to 28 VDC adjustable
- Output Current: 10 A at 24 VDC; 8.6 A at 28 VDC
- Galvanic Isolation: Input-to-output isolation
- Efficiency: Up to 94.2%
- Dimensions: 42 x 124 x 117 mm
- Operating Temperature: -25 to 70 °C
-
REQUEST A QUOTE
- Input Voltage Range: 18 – 32.4V DC (24V DC nominal)
- Output Voltage: 12 – 15V DC (Adjustable)
- Output Current: 8A (at 12V) to 6.4A (at 15V)
- Output Power: 96W nominal
- Efficiency: Up to 88.2%
- Dimensions: 32mm Width x 124mm Depth x 102mm Height
- Power Reserves: Includes a 20% PowerBoost feature, allowing it to continuously deliver up to 115W at ambient temperatures up to +45°C.
- Electrical Isolation: Features safe galvanic isolation between the input and the output circuits.
- Circuit Protection: Built-in soft-start function to minimize inrush current spikes, paired with reverse input polarity protection.
PULS CD5.121 DC/DC Converter (DIMENSION CD).
-
REQUEST A QUOTE

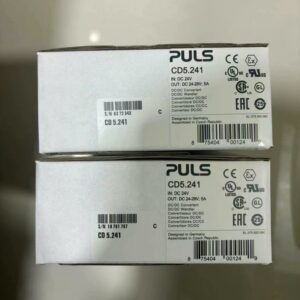

- Manufacturer: PULS
- Model / Part Number: CD5.241
- Input Voltage: 18–32.4 V DC (24 V nominal)
- Output Voltage: 24 V DC
- Output Current: 5 A continuous
- Output Power: 120 W
- Efficiency: Up to 90.3%
- Width: 32 mm
PULS CD5.241 DIN-Rail DC-DC Converter. Key specifications include Input Voltage: 18–32.4 V DC (24 V nominal); Output Voltage: 24 V DC; Output Current: 5 A continuous; Output Power: 120 W.
-
- Manufacturer: PULS
- Model / Part Number: CP20.241
- Input Voltage: Wide-range input accepting AC 100–240V or DC 110–150V.
- Output Voltage: 24V DC, adjustable up to 28V DC via the front dial.
- Output Current: 20A at 24V (or 17.1A at 28V).
- Rated Power: 480 Watts.
- Physical Size: Extremely slim design at just 48mm wide, saving valuable space on your panel.
- Power Reserves (PowerBoost): Includes a 20% continuous power reserve.
-
REQUEST A QUOTE
- Output Voltage: 24V DC (manually adjustable from 24–28V DC via front potentiometer)
- Output Current: 10A at 24V (continuous output)
- Power Reserve: 20% PowerBoost (delivers up to 12A / 288W continuously at ambient temperatures up to +45°C)
- Input Voltage: Single-phase 115/230V AC with auto-select input, preventing mis-wiring damage
- Efficiency: Reaches up to 91.6% efficiency with low heat generation
- Physical Profile: Only 60mm wide, maximizing control panel space
- Connections: Heavy-duty screw clamp terminals
Puls CS10.241 Single-Phase DIN-Rail Power Supply (DIMENSION C-Line Series).
-
- Brand: PULS
- Model: ML100.100
- Series: MiniLine
- Rated output power: 100 W
- Nominal output: 24 V DC, 4.2 A
- Output adjustment: 24–28 V DC
- Output current at 28 V: 3.6 A
- AC input: 100–120 / 220–240 V AC, automatic range selection
- Typical efficiency: 90%
- Full-load ambient range: -10 to +60 °C
- Derating above +60 °C: 2.5 W per °C
- Mounting: DIN rail
- Connections: Spring-cage terminals
- Weight: 360 g
-
REQUEST A QUOTE
- Output Power: 30 Watts
- Output Voltage: 24V DC (adjustable from 24–28V DC)
- Output Current: 1.3A at 24V; 1.1A at 28V
- Input Voltage Range: 85–264V AC (Single-phase) or 88–375V DC
- Efficiency: Up to 87.5%
- Form Factor: Compact 45mm width rugged plastic housing
- Termination Type: Toolless, quick-connect spring-clamp terminals
- Operating Temperature: Full output power performance between -10°C and +60°C (derating up to +70°C)
- Certifications: UL508 Listed for industrial control equipment, NEC Class 2 compliance, and CE.
- Automation Distribution: Stocked for industrial applications via Automation Distribution.
PULS ML30.100 DIN Rail Power Supply (MiniLine).
-
- Manufacturer: PULS
- Model / Part Number: QS10.121
- Nominal Output Voltage: 12 VDC, adjustable from 12 to 15 VDC
- Output Current: 15 A at 12 VDC; 13.5 A at 15 VDC
- Rated Output Power: 180 W
- AC Input Voltage: 100 to 240 VAC
- DC Input Voltage: 110 to 150 VDC
- Efficiency: Up to 91.8%
- Housing Width: 60 mm
- Power Reserve: 22.5 A for up to 4 seconds
- Terminals: Spring-clamp terminals
- Status Output: DC-OK indicator and relay contact
