Showing 65–80 of 107 results
-
- Manufacturer: MEAN WELL
- Model / Part Number: DR-4512
- Output Voltage: 12V DC.
- Voltage Adjust Range: 10.8V to 13.2V (tuned using a small built-in dial).
- Output Current: 0 to 3.5 Amps.
- Total Power: 42 Watts.
- Input Voltage Range: 85 to 264V AC (Universal wall electricity).
- Mounting Type: DIN Rail TS-35 / 7.5 or 15.
-
- Manufacturer: MEAN WELL
- Model / Part Number: DR-60-12
- Output Voltage: 12 VDC
- Output Current: 4.5 A
- Rated Power: 54 W
- AC Input Voltage: 88 to 264 VAC
- Dimensions: 78 x 93 x 56 mm
- Mounting: TS-35 DIN rail
- Cooling: Natural convection
- Status Indicator: Power-on LED
-
- Manufacturer: MEAN WELL
- Model / Part Number: DR-60-15
- Output Voltage: 15V DC (Adjustable by ±10% via front trimmer)
- Output Current: 0 to 4A
- Rated Power: 60 Watts
- Input Voltage Range: 88~264V AC (or 124~370V DC)
- Efficiency: 83% typical
- Cooling: Free air convection (fanless design)
- Mounting Type: Snaps onto standard TS-35/7.5 or TS-35/15 DIN rails
- Dimensions: 78mm Width × 93mm Height × 56mm Depth
- Short Circuit Protection: Prevents damage during direct line faults.
- Overload Protection: Automatically limits current if demand exceeds 4A.
- Overvoltage Protection: Shuts down or clamps output if voltage spikes dangerously.
-
REQUEST A QUOTE
- Manufacturer: MEAN WELL
- Model / Part Number: HLG-240H-24A
- Output Power: 240 Watts max
- Rated Voltage: 24V DC (Adjustable from 22.4V to 25.6V via an internal potentiometer)
- Output Current: 10 Amps (Adjustable from 5A to 10A)
- Input Voltage Range: 90 ~ 305 VAC (Universal compatibility for 120V, 240V, and 277V systems)
- Efficiency: 92.5% typical
- Environmental Protection: IP65 ingress rating (Dust-tight and protected against water jets)
- Cooling: Free air convection (No internal mechanical fan to wear out or make noise)
- Safety Features: Short circuit, over-current, over-voltage, and over-temperature protections
MEAN WELL HLG-240H-24A: Output Power 240 Watts max; Rated Voltage 24V DC (Adjustable from 22.4V to 25.6V via an internal potentiometer); Output Current 10 Amps (Adjustable from 5A to 10A); Input Voltage Range 90 ~ 305 VAC (Universal compatibility for 120V, 240V, and 277V systems).
-
REQUEST A QUOTE
- Manufacturer: MEAN WELL
- Model / Part Number: HLG-240H-24B
- Output Rating: 24V DC fixed voltage output, delivering up to 10 Amps of current for a maximum power threshold of 240 Watts.
- Input Voltage Range: Universal AC input spanning 90 to 305 VAC, making it highly resilient against global power grid fluctuations.
- Environmental Protection: Encased in a rugged aluminum enclosure with an IP67 weatherproof rating, certifying it as safe for dry, damp, or wet locations.
- Efficiency & Safety: Features a high efficiency conversion rate of 92.5% and includes integrated protections against short circuits, overcurrent, overvoltage, and overtemperature.
MEAN WELL HLG-240H-24B LED Power Supply. Key specifications include Output Rating: 24V DC fixed voltage output, delivering up to 10 Amps of current for a maximum power threshold of 240 Watts; Input Voltage Range: Universal AC input spanning 90 to 305 VAC, making it highly resilient against global power grid fluctuations; Environmental Protection: Encased in a rugged aluminum enclosure with an IP67 weatherproof rating, certifying it as safe for dry, damp, or wet locations; Efficiency & Safety: Features a high efficiency conversion rate of 92.5% and includes integrated protections against short circuits, overcurrent, overvoltage, and overtemperature.
-
REQUEST A QUOTE
- Manufacturer: MEAN WELL
- Output Voltage: 42 VDC (Constant Current Region: 21V to 42V)
- Maximum Output Current: 7.65 A
- Maximum Output Power: 321.3 W
- Input Voltage Range: 90 ~ 305 VAC (or 127 ~ 431 VDC)
- Efficiency: 95%
- Dimming Methods: 1–10VDC, 10V PWM signal, or Resistance
- IP Rating: IP67 (Dust-tight and water-resistant for indoor/outdoor use)
- Operating Temperature: -40°C to +90°C (-40°F to 194°F)
- Dimensions: 252 x 90 x 43.8 mm (9.92" x 3.54" x 1.72")
MEAN WELL HLG-320H-42B LED Power Supply (HLG-320).
-
- Manufacturer: MEAN WELL
- Model / Part Number: LRS-350-24
- Rated Power: 350 W
- Output Voltage: 24 VDC
- Output Current: 14.6 A
- AC Input Range: 90–132 VAC or 180–264 VAC, switch selectable
- DC Input Range: 240–370 VDC
- Protection: Short circuit, overload, overvoltage and overtemperature
-
REQUEST A QUOTE
- Output Voltage: 5V DC (Adjustable from 4.5V – 5.5V via onboard potentiometer)
- Rated Current: 60A maximum
- Rated Power: 300W
- AC Input Range: 90 ~ 132VAC or 180 ~ 264VAC (Selectable via manual slide switch)
- Efficiency: 83.5%
- Cooling: Forced air cooling via a built-in DC fan (Thermostatically controlled: kicks on at 122°F / 50°C)
- Protections: Short circuit, Overload (110%–140% via Hiccup Mode), Over voltage, Over temperature
- Dimensions: 215mm × 115mm × 30mm (8.46" × 4.53" × 1.18")
- Weight / Mounting: Chassis mount with M4-0.7 screw holes
- Check the Input Voltage Switch: Before plugging the unit in for the first time, check the position of the physical 115V / 230V slide switch. Units frequently ship preset to 230V. Powering a unit switched to 115V with 230V mains will permanently destroy the internal circuitry.
MEAN WELL LRS-350-5 Switching Power Supply (LRS-350).
-
- Manufacturer: Mean Well
- Model / Part Number: NDR-240-24
- Output Voltage: 24V DC
- Output Current: 10A
- Rated Power: 240W
- Input Voltage Range: 90 – 264V AC or 127 – 370V DC
- Frequency Range: 47 – 63 Hz
- Typical Efficiency: 88.5%
- Ripple & Noise: ≤ 150 mVp-p
- Voltage Adjustment Range: 24 – 28V
- Built-in Active PFC: Features active power factor correction to improve energy efficiency.
- Slim Design: At just 63mm wide, it saves valuable space inside control cabinets.
- Convection Cooling: Uses a metal case designed for free air convection cooling with no fans needed.
- DIN Rail Compatible: Snaps easily onto standard TS-35/7.5 or TS-35/15 mounting rails.
- Full Protections: Includes built-in safety features against short circuits, overloads, overvoltage, and overtemperature.
- Overload Handling: Uses constant current mode protection, making it great for inductive or capacitive loads.
- Dimensions: 63mm x 125.2mm x 113.5mm (W x H x D)
- Weight: 1.0 kg (2.2 lbs)
- Working Temperature: -20°C to +70°C (Note: power output starts reduction/derating above 50°C).
-
- Manufacturer: MEAN WELL
- Model / Part Number: NES-350-27
- Output Voltage: 27V DC
- Output Current: 13A
- Rated Power: 351W
- Cooling: Active cooling via a built-in DC fan
- Built-in Protections: Automatically guards against short circuits, overloads, overvoltages, and high temperatures.
-
REQUEST A QUOTE
- Ethernet & PoE: 10/100/1000BaseT(X) ports, IEEE 802.3af/at compliant, Max 30W output
- Power Inputs: Dual redundant 24/48 VDC (22 to 57 VDC range)
- Mechanical: IP30 plastic housing, DIN-rail mounting, 115 g, 24.9 x 100 x 86.2 mm
- Temp Range: Standard: 0 to 60°C; -T Model: -40 to 75°C
- Safety: UL 508, EN 62368-1
- EMI/EMC: CISPR 32, FCC Part 15B Class A, IEC 61000-4-2 ESD
MOXA INJ-24 PoE Injector (INJ-24 Series).
-
REQUEST A QUOTE
- Primary Function: High-Voltage Bar Boost CCFL Driver
- Operating Frequency: ~65 kHz (Typical for the modular family)
- Form Factor / Dimensions: Slim strip architecture (approx. 105.0 mm × 25.0 mm × 10.2 mm)
- Common Applications: CNC machines, medical monitoring equipment, HMI operator panels, and factory automation screens.
- Pin Number: Signal Name
- Main DC Power Supply Input: +12V DC Input line
NEC 104PW181 Backlight Inverter Board (104 Series).
-
REQUEST A QUOTE
- Manufacturer: NEC LCD Technologies, Ltd. (NEC Corporation)
- Device Type: DC/AC Backlight Inverter Module
- Nominal Supply Current: 530 mA
- Operating Frequency: 65 kHz
- Output Capability: Supports 2-Lamp CCFL configurations
- Environmental Standards: RoHS Compliant, Lead-Free design
- Form Factor / Package: Compact integrated PCB module
- Cross-Compatibility: Drops in as an alternate model/upgrade for 104PW161, CXA-0308, and CXA-0543 (features enhanced operating temperature tolerance)
- High or Open: Backlight turns ON.
- Low: Backlight turns OFF.
NEC 104PW191 DC/AC Inverter Board (104 Series).
-
REQUEST A QUOTE
- Input Supply Voltage: 12.0 V DC (Nominal)
- Nominal Supply Current: 0.53 A (530 mA)
- Output Voltage: 520 V AC
- Output Current: 5.0 mA (0.005 A)
- Operating Frequency: 67.5 kHz
- Interface Connector: 12-pin module alignment
- Compliance: RoHS compliant, Lead-Free
- Recommended Action: When servicing a system utilizing the 104PW201, verify lamp integrity or proactively replace the dual CCFL lamps alongside the inverter.
- Benefits: Extends display lifespan to over 100,000 hours, lowers power draw, removes high-voltage points, and requires no soldering to adapt the original 12-pin wire harness.
NEC 104PW201 CCFL Backlight Inverter (104 Series).
-

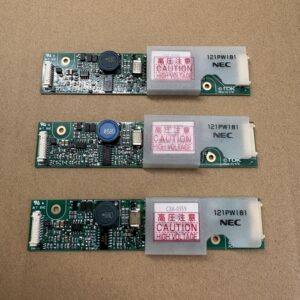

- Manufacturer: NEC
- Model / Part Number: 121PW181
- Output Current: Designed for a 5mA electrical current.
- Compatibility: Frequently paired with specific industrial LCD models such as the NL8060BC31-42D, NL10276BC24-13, and NL8060BC31-27 series.
-
REQUEST A QUOTE
- Part Number: 19141010
- Rectification: Half-wave
- Input Voltage: 200–480 V AC (−10% / +10%)
- Input Frequency: 50/60 Hz
- Output Voltage: 90–215 V DC
- Current Rating: 1.0 A
The NORD GHE40L, part number 19141010, is a half-wave rectifier for electromechanical motor brakes.
