Showing 17–32 of 41 results
-
REQUEST A QUOTE
- Resolution: 256 Pulses Per Revolution (PPR) / 8-bit absolute encoding.
- Output Signal Format: NPN Open Collector (indicated by the "NW" suffix).
- Supply Voltage: 10 to 26 VDC.
- Outer Body Diameter: 50 mm
- Profile Depth: 35 mm (Ultra-compact form factor)
- Actuator Type: 8 mm solid shaft.
- Sensing Technology: Optical electromechanical tracking.
- Environmental Protection: IP65 rating (Dust and jet-water resistant with a robust aluminum die-cast cover).
- TRD: Rotary Encoder series designation.
- NA: Medium-duty Absolute type.

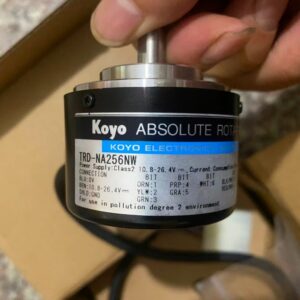

Brand New KOYO TRD-NA256NW Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Metric / Parameter: Specification
- Component Type: Brushless Magnetic Resolver / Rotary Encoder
- Size / Form Factor: Size 15 (Standard Housing, Frameless Component)
- Number of Pole Pairs: 1 Pole Pair (1 Speed)
- Input Voltage: 5 Vrms (also standard up to 7 V)
- Input Frequency: 1 kHz to 4.5 kHz
- Outer Diameter: 36.8 mm (1.45 in)
- Length: 16 mm (0.63 in)
- Shaft Type: Hollow shaft (Interior rotor ID: 9.52 mm to 12 mm max)
- Integrated Cable: 300 mm lead length
Brand New LTN RE-15-1-A15 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Encoder Type: Rotary Optical Absolute Encoder
- Resolution: Approximately 1,000,000 pulses/counts per revolution (10⁶ pulses/rev).
- Output Interface: High-speed serial digital data (transmitting digital gray code signals).
- Mounting Design: Hollow shaft architecture designed for direct, rigid integration onto the motor shaft.
- Lifecycle Status: Discontinued by the manufacturer. Official technical documentation from Mitsubishi Electric notes that the original component is officially substituted and succeeded by model OSA105S5A.
- Elimination of Homing Cycles: Because it tracks absolute positional data rather than incremental pulses, the system retains the precise location of the machine axes during a power failure or shutdown. Operators do not need to perform a time-consuming machine homing routine upon rebooting.
- High-Precision Closed Loop Feedback: The high pulse-count resolution ensures exceptionally smooth motion profiling, minimized torque ripple, and microscopic positioning accuracies required for tight-tolerance CNC tooling and rapid automation tasks.
- Optical Contamination: Oil, grease, or dust entering the encoder housing and clouding the glass code disc.
- Cable Degradation: Cracked or poorly shielded serial cables inducing digital noise into the grey code stream.
- Internal Component Fatigue: Degradation of the internal LED light source or photodiode receiver array over years of high-vibration runtime.
Brand New MITSUBISHI OSA105S5 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Mitsubishi Electric
- Model Type: Absolute Rotary Encoder
- Resolution: 18-bit (262,144 counts/rev nominal / ~260,000 pulses/rev specified)
- Interface: Pure Serial Digital Output (SSI / Serial Style Interface)
- Logic Supply: Nominal 5 V DC
- Mounting Type: Internal Flange Mounted
- Manufacturer Status: Discontinued (Legacy Component)
- HC-SFS Series: Regularly mounted on motors such as the HC-SFS102 and HC-SFS152 (typically 750W / 0.75kW mid-inertia motors).
- HF-Series: Used with units like the HF-104S-A48.
- Signal Structure: As a purely serial encoder, it transmits via differential data lines (Data and Data Not) rather than traditional incremental A/B phases.
Brand New MITSUBISHI OSA18-100 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model Series: HES (Hollow Shaft Series)
- Resolution: 2500 P/R (Pulses Per Revolution)
- Output Phase/Signals: 2M: A, B (90° phase difference) + Zero Signal (Z)
- Output Circuit Type: D: Line Driver Output (with complementary inverted signals Ā, B̄, Z̄)
- Supply Voltage: DC 4.75V – 5.25V (5V DC nominal)
- Current Consumption: 150 mA Maximum
- Max Response Frequency: 200 kHz
- Shaft Dimensions: 8mm (0.31 inches) blind hollow shaft
- Outer Diameter: 38mm (1.50 inches)
- Max Mechanical Speed: 6000 r/min (RPM)
Brand New NEMICON HES-25-2MD 2500P R Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Technical Attribute: Specification
- Encoder Type: Incremental Rotary Encoder
- Resolution: 500 pulses per revolution (PPR)
- Shaft Type / Diameter: Solid Shaft / φ 8 mm
- Dimensions: φ 50 mm (Diameter) × 34 mm (Length)
- Output Phase: A / B two-phase + Z (index) phase
- Output Type: Push-Pull output (with partial load short-circuit protection)
- Supply Voltage Range: DC 4.75V to 30V
- Max Response Frequency: 100 kHz
- Max Mechanical Speed: 5000 RPM
Brand New NEMICON NOC2-S500-2HC Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Electrical Angle: 355°
- Mechanical Rotation: 360° continuous (no stop limits)
- Resistance: 5 kΩ
- Resistance Tolerance: ±20%
- Independent Linearity: ±0.08% (Standard industrial variance, high-spec options down to ±0.025% can be custom requested)
- Repeatability: 0.007°
- Maximum Operational Speed: 2000 RPM
- Max Operating Voltage: 42 V
- Service Life: Designed for 100 × 10⁶ typical movements
- Protection Class: IP65 rated housing (dust-tight and protected against water jets).

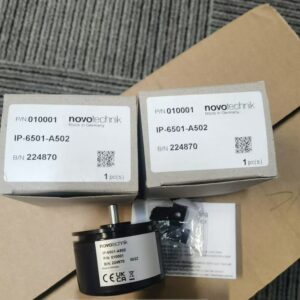

Brand New NOVOTECHNIK IP-6501-A502 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Resolution: 2,000 pulses per revolution (P/R).
- Control Output: Line driver (RS-422A interface) providing differential outputs (A, Ā, B, B̄, Z, Z̄) for high noise immunity.
- Power Supply: 5 VDC (±5% ripple max).
- Mechanical Design: 40mm casing diameter with a 6mm solid shaft.
- Rotational Speed: Rated up to 6,000 rpm.
- Protection Rating: IP50 dust resistance.
Brand New OMRON E6B2-CWZ1X 2000P R Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Resolution: 1024 Pulses per Revolution (P/R), delivering highly accurate granular feedback.
- Power Supply Voltage: 5 to 24 VDC, making it widely compatible with different PLCs and control systems.
- Output Type: NPN Open Collector.
- Output Phases: A, B, and Z (reversible), allowing direction sensing via phase difference and origin alignment via the Z-phase index.
- Mechanical Dimensions: 40 mm casing diameter with a 6 mm solid flatted (D-shape) shaft.
- Max Speed: Up to 6000 RPM permissible rotation.
- Environmental Protection: IP50 rating with operating tolerances from -10 to 70 °C.
- Brown: Power Supply (5 to 24 VDC)
- Blue: 0V / Common (GND)
- Black: Phase A output
Brand New OMRON E6B2-CWZ6C 1024P-R Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Resolution: 500 Pulses per Revolution (P/R).
- Output Type: NPN open-collector output.
- Supply Voltage: 5 to 24 VDC.
- Output Phases: A, B, and Z (Quadrature output with index pulse).
- Physical Dimensions: 40 mm outer diameter housing with a 6 mm solid shaft (D-type flatted end).
- Maximum Speed: 6,000 RPM.
- Protection Rating: IP50 (dust protection).
- Connection: Standard models come pre-wired with a 2-meter cable.
- Brown: Power Supply
- Blue: Common / Ground (0V)
Brand New OMRON E6B2-CWZ6C 500P R Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series: PVM58 (Absolute multiturn encoder)
- Resolution: 25 bits total (13 bits single-turn + 12 bits multi-turn tracking)
- Interface: PROFIBUS
- Supply Voltage: 10 – 30 V DC
- Output Code: Binary Code
- Housing: 58 mm diameter aluminum casing
- Mechanical Connection: Clamping flange with a 10 mm solid stainless steel shaft
- Advanced Features: Programmable limit switches, extended scaling functions, speed transfer capabilities, and a dedicated commissioning mode.
Brand New PEPPERL+FUCHS PVM58N-011AGROBN-1213 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operating Voltage: 4.75 V DC to 30 V DC
- Detection Type: Photoelectric sampling
- Max Output Frequency: 160 kHz
- Rotational Speed: Max 10,000 min⁻¹
- Protection Degree: IP50 rated
- Housing Material: Powder-coated aluminum (with a stainless steel shaft)
- Weight: Approx. 220g (0.22 kg)
Brand New PEPPERL+FUCHS RVI50N-09BK0A3TN-01000 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Type: Absolute multiturn encoder, AFS/AFM60 Ethernet (PROFINET)
- Part Number: 1059035
- Communication Interface: PROFINET (Encoder profile V4.1 class 3)
- Data Transmission Rate: 10 Mbit/s, 100 Mbit/s (CAT 5e cable)
- Initialization Time: 6 s
- Cycle Time: ≤ 1 ms
- Max Resolution (Steps per Revolution): 262,144 (18 bit)
- Number of Revolutions: 4,096 (12 bit)
- Total Resolution: 18 bit x 12 bit (262,144 x 4,096)
- Error Limit G: 0.03° (per DIN ISO 1319-1)
Brand New SICK AFM60A-BDNB018X12 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Resolution: 30-bit total resolution (18-bit singleturn / 262,144 steps per revolution × 12-bit multiturn / 4,096 revolutions).
- Communication Protocol: PROFINET (Encoder profile V4.1 Class 3) with data transmission rates of 10/100 Mbit/s over CAT-5e cabling.
- Mechanical Design: Solid shaft (10 mm diameter x 19 mm length) with a face mount / clamping flange.
- Electrical Connection: Axial industrial connection consisting of 3 x M12 connectors (2x 4-pin female, 1x 4-pin male).
- Supply Voltage: 10 to 30 V DC.
- Environmental Protection: IP65 on the shaft side and IP67 on the housing side.
- Temperature Range: Operational from -40 °C to +85 °C.
Brand New SICK AFM60A-S4NB018X12 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

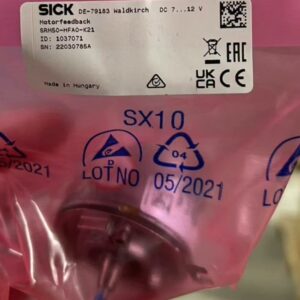

- Interface Type: HIPERFACE® (uses combined Sine/Cosine and RS-485 data)
- Resolution: 1,024 sine/cosine periods per revolution
- Absolute Revolutions: 4,096 total revolutions (Multiturn)
- Total Steps: 134,217,728 steps
- Supply Voltage: 7 to 12 V DC
- Shaft Design: 8 mm knurled, tapered shaft with a spring mounting plate
- Connection: 8-pin male radial connector
- Maximum Operating Speed: 6,000 min⁻¹ (RPM)
- Operating Temperature: –30 °C to +115 °C
Brand New SICK SRM50-HFA0-K21 1037071 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Signal Type: HTL (High-Threshold Logic) push-pull output. (Note: If you require a TTL signal, the correct model variant is the 1XP8012-20).
- Resolution: 1024 PPR (Pulses Per Revolution).
- Voltage Supply: +10V to +30V DC (commonly running on a standard 24V DC loop).
- Shaft Type: 12mm blind hollow-bore shaft.
- Connection: Flange socket configuration.
- Environmental Rating: IP66 protection, meaning it is dust-tight and highly resistant to moisture or heavy industrial grime.
Brand New SIEMENS 1XP8012-10-1024 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
