- Interface Type: HIPERFACE® (uses combined Sine/Cosine and RS-485 data)
- Resolution: 1,024 sine/cosine periods per revolution
- Absolute Revolutions: 4,096 total revolutions (Multiturn)
- Total Steps: 134,217,728 steps
- Supply Voltage: 7 to 12 V DC
- Shaft Design: 8 mm knurled, tapered shaft with a spring mounting plate
- Connection: 8-pin male radial connector
- Maximum Operating Speed: 6,000 min⁻¹ (RPM)
- Operating Temperature: –30 °C to +115 °C
SICK SRM50-HFA0-K21 1037071 Absolute Rotary Encoder (SRM50).
-
REQUEST A QUOTE
- Signal Type: HTL (High-Threshold Logic) push-pull output. (Note: If you require a TTL signal, the correct model variant is the 1XP8012-20).
- Resolution: 1024 PPR (Pulses Per Revolution).
- Voltage Supply: +10V to +30V DC (commonly running on a standard 24V DC loop).
- Shaft Type: 12mm blind hollow-bore shaft.
- Connection: Flange socket configuration.
- Environmental Rating: IP66 protection, meaning it is dust-tight and highly resistant to moisture or heavy industrial grime.
SIEMENS 1XP8012-10-1024 Incremental Rotary Encoder (1XP Series).
-
REQUEST A QUOTE
- Device Type: Incremental Rotary Encoder
- Resolution: 1024 pulses per revolution (PPR)
- Operating Voltage: 8–30 VDC
- Signal Output: HTL (High-Threshold Logic) via 1024 AK signal type
SIEMENS 1XP8022-10-1024 Rotary Encoder (1XP Series).
-
REQUEST A QUOTE
- Device Type: Incremental Rotary Encoder
- Resolution: 2048 pulses per revolution (PPR) (indicated by the "2048" suffix)
- Common Application: Direct integration with Siemens electric motors, drive systems, and motion control PLCs.
- Alternative: Available ready-to-ship from verified stock on SPW Industrial with automated return policy options.
SIEMENS 1XP8032-11-2048 Incremental Rotary Encoder (1XP Series).
-
REQUEST A QUOTE
- Signal & Resolution: RS-422 differential signal / Transistor-Transistor Logic (TTL) with 2,500 pulses per rotation (P/R).
- Electrical Data: 5V DC (±10%) operating voltage with a maximum operating current of 150 mA.
- Mechanical Interface: Synchro-flange design with a 6mm diameter plain, smooth solid shaft.
- Performance: Maximum operating speed of 12,000 RPM mechanically (7,200 RPM electrically) with a 300 kHz maximum frequency response.
- Connection: Pre-wired with a 1-meter universal cable providing a flexible axial or radial outlet terminated with a connector.
- Environmental Rating: Enclosure protected at IP67 overall (IP64 at the shaft input).
SIEMENS 6FX2001-2CC50 Incremental Rotary Encoder (6FX2001).
-
REQUEST A QUOTE
- Resolution: 1,024 pulses per revolution (PPR)
- Signal Level / Interface: TTL (RS 422)
- Operating Voltage: DC 5 V (± 10%)
- Mechanical Connection: Synchro-flange with a 6mm solid shaft
- Electrical Connection: Radial flange connector / socket
- Current Consumption: Max. 150 mA (without load)
- Direct Measuring: Mounts directly onto shafts, motors, or machine axes to ensure precise feedback loops with minimal calculation lag.
- Built-in Safety: Features built-in LED failure monitoring paired with a high-impedance driver to safeguard system operations.
- Industrial Compliance: Built with a robust housing compliant with CE, cULus, and EM-Directive standards for high noise immunity.
SIEMENS 6FX2001-2EB02 Incremental Rotary Encoder (6FX2001).
-
REQUEST A QUOTE

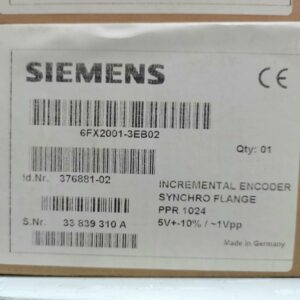

- Manufacturer: SIEMENS
- Model / Part Number: 6FX2001-3EB02
- Signal Type: Sinusoidal 1 Vpp (1-V-SINUS)
- Resolution: 1,024 pulses/signals per revolution (P/R)
- Electrical Connection: Radial flange connector
- Operating Voltage: DC 5 V (± 10%)
- Current Consumption: Max. 150 mA without load
- Max Cable Length: Up to 150 meters to downstream electronics
- Net Weight: 0.433 kg
SIEMENS 6FX2001-3EB02: Signal Type Sinusoidal 1 Vpp (1-V-SINUS); Resolution 1,024 pulses/signals per revolution (P/R); Electrical Connection Radial flange connector; Operating Voltage DC 5 V (± 10%).
-
REQUEST A QUOTE
- Model Type: Smartsyn Brushless Pancake Resolver (FA-Solver)
- Frame Size: Size 15
- Shaft Type: Hollow Shaft (10 mm diameter)
- Electrical Cycles: 1-Turn (Single speed)
- Maximum Input: 10 V Max / 7 V Nominal
- Frequency: 4 kHz
- Max Rotation Speed: 8,000 rpm
- Temperature Range: -30 °C to +155 °C
- Connection Type: Integrated Cable
TAMAGAWA TS2650N11E78 Resolver (Smartsyn).
-
REQUEST A QUOTE
Technical Specifications
- Product Type: Brushless Resolver / BRT Encoder (Hollow Shaft)
- Input Voltage: AC 10Vo-p at 4kHz
- Function: 1X-BRT
- Primary Element: Stator
- Operating Temperature Range: -10°C to +120°C
- Insulation Resistance: 10MΩ Minimum
- Weight: 0.30 Kg
- Cnc-shopping: Offers the resolver in brand-new condition, frequently used for direct machine-tool replacement parts.
TAMAGAWA TS2651N141E78 Rotary Resolver (Smartsyn).
-
REQUEST A QUOTE
- Resolution: Usually 1024 pulses per revolution (PPR) for the OIH48-1024 variant (note: magnetic wheel sub-variants may scale down to 128 C/T).
- Supply Voltage: DC +5V.
- Output Phase: A, B, and Z phases.
- Sensing Technology: Optical electromechanical sensing.
- Termination: Attached shielded cable.
TAMAGAWA TS5208N500 Rotary Encoder (Tamagawa).
-
REQUEST A QUOTE
- Manufacturer: Tamagawa Seiki Co., Ltd.
- Model / Part Number: TS5720N8406
- Encoder Type: Absolute Rotary Encoder (Multi-Turn / Single-Turn compatible)
- Resolution: 23-bit maximum (High resolution, serial data feedback)
- Supply Voltage: 5 VDC (standard system operating power)
- Output Communications: Serial Data / Bus-capable line driver interface (Tamagawa Serial Protocol)
- Physical Construction: Compact 35mm to 48mm housing format depending on application-specific flange mounts
- Common Application: Integrated feedback mechanism inside modern AC servo motors
- Reduced Wiring Count: Utilizes efficient high-speed serial communications, minimizing the bundle down to just 4 to 6 core output wires rather than parallel arrays.
- Absolute Angular Tracking: Retains position memory even during system power outages, mitigating the need to re-home axes upon restarts.
- Industrial Durability: Shielded electromechanical design built to withstand extreme electrical noise and high operational vibrations typical of factory automation settings.
Tamagawa TS5720N8406 Absolute Servo Encoder (FA-CODER Series).
-
- Manufacturer: TR ELECTRONIC
- Model / Part Number: CMV582M-00009
- Encoder Type: Absolute Rotary Encoder
- Housing Size: 58 mm diameter housing (a standard compact size for industrial machinery)
- Shaft Type: Solid shaft (V-type)
- Scanning Type: Magnetic sensing system
- Resolution: Up to 13-bit for single-turn tracking, capable of recording up to 8,192,000 total steps across its full measurement range.
-
REQUEST A QUOTE
- Part / Article Number: CMV582M-00022
- Resolution (Singleturn / Multiturn): 8192 / 4096 (13-bit singleturn resolution and 12-bit multiturn range)
- Communication Interface: PROFINET (EPN)
- Supply Voltage: 10–30 V DC
- Mechanical Design: Solid shaft with a 36mm centering collar and a 10mm shaft diameter featuring a flat face (36ZB10FL)
- Integration Standard: Supports standard Telegram 82 for seamless integration with PLC controllers like Siemens S7-1200 via PROFINET I/O networks
TR Electronic CMV582M-00022 Absolute Rotary Encoder (CMV582 Series).
-
REQUEST A QUOTE
- Manufacturer: TR Electronic
- Model / Part Number: CMV582M-00039
- Resolution: 4,096 steps per turn and up to 4,096 turns (12-bit multiturn)
- Scanning Method: Magnetic
- Communication Interface: SSI (Synchronous Serial Interface)
- Supply Voltage: 10–30 V DC
- Shaft: 10 mm solid shaft with flat (10FL)
- Housing: Salt-water-resistant aluminum
- Protection Rating: IP65
- Connection: Radial 12-pin M23 connector
TR Electronic CMV582M-00039 Encoder. Contact us for product information and quotation.
