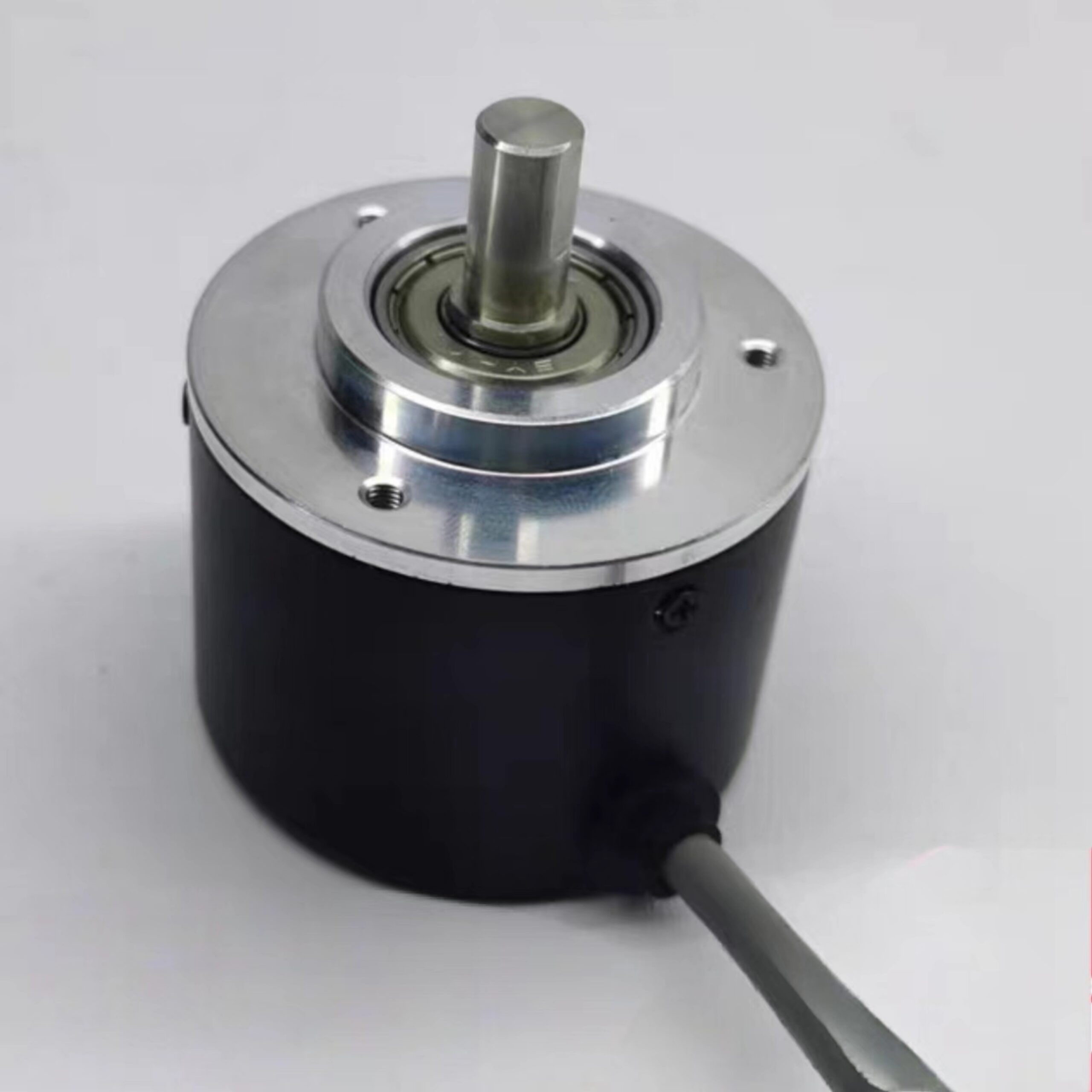

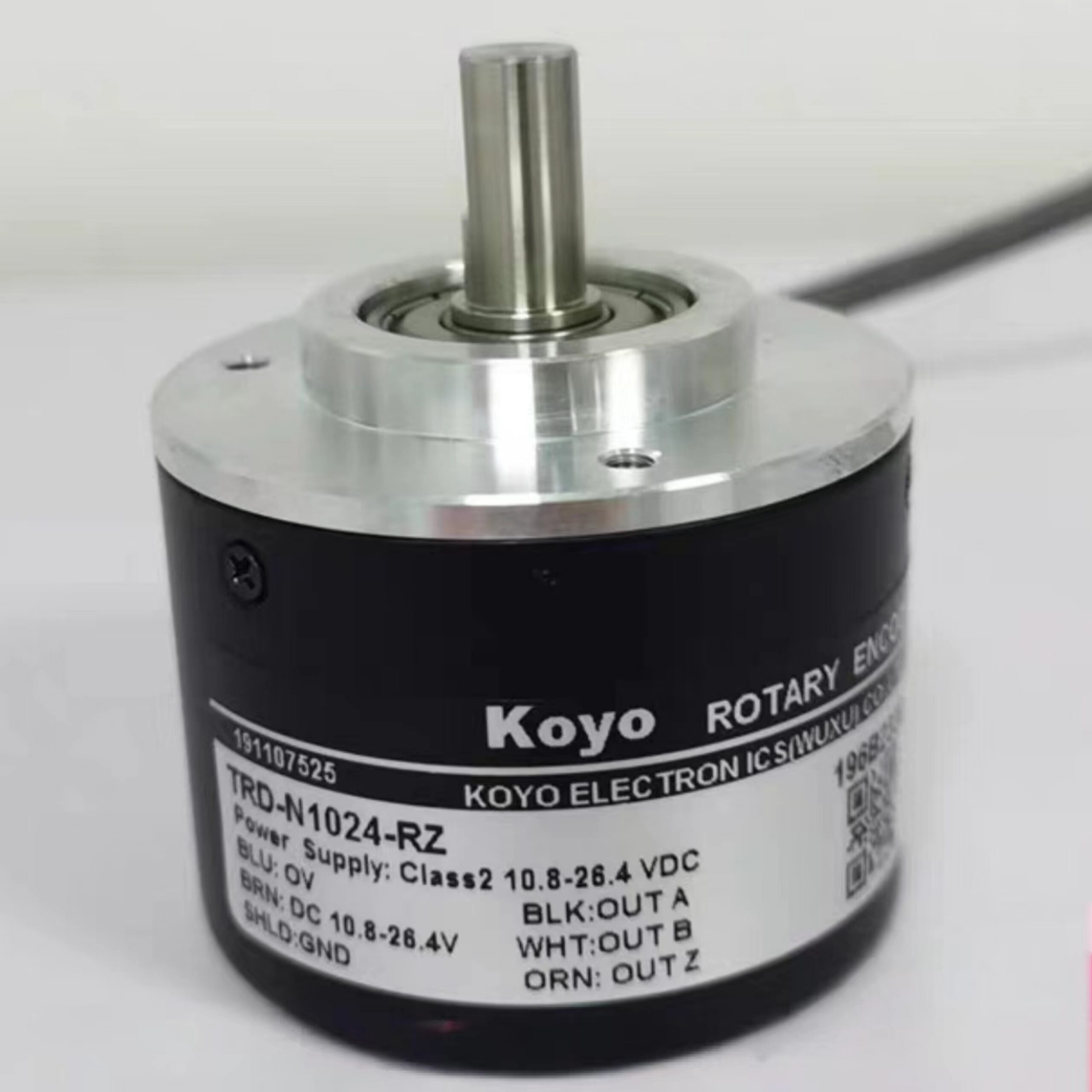

KOYO TRD-N1024-RZ Incremental Rotary Encoder
- Manufacturer: KOYO
- Model / Part Number: TRD-N1024-RZ
- Encoder Type: Incremental (Quadrature)
- Resolution: 1024 PPR (Pulses Per Revolution)
- Body Diameter: 50 mm
- Shaft Type: 8 mm Solid Shaft
- Operating Voltage: 5 to 30 VDC
- Output Type: Push-Pull (Totem Pole)
- Max Frequency Response: Up to 200 kHz
- Ingress Protection: IP50 (Dust-proof) Note: "WD" variations feature IP65 splash protection.
- Brown: Power Supply ( +V )
- Blue: 0V (Common/Ground)
- Black: Signal Output A
- White: Signal Output B
- Orange: Signal Output Z (Index pulse)
- Shield: Ground/Floating
- SKU: TRD-N1024-RZ
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
