Showing 17–28 of 28 results
-
REQUEST A QUOTE
- Manufacturer/Brand: Pepperl+Fuchs Process Automation
- Part Number: KFD2-GUT-1.D (Item Number: 231224)
- Channels: 1 isolated channel
- Power Supply: 20 to 30 V DC (24 V DC nominal) via Power Rail or terminals
- Input Options: Thermocouples (with optional redundant TC input), RTDs, Potentiometers, or Voltages (-100 to 100 mV, 0 to 1 V, 0 to 10 V)
- Analog Output: 0/4 mA to 20 mA current output
- Switch Output: 2 relay contact outputs (trip values)
- Configuration: Programmable via PACTware software or using the integrated front-panel keypad and LED display
- Safety Integration: Up to SIL 2 safety integrity level according to IEC/EN 61508
- Fault Detection: Built-in line fault detection (LFD) and sensor burnout monitoring
PEPPERL+FUCHS KFD2-GUT-1.D Temperature Converter (KFD2).
-
- Manufacturer: PEPPERL+FUCHS
- Model / Part Number: KFD2-STC4-Ex1.2O
- Intrinsic Safety: It acts as a safety barrier.
- Signal Splitting: It takes 1 input from the hazardous area and splits it into 2 separate outputs in the safe area.
- Power Supply: It supplies power to field devices like 2-wire or 3-wire SMART transmitters.
- Two-Way Communication: It transfers regular 4–20 mA analog signals.
- Channels: 1-channel input.
- Input Signal: 0/4 mA to 20 mA.
- Dual Output: Two separate 0/4 mA to 20 mA signals.
- Safety Rating: Up to SIL 3 (Safety Integrity Level) according to IEC/EN 61508.
- Connection: Terminal blocks built with special test sockets for easy troubleshooting.
-

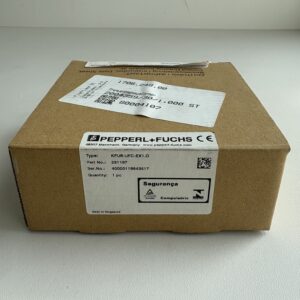

- Manufacturer: Pepperl+Fuchs
- Model / Part Number: KFU8-UFC-EX1.D
- Input: It reads digital input signals from NAMUR sensors or simple mechanical switches (dry contacts). It can handle a wide frequency range from 1 mHz all the way up to 5 kHz.
- Output: It provides a standard analog current output of 0/4 mA to 20 mA. It also features two relay outputs and one transistor output to trigger alarms or shut down machines.
- Power Supply: It has a universal power pack, meaning it can run on multiple kinds of electricity (20–90 V DC or 48–253 V AC).
- Setup: You can easily program it by using the physical buttons and small screen on the front panel, or by plugging it into a computer using PACTware configuration software.
- Installation: It snaps directly onto a standard 35 mm DIN mounting rail inside an electrical control panel.
-
REQUEST A QUOTE
- Sensor Style: Miniature block design with full metal thread mounting.
- Detection Range: Up to 10 meters.
- Light Source: Visible red LED (highly visible light spot for easy alignment).
- Operating Voltage: 10–30 VDC.
- Output Type: NPN (Single output, Light ON/Dark ON selectable).
- Switching Frequency: 1,000 Hz.
- Connection Type: 2-meter fixed cable.
- Ingress Protection: IP67 rated (highly resistant to dust and water).
- Adjustments: Features a sensitivity adjuster and emitter switch-off capabilities.
PEPPERL+FUCHS M100-MV100-RT-76B-102-115 Thru-Beam Photoelectric Sensor (M100).
-
REQUEST A QUOTE
- Detection Range: 0 to 5 meters (7 m threshold range)
- Light Source: Modulated visible red LED
- Operating Voltage: 10 to 30 V DC
- Signal Output: 1 PNP output, open collector
- Switching Type: Light-ON / Dark-ON adjustable switch
- Switching Frequency: Max. 1 kHz
- Response Time: 0.5 ms
- Connection Type: M8 x 1 connector, 4-pin
- Protection Degree: IP67
- Housing Material: Polycarbonate (PC) housing, PMMA optical face
PEPPERL+FUCHS ML100-55-95-103 Retroreflective Photoelectric Sensor (ML100).
-
REQUEST A QUOTE
- Sensing Distance: 10 mm rated operating distance with a flush (shielded) mounting profile.
- Output Configuration: 3-wire DC, NPN, Normally Open (N.O.) switching function.
- Housing Size: M30 x 1.5 thread diameter with a short 50 mm body length.
- Operating Voltage: Extended DC voltage range (typically 5 to 36 V DC or 10 to 30 V DC depending on the sub-variant revision).
- Environmental Resistance: IP67 environmental protection rating with an extended operating temperature range of -40°C to +85°C (-40°F to +185°F).
- Material: Built with a nickel-plated brass or stainless steel metal housing and a rugged PBT sensing face.
PEPPERL+FUCHS NBB10-30GM50-E0 Inductive Proximity Sensor (NBB Series).
-
REQUEST A QUOTE
- Sensing Range: 5 mm nominal detection distance.
- Installation: Flush mounting (shielded), allowing it to be embedded directly into metal housing without false triggering.
- Output Type: PNP, complementary (meaning it features both Normally Open [NO] and Normally Closed [NC] outputs).
- Operating Voltage: 10 to 30 V DC.
- Housing Diameter: M18 threaded cylindrical barrel (18 mm outer diameter).
- Housing Length: 60 mm metal body length.
- Termination: V1 connector, which corresponds to a standard M12 4-pin male quick-disconnect plug.
- Switching Frequency: 0 to 800 Hz.
Pepperl+Fuchs NBB5-18GM60-A2-V1 Cylindrical Inductive Proximity Sensor (NBB5 Series).
-

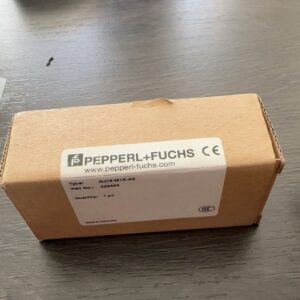

- Brand: Pepperl+Fuchs
- Model: NJ15-M1K-A2
- Series: NJ
- Part number: 222494
- Nominal sensing distance: 15 mm
- Installation: Non-flush
- Output: PNP complementary, 4-wire
- Operating voltage: 10–60 V DC
- Switching frequency: 0–200 Hz
- Operating current: 200 mA maximum
- Voltage drop: 2.5 V or less
- No-load current: 14.5 mA or less
- Connection: Screw terminals
- Housing: PBT
- Dimensions: 30 × 30 × 91 mm
- Protection: IP67
- Ambient temperature: -25 to +70 °C
-
REQUEST A QUOTE
- Series: PVM58 (Absolute multiturn encoder)
- Resolution: 25 bits total (13 bits single-turn + 12 bits multi-turn tracking)
- Interface: PROFIBUS
- Supply Voltage: 10 – 30 V DC
- Output Code: Binary Code
- Housing: 58 mm diameter aluminum casing
- Mechanical Connection: Clamping flange with a 10 mm solid stainless steel shaft
- Advanced Features: Programmable limit switches, extended scaling functions, speed transfer capabilities, and a dedicated commissioning mode.
PEPPERL+FUCHS PVM58N-011AGROBN-1213 Absolute Rotary Encoder (PVM58N).
-
REQUEST A QUOTE
- Operating Voltage: 4.75 V DC to 30 V DC
- Detection Type: Photoelectric sampling
- Max Output Frequency: 160 kHz
- Rotational Speed: Max 10,000 min⁻¹
- Protection Degree: IP50 rated
- Housing Material: Powder-coated aluminum (with a stainless steel shaft)
- Weight: Approx. 220g (0.22 kg)
PEPPERL+FUCHS RVI50N-09BK0A3TN-01000 Incremental Rotary Encoder (RVI50N).
-
REQUEST A QUOTE
- Design Feature: Tangential cable outlet with a compact footprint
- Resolution: 1024 ppr (from model designation 01024)
- Manufacturer: Pepperl+Fuchs
PEPPERL+FUCHS TSI40N-27AK0T6TN-01024 Incremental Rotary Encoder (TSI40N).
-
REQUEST A QUOTE
- Sensing Range: 80 mm to 2,000 mm
- Output Type: PNP, switchable Normally Open (NO) / Normally Closed (NC)
- Connection: 5-pin M12 x 1 connector
- Operating Voltage: 10 to 30 V DC
- Switching Frequency: 3.3 Hz
- Environmental Rating: IP65
- Key Features: Integrated temperature compensation, 5 configurable output functions, synchronization capabilities to prevent cross-talk, and high insensitivity to compressed air.
PEPPERL+FUCHS UB2000-30GM-E5-V15 Ultrasonic Proximity Sensor (UB2000).
