Pepperl+Fuchs NJ15-M1K-A2 Inductive Proximity Sensor

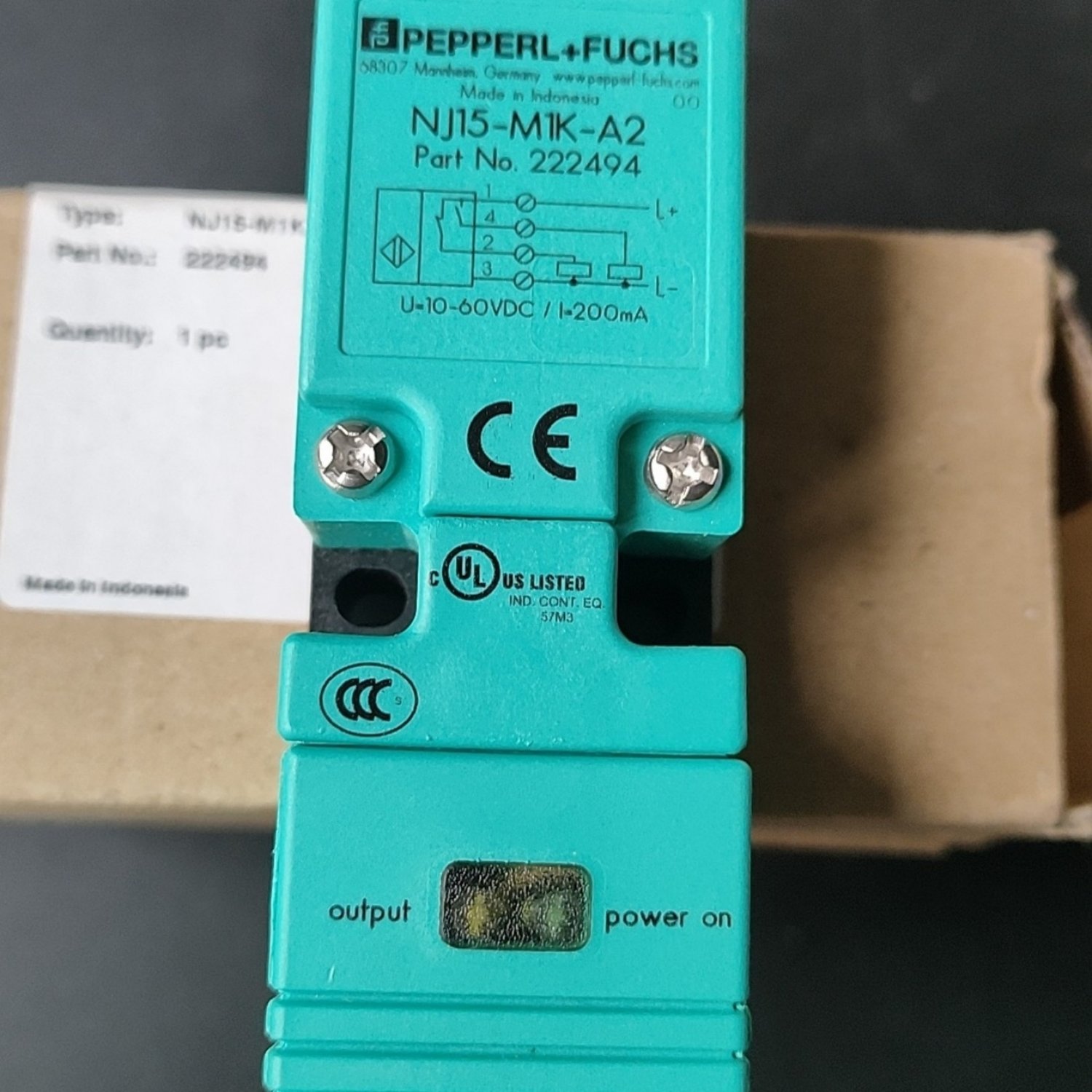

Pepperl+Fuchs NJ15-M1K-A2 Inductive Proximity Sensor - Image 2

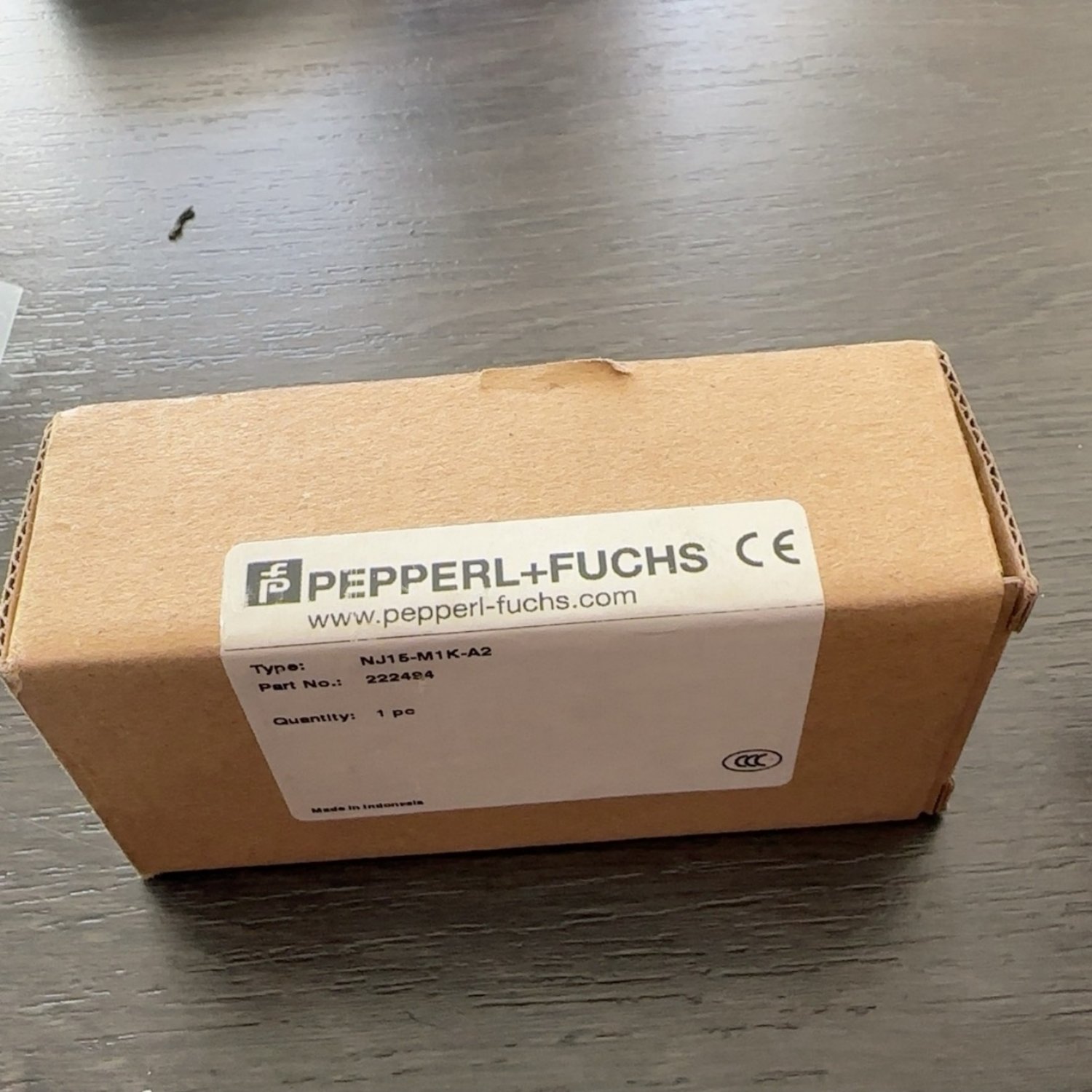

Pepperl+Fuchs NJ15-M1K-A2 Inductive Proximity Sensor

  • Brand: Pepperl+Fuchs
  • Model: NJ15-M1K-A2
  • Series: NJ
  • Part number: 222494
  • Nominal sensing distance: 15 mm
  • Installation: Non-flush
  • Output: PNP complementary, 4-wire
  • Operating voltage: 10–60 V DC
  • Switching frequency: 0–200 Hz
  • Operating current: 200 mA maximum
  • Voltage drop: 2.5 V or less
  • No-load current: 14.5 mA or less
  • Connection: Screw terminals
  • Housing: PBT
  • Dimensions: 30 × 30 × 91 mm
  • Protection: IP67
  • Ambient temperature: -25 to +70 °C
  • SKU: NJ15-M1K-A2
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
  • Extensive experience in industrial automation.
  • We source hard-to-find or discontinued parts.
  • Network of international manufacturers and distributors.
  • Personalized support for urgent requirements.
