- Input Channels: 16 Digital Inputs
- Logic Type: NPN (Note: The PNP logic version is variant XWT-ID16-1)
- Input Current: 6 mA
- Process Side Connection: Screw terminal blocks
- Mounting Style: DIN Rail
- Compatibility: Mounts directly to OMRON digital I/O slaves like the CRT1-ID16(-1) or CRT1-OD16(-1).
OMRON XWT-ID16 Digital Input Module (XWT).
-
REQUEST A QUOTE
- Core Function: Designed for automated, high-efficiency continuous shearing or workpiece cutting when integrated into manufacturing lines or robotic end-of-arm tooling (EOAT).
- Cutting Capability: Features a soft material cutting capacity of 1.5 mm x 15 mm (such as tape, film, paper, or soft plastics like PP, PE, PS, PVC) and an intricate/hard material cutting capacity of 0.5 mm x 15 mm.
- Operating Pressure: Typically functions within a 0.4 to 0.6 MPa (4–6 kg/cm²) air pressure range.
- Form Factor: Features a compact, square-body configuration with 4 integrated mounting holes built specifically for seamless mechanical installation and rigid fixed positioning.
- Blade Structure: Built with an "interlocking/wrong knife" embedded screw sleeve structure optimized specifically for clean, flush sheet cutting without blade deviation.
- Features: * AM-10 pneumatic shear is suitable for cutting paper, tape, film, hose, thin iron sheet, thin copper sheet, soft cuttin…
OPT AM-10-100S Pneumatic Air Scissor (AM Series).
-
REQUEST A QUOTE
- Sensor Type: Polarized Retro-reflective (excellent for shiny objects or glass)
- Sensing Range: 2.5 meters
- Control Output: NPN open collector, 100mA Max / 30V DC
- Operation Mode: Light ON / Dark ON (selectable via switch)
- Response Time: 0.7 milliseconds Max
- Light Source: Red LED
- Supply Voltage: 10 to 30 V DC (including 10% ripple)
- Power Consumption: 30mA Max
- Indicators: Single indicator LED
- Connection Type: 2-meter cable (Standard version) (Note: KR-250CN uses an M8 connector)
- Housing Material: Rugged ABS case, Polycarbonate lens, and SUS304 Stainless Steel outer cover.
- Noise Immunity: Internal circuitry designed in accordance with strict VDE standards.
- Temperature: -25°C to 55°C (-13°F to 131°F)
- Humidity: 35% to 85% RH
- Ambient Illuminance: Sunlight: 20,000 lux max / Incandescent lamp: 4,000 lux max.
- Vibration Resistance: 10 to 55 Hz (amplitude 1.5mm) on X-Y-Z axes for 2 hours.
- Conformity: JIS, UL, CE, VDE.
- SPECIFICATIONS: * Sensor Type: Retro-reflection with polarizing filter. * Cable Type NPN. * Sensing range: 2.5m. * Light source: R…
OPTEX KR-250N Retro-Reflective Photoelectric Sensor (KR Series).
-
REQUEST A QUOTE
- Output Power: 25 Watts (1/30 HP)
- Voltage & Power Supply: Single-Phase 200–230 VAC (50/60 Hz)
- Current Rating: 0.35 Amps
- Configuration: 4-Pole motor with a specialized pinion shaft
- Thermal Insulation Class: 120 (E)
- Operating Environment: -10°C to +50°C (non-freezing) with up to 85% non-condensing humidity
- Part Number: 4IK25RGN-C. Clear. Oriental Motor K Series Small AC Motor, electromagnetic brakes, standard environment, single phase…
Oriental Motor 4IK25RGN-C AC Speed Control Motor (World K Series).
-

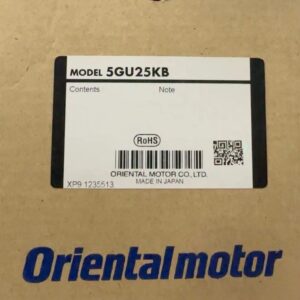

- Manufacturer: ORIENTAL MOTOR
- Model / Part Number: 5GU25KB
- Frame Size: 3.54 inches (90 mm)
- Gear Ratio: 25:1
- Output Shaft Diameter: 15 mm
- Shaft/Gear Type: Parallel Shaft
- Rotation Direction: Same direction as the motor shaft
- Weight (Mass): 3.1 lbs to 3.45 lbs (1.4 kg)
- Maximum Permissible Torque: Up to 20 N·m (depending on the paired motor)
- Permissible Axial Load: 150 N
- Keyway Width: 3/16 inch
- Keyway Length: 1 inch
-
REQUEST A QUOTE
- Output Power: 120 Watts (1/6 Horsepower)
- Frame Size: 3.54 in / 90 mm (Frame size 5)
- Shaft Type: Pinion Shaft (Requires a GFS type gearhead, sold separately)
- Ingress Protection: IP65 rated for dust and water resistance
- Electromagnetic Brake: Not equipped
- Safety Certifications: UL, CSA, and CE compliant
- Speed Stability: Offers excellent speed regulation and a flat torque curve across its entire speed range.
- Energy Efficient: Built with advanced brushless technology to minimize power consumption in a compact form factor.
- Expanded Settings: When combined with an optional OPX-2A control module or dedicated data setting software, you can unlock up to 8 distinct speed settings and custom torque limiting functions.
- A Gearhead: Choosable options include standard parallel shaft gearheads (e.g., GFS5G50) or space-saving hollow shaft flat gearheads (e.g., GFS5G30FR).
ORIENTAL MOTOR BLEM512-GFS Brushless DC Motor (BLE Series).
-
- Manufacturer: ORIENTAL MOTOR
- Model / Part Number: BMUD30-C2
- Rated Output: 30 W (1/25 HP)
- Input Voltage: Single-phase or three-phase 200–240 VAC
- Operator Interface: Display, setting dial, run/standby switch and direction switch
- Preset Speeds: Up to 4
-
REQUEST A QUOTE
- Dimensions / Size: 180 mm × 180 mm × 90 mm (7.09" × 7.09" × 3.54")
- Input Voltage: Single-Phase AC 200V / 220V / 230V
- Frequency: 50 / 60 Hz
- Current / Power: 0.4A (at 50 Hz) / 0.5A (at 60 Hz)
- Fan Speed: 2,850 RPM (50 Hz) / 3,350 RPM (230V, 60 Hz)
- Max Air Flow: 388 CFM (50 Hz) / 452 CFM (60 Hz)
- Noise Level: 56 dB(A) at 50 Hz / 61 dB(A) at 60 Hz
- Materials: Heavy-duty die-cast aluminum frame with polycarbonate blades
- Bearing Type: Dual precision ball bearings
- Connection Type: Terminal box
- Industrial Build: Designed with dual ball bearings and a robust aluminum housing to endure continuous duty cycles in harsh factory environments.
- High Static Pressure: Specifically engineered to clear heat pockets inside densely packed electrical cabinets or high-impedance machinery setups.
- OEM Custom Parts: For machine-specific integrations (e.g., Mazak parts catalogs), matching the exact model code MRS18-DUL ensures direct drop-in compatibility.
ORIX MRS18-DUL AC220/230V Single-Phase AC Axial Cooling Fan (MRS Series).
-
REQUEST A QUOTE
- Function: Special control elevator door inverter.
- Power Rating: 200V / 0.4KW.
- Origin: Manufactured in China.
- Interchangeability: Commonly acts as a direct interchangeable replacement model for older or failed AAD03011D and AAD03010 units.
- Smooth Motion Control: Regulates acceleration and deceleration for gentle, synchronized door movements and soft stops.
- Safety Integration: Features built-in parameters for immediate obstacle detection response (reversing doors if a passenger or object blocks them).
- Maintenance & Retrofitting: Widely used by maintenance depots as a universally compatible spare for multi-brand elevator systems utilizing Panasonic-sourced hardware, especially in low- to mid-rise buildings (≤10 floors).
- Online Parts Specialists: Available through specialized retailers like Echo Elevador Partes, which lists it as an original brand-new item.
PANASONIC AAD03011DK Elevator Door Inverter (Panasonic).
-
REQUEST A QUOTE
- Supply Voltage: 24V DC (operating range: 20.4V DC to 28.8V DC)
- Current Consumption: 170 mA
- Operating Temperature: 0°C to +55°C
- Momentary Power-Off Time: 4 ms (at 20.4V DC) to 10 ms (at 24V DC or higher)
- Program Capacity: Variable step options: 24k, 32k, 40k, or 64k steps (configurable via system registers)
- Memory Type: Built-in Flash ROM (no backup battery required)
- Instruction Set: ~120 basic instructions; ~270 high-level instructions
- Built-in I/O Points: 32 points total (16 inputs / 16 outputs)
- Digital Inputs: 16 points, 24V DC (Supports NPN or PNP configurations)
- Digital Outputs: 16 points, 24V DC Transistor, NPN type (300mA / 100mA max load)
PANASONIC AFP0HC32ET PLC CPU Unit (FP0H).
-
REQUEST A QUOTE
- Series: FP0H
- Supply Voltage: 24 V DC (Operating range: 20.4 to 28.8 V DC)
- Current Consumption: 140 mA or less
- Program Capacity: 32k steps built-in Flash ROM (no backup battery required)
- Memory Capacity: 32K words data memory
- I/O Expandability: Max. 384 points (Up to 7 expansion modules)
- Communication Interfaces: Built-in USB (Mini B) and RS-232C ports
- Connection Type: MIL connector (40-pin wiring termination)
- Net Weight: ~110 g
- Rated Input Voltage: 24 V DC
PANASONIC AFP0HC32T PLC CPU Unit (FP0H).
-
REQUEST A QUOTE
- I/O Capacity: 32 built-in I/O points (16 Digital Inputs and 16 Digital Outputs). It is expandable up to 128 total I/O points.
- Input Specifics: 24V DC Sink/Source inputs (includes 6 channels capable of 50kHz high-speed counting).
- Output Specifics: 24V DC Transistor NPN (Sink) outputs rated at 0.2A (includes 4 pulse outputs at 50kHz for axis control and 4 PWM channels).
- Memory Structure: 32k steps of program memory (with run-mode programming capabilities) and a 32k-word data memory capacity.
- Communication Ports: Built-in RS-232C serial communication port alongside a mini-USB programming interface.
- Physical Connection: Built-in MIL connector format for highly dense wiring layouts on a standard DIN rail mount.
- Programming Environment: Fully configurable through Control FPWIN Pro 7 programming software.
PANASONIC AFP0R-C32CT AFP0RC32CT PLC CPU Unit (FP0R).
-
REQUEST A QUOTE
- I/O Capacity: 14 Total Built-in I/O (8 Inputs / 6 Outputs)
- Input Type: 24V DC Digital (Supports both NPN/Sink and PNP/Source configurations)
- Output Type: Relay outputs (2 A max rating per channel)
- Supply Voltage: 24V DC
- Memory Capacity: 16k steps EEPROM program capacity
- Communication Ports: 1 x RS-232C COM Port, 1 x Mini-USB Tool Port
- Termination Type: Screw Terminal Block
- Mounting: Standard DIN Rail
- Software Compatibility: Programmed using FPWIN Pro 7
- High-Speed Processing: Equipped with built-in advanced functionalities, including support for independent high-speed counters and multi-axis pulse outputs.
PANASONIC AFP0RC14CRS FP0R-C14CRS PLC CPU Unit (FP0R).
-
REQUEST A QUOTE
- Total I/O Count: 14 built-in channels (expandable up to 110 I/O).
- Inputs: 8 points, supporting both NPN and PNP configurations.
- Outputs: 6 points, switching via durable mechanical Relay contacts.
- Program Memory: 16k steps capacity.
- Supply Voltage: 24V DC.
- Communication Ports: Built-in RS232C tool port and an independent Mini-USB interface for fast programming and troubleshooting.
- Physical Connections: Screw terminal blocks.
PANASONIC AFP0RC14RS FP0R-C14RS PLC CPU Unit (FP0R).
-
REQUEST A QUOTE
- Control Unit Type: FP0R-C14RS
- I/O Configuration: 14 I/O points total, consisting of 8 Inputs (24VDC, compatible with both NPN/PNP sink or source) and 6 Outputs (Relay contacts, 2A).
- Memory Capacity: 16k steps of program memory alongside a large data register allocation.
- Supply Voltage: 24V DC.
- Connectivity & Programming Ports: Features a built-in Mini USB port and an RS-232C port for tool programming and communication flexibility.
- Termination & Mounting: Uses standard screw terminal blocks for secure wiring and mounts directly onto a standard DIN rail.
PANASONIC AFP0RC14RS PLC CPU Unit (FP0R).
-
REQUEST A QUOTE
- Series Compatibility: Panasonic FP-X / FP-XH PLC Series
- Number of Channels: 1 Channel
- Interface Types: RS-485 or RS-422 (Selectable via hardware/software switches)
- Insulation Type: Fully insulated port (protects the PLC from voltage spikes and ground loops)
- Maximum Baud Rate: Up to 115 kbps
- Wiring Termination: M3 Screw terminals
- Mounting Type: Direct plug-in slot on the FP-X controller body
- Space-Saving Expansion: It mounts directly onto the front face of the PLC, preserving valuable control panel space.
- Multi-Drop Networking: Ideal for configuring Modbus-RTU, MEWTOCOL, or general-purpose serial communication networks to connect HMIs, variable frequency drives (VFDs), sensors, or other PLCs.
- Electrical Protection: Internal electrical insulation ensures stable communications in high-interference industrial environments.
PANASONIC AFPX-COM3 Communication Cassette (FP-X).
