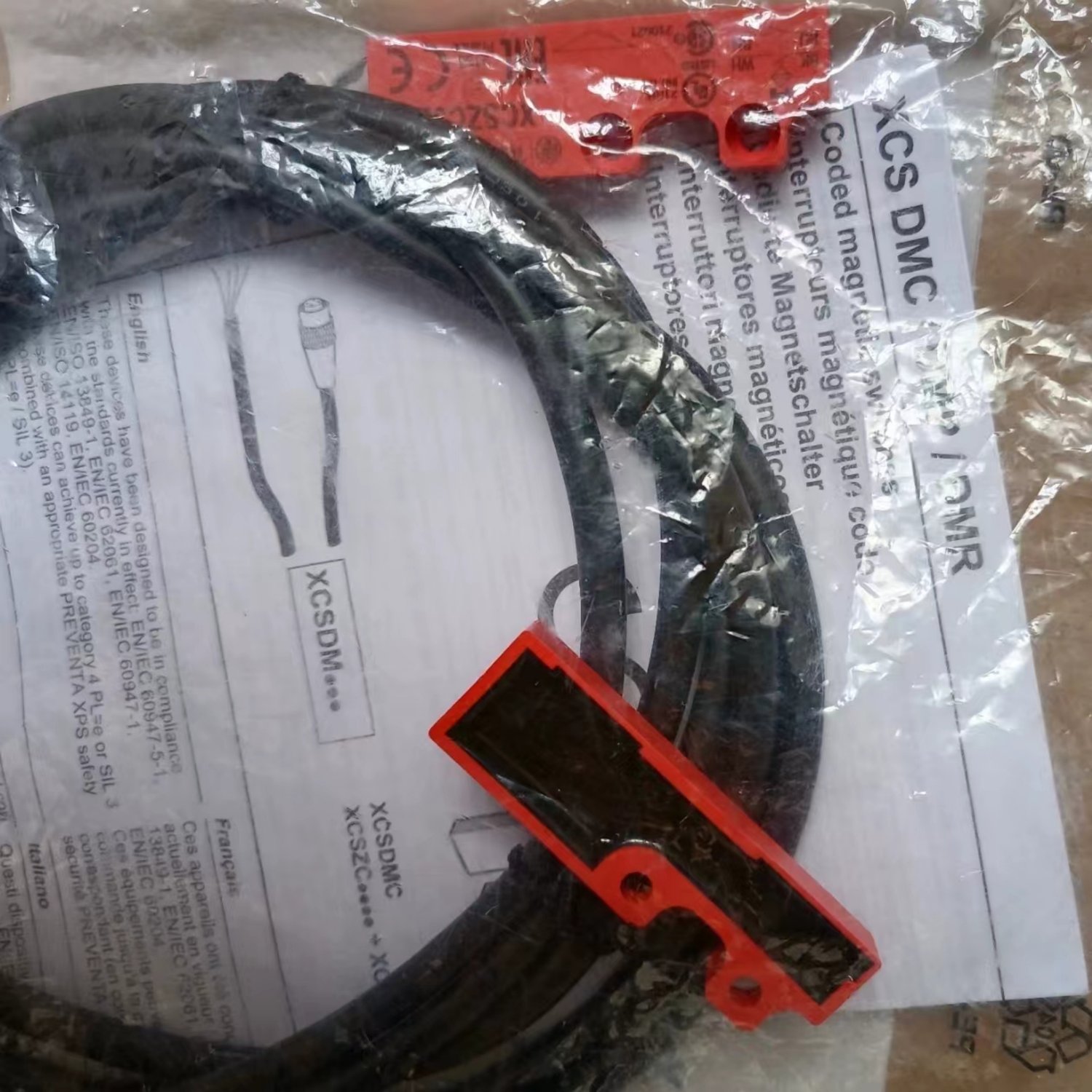

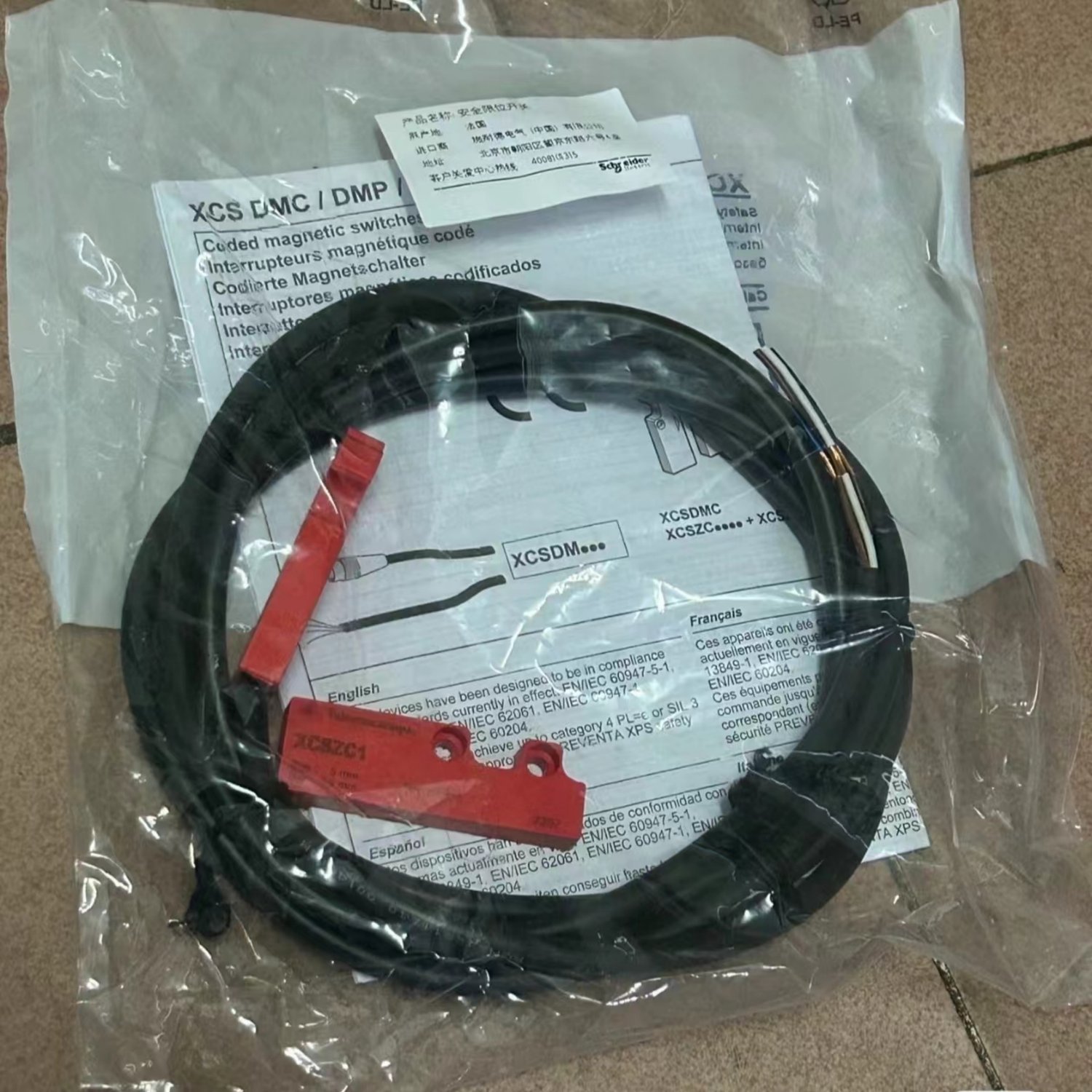

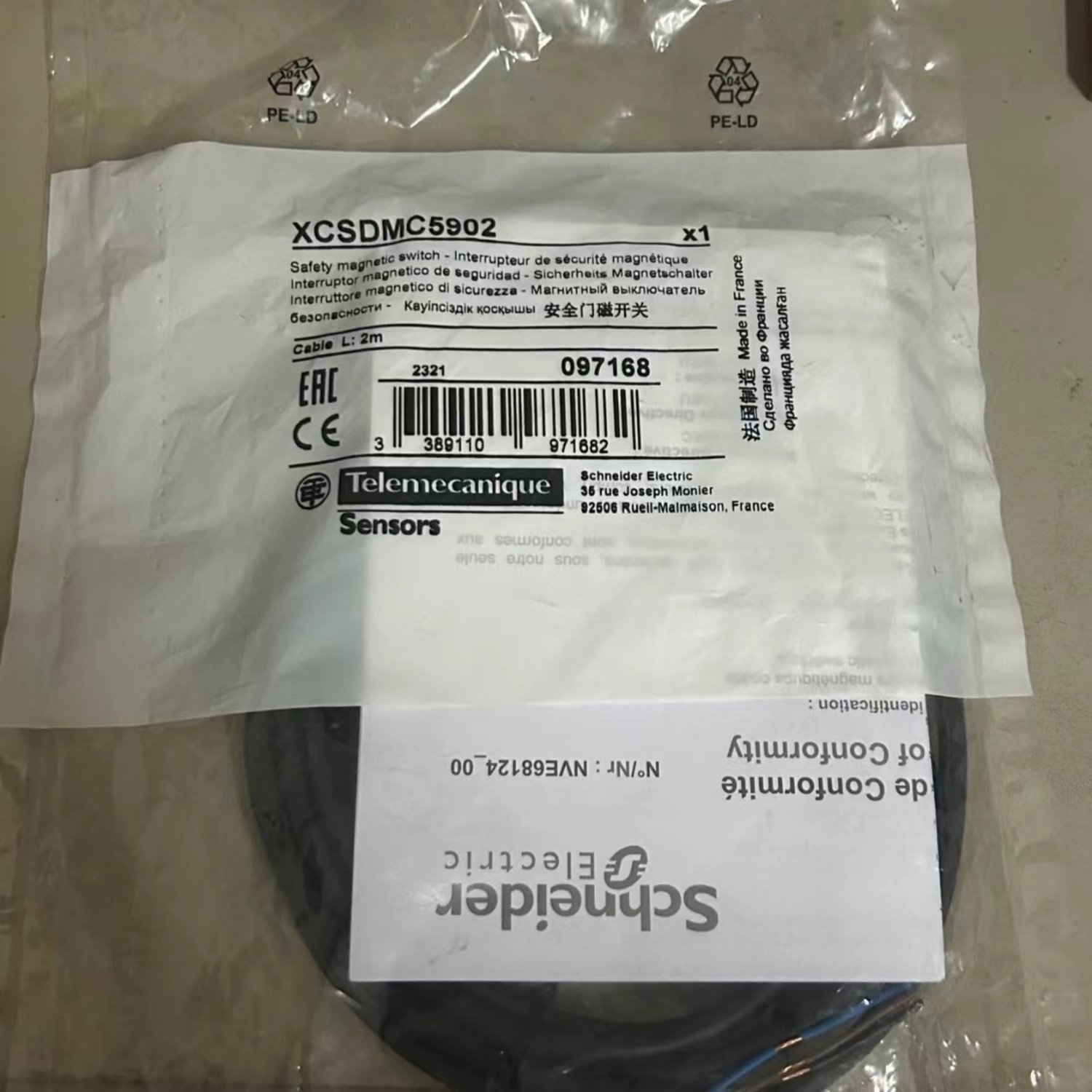

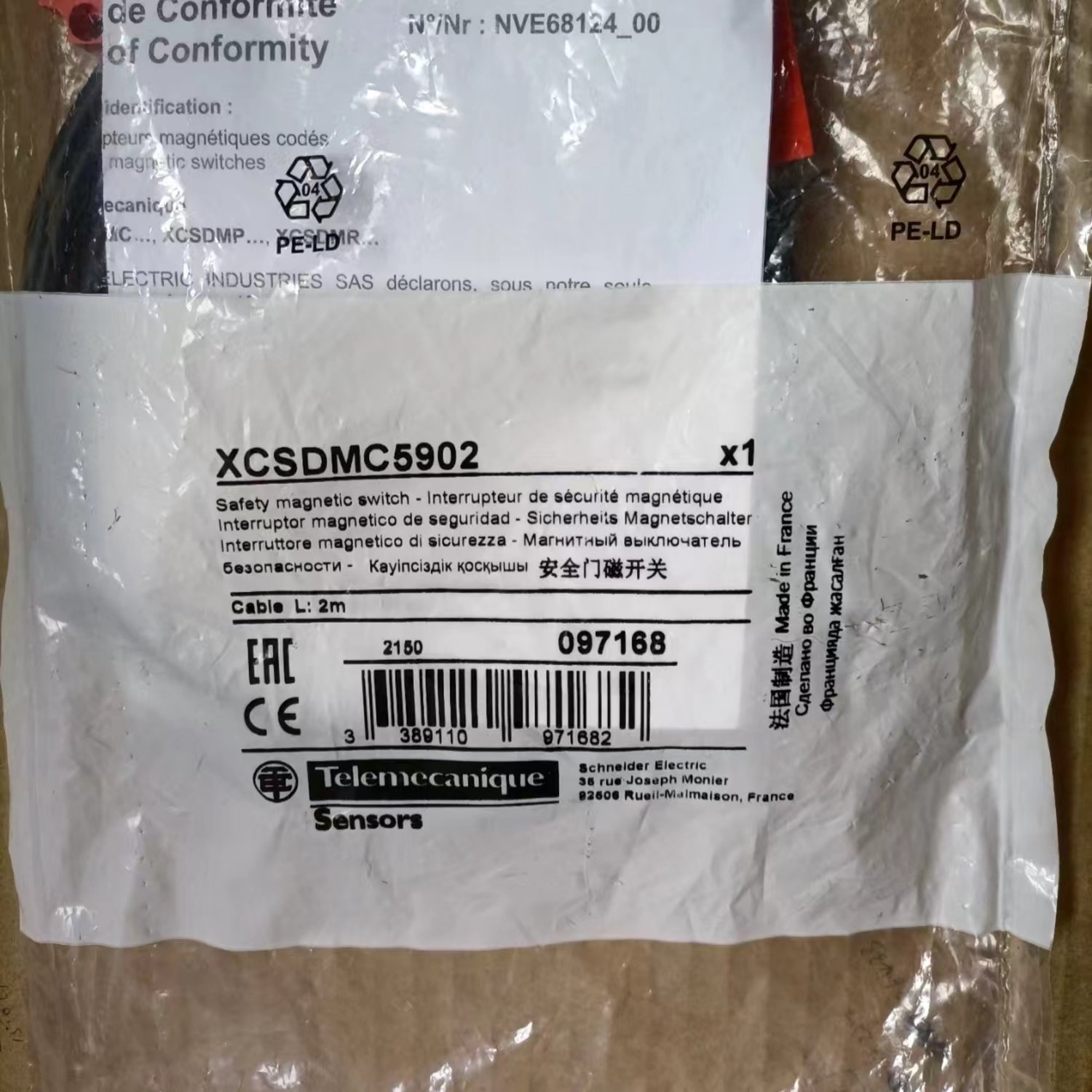

TELEMECANIQUE XCSDMC5902 Safety Interlock Switch (XCS Series)
- Contact Configuration: 1 NC + 1 NO (staggered contacts in the presence of a magnet).
- Operating Voltage & Current: 24 VDC rated operational voltage; 100 mA rated operational current.
- Connection Type: Pre-cabled with a 2-meter PVC cable (4 x 0.25 mm²).
- Dimensions: Ultra-compact housing measuring 51 x 16 x 7 mm.
- Environmental Protection: IP66 / IP67 rated, making it highly resilient against dust and water immersion—ideal for wet washdown areas like food and beverage applications.
- Operating Distances: Assured operating distance of 5mm; assured tripping distance of 15mm.
- Safety Ratings: Can achieve up to SIL 3 (IEC 61508) or PL = e / Category 4 (ISO 13849-1) when paired and wired correctly with an appropriate monitoring system.
- Additional Description: TELE-XCSDMC5902 SAFETY INTERLOCK 24VDC 100 MA T-XCS TYPE XCS + OPT. Catalog Description: This XCSDMC Coded…
Brand New TELEMECANIQUE XCSDMC5902 Safety Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: XCSDMC5902
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
